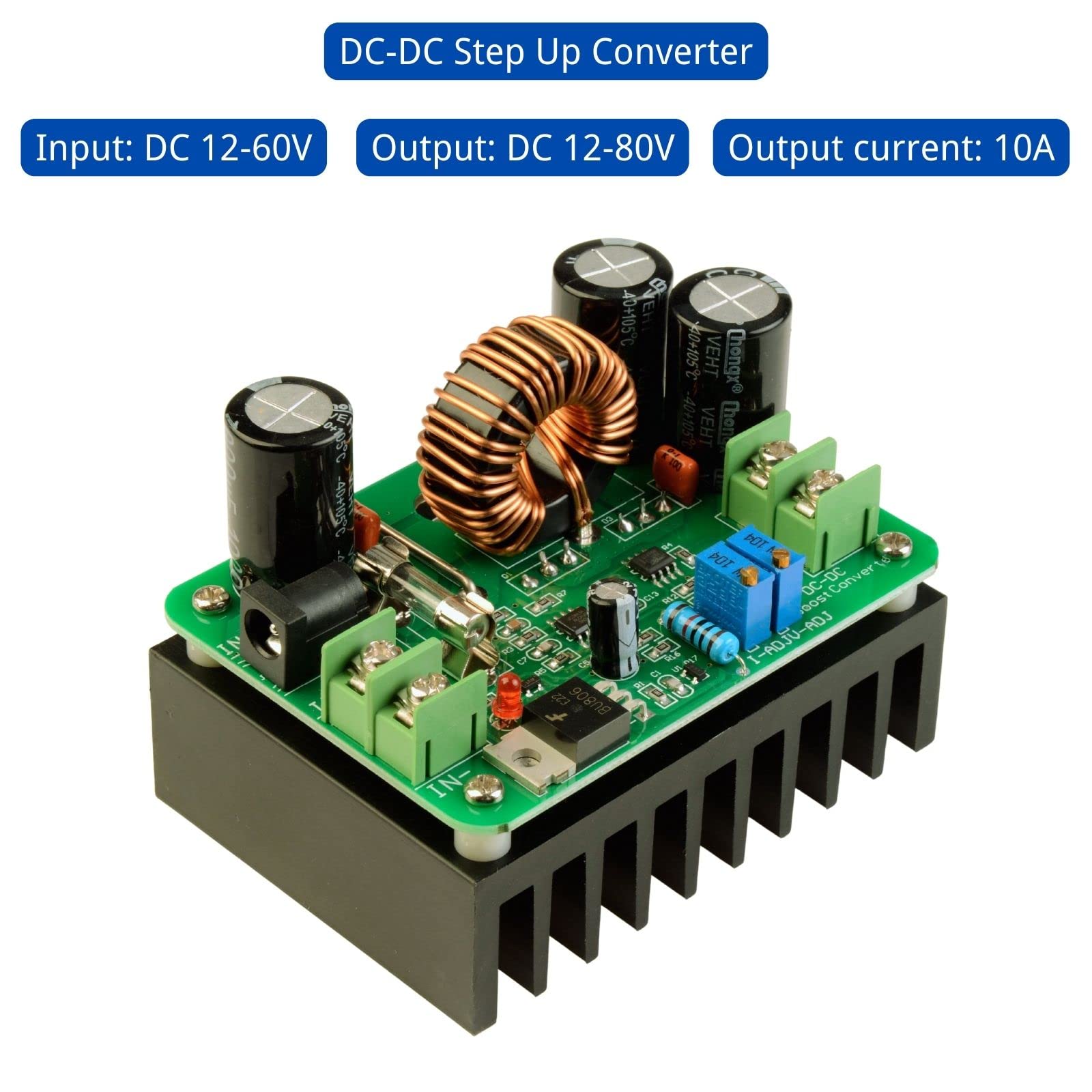

ANGEEK DC-DC Boost Converter 12-60V to 12-80V Step-up Voltage Regulator 600W 10A Auto Power Supply Transformer Adjustable Output Voltage

• DIY an output adjustable vehicle power supply, you only need access to 12V power input, the output voltage can be (12V-80V) continuously adjustable freely, but the output voltage can not be lower than the input voltage.
• Universal car laptop power supply. 12V power input connected to the output of the voltage regulator into a notebook need to work.
• Boost charger, you can use 12V power supply higher than 12V battery charging, for example, 24V battery, and the charging current can be adjusted
• Electronic equipment power supply, as long as the voltage regulator to the desired voltage and current does not exceed the rated current can all be working properly.

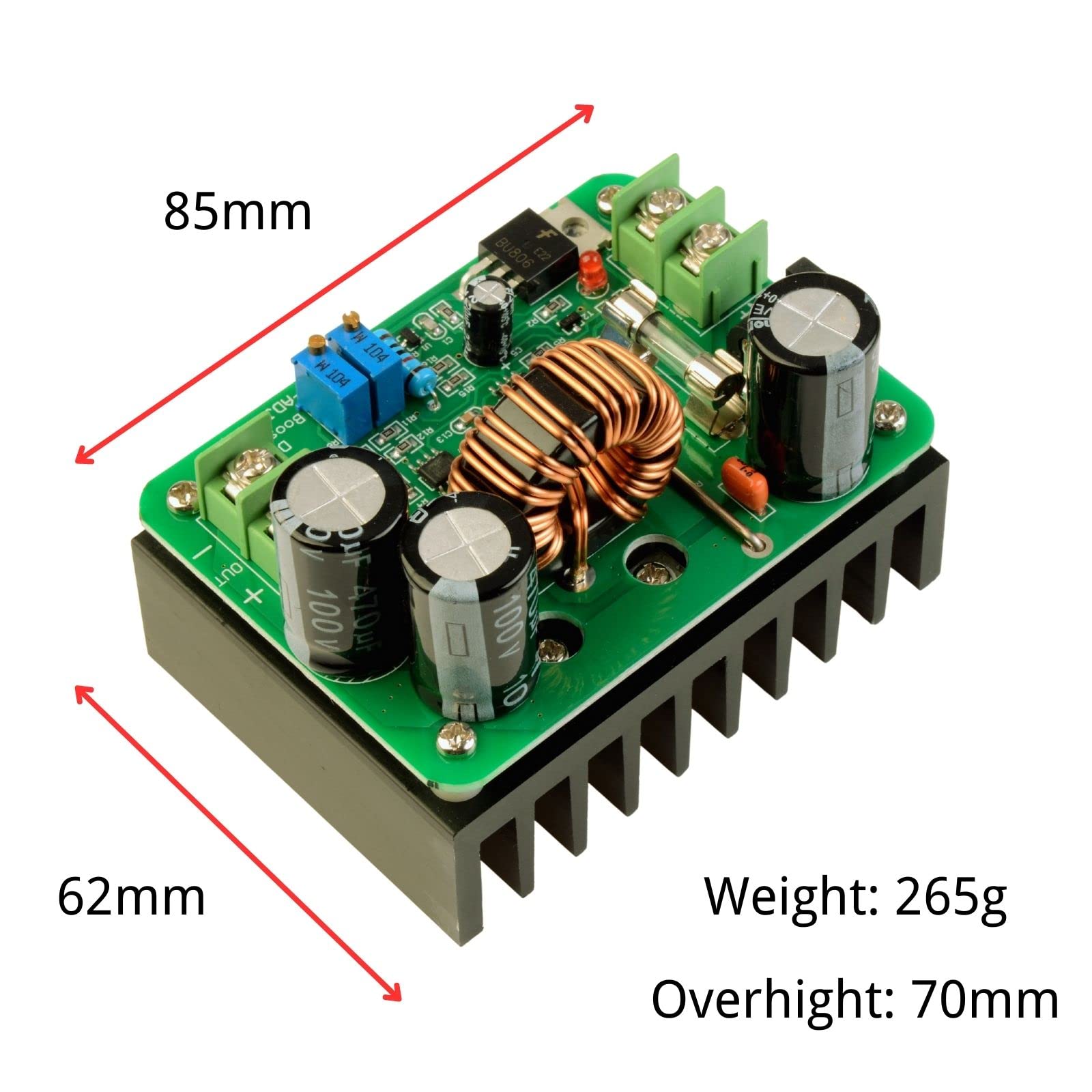

Specification: Module Properties: Step-up / Boost DC-DC Converter Input Voltage:DC 12 ~ 60 V Output Voltage:DC 12 ~ 80 V ( adjustable, O/p Voltage more than the I/p Voltage by 2V ) Output Current:10A Max Input Current: 15 A Max( Under normal circumstances please 12A Current ) The minimum voltage difference:2V Output Power: Output power: effective power P = input voltage V * 10A Conversion efficiency: Up to 95% (input voltage and current; output voltage and current affect the conversion efficiency) Short circuit protection: fuse Net Weight :270g Size: Ca. 85*62*60mm Color:Black& Green Package Included: 1 x Boost Converter Step-up Module
