ANGEEK 5 pieces Micro SD SPI Reader Module Memory TF Card Shield Module compatible with Arduino

• Fast data transmission: SPI interface is adopted to achieve fast and stable data transmission and improve work efficiency.

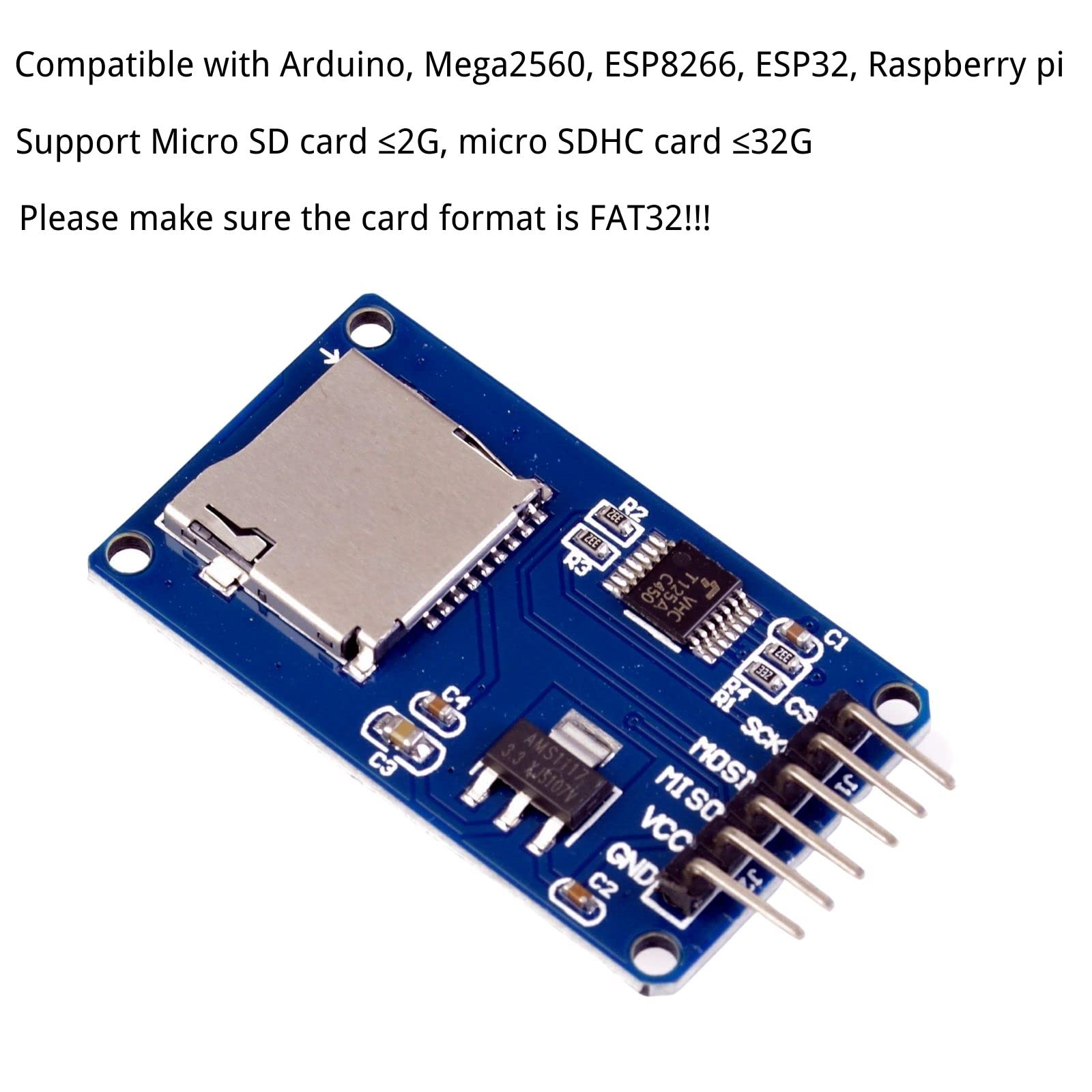

• Strong compatibility: support Micro SD card, Micro SDHC card, to meet the storage needs of a variety of projects

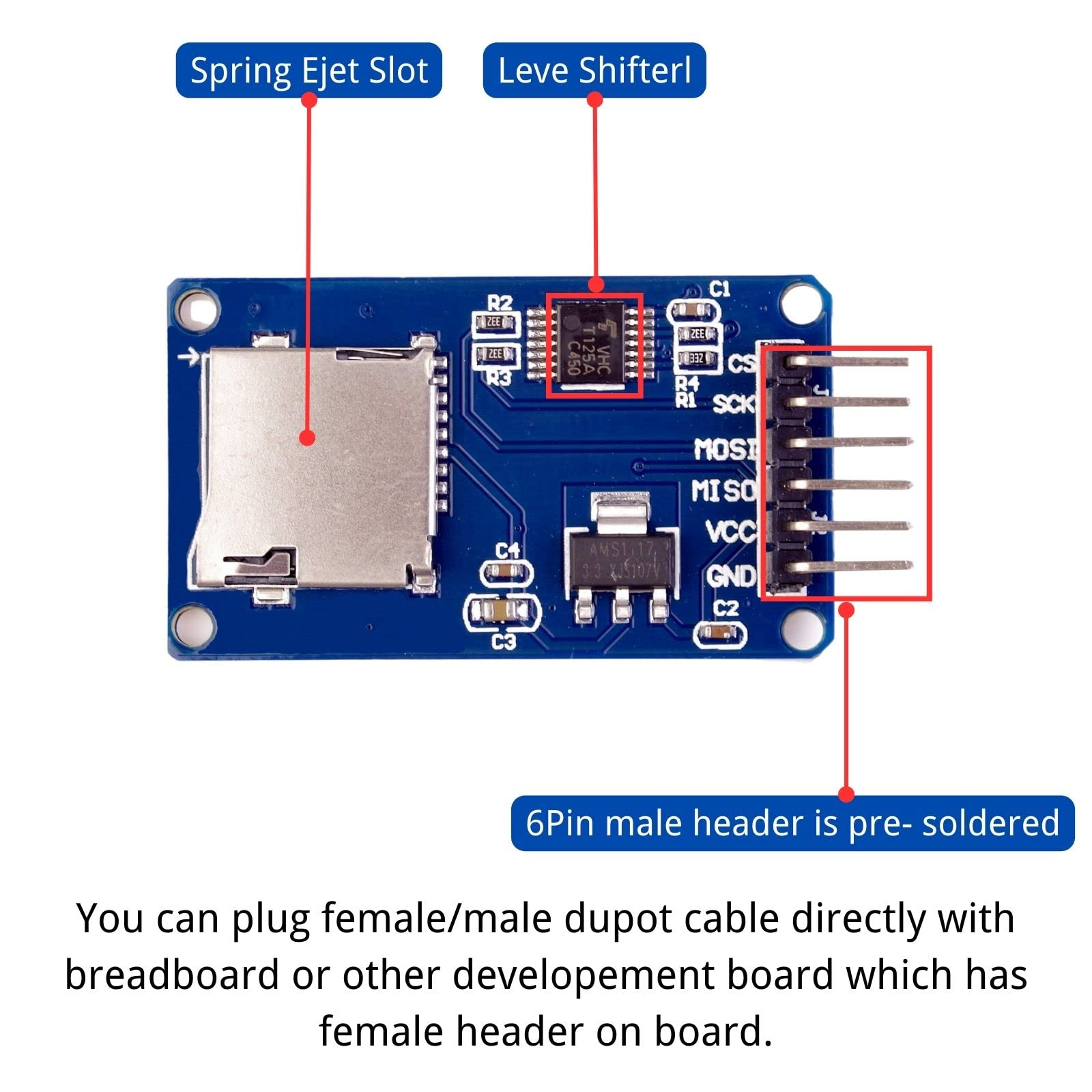

• On-board level conversion circuit, the interface level can be 5 V. The power supply voltage is 5 V, on-board 5 V regulator circuit. The communication interface is a standard SPI interface.
• Positioning holes: 4 M2 screw positioning holes with a diameter of 2.2mm, making it easy to install and position the modules to achieve the combination between modules
• Easy to operate: Detailed instructions are provided, easy to understand, even for beginners.

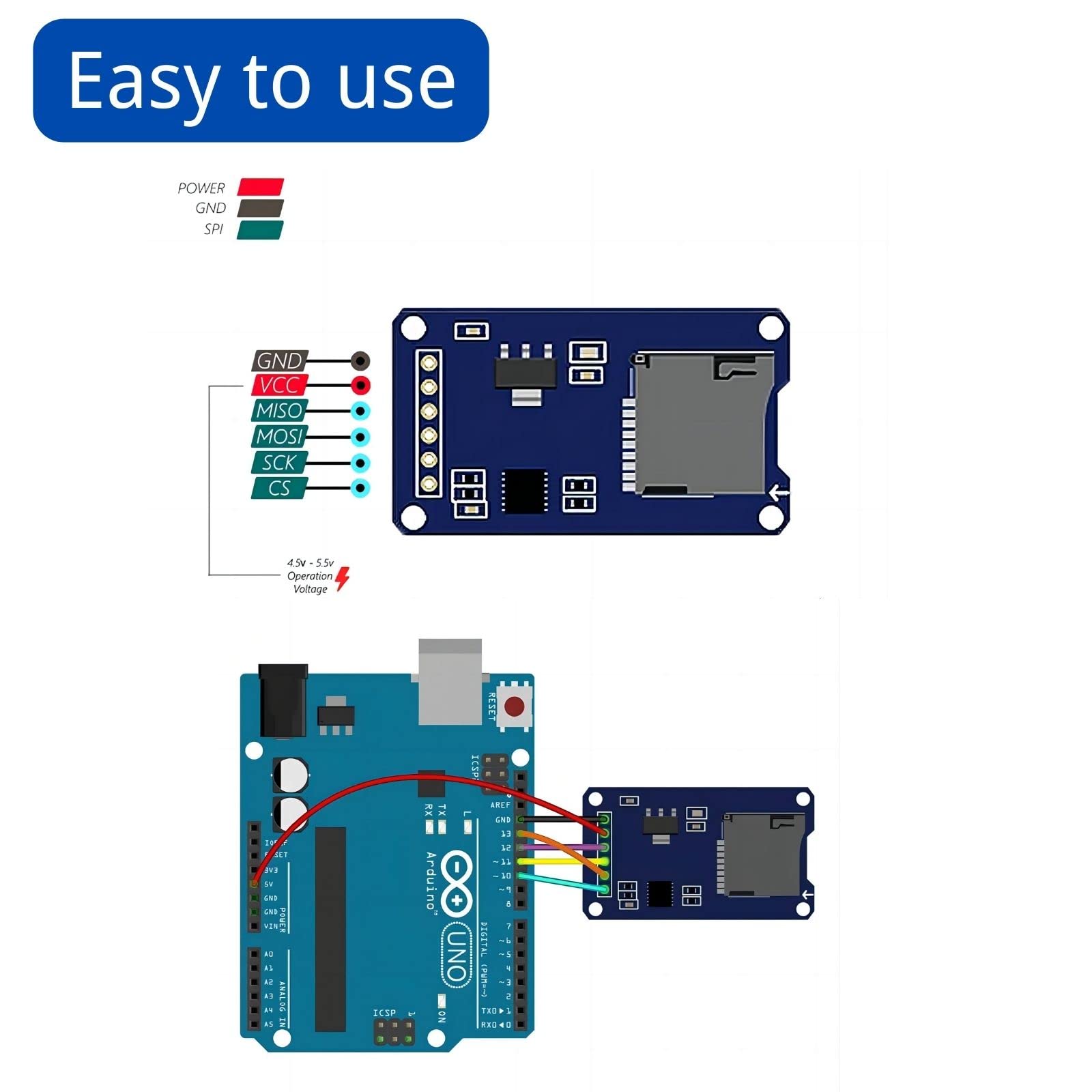

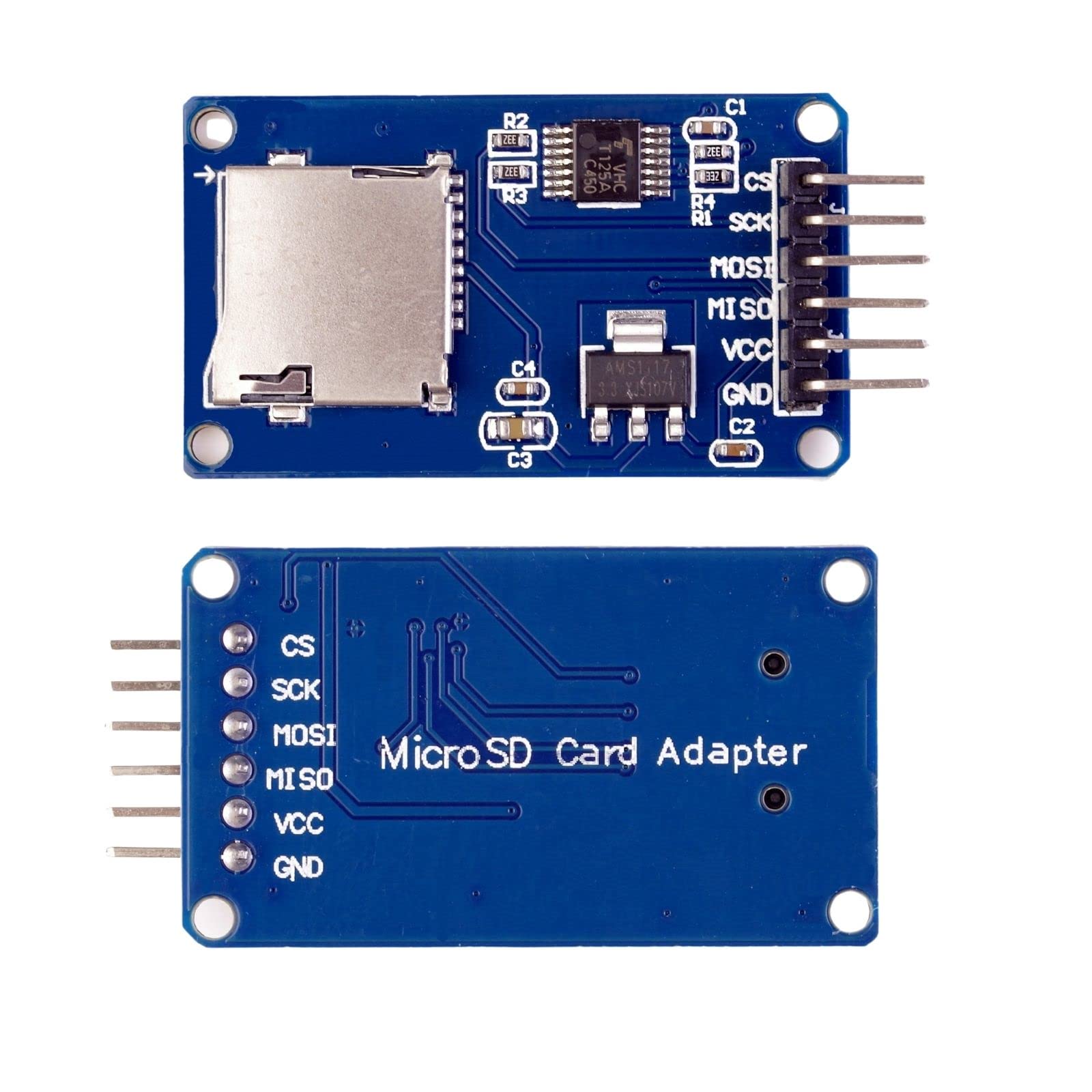

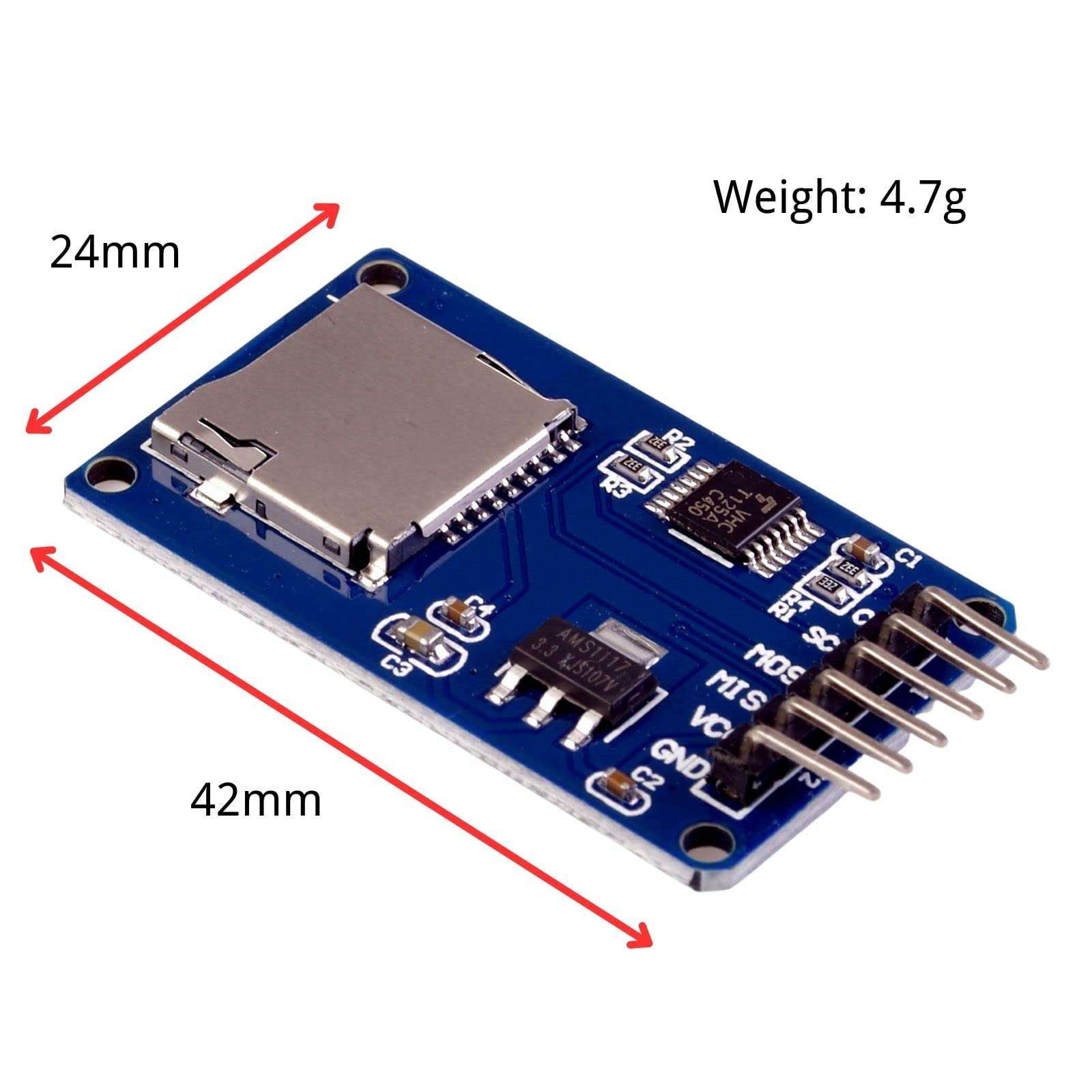

Synopsis: This Micro SD card is used for data transfer with standard SD cards. The pinout is directly compatible with Arduino and can also be used with other microcontrollers. It allows us to add mass storage and data logging capabilities to our projects. Features: Input Voltage: 3.3V/5V All SD SPI pins are pinned out: MOSI, SCK, MISO and CS for further connection Through programming, you can use Arduino to read and write SD card Make your SD applications easier to use Communicates with Arduino using SPI interface Adopts a push-pull socket so that the card protrudes slightly from the edge of the PCB for easy insertion and removal 4 mounting holes with 2.2mm diameter Uses only the 4 I/O pins on the Arduino Dimensions: 42mm x 25mm x 5mm Package Includes: 5 x Micro Sd Card Module
