AmScope - 7X-45X Simul-Focal Trinocular Zoom Stereo Microscope Head - SM745NTP

• 7X-45X super widefield simul-focal continuous zoom magnification power
• Crystal clear stereo erect images over a super wide field view
• Super widefield high-eyepoint 10X focusable eyepieces
• Trinocular port for adding photo or video capability
• 48mm (in diameter) female thread for adding Barlow lenses or lights

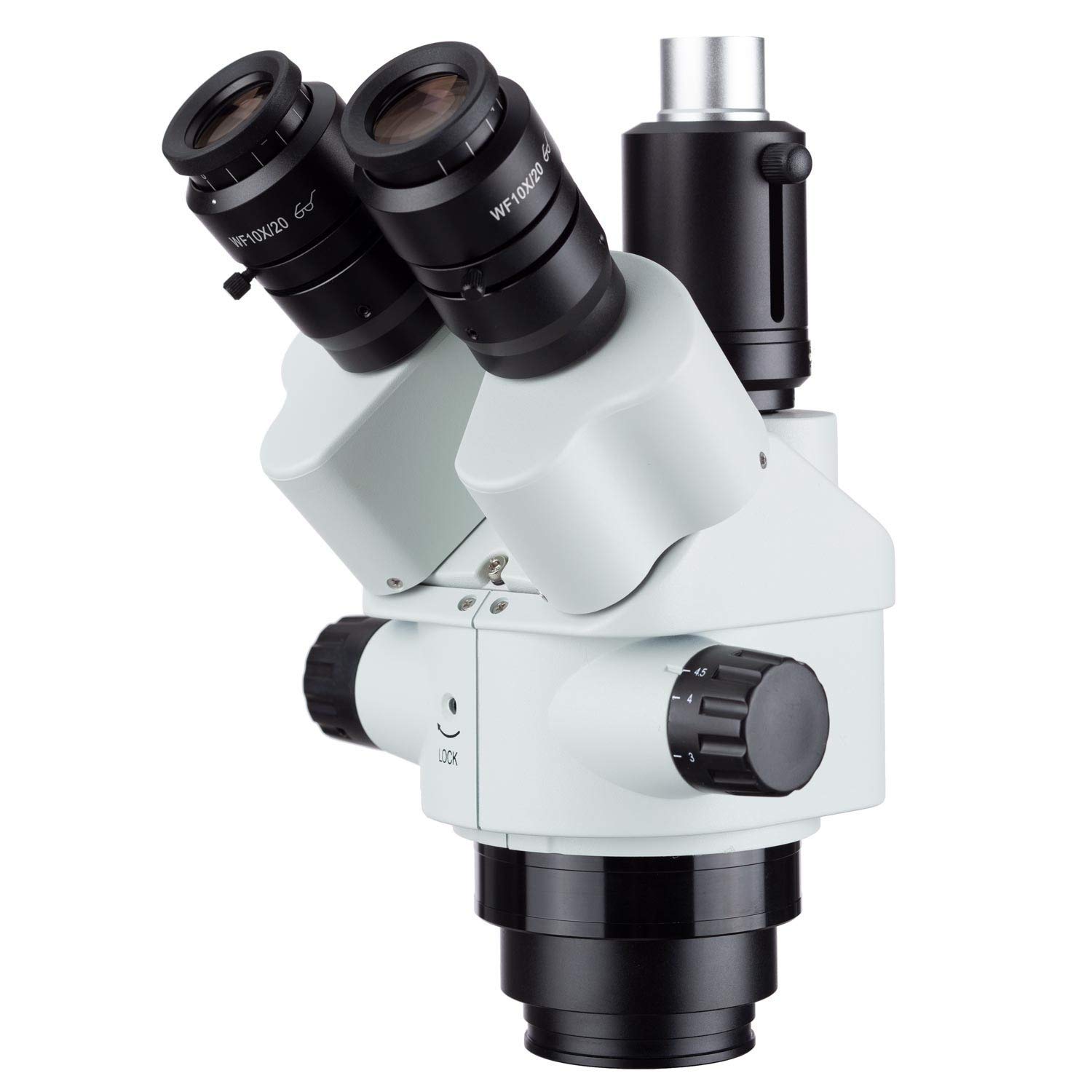

The SM745NTP is a 7X-45X continuous-zoom trinocular stereo microscope head with a simul-focal photo port. The simul-focal port allows the use of a camera while simultaneously using both eyepieces. This is ideal for systems that require a constant video feed or frequent snapshots. The photo port can be adjusted to help ensure that the camera and eyepieces are all properly focused. With our unmatched lineup of cameras, a wide range of solutions are available, including HDMI video, computer-based imaging and measurements, time-lapse capture, and wi-fi or LAN networking. The microscope’s high-quality optics produce stunning contrast and accurate colors with a viewing area of up to 28.6mm. The 6.4:1 parfocal zoom range provides magnifications up to 45X while maintaining a 4" (100mm) working distance. A new zoom-lock feature can be used to maintain constant magnification while performing measurements. Interchangeable eyepieces and auxiliary lenses can increase the magnification up to 225X. Rotating interpupillary adjusters provide a custom fit for each user. The included eyepieces have integrated diopters to ensure sharp focus for users with certain vision impairments. Comfort is further enhanced by the 45° viewing angle, as well as high-eyepoint eyepieces which accommodate glasses and goggles. The SM745NTP is designed to be mounted to 76mm collars. It can be used with a wide range of stands, including our SAW, DAW, and BBB boom-stands, as well as various table stands and articulating arms. Features: Erect stereoscopic viewing with 7X-45X continuous-zoom magnification Simul-focal trinocular photo port for adding an imaging system 30mm widefield 10X eyepieces with 20mm field-number Sharp, high-contrast images with accurate color Large 4" (100mm) working distance can be increased with optional Barlow lenses 45° incline and accurate alignment ensure fatigue-free viewing Specifications Microscope Head Head Type Simul-focal Trinocular Optical System Greenough stereoscopic Ocular Incline 45° Interpupillary Adjustment Compensation-free gemel, 54-76mm Ocular-port Diameter 30mm Dioptric Adjustment — Eyepieces 10X FN20mm wide-field, high-eyepoint, integrated diopter Objective Lenses 0.7X-4.5X zoom Objective Numerical Aperture 0.065 @ 4.5X 0.02 @ 0.7X Objective Resolution 195 lp/mm @ 4.5X 60 lp/mm @ 0.7X Native Field-of-View 4.4mm-28.6mm Working Distance 4" (100mm) Photo-port CX-type slide-adjustable 23mm photo-tube 50:50 simul-focal Packing List: One Trinocular Stereo Zoom Simul-Focal Head One Pair of SUPER Widefield 10X Focusable Eyepieces One Photo Port One Hex Wrench
