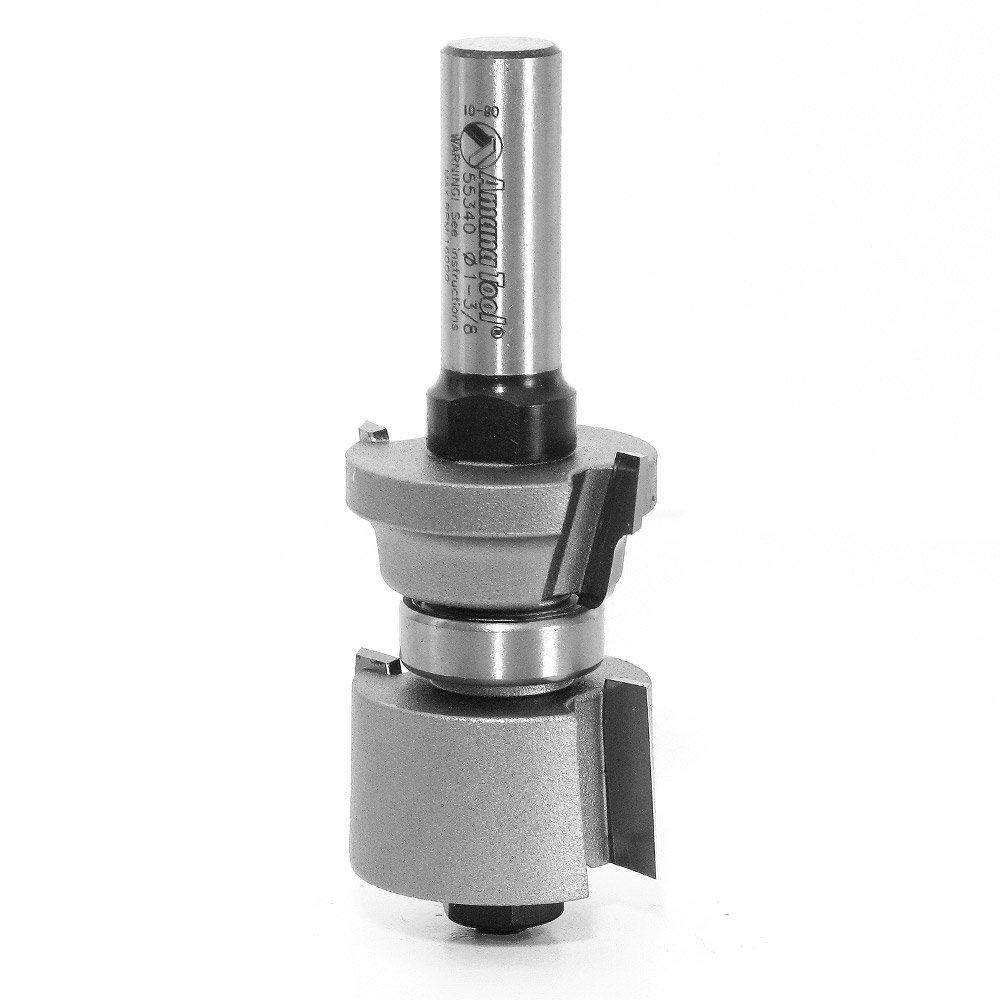

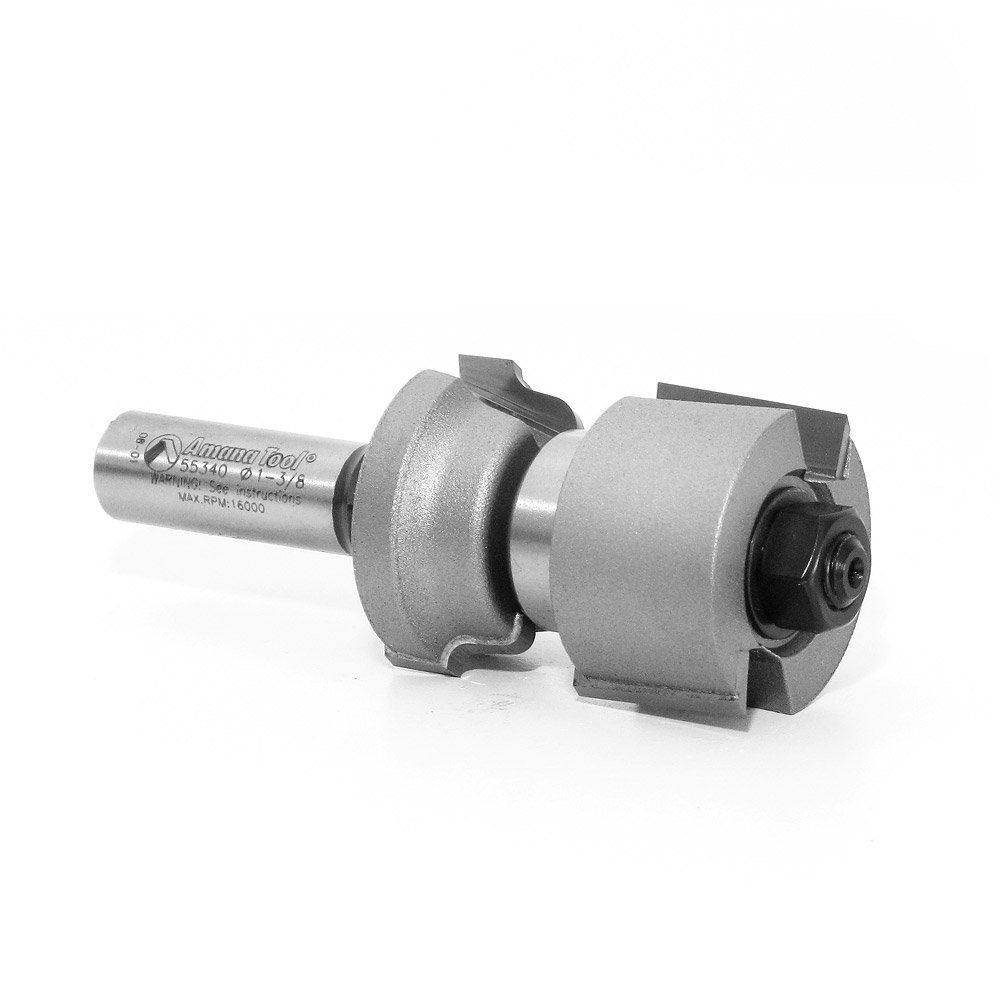

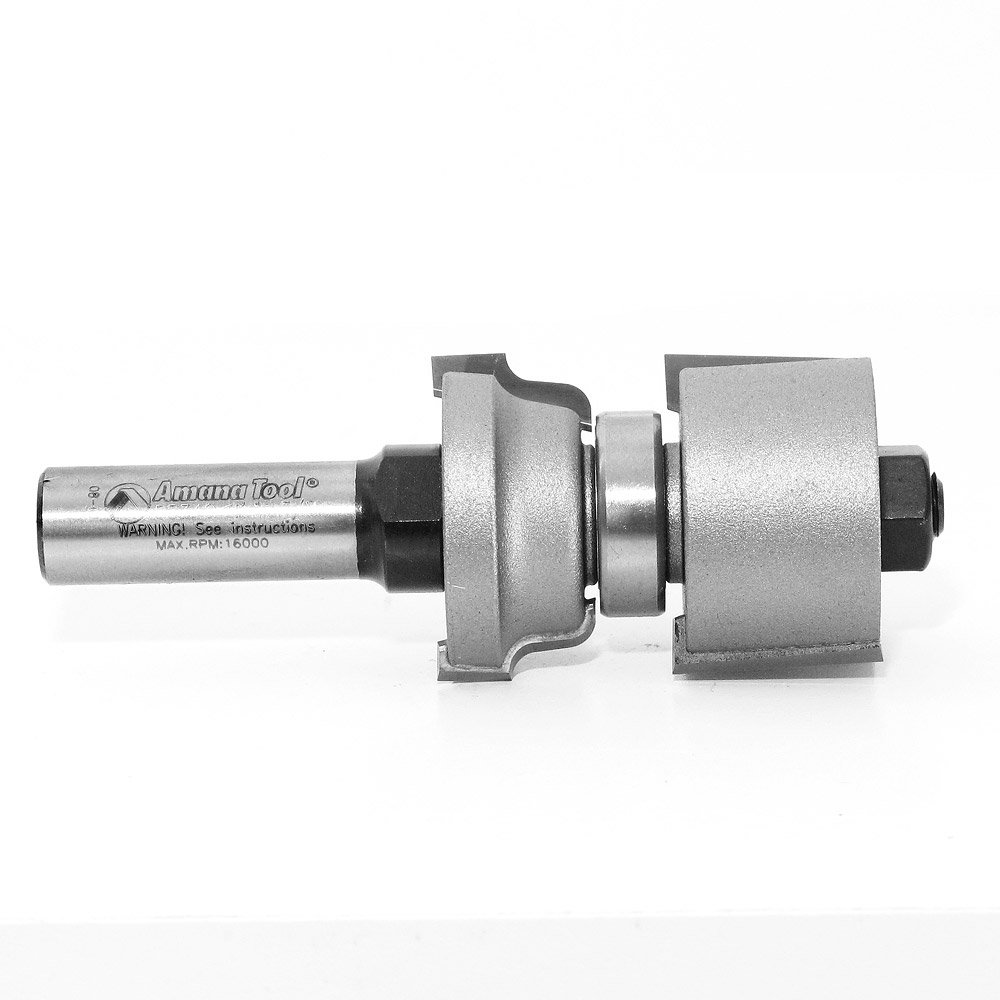

Amana Tool - 55340 Carbide Tipped Reversible Ogee Window Sash & Rail 1/8 Radius x 1-9/64 D

• Diameter (D): 1-3/8
• Cut depth (a): 1/4
• Radius (R): 1/8
• Cutting height (B): 1-55/64
• Shank (D): 1/2

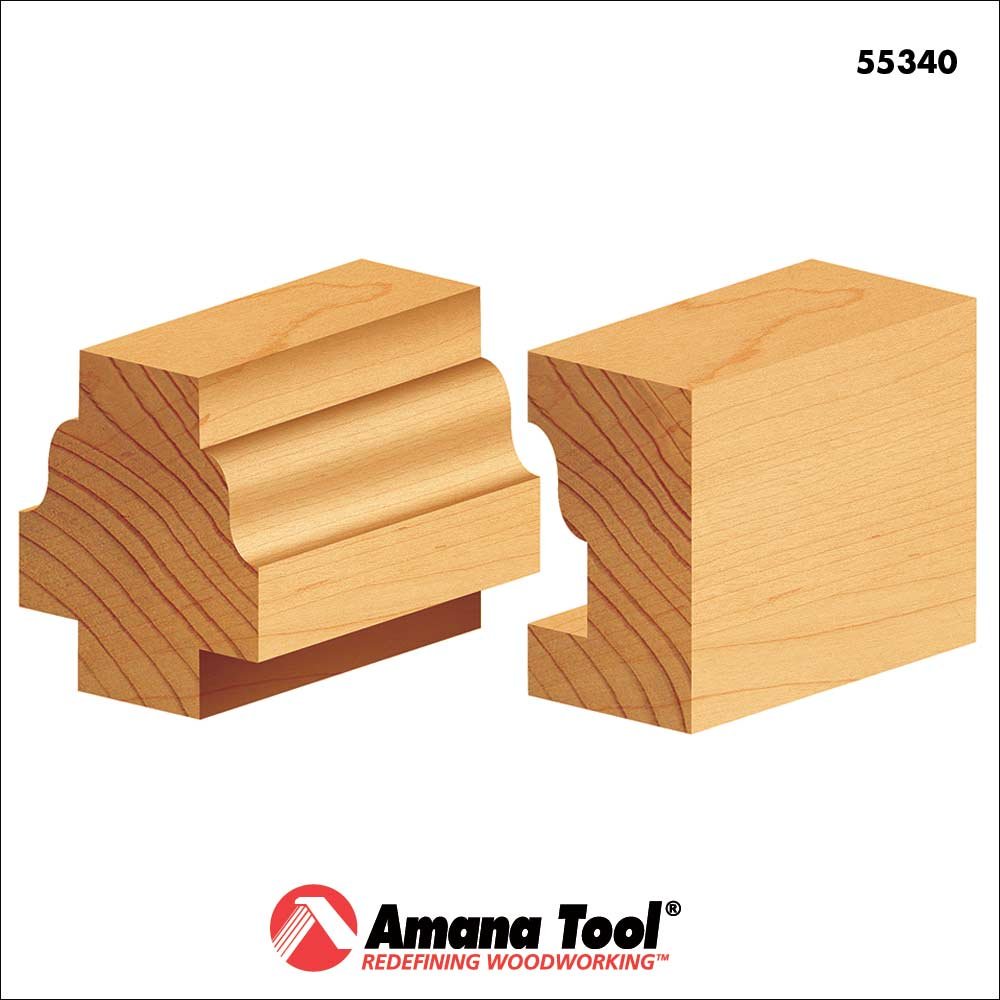

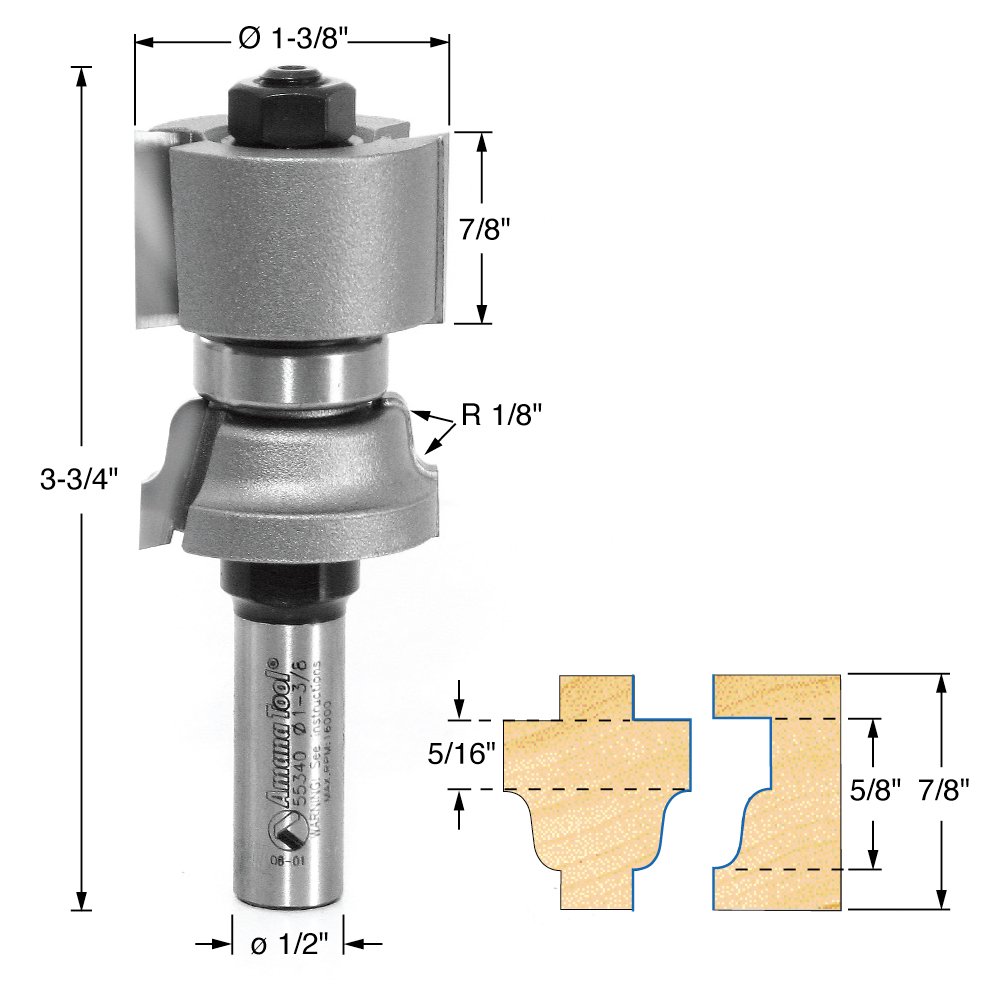

This Reversible assembly is designed to cut window sash and glass door parts, including rails, stiles, mullions, and muntins, on stock between 1-1/8" And 1-3/4" Thick. Assembly includes an ogee profile Cutter, a rabbet Cutter, one bearing, a 1/2" Shank Arbor, spacers, shims, and washers. Configure as shown in the drawing to cut profile and rabbet on all parts. Switch bearing and profile Cutter and replace rabbet Cutter with spacers to rout the copes. Use in a table-mounted router, #55340, diameter (D): 1-3/8, Cut depth (a): 1/4, radius (r): 1/8, cutting Height (B): 1-55/64, shank (D): 1/2, overall length (L): 3-3/4, B1: 5/16, B3: 7/8, B2: 43/64, 55340 carbide Tipped reversible Ogee window sash & rail 1/8 radius x 1-9/64 dia x 43/64 x 1/2 inch Shank with center ball bearing
