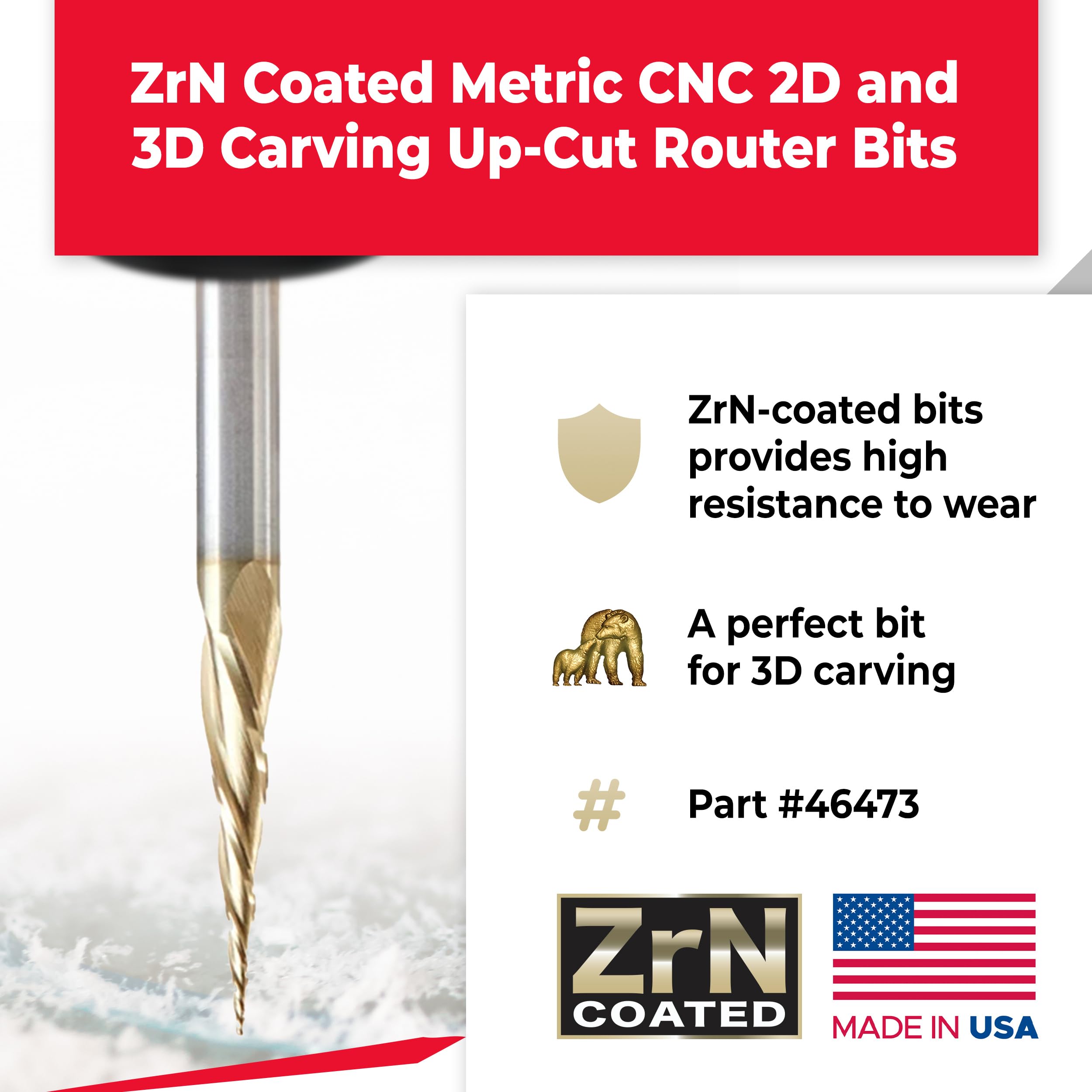

Amana Tool 46473 Metric CNC 2D and 3D Carving 6.2 Deg Tapered Angle Ball Nose x 0.5 D x 0.25 R x 26.5 CH x 6 SHK x 75mm Long x 3 Flute SC ZrN Coated Router Bit

• Benefits of ZrN Coating: Creates incredibly precise detail work Optimized flute geometry and low Total Indicated Runout (TIR) guarantees clean cuts, essentially eliminates sanding and reduces chatter when used with low TIR spindles Creates a harder and tougher cutting ceramic over carbide edge, allowing for a prolonged cutting edge life and helps to prevent the build-up/galling of material in the flutes while cutting PVD ceramic hardcoat designed for soft, gummy and abrasive materials High aspe

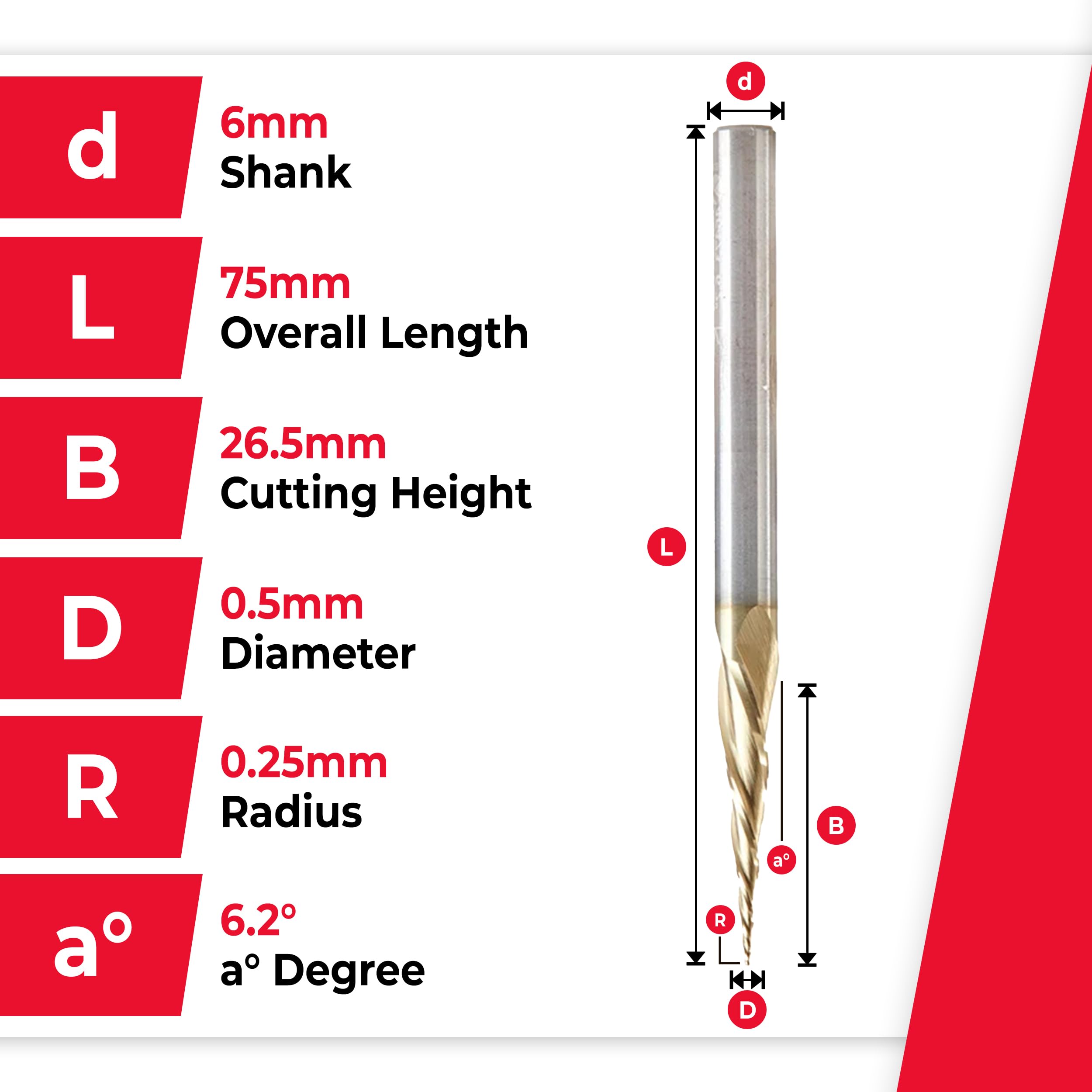

• SPECIFICATIONS: (D) Diameter: 0.5mm (R) Radius: 0.25mm (a) Angle: 6.2 (B) Cutting Height: 26.5mm (d) Shank: 6mm Overall Length (L): 75mm Type: Ball Nose, ZrN Flutes: 3

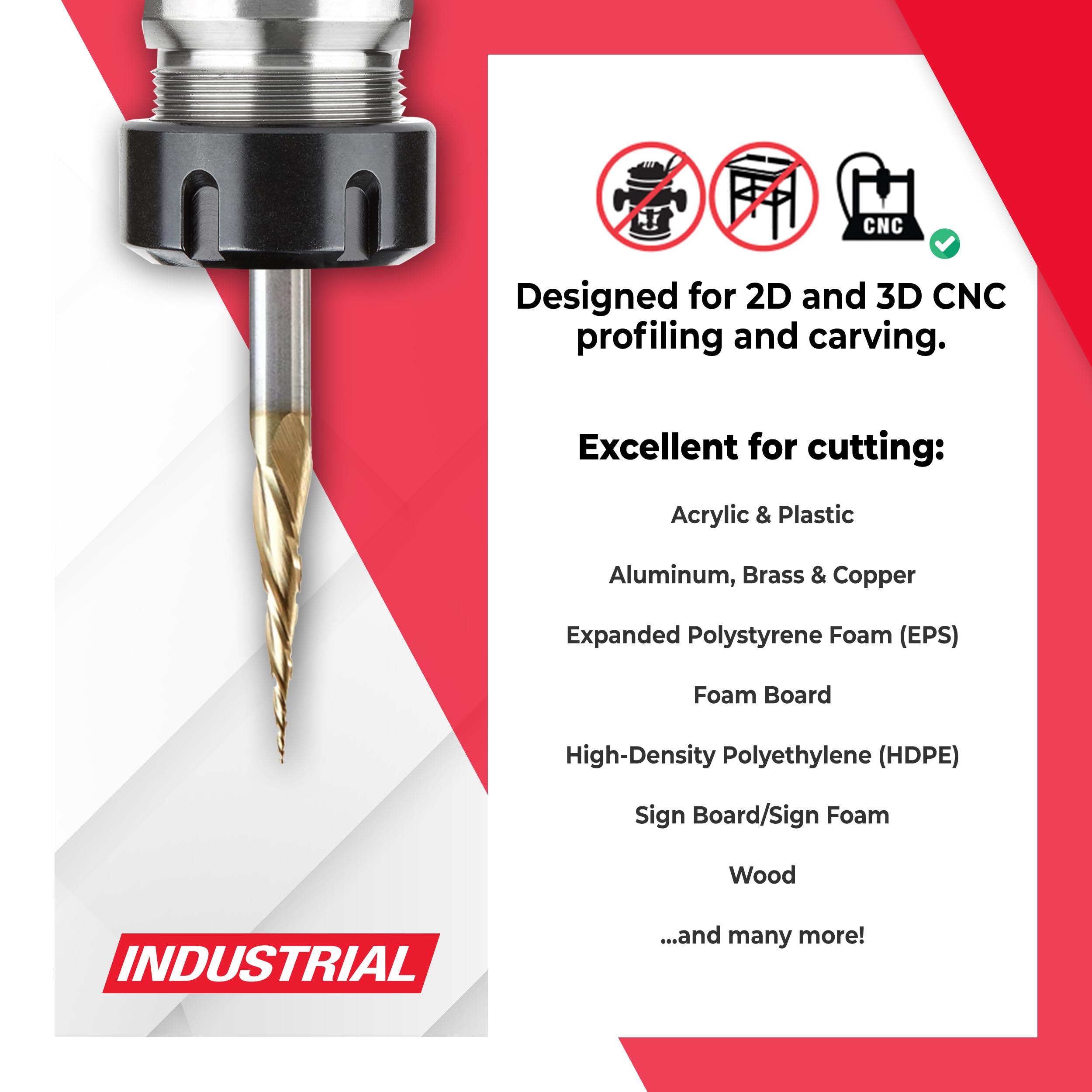

Achieve professional results with our ZrN-coated spiral router bits, engineered for precision. The ZrN coating enhances cutting performance by creating a harder, tougher edge, extending tool life, and providing resistance to wear. Its advanced design minimizes material buildup in the flutes during cutting, reducing friction and heat while maintaining a sharp edge. These router bits are ideal for detailed work, delivering clean, precise cuts in a variety of materials. The flute geometry is optimized for cutting sign foam, sign board, hardwoods, thermoplastics and phenolic composites. The optimized flute geometry and low Total Indicated Runout (TIR) virtually eliminate chatter and the need for sanding. High flute volume supports faster feed rates and chip loads, with a high aspect ratio, these bits are ideal for single-pass deep-reach cutting. PVD ceramic hardcoat technology ensures maximum performance with soft, gummy and abrasive materials.
