Altecnic Reflex 3/4” Service Valve PVA34L

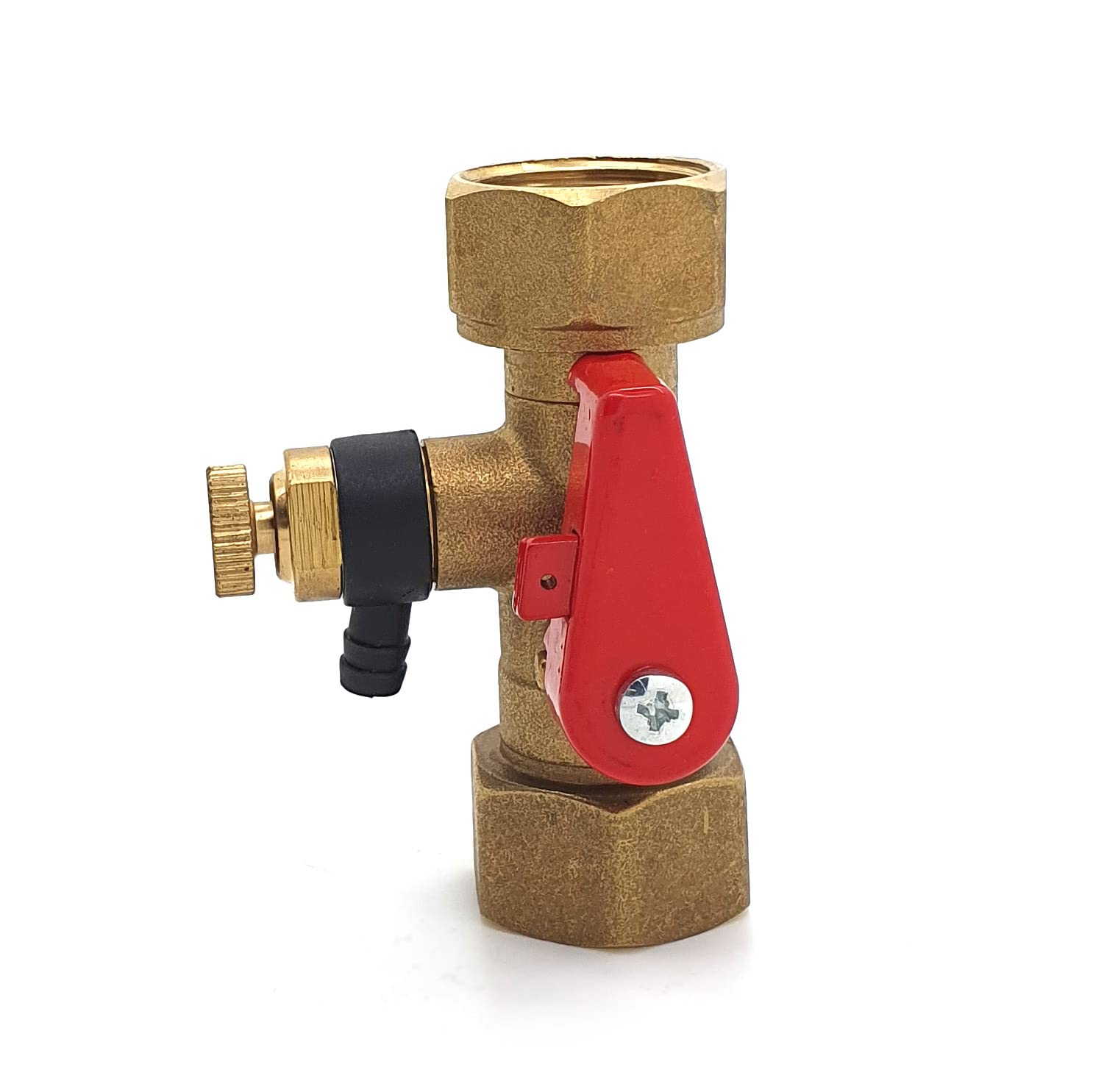

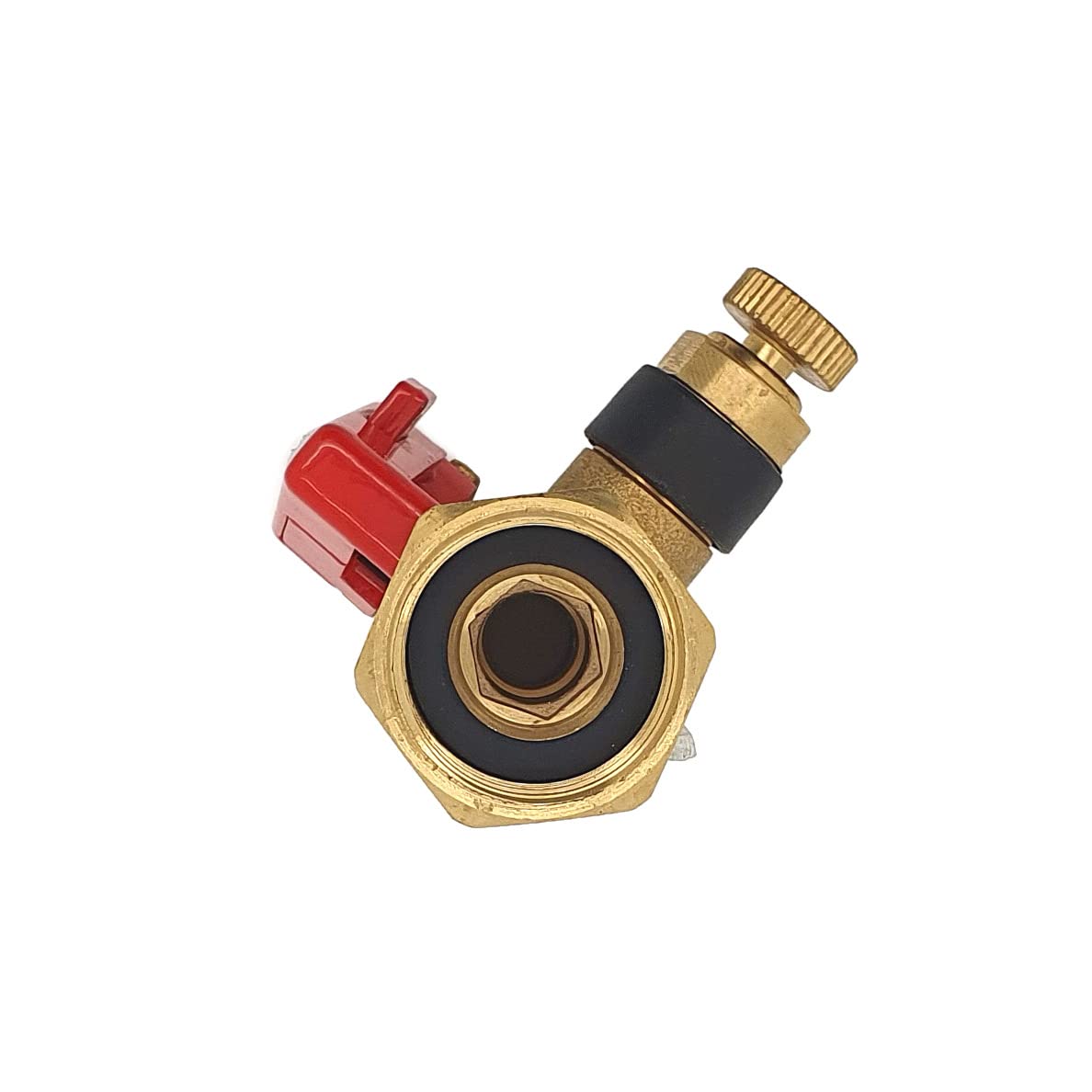

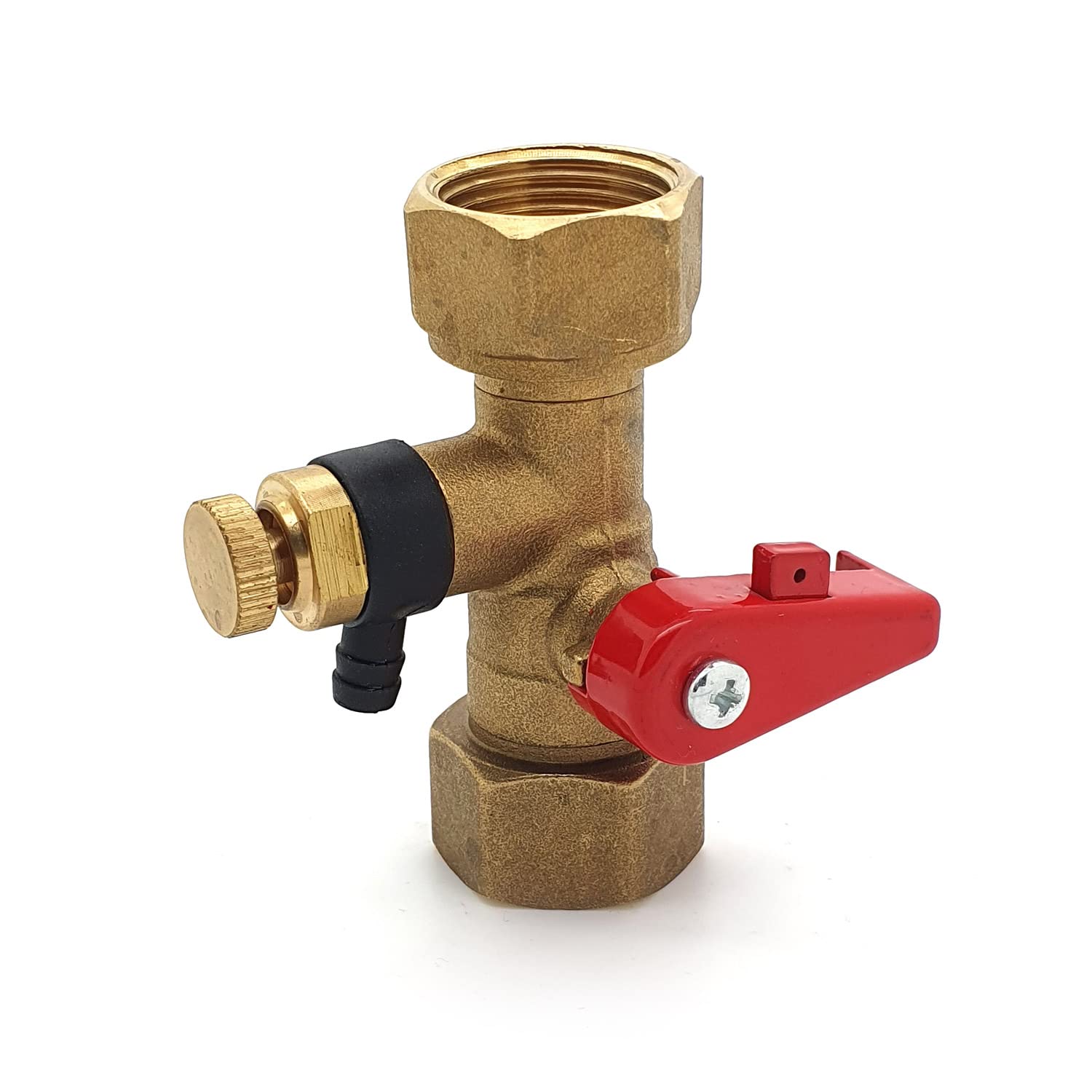

Reflex Cap Valve SU R 3/4″ x 3/4″ PVA34L The PVA34L has been specifically designed to allow for the expansion vessel to be fitted easily and conveniently to the system. The compact design requires a minimum of space and includes several useful features. The valve has a female union connection to fit to the expansion vessel and a female connection to connect to the pipework making a secure joint. The ball valve allows the expansion vessel to be isolated from the system. The lever has a button operated safety feature which prevents accidental isolation, which could cause a major safety hazard. The drain feature allows the expansion vessel to be drain of liquid should the expansion vessel need to be removed for any reason, minimising any water spillage during removal. Reflex cap valve For diaphragm expansion vessels in sealed heating and cooling systems With a safe shut-off to prevent inadvertent closing and a discharge according to DIN EN 12828, TÜV tested. Type: SU R 3/4″ x 3/4″ Max. perm. operating temperature: 120 °C Max. perm. operating pressure: 10 bar Connection: G 3/4″ Weight: 0,26 kg
