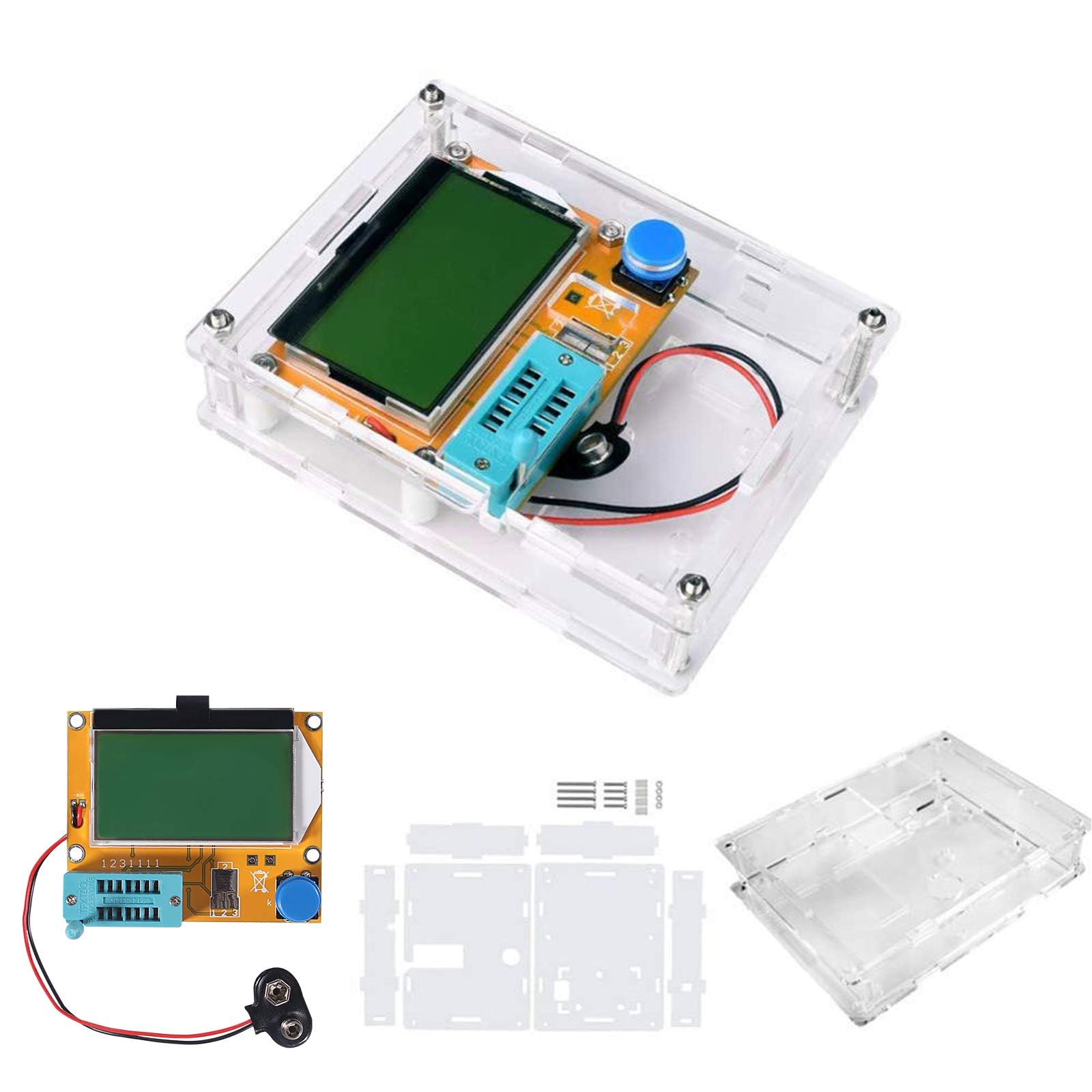

ALMOCN LCR-T4 Mega328 Transistor Tester Resistance Capacitance Diode Triode Capacitor ESR SCR Meter MOS PNP NPN LCR with Case

• Automatic detection of NPN and PNP transistors, n-channel and p-channel MOSFET, diode (including double diode), thyristor, transistor, resistor and capacitor and other components.
• Can detect the transistor, MOSFET protection diode amplification coefficient and the base to determine the emitter transistor forward biased voltage.

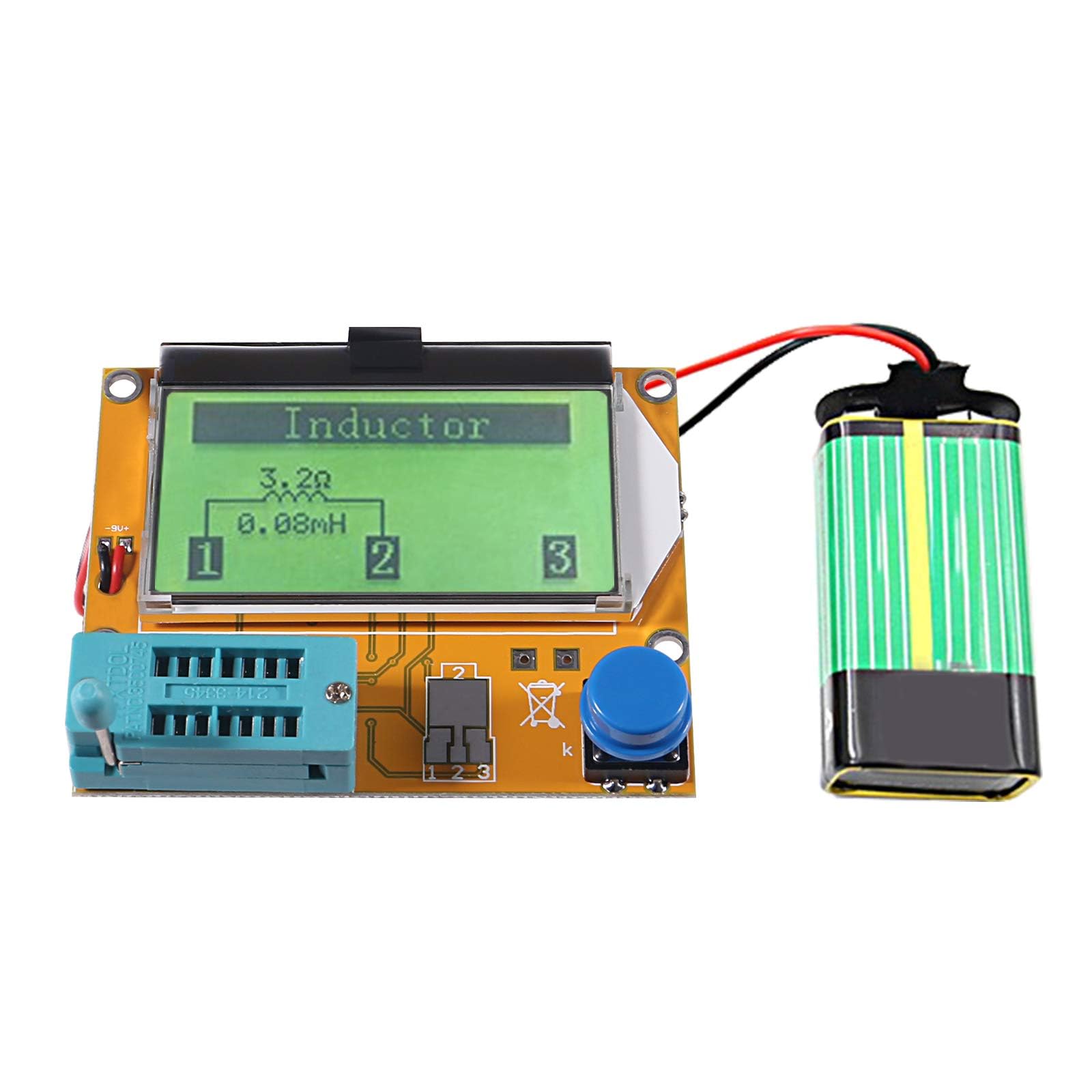

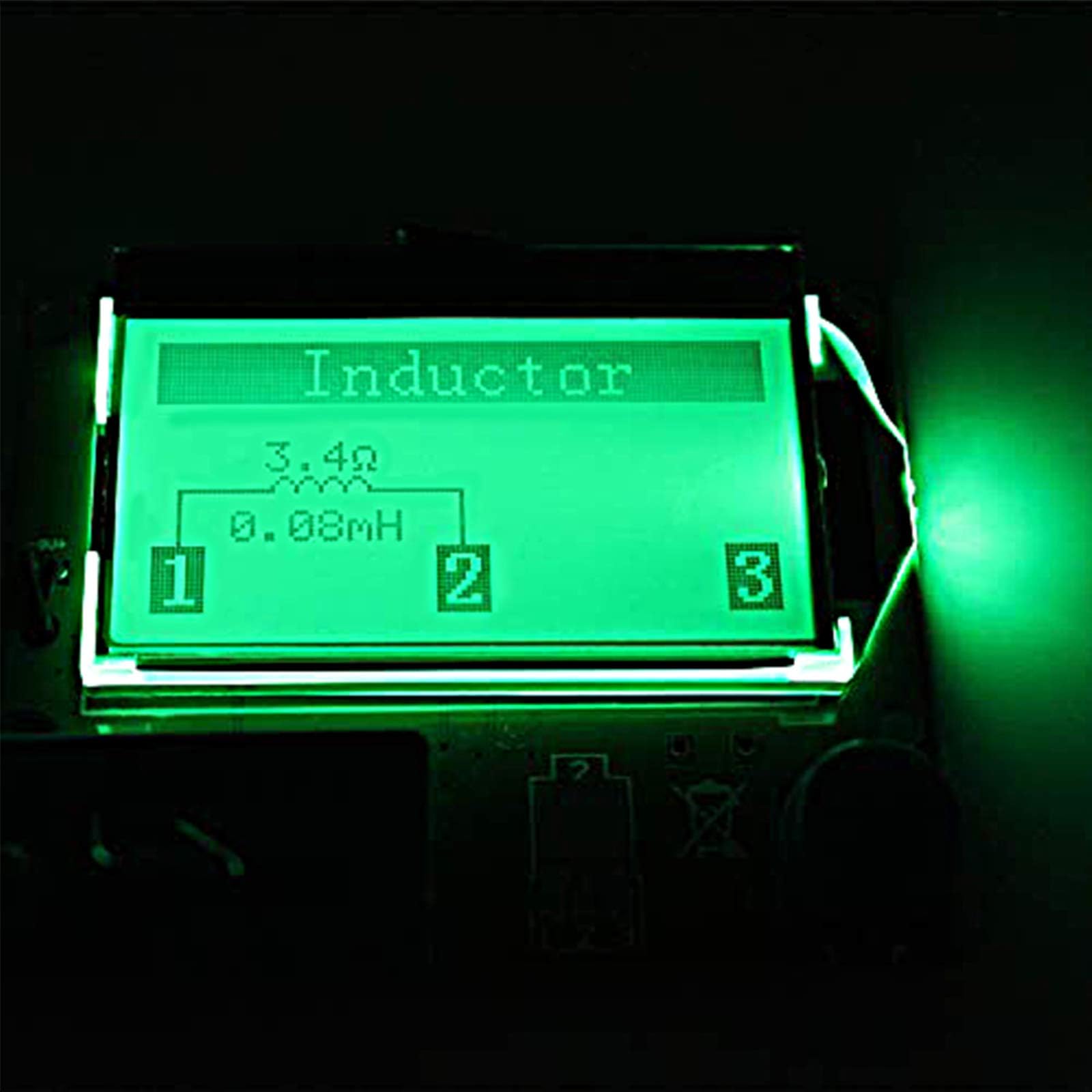

• Digital 128*64 LCD display for easy readings, can display measured data and graphics.
• Measure capacitanceCan measure capacitance of 30pF-100mF , resolution 1pF.
• Use 9V battery(not included), can also use DC power(DC 6.8-12V). Automatic shutdown, shutdown current is only about 20nA.

Specifications: Material: PCB Display: 128 x 64 LCD Normal Testing Speed: 2 seconds Shutdown Current: 20nA Capacitor Measure Range: 25pf -100000uf Inductance Measure Range: 0.01mh-20H Resistance Measure Range: 0.1ohm resolution, maximum 50M ohm Features: 1. Support boot voltage detection function 2. Automatic detection of NPN and PNP transistors, N-channel and P-channel MOSFETs, diodes (including dual diodes), thyristors, triodes, resistors, and capacitors. Automatically testing the component leads and displaying them on the LCD 3. The forward bias voltage of the emitter transistor can be determined by detecting the amplification factor and base number of a transistor, a MOSFET protection diode, and the like 4. Measure gate threshold voltage and gate capacitance MOSFET 5. The display uses 12864 lcd LCD (128 * 64 characters) 6. High test speed, valid component test: In 2 seconds (except in larger capacitors, large capacitance measurement also takes a long time, the measurement time in 1 minute is normal) 7. One-button operation, power-on test. 8. Power Consumption Shutdown Mode: Less than 20 nA 9. Automatic shutdown function can avoid unnecessary waste, save battery energy and improve battery life. Note: Before measuring capacitance, the capacitor must be discharged, otherwise very likely damage the meter. Package included: 1 x Transistor Tester with case
