AllisWay Conductive Paint, High Conductivity Conductive Paint Paste, 30g

• High Adhesion, Compatible with Multiple Materials: This conductive paint adheres firmly to various materials such as PCB circuit boards, glass, ceramics, and metals, resisting peeling and flaking. The coating exhibits excellent stability after curing, remaining unaffected by daily temperature and humidity, maintaining its conductivity over a long period.

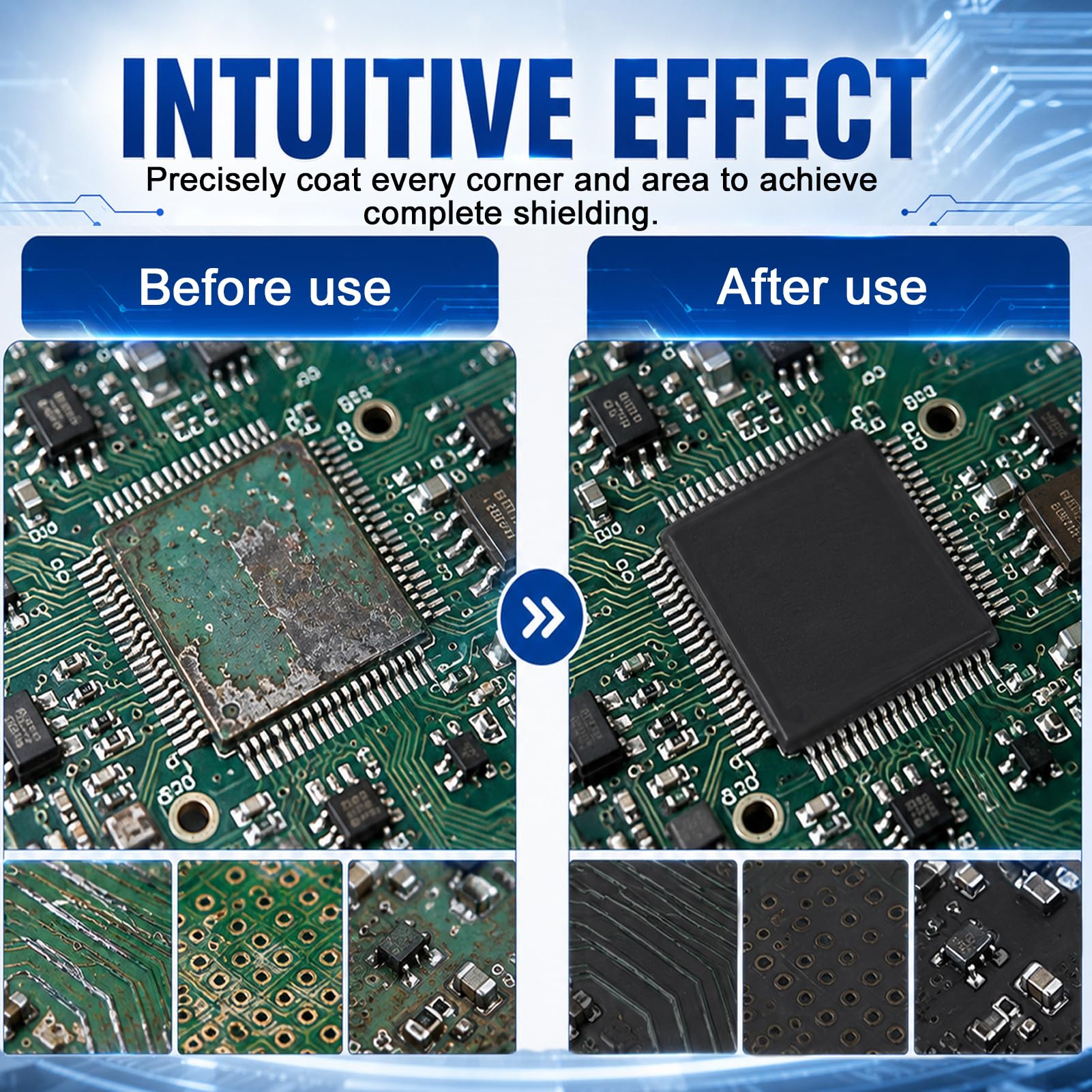

• Stable and Reliable Conductivity: After curing, the electrically conducting pcb paint paste forms a uniform and dense conductive layer with constant resistance and smooth conductive pathways. It can precisely repair PCB broken lines, microcircuit defects, and poor contact issues, ensuring stable signal transmission without attenuation.
• Precise Application with Built-in Brush: The integrated fine brush head design allows for direct application upon opening the cap. The electrically conducting pcb paint paste has a uniform texture, resisting drips and drips, allowing for precise outlining of fine lines and narrow solder joints, resulting in neat, non-spreading edges.
• RF Shielding and Interference Reduction: It forms a highly efficient electromagnetic shielding coating, providing EMI electromagnetic interference protection for sensitive electronic components. It effectively blocks external electromagnetic interference, reduces signal crosstalk and noise, and improves the operational stability of electronic equipment, making it suitable for shielding and protecting various precision circuits.
• 30ml Large Capacity: The standard 30ml bottle provides ample supply, sufficient for multiple PCB repairs, circuit patching, and electronic DIY projects. Suitable for personal home use and as a regular item in a studio.

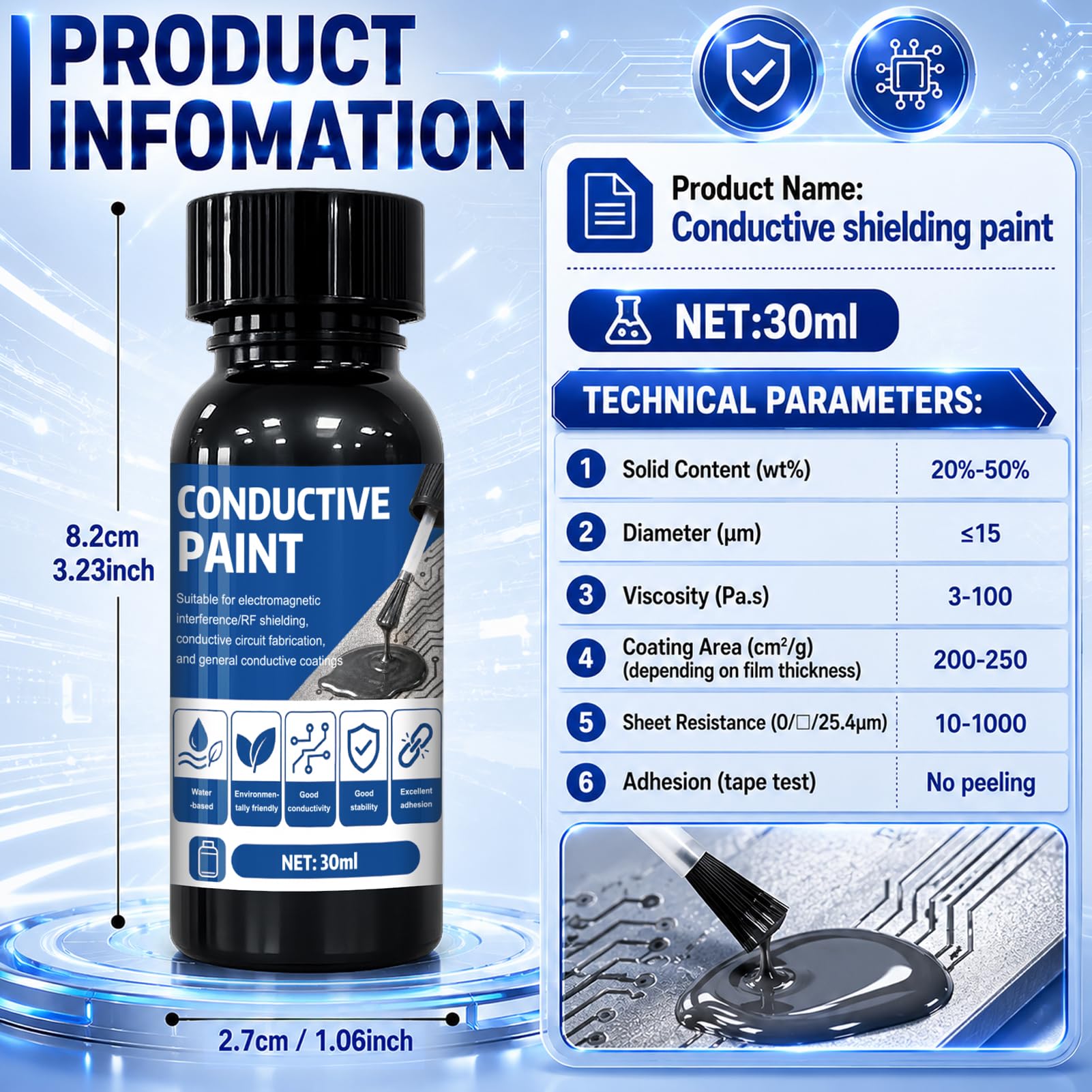

Product Name: Conductive Shielding Paint Product Specifications: 30ml Characteristics: Water-based and environmentally friendly, with good conductivity, high stability, excellent adhesion, and good flexibility. Usage Features: 1. Water-based, environmentally friendly, non-toxic, and easy to clean. 2. Good conductivity and stable resistance. 3. Excellent adhesion to surfaces such as PET, PI, FR-4, glass, ceramics, metals, and cement. 4. Excellent printability, no screen drying, good edge control, can print extremely fine lines, and no diffusion. Technical Parameters: 1. Solid Content (wt%) 20%-50% 2. Diameter (µm) ≤15 3. Viscosity (Pa.s) 3-100 4. Coating Area (cm²/g) (depending on film thickness) 200-250 5. Sheet Resistance (0/□/25.4µm) 10-1000 6. Adhesion (tape test) No peeling Usage Conditions: 1. Printing Screen: Stainless steel screen, filament screen, 100-300 mesh 2. Printing Substrate: PET, PI, FR-4, glass, ceramic, metal, etc. 3. Diluent: Water 4. Drying Conditions: 20-60 min at 80-120°C or 2-4 h at room temperature (25°C). The coating resistance varies depending on the drying temperature and time; drying at 120°C for 20-30 min is recommended. 5. Printing methods: Screen printing, gravure printing, coating, spraying, brushing, roller coating, etc. Storage conditions: Store at room temperature (25°C) in a cool, dry place, away from direct sunlight, and in a sealed container. Precautions: Stir thoroughly for 20-30 minutes before use. Conduct small-batch testing first, then proceed with large-scale application.
