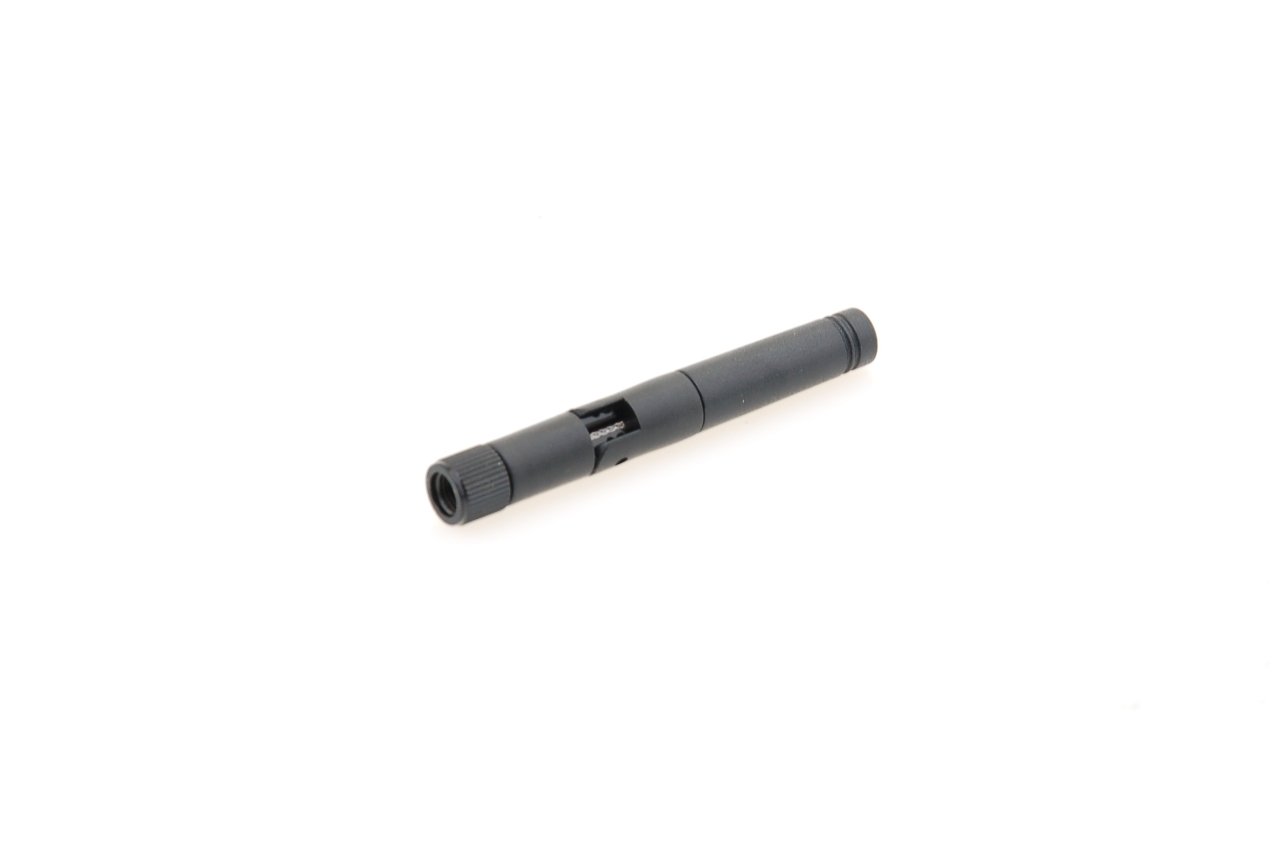

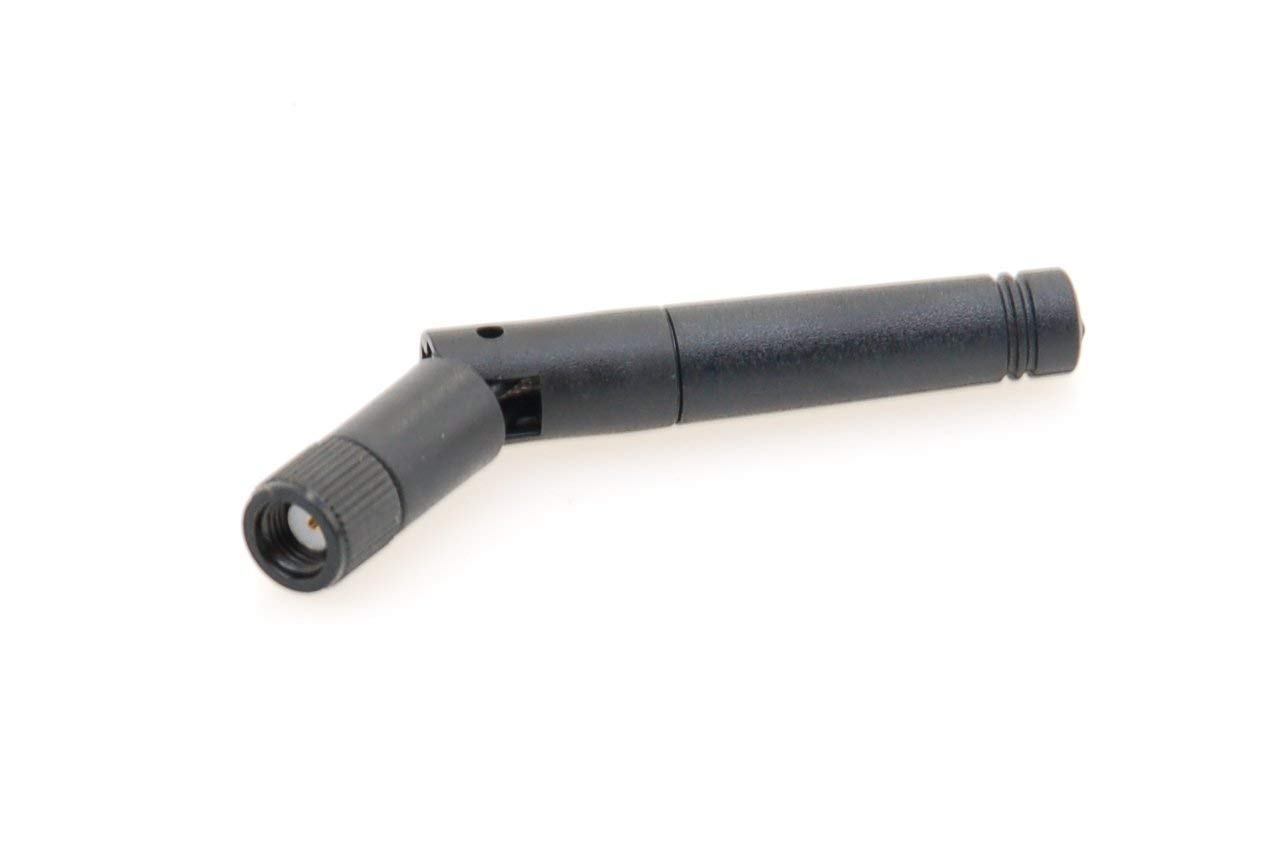

Alda PQ antenna for WIFI and BLUETOOTH with RP-SMA/M connector with 5 dBi gain and flip angle

• Suitable for networks/frequencies: WLAN (WiFi) (2.4 GHz), WLAN (WiFi) (5 GHz) and Bluetooth (2.4 GHz)
• Gain: 5 dBi, Connector type: RP-SMA/M, Rod antenna, therefore 360° reception
• Due to its size and weight, the antenna is very suitable for mobile and stationary use on routers and other communication devices.
• Areas of application are: mobile devices, routers, indoors, living rooms, embedded systems, PC housing, telematics, commercial premises, M2M, IOT, industry 4.0
• Allows your devices better WiFi and Bluetooth reception

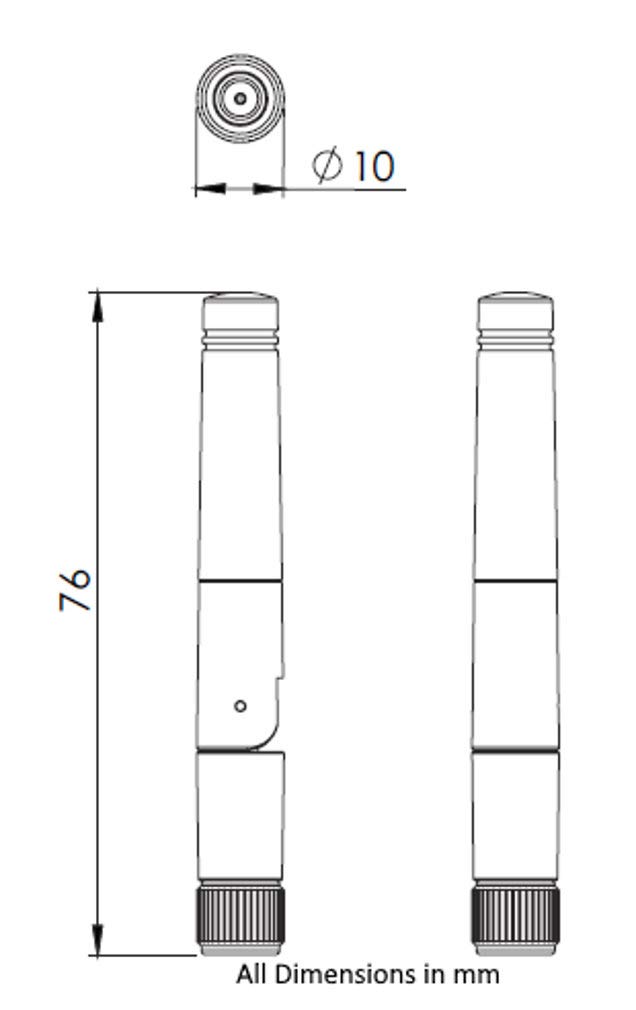

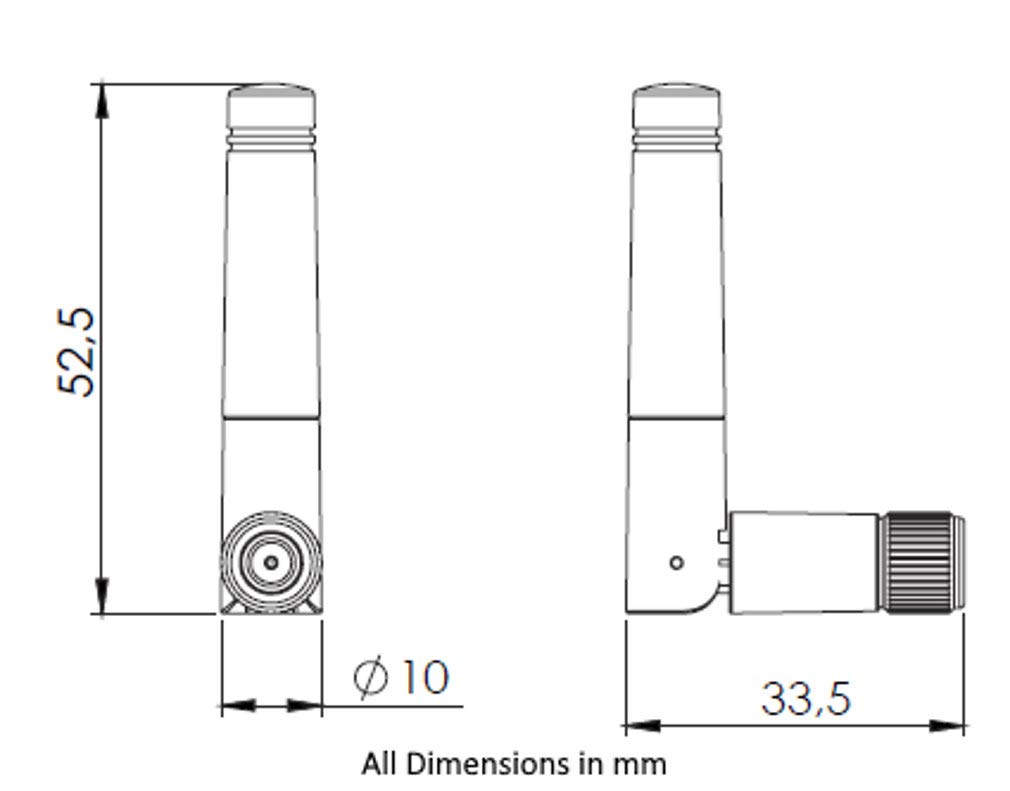

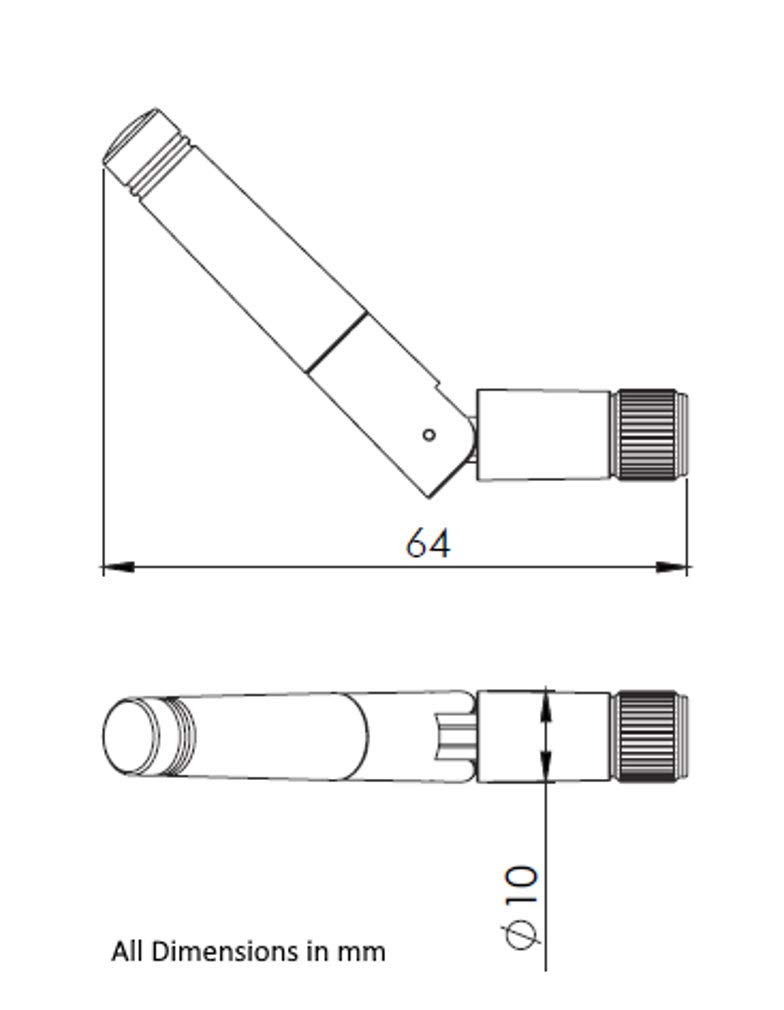

Alda PQ Antenna for WLAN (WiFi) and Bluetooth with RP-SMA/M plug with 5 dBi gain and folding angle. Specification: Frequencies: Bluetooth WiFi (WiFi 2.4). WiFi 5 GHz (WiFi 4.8-5.9). Connector type: SMA/M-RP Construction and dimensions: Mounting type: Rod antenna with folding angle for screwing on. Areas of application: Router, Smartphone, Embedded Systems Antenna material: ABS plastic. Maximum dimensions: 10 mm x 77.4 mm x 33.5 mm (height x length x width). Color: Black impedance 50 ohms. Polarisation. Linear Reinforcement: 5 dBi maximum. Standing Wave Ratio (VSWR) <2.6:1 Environmental conditions: Temperature range: -40°C to +85°C. Package includes: Antenna with screw connection. Made in the EU
