Alda PQ High Performance Wall Mount Antenna 4G LTE / 3G / 2G / FirstNet/LPWA/NB-IoT/Cat-X-Mx-NBx Weatherproof, Outdoor IP67, 2.2 dBi Gain, 10m Cable with SMA/M Connector Plug

• Substrate independent broadband round beam antenna can be used for wall mounting outdoors and indoors.
• Cable length: 10 m, Cable type: RG58, Connector SMA/M, Antenna colour: black, Cable colour: black
• Waterproof IP67 antenna for 4G LTE / 3G / 2G / FirstNet / LPWA / NB-IoT / Cat-X-Mx-NBx
• Frequencies 698-960, 1710-2170, 2500-2700 - Gain: 3.0 dBi 4G LTE peak gain

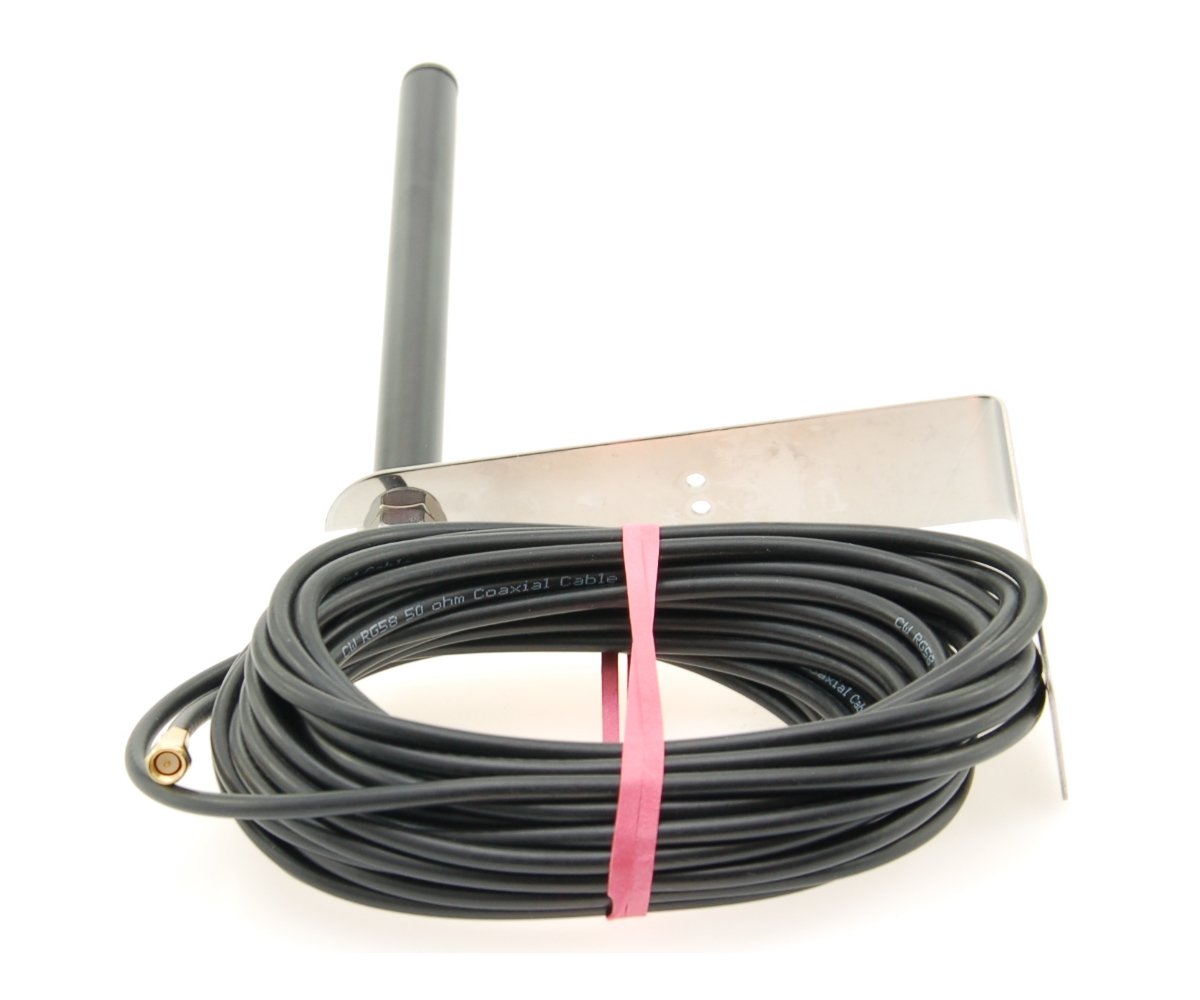

• Includes antenna bracket for wall mounting, for stationary mounting on the facade, wall or wooden beams. Screws and dowels are included. Antenna is made of ABS plastic and is stable and weather-resistant. Areas of application are: public spaces, industry, M2M, IOT, telematics, fleet management, navigation and home use.

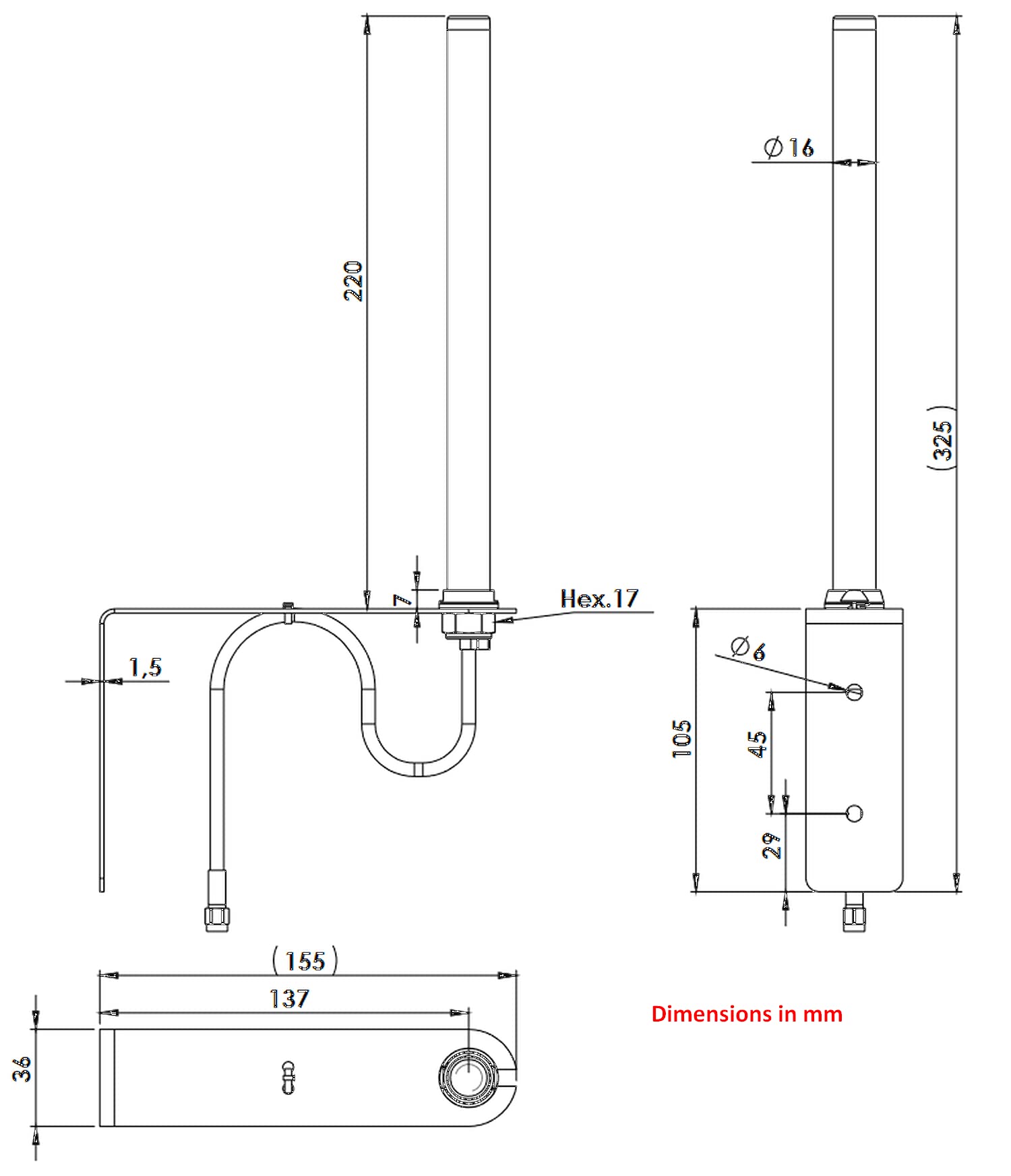

Alda PQ High-performance antenna for wall mounting 4G LTE / 3G / 2G / FirstNet / LPWA / NB-IoT / Cat-X-Mx-NBx weatherproof, outdoor IP67, 2.2 dBi gain, 10 m cable with SMA/M connector plug. Specification: Frequencies: 4G/LTE (699-960/1710-2690 MHz). GSM (900 MHz). 3G (UMTS 2.1 GHz). Connector type: SMA/M (Male) Cable length: 1000 cm / 10 m. Cable type: RG58 Construction and dimensions: Mounting type: Weatherproof outdoor antenna for stationary mounting on facades and buildings with mounting material: mounting brackets and screws and dowels. Areas of application: Public spaces, M2M, IOT, telematics, fleet management, navigation, industry and home sector. Antenna material: ABS plastic. Maximum dimensions: 155 mm x 325 mm x 36 mm (height x length x width). Color: Black Impedance: 50 ohms. Polarisation: Vertical. Reinforcement: 2.2 dBi maximum or gain: 3.0 dBi 4G LTE peak gain Standing Wave Ratio (VSWR): Under 3:1 Max. Input power: 25w Environmental conditions: Temperature range: -40°C to +85°C. Package includes: Antenna with wall mount. Screws and dowels. Made in the EU
