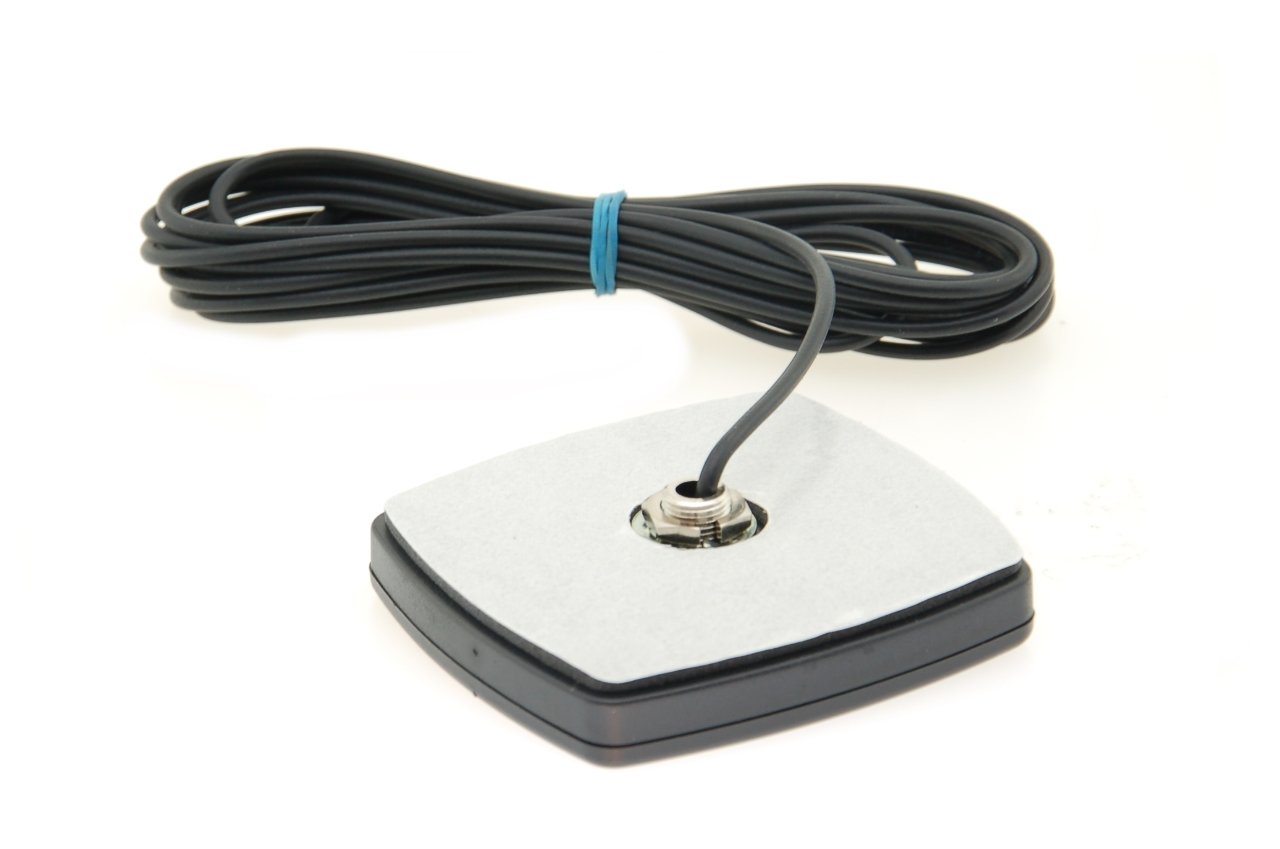

Alda PQ Antenna for roof mounting for GPS with MMCX/M plug and 4m (4.37 yd) cable

• Suitable for networks/frequencies: GPS (1575.42 MHz).
• Suitable for networks/frequencies:
• Connector type: MMCX/M, Cable type: RG174, Cable length: 4 m.
• The weatherproof antenna is very suitable for permanent use on vehicles. The screw is made from below via a adjusting nut.
• Areas of application: screw antenna for stationary use, e.g. cars, trucks, ships, housings, vending machines and other thin surfaces.

Alda PQ Antenna for roof mounting for GPS with MMCX/M plug and 4m (4.37 yd) cable <br>Specification:<br>Frequencies:<br>GPS (1575.42 MHz)<br><br>Connector type:<br>MMCX/M<br>Cable length:<br>400 cm (4.37 yd)<br>Cable type:<br>RG174<br>Construction and dimensions:<br>Installation Type:<br>Flat antenna for roof mounting for stationary operation on vehicles and housings<br><br>Areas of application:<br>Screw antenna for stationary applications, eg cars, trucks, ships, housings, vending machines and other thin surfaces<br>Maximum dimensions:<br>15.5mm x 74mm x 80mm (Height x x )<br>Impedance:<br>50 Ohm<br>Polarization:<br>Linear<br>Standing wave ratio (SWR):<br>Below 2:1<br>Max. Input Power:<br>138W<br>Environmental conditions:<br>Temperature range:From -40 °C to +85°C<br>Delivery:<br>Antenna with screw connection for roof mounting<br>Made in EU<br>
