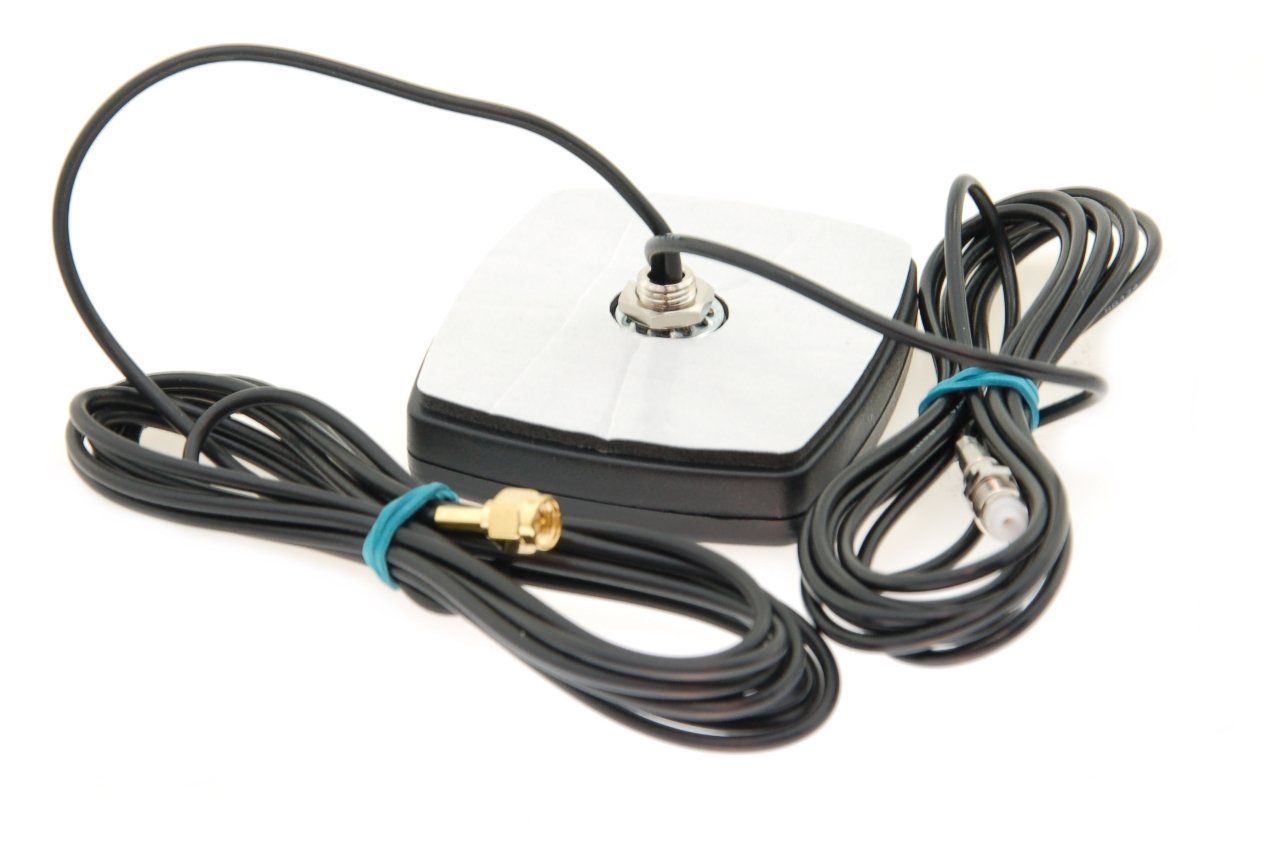

Alda PQ Antenna for roof mounting for 2G (GSM), 3G (UMTS), GPS with SMA/M and FME/F plug and 2.5m (2.73 yd) cable

• Suitable for networks/frequencies: GSM (900 MHz), 3G (UMTS 2.1 GHz)
• Suitable for networks/frequencies: GPS (1575.42 MHz)

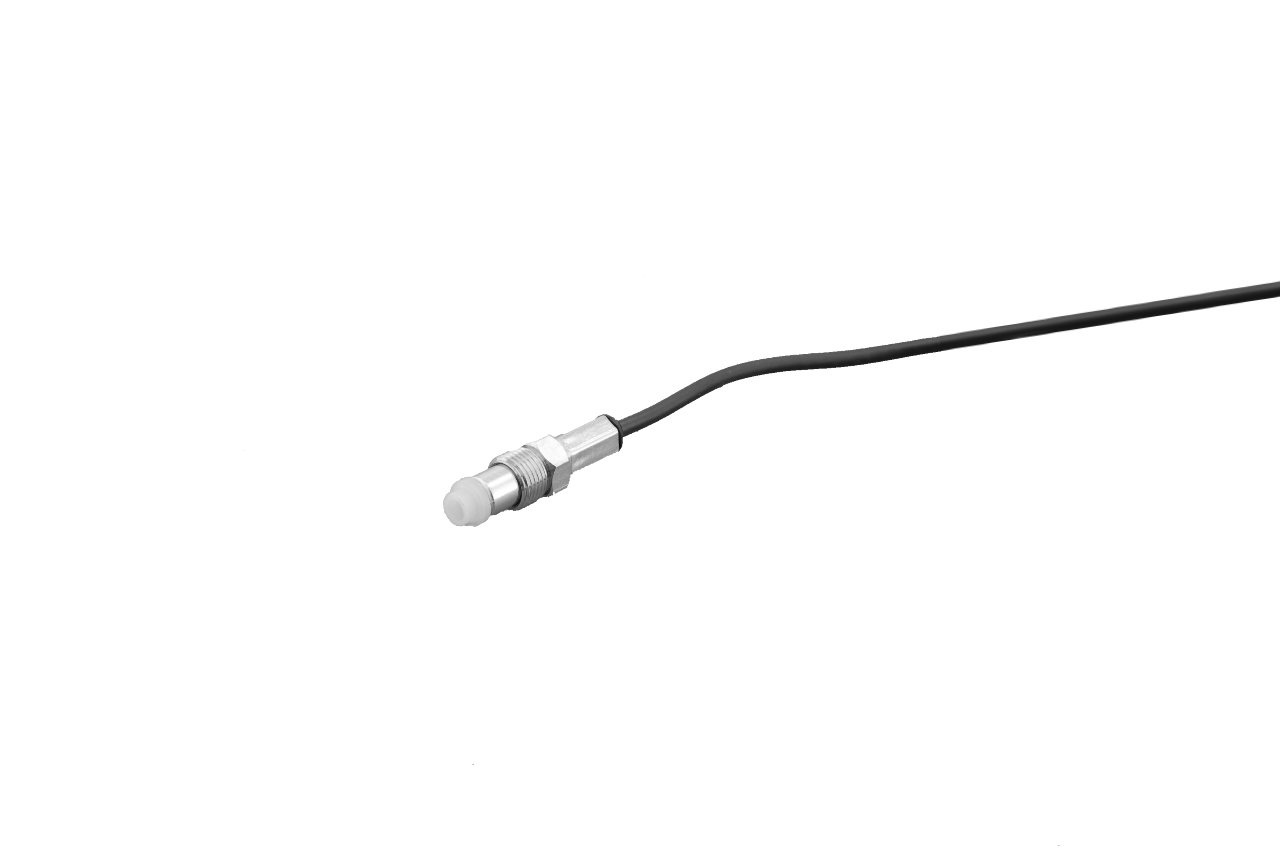

• Connector type: SMA/M and FME/F, cable type: RG174, cable length: 2.5 m
• The weatherproof antenna is very suitable for permanent use on vehicles. The screw is made from below via a adjusting nut.
• Areas of application: screw antenna for stationary use, e.g. cars, trucks, ships, housings, vending machines and other thin surfaces

Alda PQ Antenna for Roof Mounting for 2G (GSM), 3G (UMTS), GPS with SMA/M and FME/F Connector and 2.5 m Cable Specification: Frequencies: GSM (900 MHz). 3G (UMTS 2.1 GHz). GPS (1575.42 MHz). Connector type: SMA/M and FME/F. Cable length: 250 cm. Cable Type: RG174. Structure and dimensions: Mounting type: Flat roof mounted antenna for stationary operation on vehicles and housings. Areas of application: Screw antenna for stationary use, e.g. cars, trucks, ships, housings, vending machines and other thin surfaces. Maximum dimensions: 15.5 mm x 80 mm x 75 mm (height x length x width). Impedance: 50 Ohm. Polarisation: Vertical. Vertical wave ratio (VSWR): Under 2:1 Max. Input power: 50 W. Ambient conditions: Temperature range: from -40 °C to +85 °C. Box contents: Antenna with screw connection for roof mounting. Made in the EU.
