Alcaplast A448P Double Sink Siphon, White

• Drain fitting with siphon for double sinks with diameter 90-105 mm bore
• Standard: EN274
• Selection with/without device connection diameter 17-23 mm for dishwasher or washing machine
• Includes siphon with blocking water 53 mm and with outlet diameter 40/50 mm, drain capacity per drain 49.8 l/min

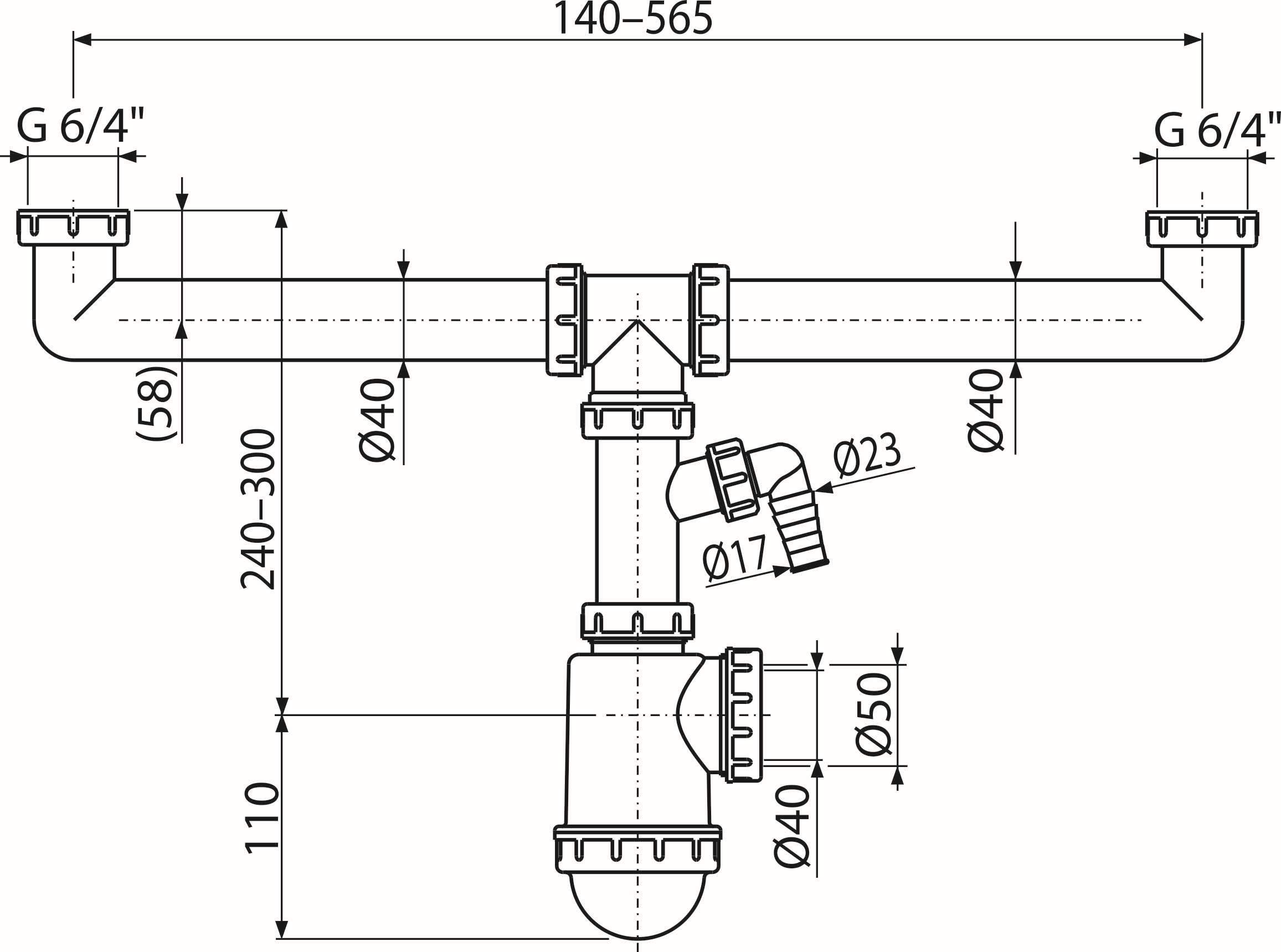

• Distance between sink drains 140-565 mm
• For connecting drain valves 1 1/2 inch (1.5 inch)
• Device connection (if selected) 17 - 23 mm
• Material: polypropylene
• Colour: white
• Temperature resistance up to 95 °C

AlcaPlast A448 Drain Fitting 1.5 Inch for Double Sinks For connecting to two sinks Bottle siphon with connection diameter 40/50 mm. Choose between the variants with or without device connection for dishwasher or washing machine (see image material and selection). Note: these siphons are designed for sink drain valves (e.g. kitchen) = 6/4 inch (1.5 inch) connection Sink drain valves (e.g. bathroom) usually have a 5/4 inch connection and only fit with appropriate transition piece (not included)
