(AL4"-Track 4"-24 Shaft) CNC Machined Belt Grinder Wheel Set for Knife Grinders 100 mm Drive-24 mm Shaft 100 mm Tracking Wheel 50 mm Idler

• ➜One 102 mm diameter Drive wheel CNC machined with 24 mm bore and 8 mm Keyway

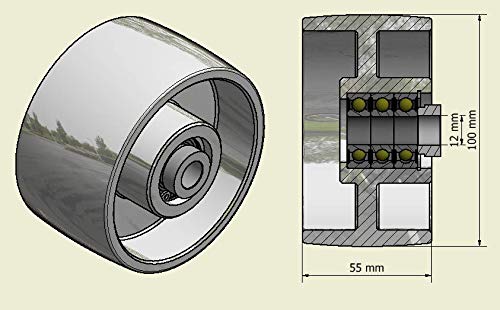

• ➜Two x 51 mm diameter Idler Wheels: Each wheel is fitted with three 12 mm bearings
• ➜One 102 mm diameter Track Wheel: Each wheel is fitted with three 12 mm bearings
• ➜Manufactured Using State of the Art CNC machines
• ➜A 70 mm long M12 bolt (can be all or partly threaded) Should be used to fit idler and tracking wheels - No Bolts included-

Legal Disclaimer Limitation of Liability In no event shall pulley-wheel be liable for any direct, indirect, punitive, incidental, special consequential damages, to property or life, whatsoever arising out of or connected with the use or misuse of its products. Product description Belt Grinder Wheel Set CNC machined from Aluminum 6061 The Set Includes: One 102 mm diameter Drive Wheel: Drive wheel is CNC machined with 24 mm bore. Bore is equipped with a 8 mm keyway and a M5x16 mm set screw. Surface of wheel is truly crowned. Two 51 mm diameter Idler Wheels: Each wheel is fitted with three 12 mm bearings. Bearings are rubber sealed to protect from dust. Bearings are placed back-to-back (best combination). A 10 mm wide standoff (sleeve) will raise the wheel of the mounting plate. One 75 mm diameter Track Wheel: Each wheel is fitted with three 12 mm bearings. (Heavy duty 6201 RS bearings) Bearings are rubber sealed to protect from dust. Bearings are placed back-to-back (best combination).
