akYtec ITP14-G Universal Process Indicator 0-10V/4-20mA Green

• Analogue input 0-10 V, 4-20 mA and more.
• Two-point control with an NPN output.

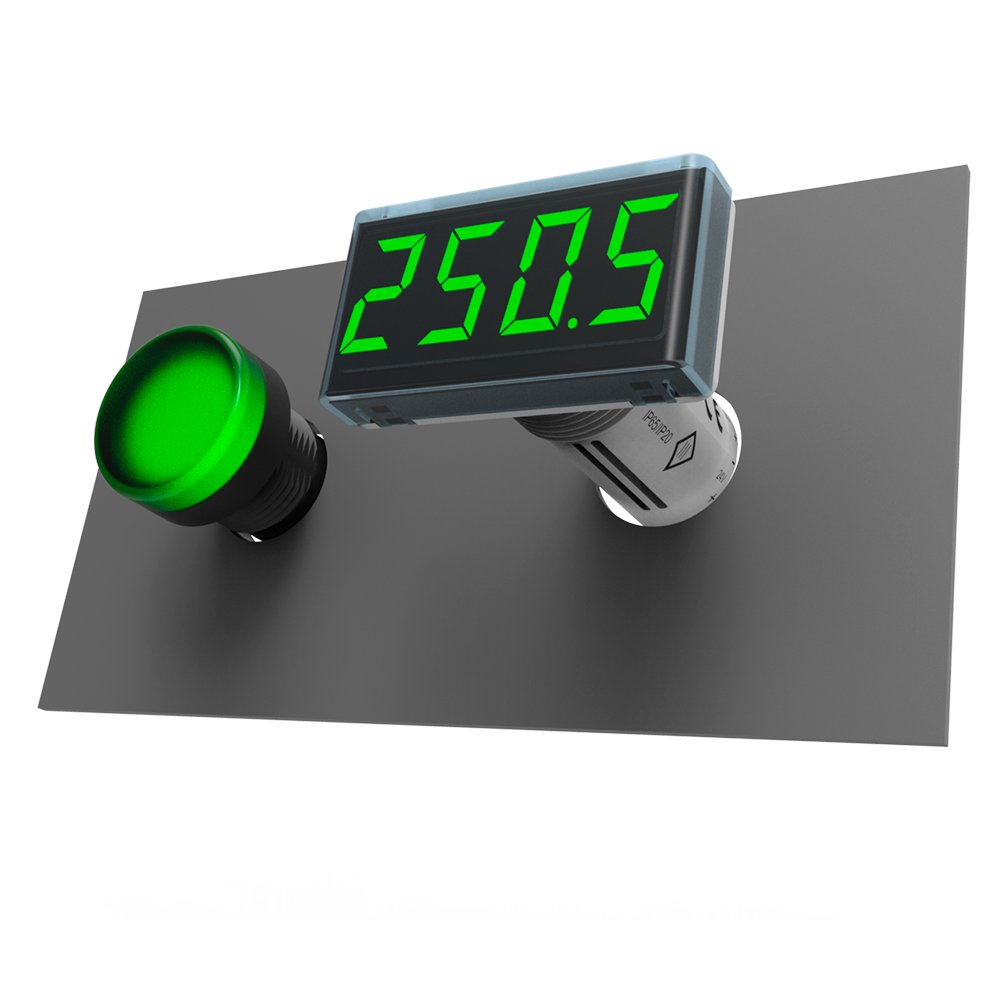

• Easy to fit into a 22.5 mm bore hole.
• LED green, 4-digit, 7-segment.
• Protection class: Front IP65, rear IP20.

The ITP14 is a universal process display for monitoring and controlling industrial processes. This device has a compact, standardised design and fits into a standard 22.5mm hole for signal lights. This allows for quick and easy installation and many displays can be stored in a control cabinet or on a panel. The process display has a digital output and a configurable analogue input. The input can be set for either voltage signals (0-10V and more) or for power signals (4-20mA and more). Before displaying, the input signal is scaled and it can be filtered if required. An optional square root function is also available. The NPN transistor output can control a load up to 42V DC/ 200mA, which can implement a two-point control. This output can also be used as an alarm output. The ITP14 also supports an alarm function. The device requires a 24 V DC power supply. The housing offers protection class IP65 on the front. Functions and features: analog input 0-10 V, 4-20 mA and more, measuring and displaying a process size, signal scaling, adjustable decimal point position, display range -999... +999, two-point control with a NPN output, square root function (for special transmitters), digital filter, alarm function (flashing in case of set value deviations). Technical data for power supply. Condition: 24 (10-30) V DC input: Input signal: 0(2)-10V, 0(4)-20mA, 0-5mA Sampling time: 0.3s Accuracy: (0.2% FS + 1 digit). Temperature influx: ≤ 0.2%/10°C. Output: 1 type: NPN transistor load capacity: 200mA, 42V DC character height: 14 mm. Dimensions: 48 x 26 x 65 mm. Weight: approximately 30 g. Ambient temperature: -40 to +60 °C. Protection type: front IP65, rear IP20
