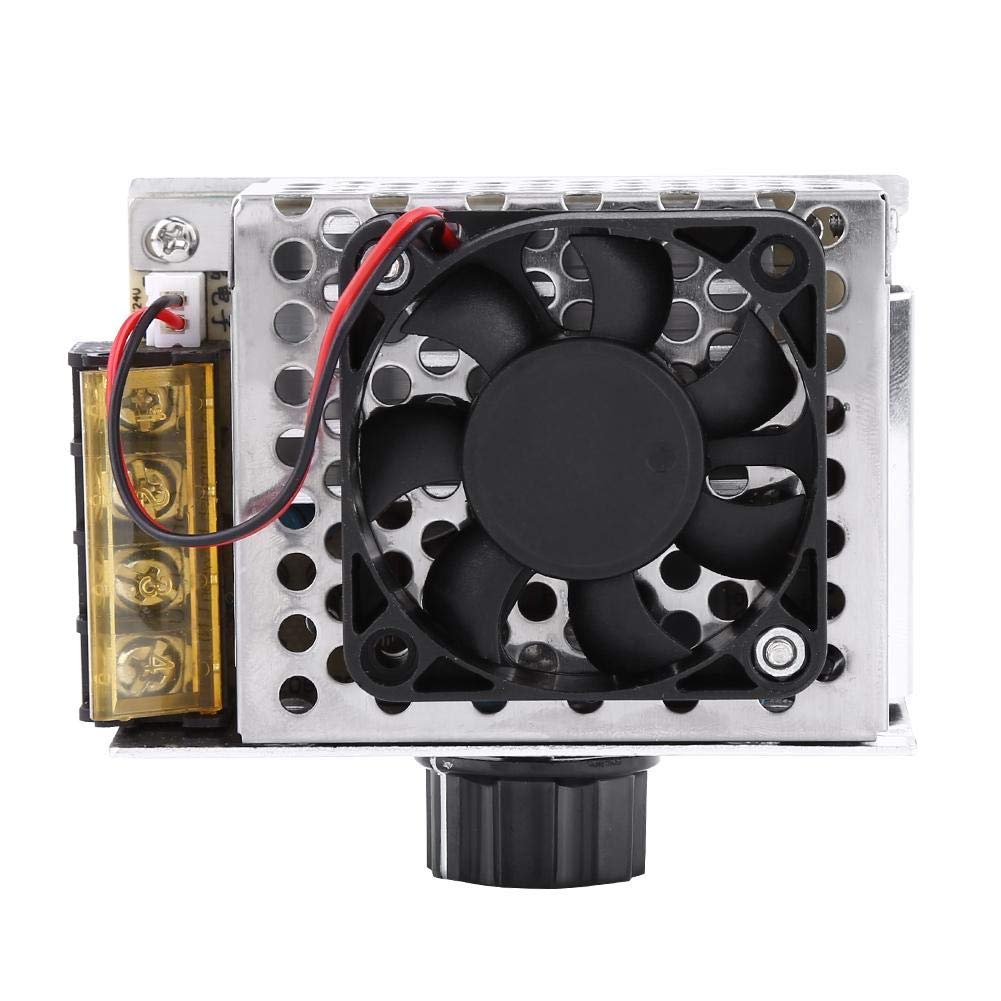

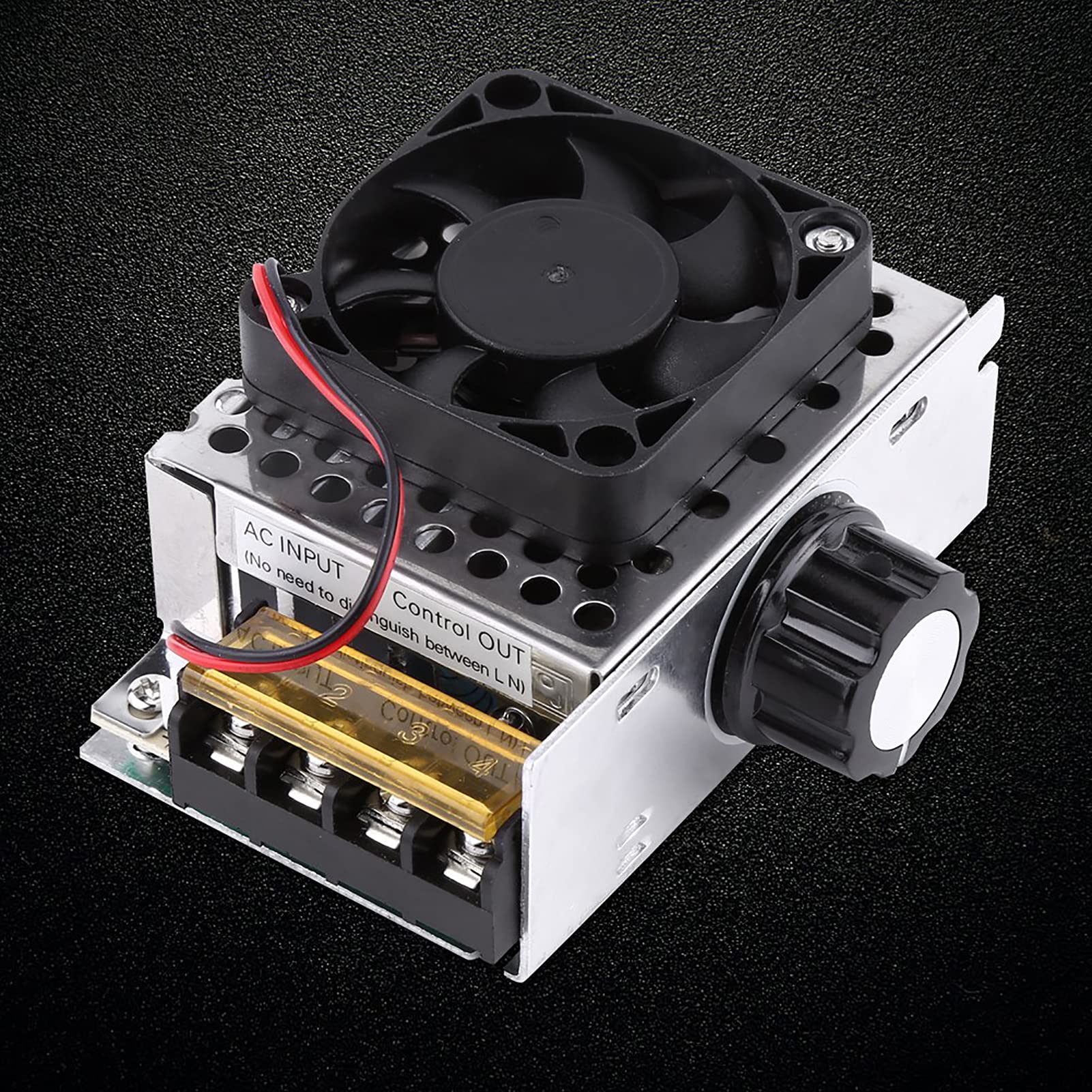

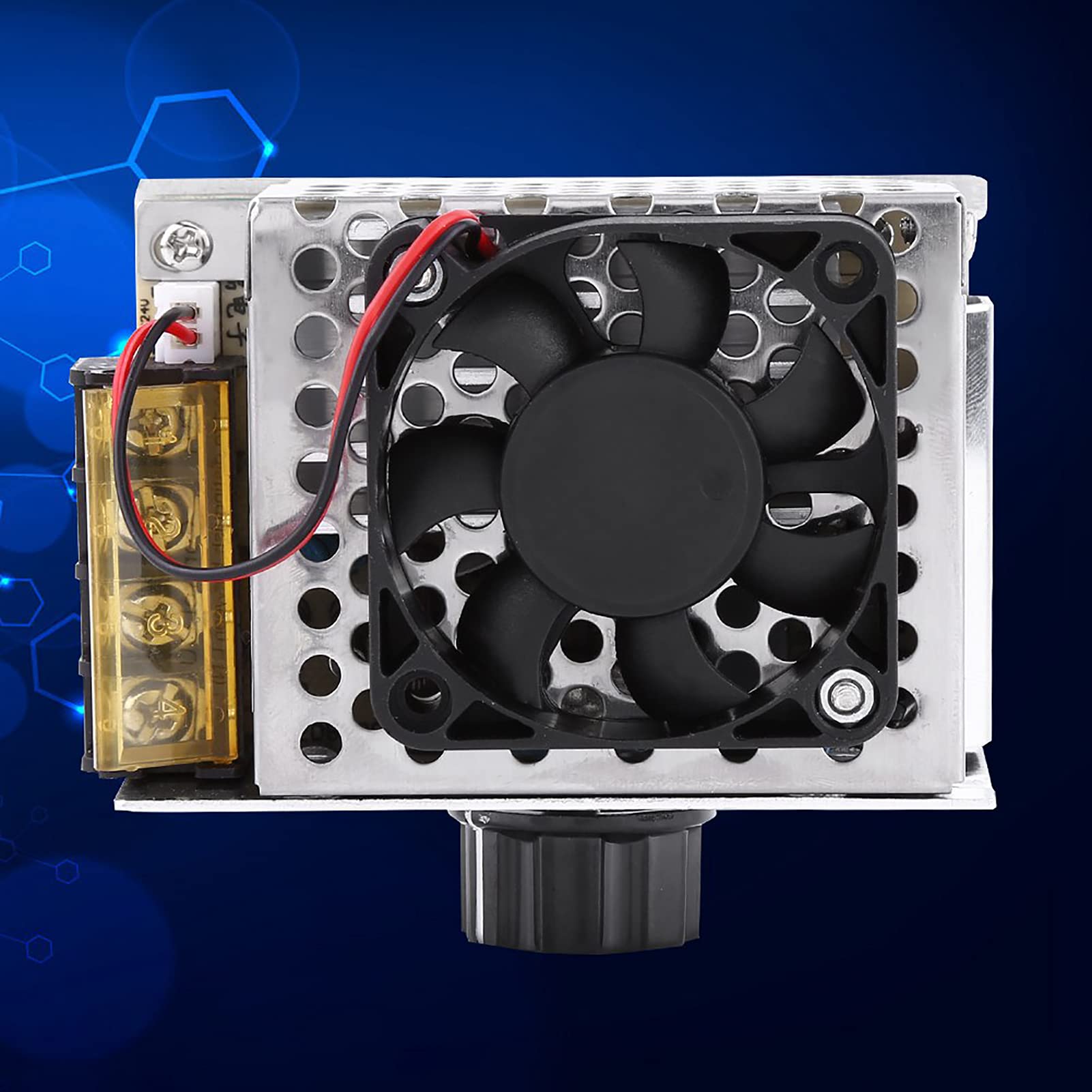

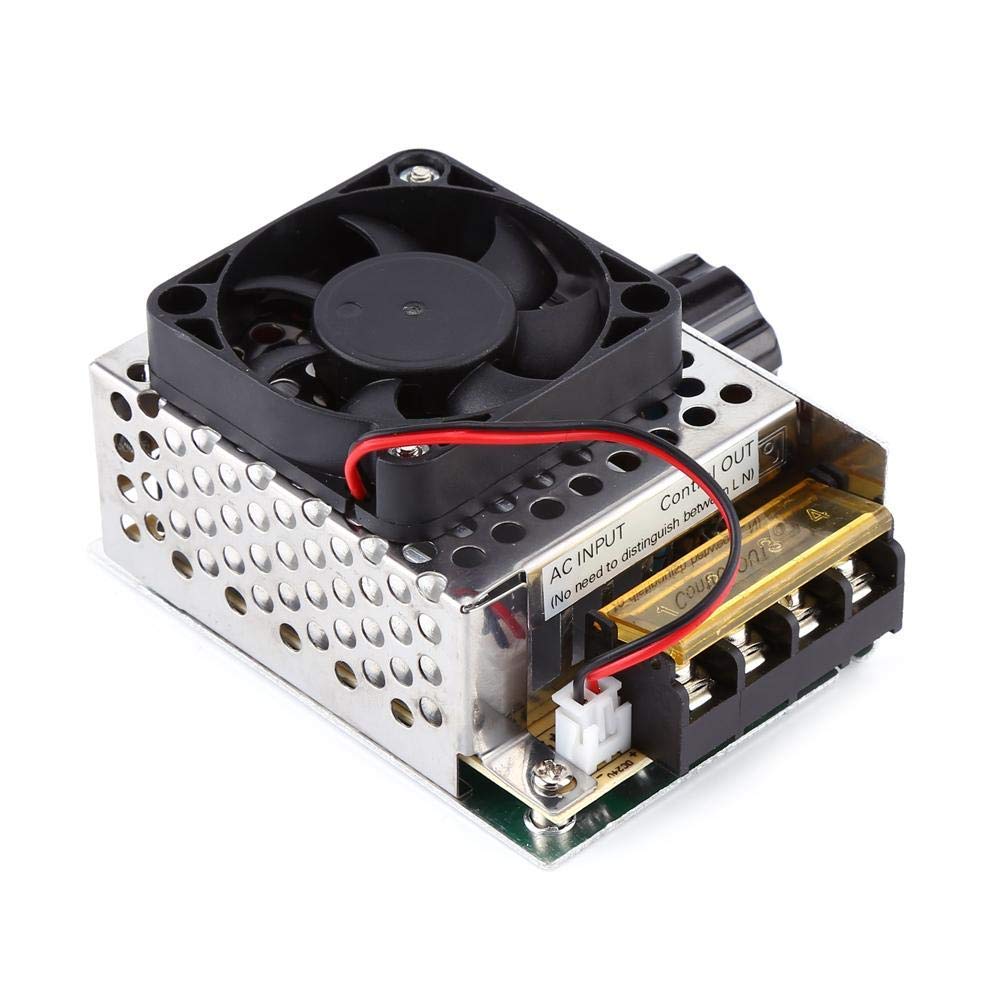

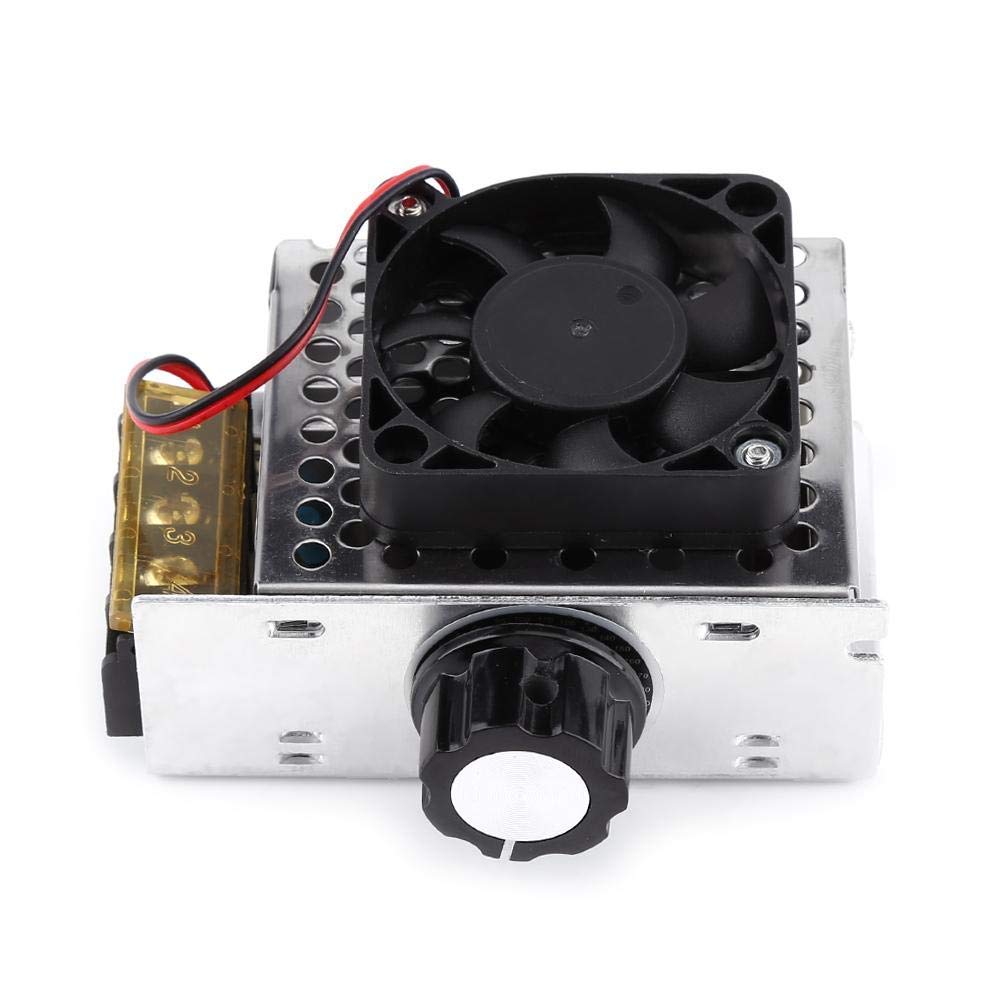

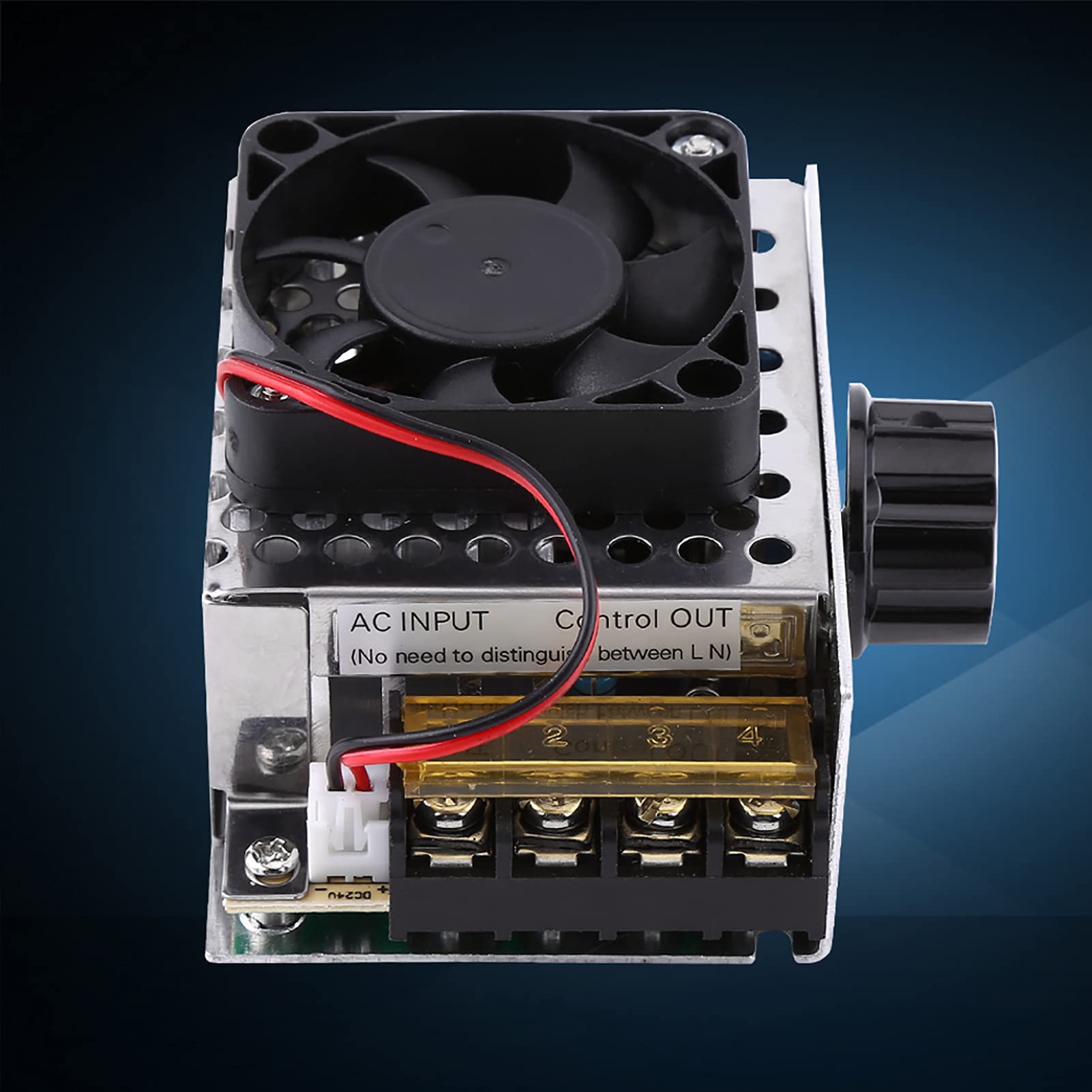

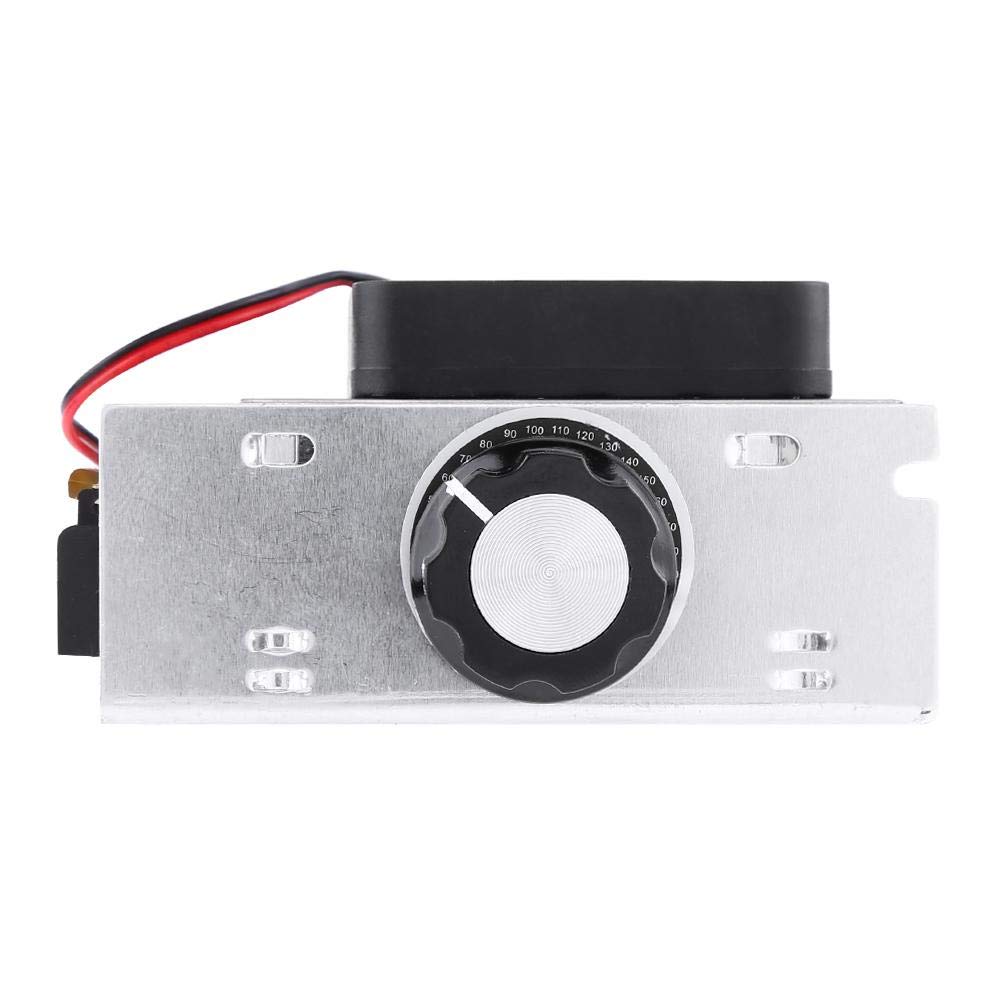

Digital Voltage Regulator Speed Control, Akozon Voltage Controller 4000W SCR Electric Voltage Regulator Dimmer Temperature Motor Speed Controller With Fan

• 【Wide Application】This is an easy-to-use voltage regulator to control light brightness, speed or temperature. It can be widely used as a thermostat for electric furnaces, water heaters, dimmers for lamps, speed controllers for small motors, thermostats for electric soldering irons, etc.
• 【Triac】This Voltage Regulator Speed Controller has a bidirectional high-power thyristor rectifier, and the current can reach 20A, which solves the problem of overcurrent caused by low resistance when the electric furnace wire is cooled.

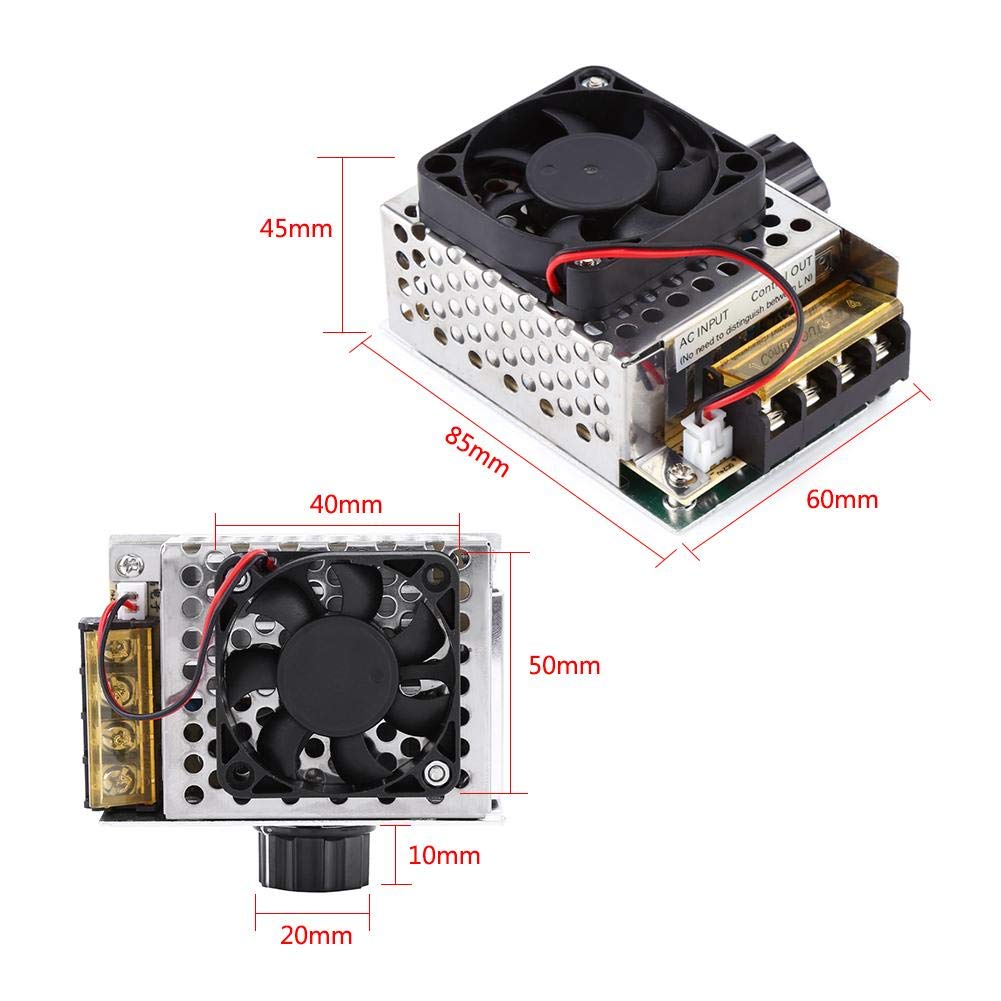

• 【Compact Design】This power supplies speed controller has a compact design, only 85 x 60 x 45mm / 3.34 x 2.36 x 1.77inches, which is convenient for many small projects.
• 【Easy to use】The Dimmer scr motor controller is easy to use, just connect the input terminal to the live wire or neutral wire (110V to 220V) and output to the load, then turn the knob to control the voltage. With a wide voltage adjustment range, the output voltage can be easily adjusted between AC 0-220V input voltage.
• 【Tips】The resistive load power should be less than 4000W. For inductive or capacitive loads, the power should be greatly reduced (half or more), otherwise the controller and load will be burned out.

Description: This is a easy-to use voltage regulator for controlling light brightness, speed or temperature. The big power voltage regulator is equipped with two-way silicon controlled rectifier, which is very convenient and practical. The voltage regulator has a large power and can be used for large household or small industrial electrical appliances of which power is less than 4000W(for resistive loads only, power should be reduced for inductive or capacitive loads). Specifications: Input Voltage: AC110V to 220V Max Power: 4000W(resistive load) Output Voltage: Variable from 0V to input voltage Size: 85 x 60 x 45mm / 3.34 x 2.36 x 1.77" Package Includes: 1 x Voltage Regulator Note: The maximum output voltage is equal to input voltage, e.g. if input 110V AC, the maximum output voltage is 110V AC; if input 220V AC, the maximum output voltage is 220V AC.
