Akozon Transistor Tester Pro Digital Transistor Tester SMD Chip Component Meter Inductance Multimeter

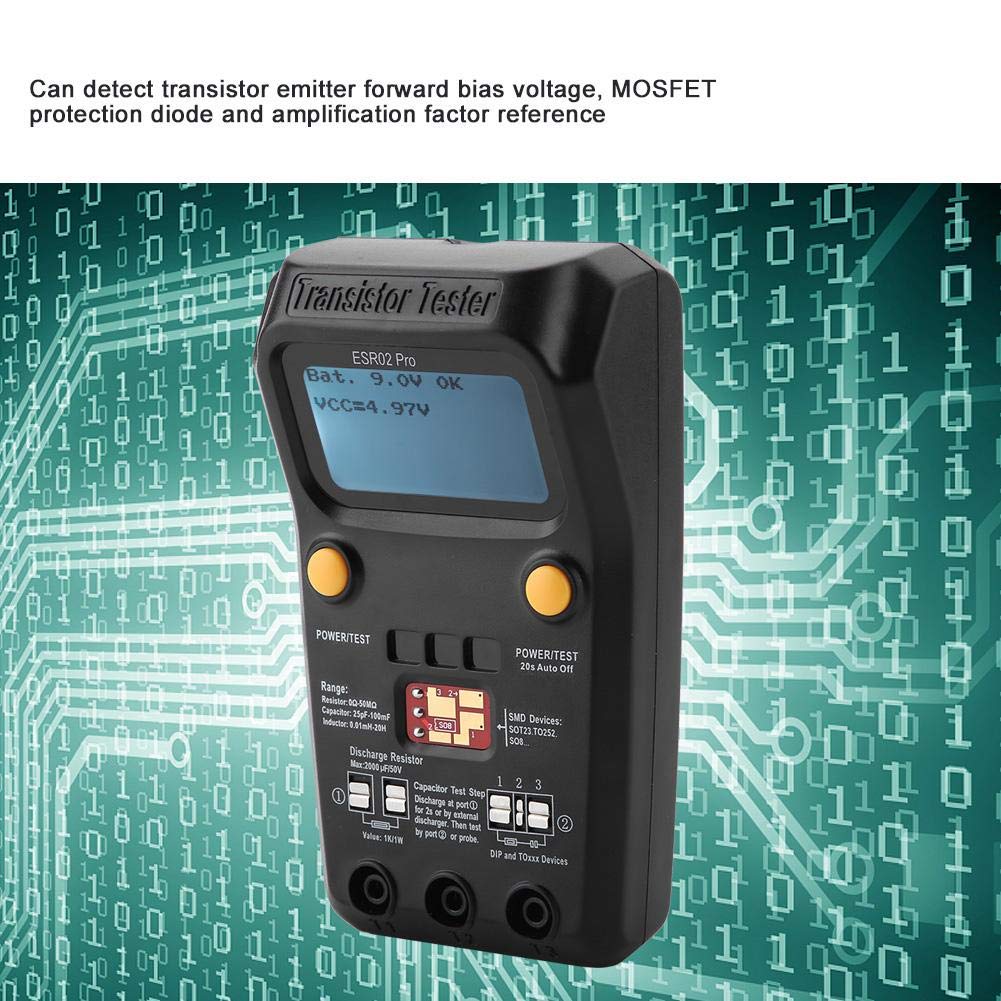

• Wide Applications --- This instrument is a small instrument designed for electronics enthusiasts, developers, electronic repair and production facilities. Detects transistor emitter forward bias, MOSFET diode and gain factor reference. MOSFET gate threshold voltage measurements and the gate capacitance.
• Multifunction --- It can measure inline devices and test patch devices. It can measure various diodes, transistors and MOS tubes. It can measure device type, pin polarity, RFE output, valve voltage and FET junction capacitance judge. Measure capacitance and resistance etc.
• One-Click --- The Pro Digital Transistor Tester is designed for precise one-button operation, boot test and one-click Press POWER/TEST to turn on the power and start the test. This Button can repeat the measurement several times and automatically turn off 20 seconds after the measurement.

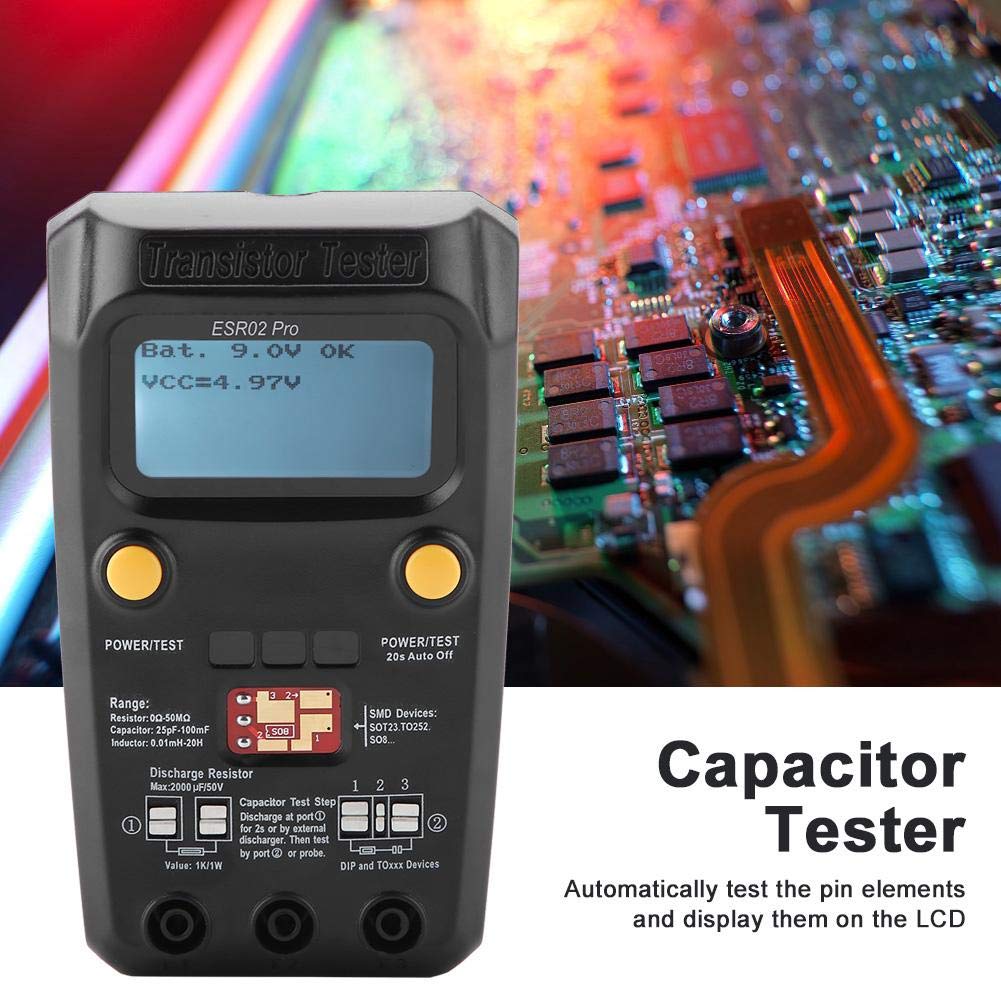

• Automatic Function --- The test meter automatically tests the pin components and displays them on the LCD. Automatic detection of NPN, PNP bipolar transistors, N-channel and P-channel MOSFETs, diodes (including double diodes), thyristors, transistors, resistors and capacitors.

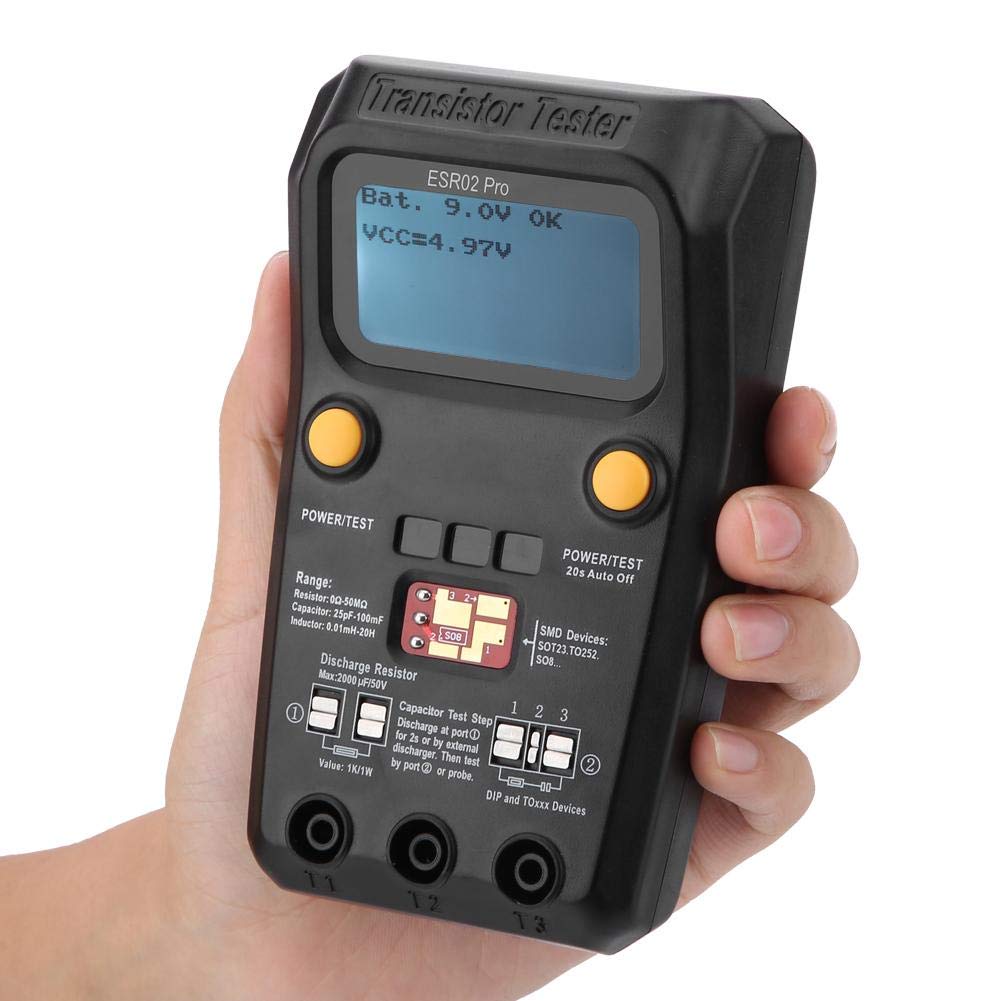

• Humanized Design --- The transistor meter has a large backlit LCD display for easy reading. The test speed is fast, the active component test: 2 seconds (except for measuring the large capacitance of the larger capacitor, it takes a long time and the measurement time one minute is normal).

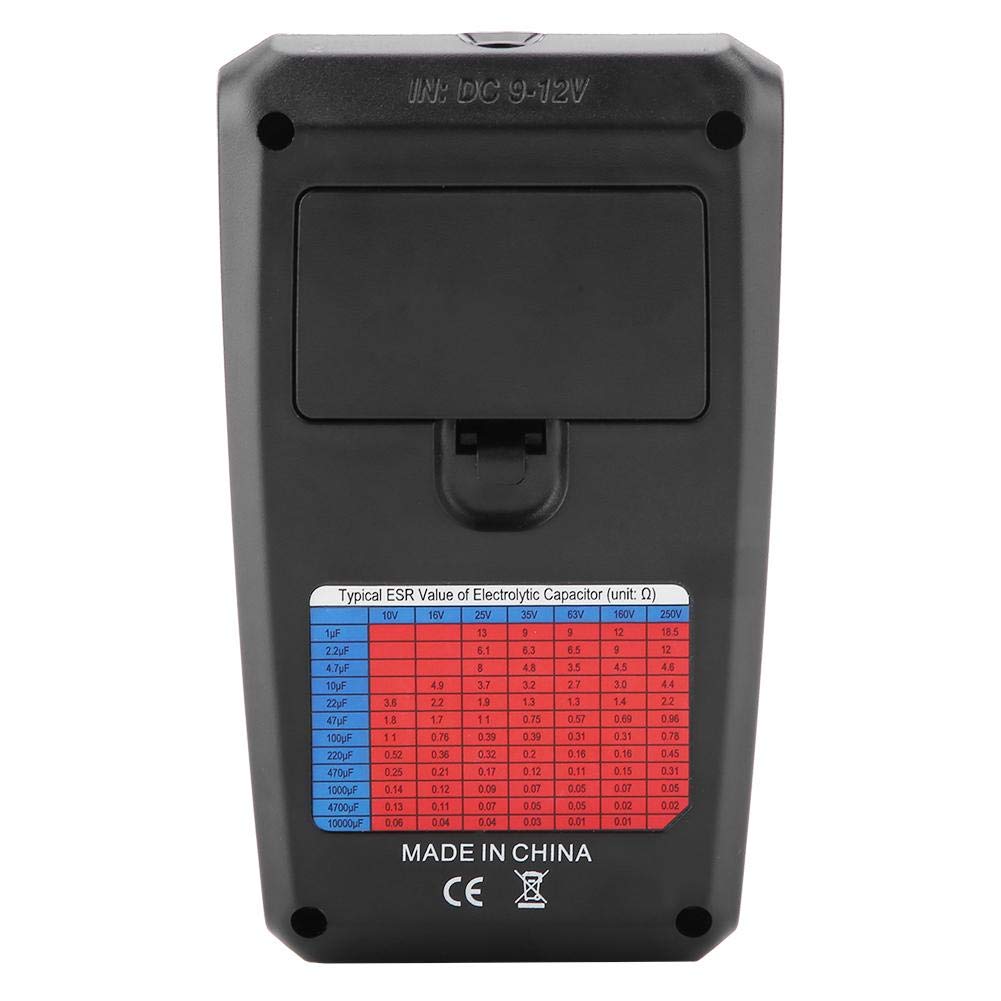

Specification: Model: Pro Resistor: 0Ω~50Ω, Resolution: 0.01 ohm Capacity: 25pF~100mF, Resolution: 1pF Inductance: 0.01mH~20H, Resolution: 0.01mH Capacitor Resolution: 0.01Ω Battery: 1pcs x 9V 6LR61 Battery (NOT included) Size: Approx. 14*8*4.5cm/5.5*3.1*1.8inch Weight: Approx. 223g / 7.9oz Using Instruction: Push "POWER / TEST" to power on and start a test, multiple measurements can be repeated by this key, auto power off 20 seconds after measurement. Provide three kinds of socket, each socket pin 1, pin 2 and pin 3 are connected. The placement of the device does not require the order of instruction, and the screen displays the component function of each pin after measuring. There is a table "typical value of electrolytic capacitor" at the back, it is for guiding only, these are typical value for standard grade electrolytic capacitor at room temperature. Calibration: Short the test pin 1, 2, 3 together and push "POWER / TEST" button, then the screen prompts to enter calibration, push the button again within 2 seconds to confirm. Few seconds latter the screen prompts to release pin 1, 2, 3, release them and wait for calibration finish. Package List: 1 x Transistor Tester 1 x User Manual Note: Before testing the capacitor, be sure to discharge it, otherwise it may damage the internal circuit.If using DC supply, please choose DC 9V~12V adapter. (including 9V and 12V).Can be powered by a 9V 6LR61 battery (NOT included), when the battery power is under 6V, please replace a new one.
