Toggle Clamps Quick Release Akozon Toggle Clamp Iron Galvanized Quick Fixed Toggle Clamp Holding Latch Push Pull Action Hand Tool for Machine Operation, Woodworking, Welding, Molding(GH-305-CM)

• 【Wide Scope of Application】The toggle clamp is ideal for quickly holding sheet metal or printed circuit boards, for machine operation, welding, molding, electronic equipment assembly, etc. Widely used during welding processing, riveting processing and other fastening product processing.
• 【3 Heavy Duty Compositions】The push pull of the plunger consists of an alloy steel base plate, an adjustable rubber pressure tip and a red non-slip handle, easy to use and flexible locking.
• 【Outstanding Performance】During locking, the lever is controlled to avoid impact on operation due to lateral thrust. The push / pull action initiates a solid grip of the workpiece, easily adjustable. The clamping force is quite stable and reliable, which can greatly reduce the machining time of various parts with high efficiency.
• 【High quality lever clamp】The Vertical Toggle Clamp is made of high strength iron, finished with zinc plating for corrosion resistance and anti rust, suitable for quick, durable and stable grip.
• 【3 models for option】We offer 3 models for different needs: GH-305-CM, GH-302-FM, GH-6010. Their holding capacity is 240kg, 150kg, 370kg. They are suitable for different sizes. Please double check before buying.

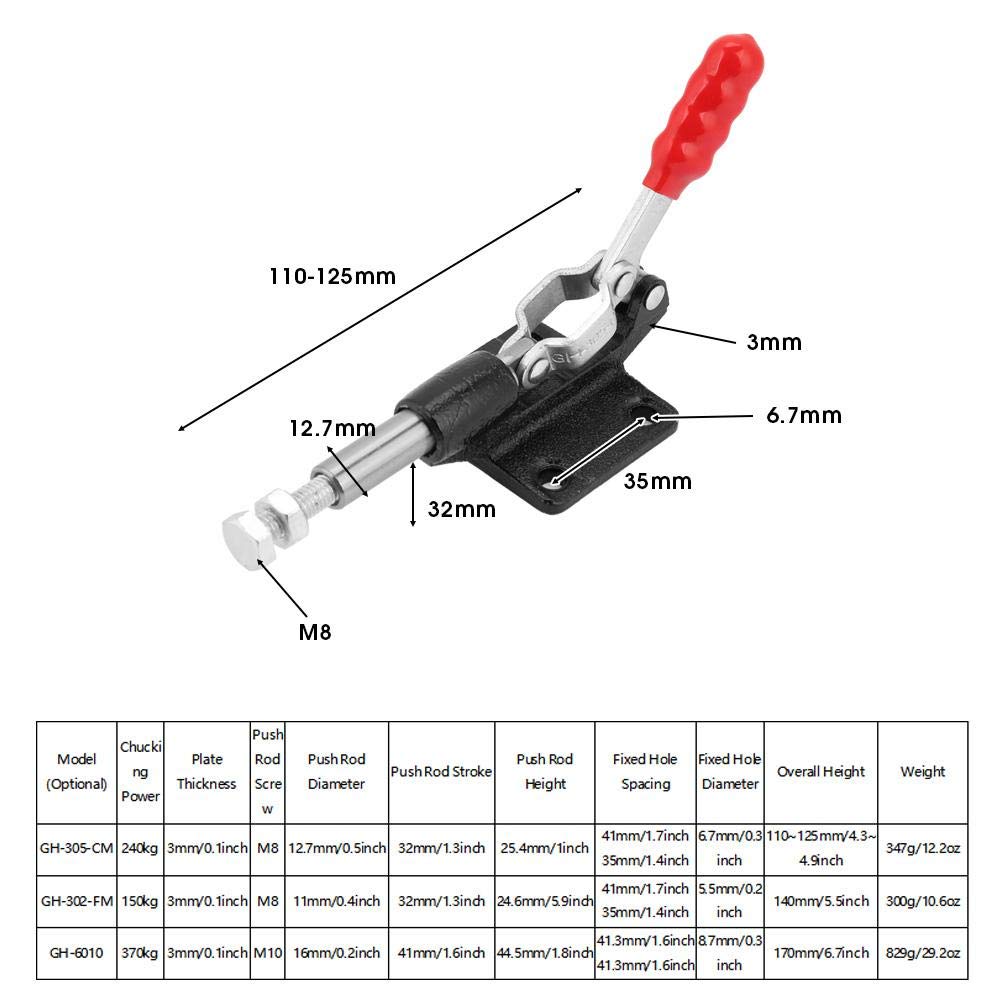

Specification: Material: Galvanized iron Model (Optional)--Pull Force--Plate Thickness--Push Rod Screw--Push Rod Diameter--Push Rod Stroke--Push Rod Height--Fixed Hole Spacing--Fixed Hole Diameter--Overall Height--Weight GH-305-CM--240kg--3mm/0.1inch--M8--12.7mm/0.5inch--32mm/1.3inch--25.4mm/1inch--41mm/1.7inch--35mm/1.4inch--6.7mm/0.3inch--110~125mm/4.3~4.9inch 347g/12.2oz GH-302-FM--150kg--3mm/0.1inch--M8--11mm/0.4inch--32mm/1.3inch--24.6mm/5.9inch--41mm/1.7inch--35mm/1.4inch--5.5mm/0.2inch--140mm/5.5inch--300g/10.6oz GH-6010--370kg--3mm/0.1inch--M10--16mm/0.2inch--41mm/1.6inch--44.5mm/1.8inch--41.3mm/1.6inch--41.3mm/1.6inch--8.7mm/0.3inch--170mm/6.7inch--829g/29.2oz Package List: 1 x Toggle Clamp Note: Please allow slight error due to manual measurement. Thanks for your understanding.
