Timer Module, Akozon Adjustable Cycle Timer Delay On/Off Switch Relay Module(DC24V, 0-30min)

• 【Wide Scope of application】---- This adjustable timer module can be widely used in timer operation equipment, machine repeat test circuit, fish tank intermittent pump, etc.
• 【High precision】 ---- The timer switch module is a timer relay module with high precision, stable and reliable performance
• 【2 modes】 ---- Our delay on/off switch module supports two modes, mono mode (once) and loop mode, you only need to adjust the jumper to switch modes

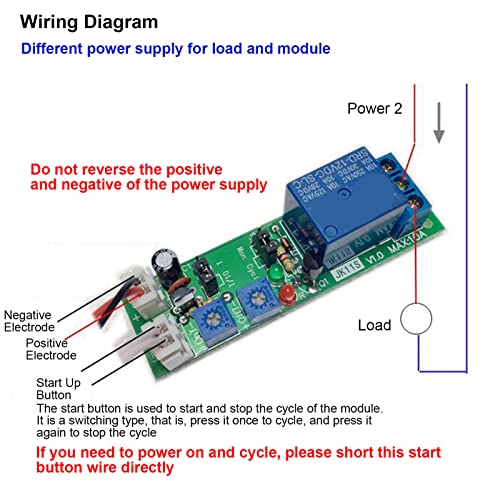

• 【Adjustable design】---- There are a variety of voltage and time ranges for you to choose, "on" time and "off" time are adjustable. If you need the module to re-work after power-on, please connect the two wires of "Key".
• 【Service】If you have any questions about our products, please feel free to contact us. We will respond within 24 hours. Help Need More Help Contact us at the top of the Amazon page and select "Chat Customer Service".

Specifications: Type: DC5V,0-30min/DC5V,0-24hr/DC12V,0-120min/DC12V,0-24hr/DC24V,0-15min/DC24V,0-30min (Optional) Quiescent Current: <10mA Dynamic Current: 45mA@12V; 90mA@5V; 30mA@24V Contact: 1 group NO+NC Load Capacity: 10A(AC0-250V, DC0-30V） Size: 70*20*18mm / 2.75*0.78*0.7" Time Accuracy: Max value*0.001 Mon. Mode: 1. The module Power-on, When triggered the relay is switched on, timer delay off. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay. Cycle Mode: 1. The module Power-on, When triggered the relay is switched on, (T1) timer delay off. (T2) timer delay on Such cycle. T1 and T2 are set by two adjustable resistors, respectively. 2. When triggered on the delay process, again triggered, it will immediately interrupt the delay. Package Includes: 1 x Timer Relay Module
