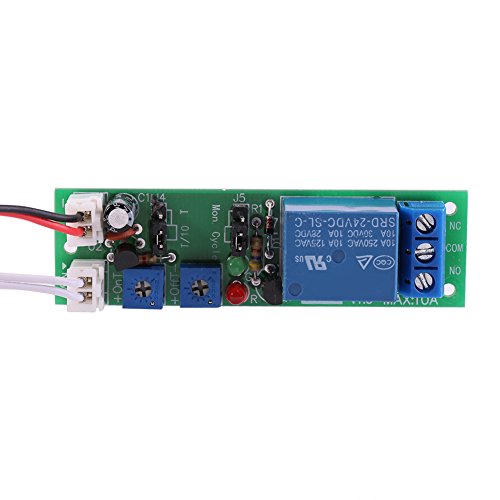

Timer Switch Module, Akozon Timer Relay Module DC 5V 12V 24V Adjustable Cycle Timer Delay On/Off Switch Relay Module (DC24V, 0-15 minutes)

• It is a timer relay module with high precision, stable and performance.
• The timer relay module supports 2 modes, Mon-mode (once) and cycle mode, and you can easily switch the mode by adjusting the jumper.

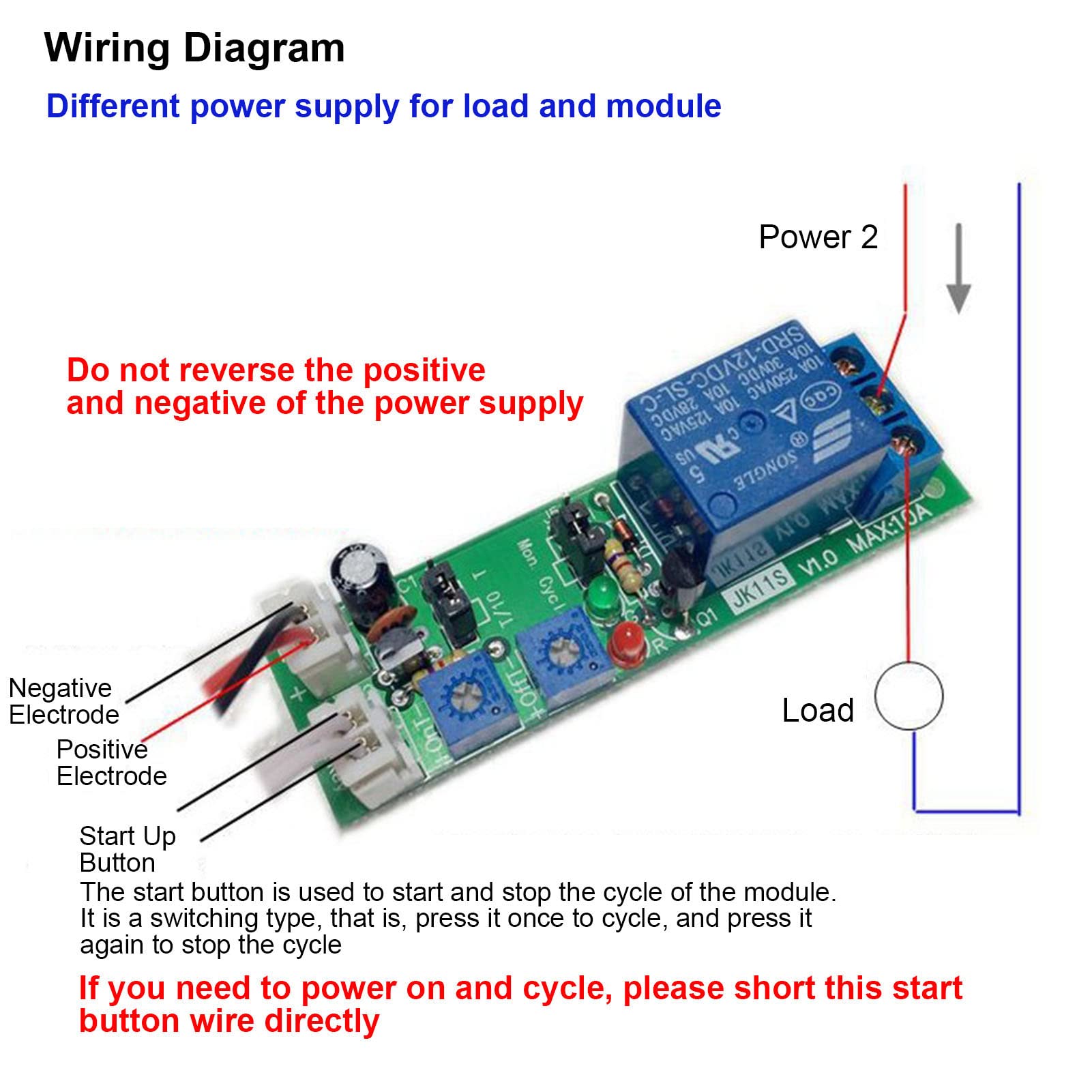

• The Delay On/Off switch module connects 2 wires of "Key" if the module is to function repeatedly after switching on
• There are many voltage and time ranges for your choice, both "on" time and "off" time are adjustable.
• The delay - ON/OFF - switch - module is most used on the timer mode, the repeated test circuit of the machine, the intermittent pump of the fish tank, etc.

Specifications: Type: DC5V, 0-30min / DC5V, 0-24hr / DC12V, 0-120min / DC12V, 0-24hr / DC24V, 0-15min / DC24V, 0-30min (optional) Standby current: 10 mA Dynamic current: 45 mA @ 12 V; 90 mA at 5 V; 30 mA @ 24 V. Contact: 1 group NO + NC Load capacity: 10 A (AC0-250 V, DC0-30 V) Size: 70 x 20 x 18 mm / 2.75 x 0.78 x 0.7 inches. Time accuracy: maximum value x 0.001. Mo. Mode: 1. The power-on module, when triggered, the relay is switched on, the timer delay is switched off. 2. If it is triggered during the re-triggered delay process, it immediately interrupts the delay. Cycle Mode: 1. The power-on module, when triggered, the relay is switched on, (T1) the time delay is switched off. (T2) Time Delay . Such a cycle. T1 and T2 are each set by two adjustable resistors. 2. If it is triggered during the re-triggered delay process, it immediately interrupts the delay. Package contents: 1 x Timer Relay Module
