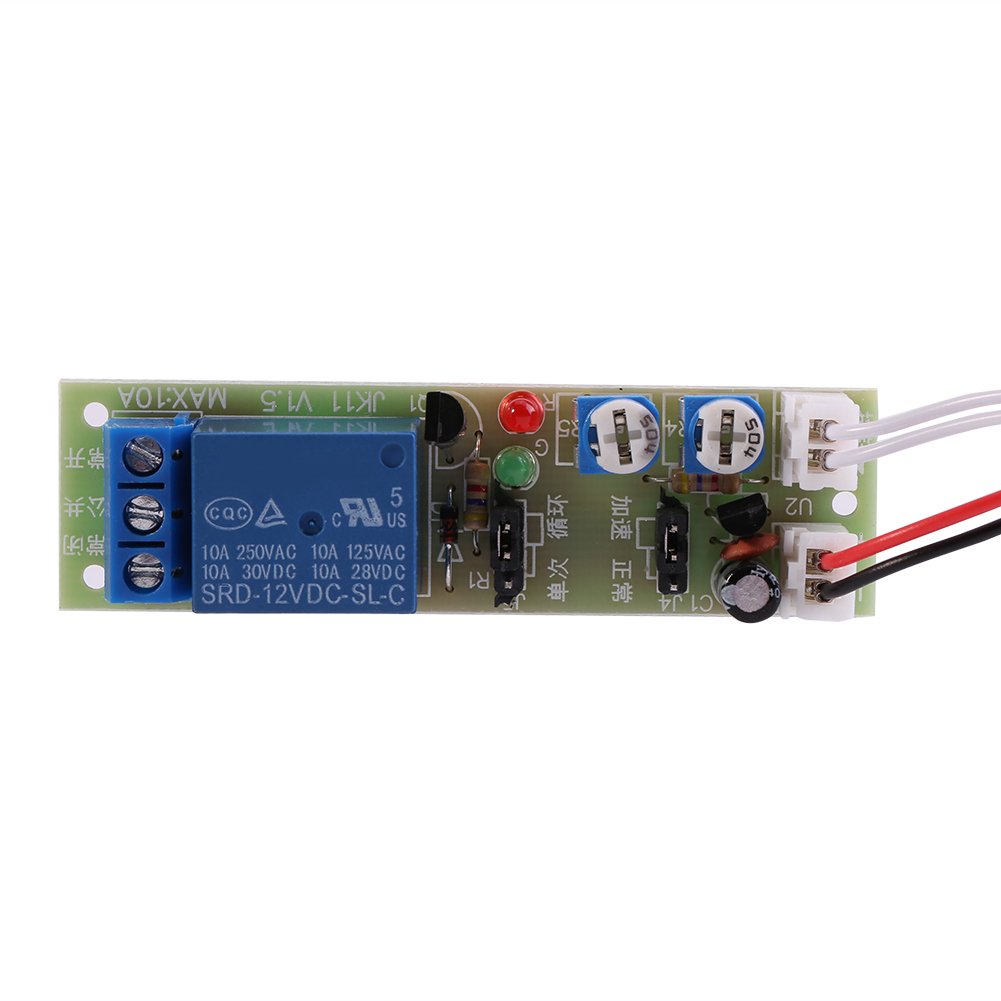

Timer Switch Module, Akozon Timer Relay Module Adjustable Cycle Timer Delay On/Off Switch Relay Module Relay Module (DC12V, 0-60 Minutes)

• 【Wide scope of application】The timer relay module is great to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test. Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.
• 【Wide scope of application】The timer relay module is great to control the reciprocating stroke, or repetitive power on and off for equipment and products burn-in test. Widely used on timer operating equipment, machine repetitive test circuit, fish tank intermittent pump, etc.
• 【2 modes】The delay switch module support 2 modes, mon mode(once) and cycle mode, and you can simply switch mode by adjusting the jumper.
• 【Adjustable】There are many voltage and time range for your choice, both "on" time and "off" time are adjustable.
• 【High performance】This is brand new delay relay board, it is a timer relay module with high precision, stable and performance.
• 【Service】 We are responsible for the products and believe in the quality of the products. Professional functions and high reliability give you a different experience and ensure every customer's satisfaction. If you have any questions about our products, we will reply to you at any time.

Description Specifications: Type: DC5V, 0-15min / DC5V, 0-60min / DC12V, 0-15min / DC12V, 0-60min / DC24V, 0-15min / DC24V, 0-60min (optional) Max. Load capacity: 10A250VAC, 10A30VDC Size: 70 x 20 mm / 2.75 x 0.78 inches. Time error: 2%. T1 (the relay switch-on delay), T2 (the relay switch-off time). One mode (jumper OP3): 1. The power on module when triggered, the relay is switched on, the delay T1 and the relay disconnected. 2. If it is triggered during the delay process, it immediately interrupts the delay. Cycle mode (jumper OP4): 1. The power on module, when triggered, the relay is switched on, the delay T1 and the relay is disconnected, the delay T2, the relay is switched on again. Such a cycle. T1 and T2 are each set by two adjustable resistors. 2. If it is triggered during the delay process, it immediately interrupts the delay. How to set the time quickly: The time can be quickly adjusted by measuring the voltage (Uc) of the resistor. Take a 5V 15min module as an example. If Uc = 2 V, time = 2 V / 5 V * 15 min = 6 min. Package includes: 1 x Timer Relay Module
