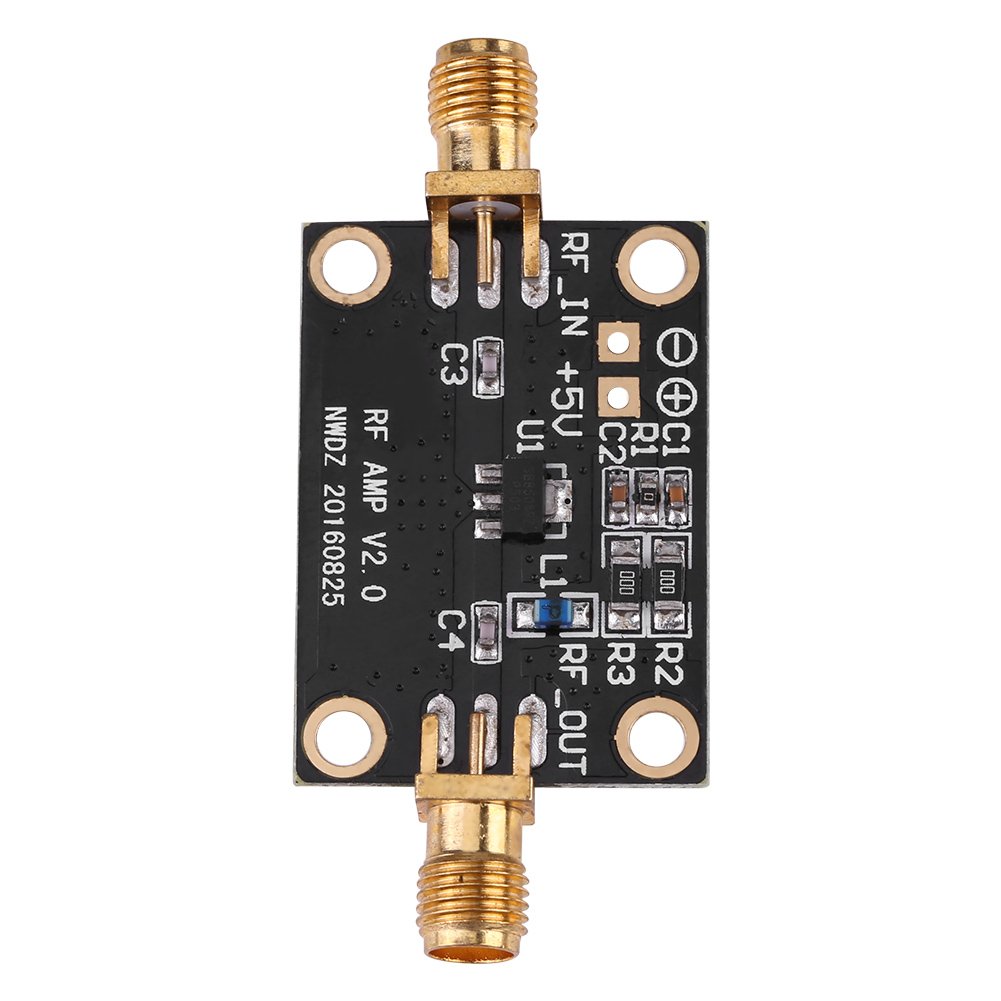

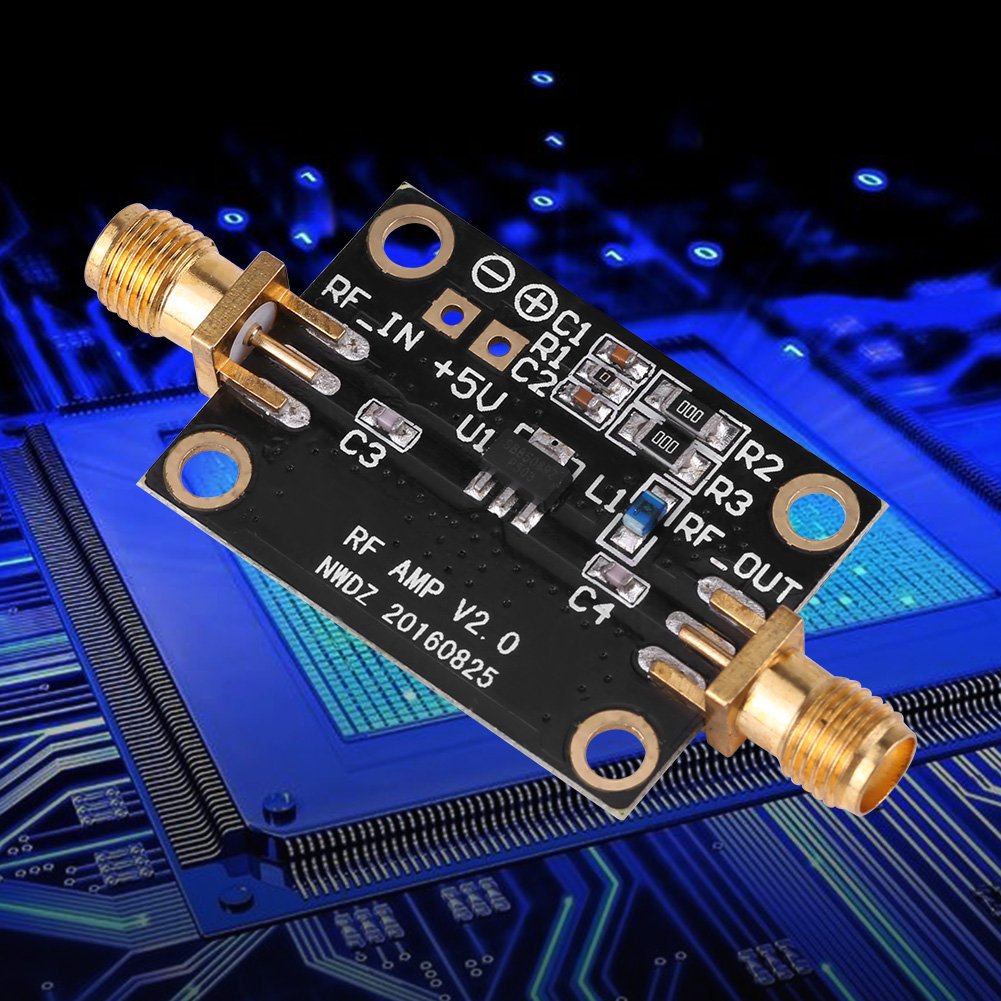

Akozon RF Amplifier Module, 21DB Wideband LNA Amplifier 0.01-4GHZ for HAM Radio RTL SDR LNA Low Noise Amplifier Module

• 【Application】The low noise amplifier is widely used for high frequency or intermediate frequency preamplifier of radio receiver, high sensitivity amplifying circuit of electronic detection equipment, ransceiver wireless communication card, and tower mounted amplifier (TMA), combiner, repeaters, and distal/digital wireless broadband head equipment, etc
• 【Excellent Design】This low noise amplifier has a wideband range of 0.01-4GHZ, and large dynamic range +21dB, maximum output power: P1dB +22dBm typical, and the noise factor is as low and 1.3dB
• 【Durable Use】This high gain low noise amplifier with wide frequency range, high gain, low noise figure. Durable material provides long term corrosion protection, even in salt air enviroments

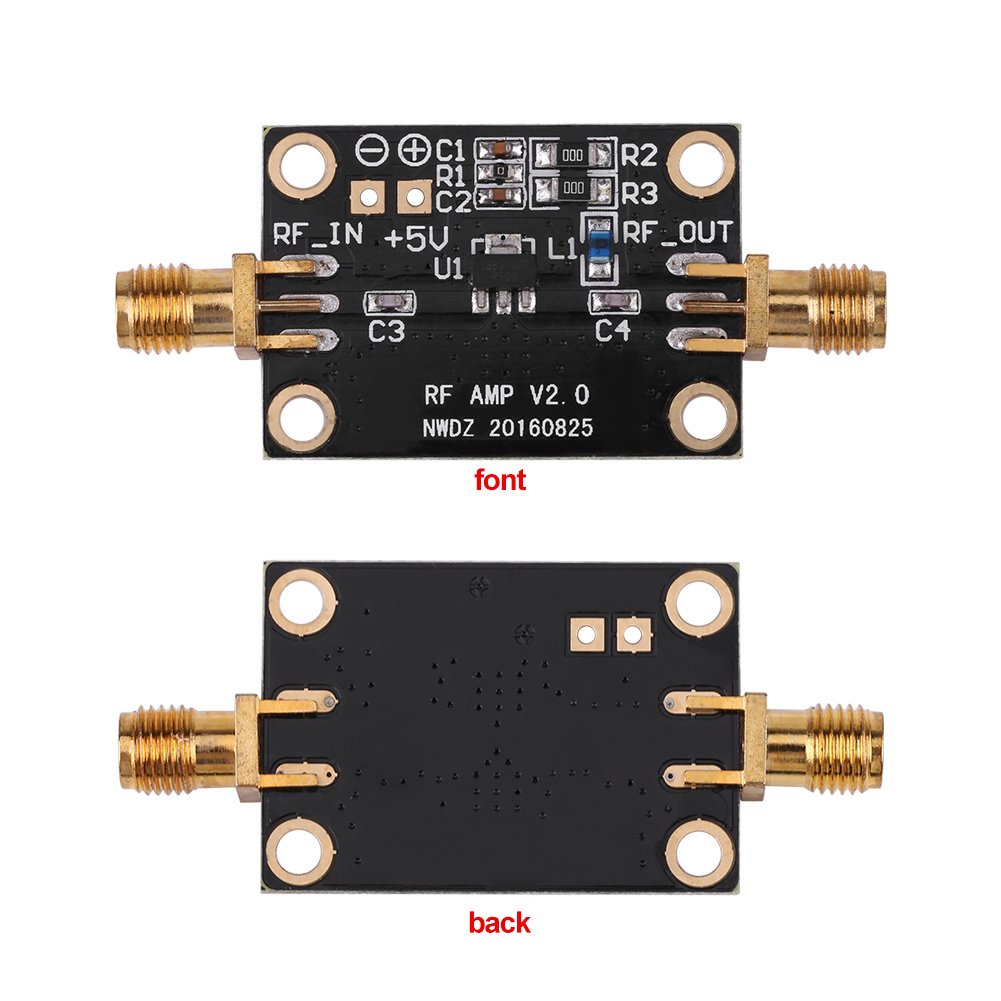

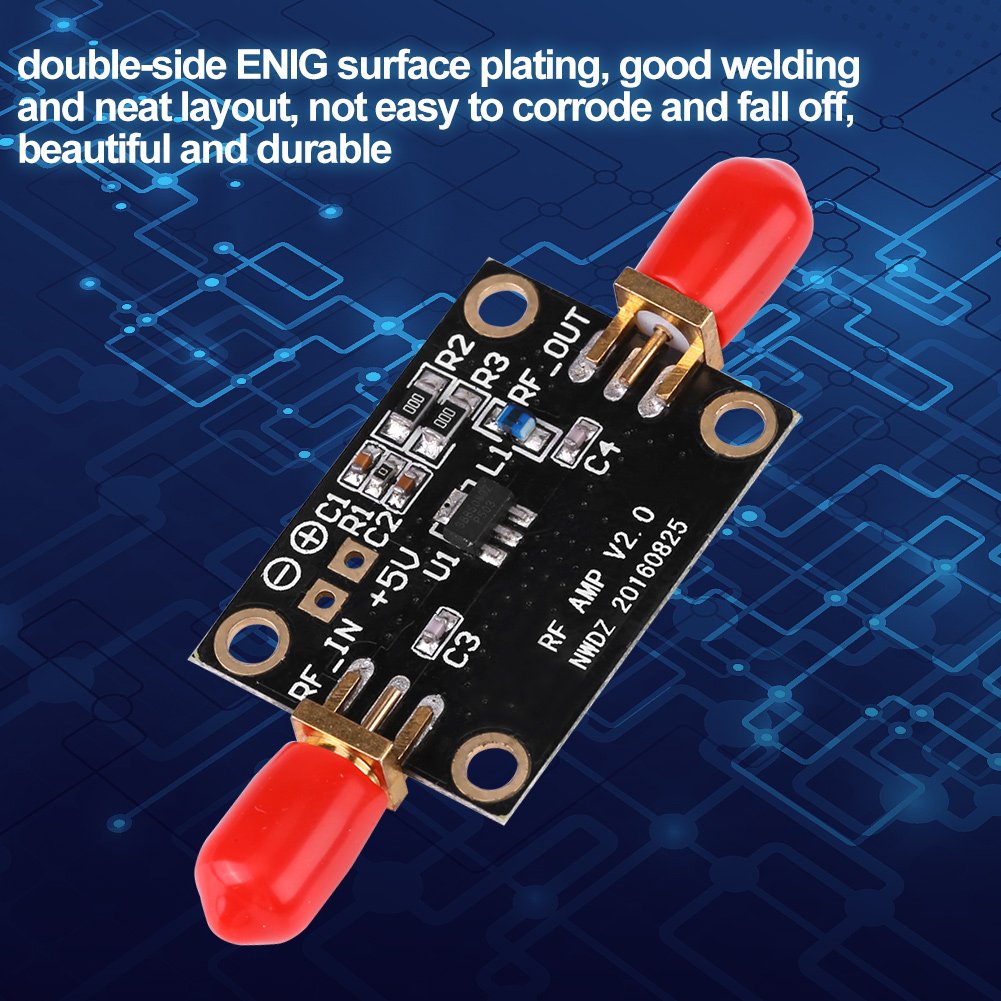

• 【Enhanced Connection】The rf amplifier module adopts the process of immersion gold, make the printed circuit surface is stable with color, brightness and smooth coating, good welding property. Ultra bandwidth, high frequency inductors and capacitors without resonant points

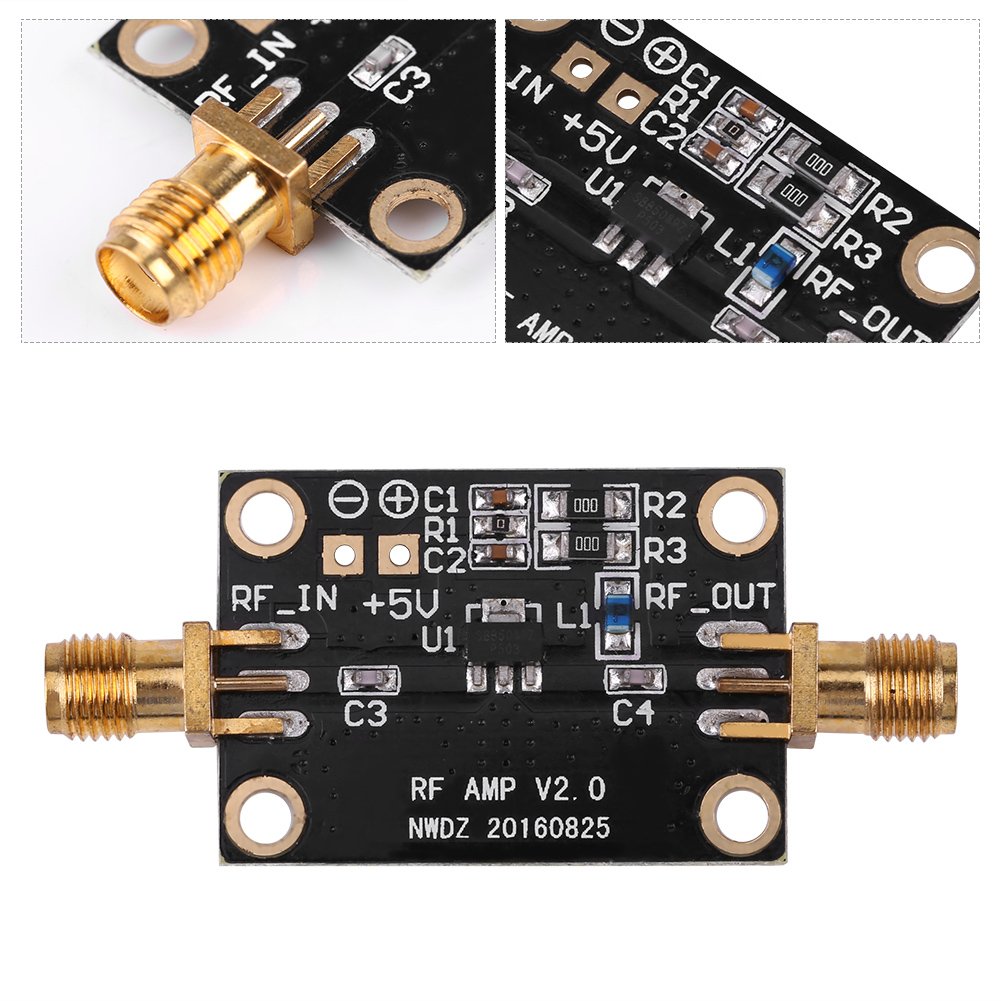

• 【Standard Connectors】Standard SMA female connectors are suitable for connecting most devices. The process of immersion gold improves reliability, not easy to corrode and fall off, and have beautiful appearance

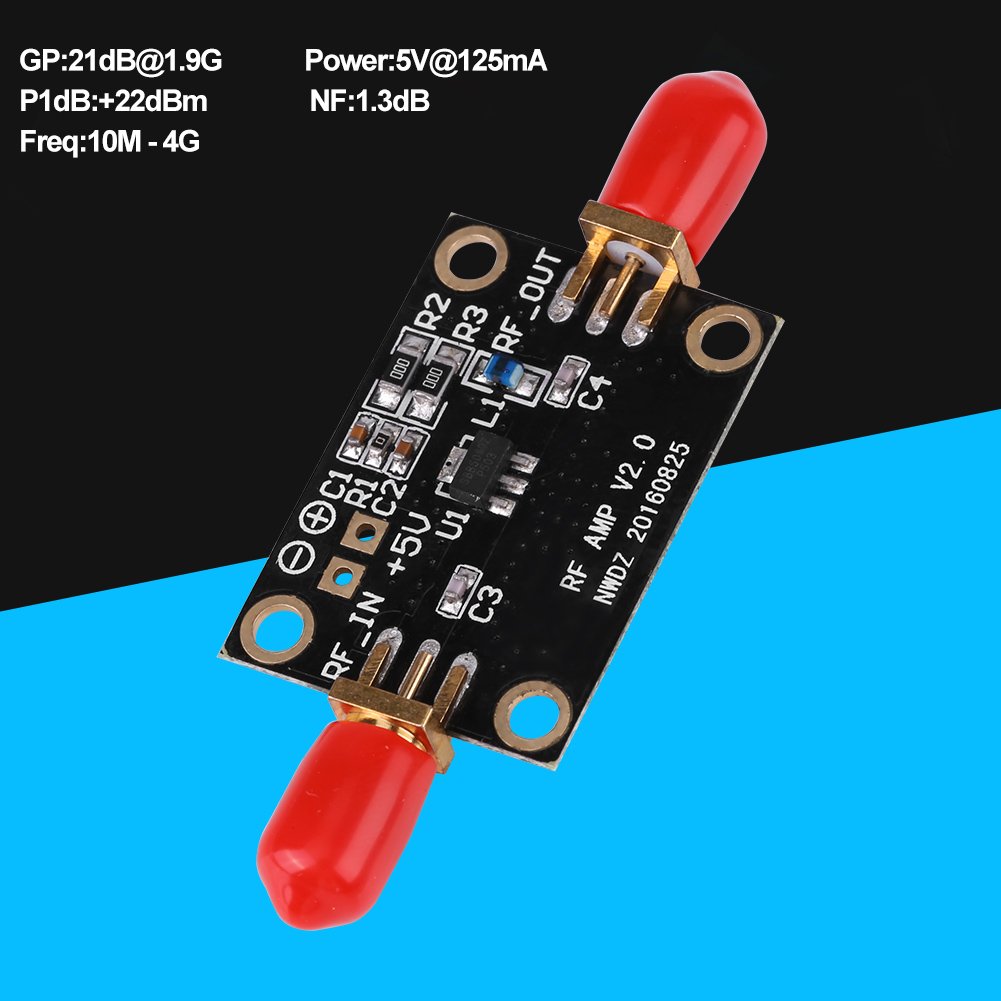

Power supply voltage: typical +5V (typical current value 125mA). Gain: typical value of 21dB@1.9G (Different frequency gains are slightly different ). Input output impedance: 50 Ω Maximum Output power: P1dB +22dBm typical, +39.5 dBm Output IP3. Specifications: Bandwidth: 0.01-4GHZ Noise coefficient: 1.3dB Size:32 x 23mm/1.26 x 0.91inch Weight: 5g Package Included: 1 x RF Low Noise Amplifier
