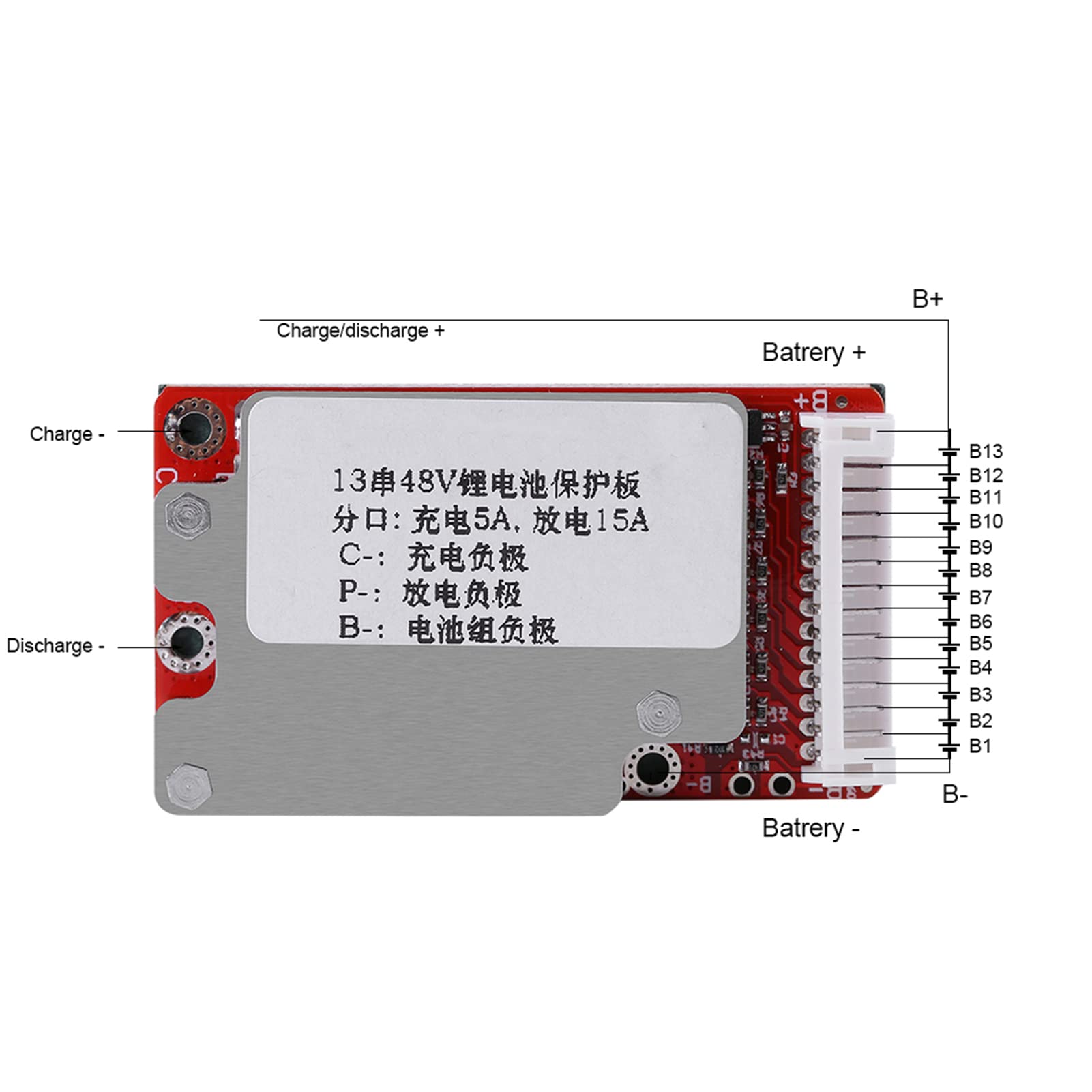

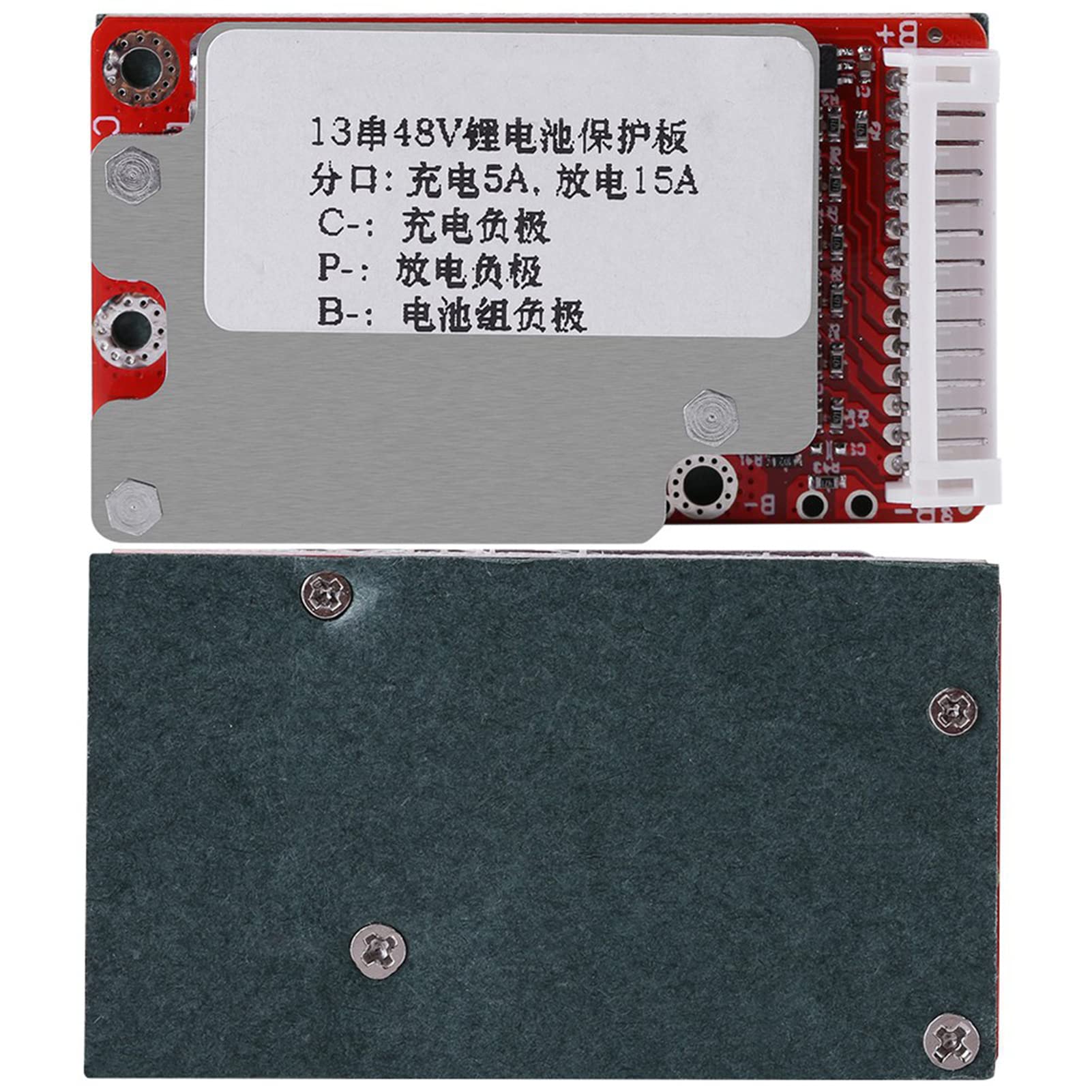

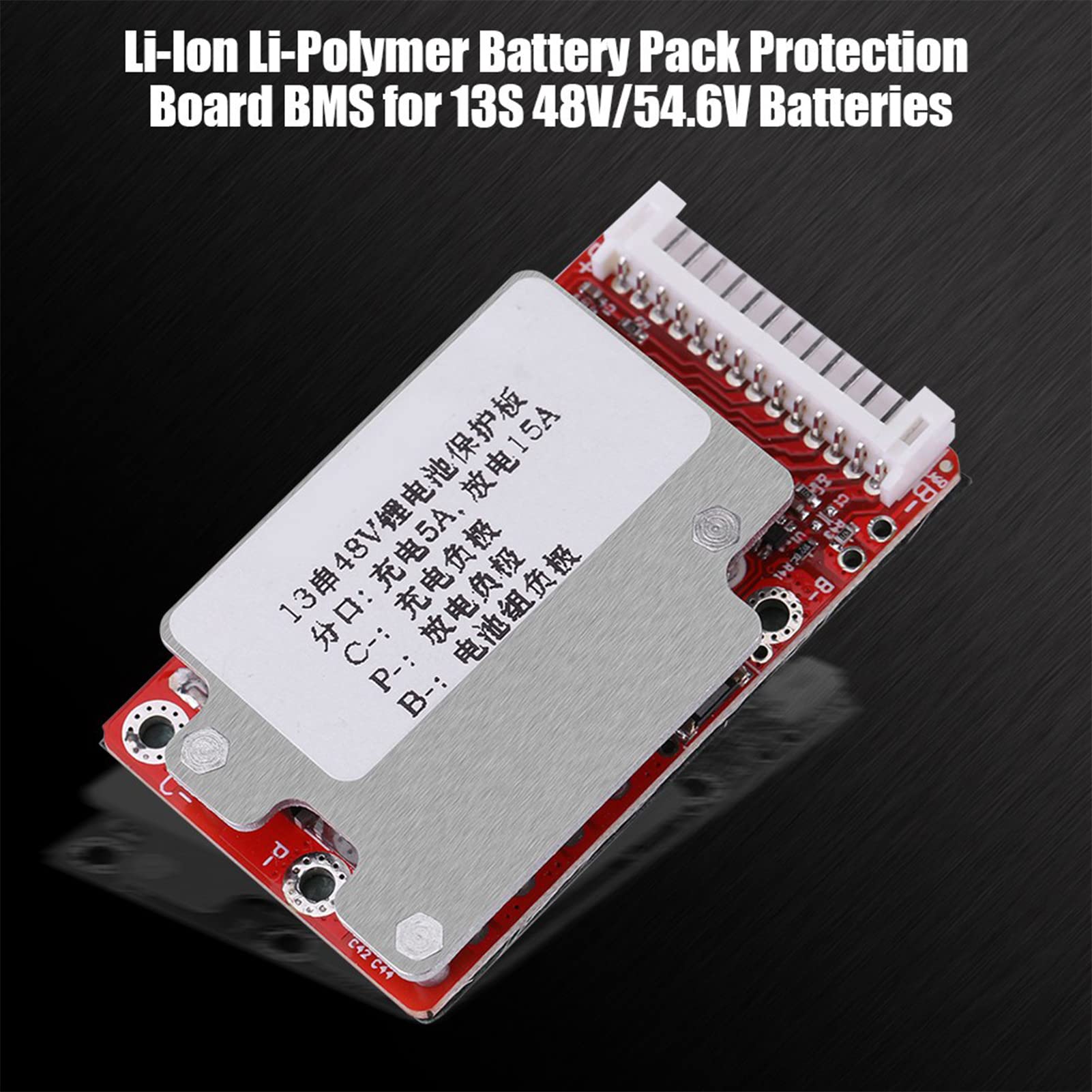

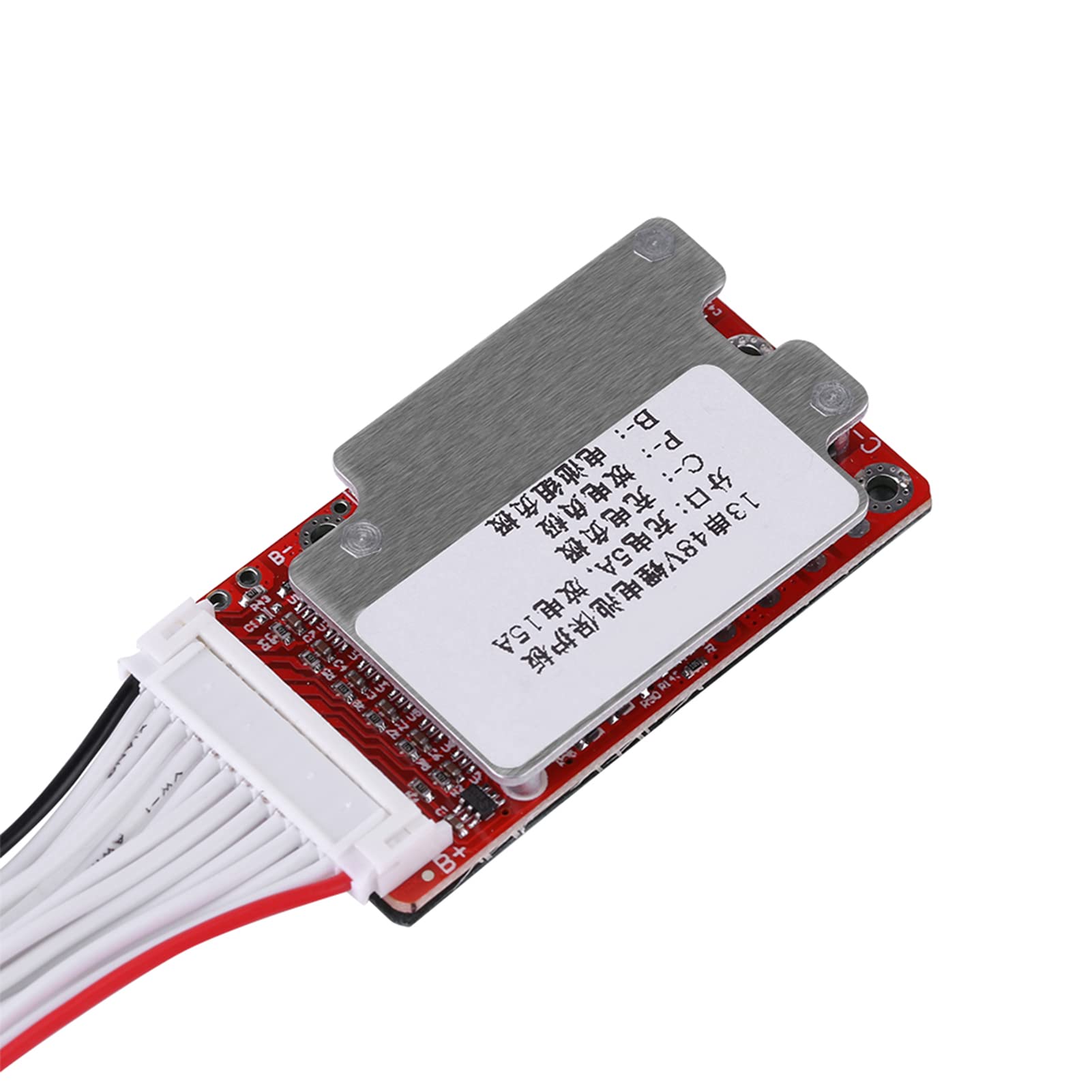

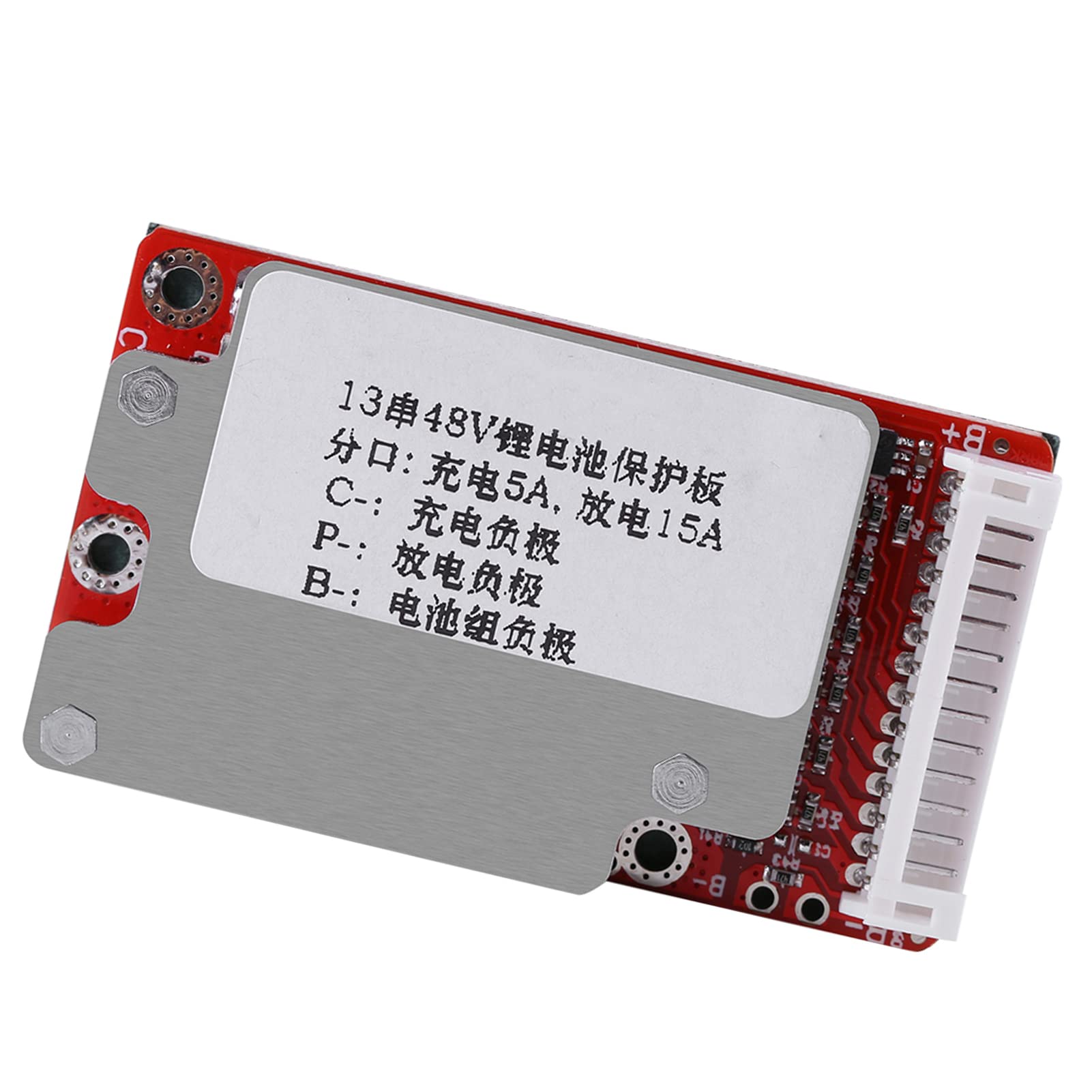

Lithium Battery Board, Akozon Li-Ion Li-Polymer Battery Pack Board for 13S 48V/54.6V Batteries

• [Widely used] The lithium battery board consists of 13 strings of lithium ion batteries, which can be used for ternary batteries, manganese acid batteries and cobalt acid batteries.
• [Multiple Functions] This battery PCB board has stable and diverse and discharge functions, such as precise overcharge protection, overcharge protection, overcurrent and short circuit

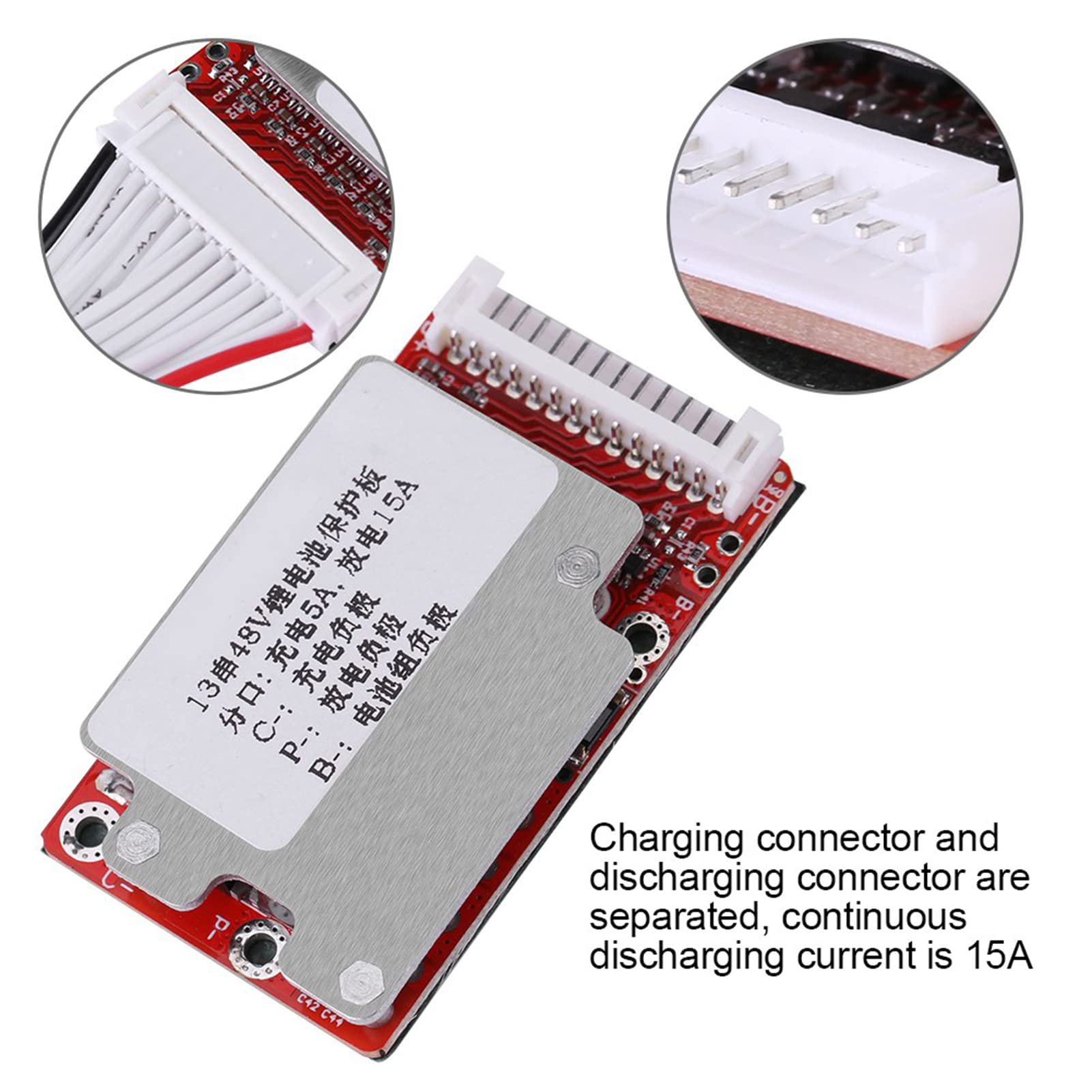

• [Separation of the charging and discharging ports] The charging port and the discharge port of this board of the Li-Ion Li-Polymer battery pack are separated, with a continuous discharge current of 15A. 5A, discharge 15A, overcurrent 45A, suitable for electric bikes with motors ≤500W
• [Advantages] Battery charging board has the function of high voltage resistance and low ignition resistance. Equipped with high voltage withstanding and low conduction resistance function, powerful and profewssional.
• [Service] We are responsible for the product and believe in the quality of the product. Professional functions and high reliability give you a different experience and ensure every customer's satisfaction. If you have any questions about our products, we will answer them at any time.

Overcharge Protection Single Battery Overcharge Detection Voltage 4.25V±0.05V, Single Battery Overcharge Release Voltage 4.10V±0.05V, Charge Protection Rated Charging Current ≤5A, Charging protection Current / Over-discharge Protection Single Battery Overcharge Detection Voltage 2.50V±0.05V, Single Battery Overcharge Release Voltage 3.00V±0.05V, Rated discharging Current 15A, Discharging Protection Current 45±5A, Short Circuit Protection Recovery Condition Disconnecting Load Inner Resistance B-, P- conduction resistance ≤25mΩ, Current Consumption Self-consumption ≤30uA, Size L*W*H 60*34*10mm / 2.36*1.33*0.39".
