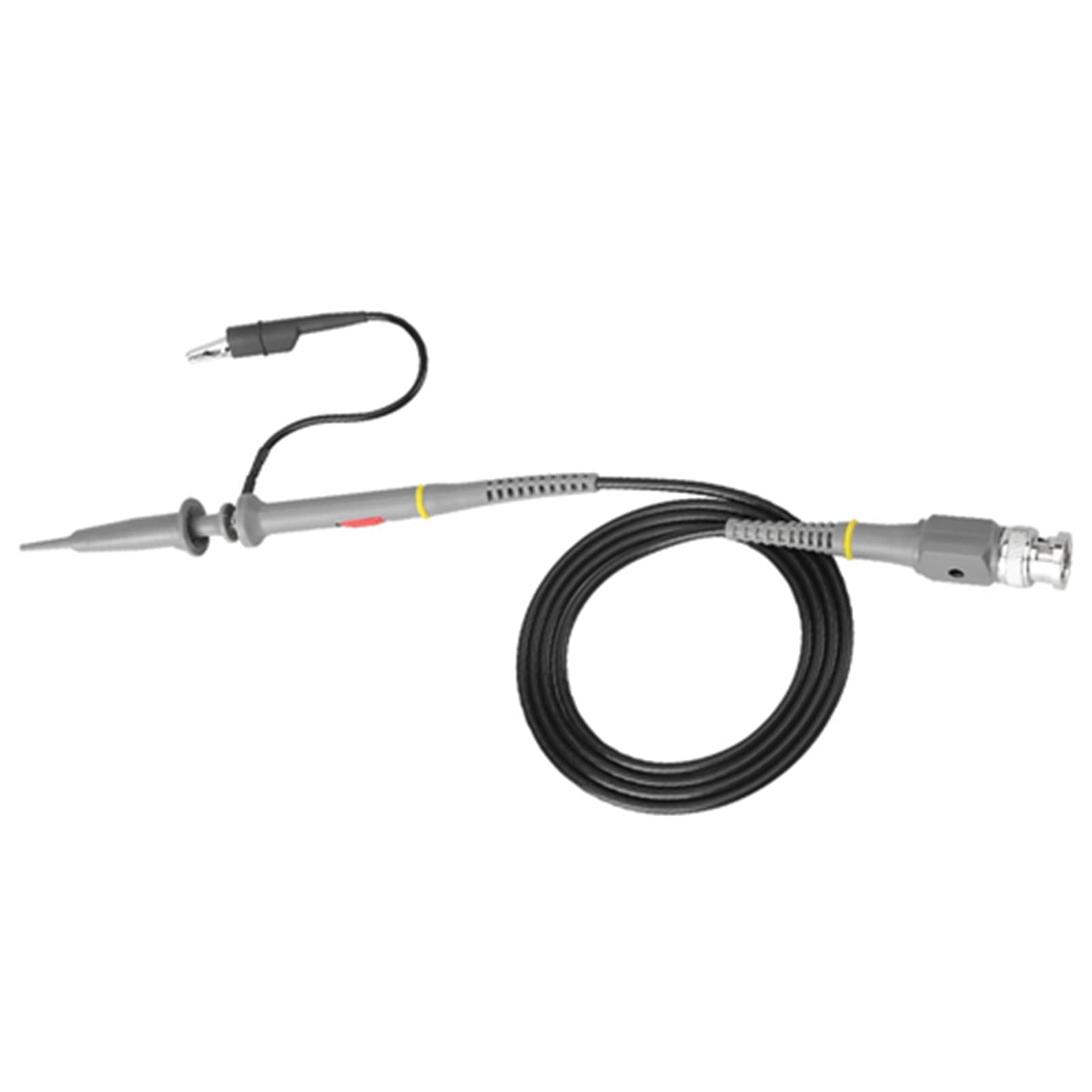

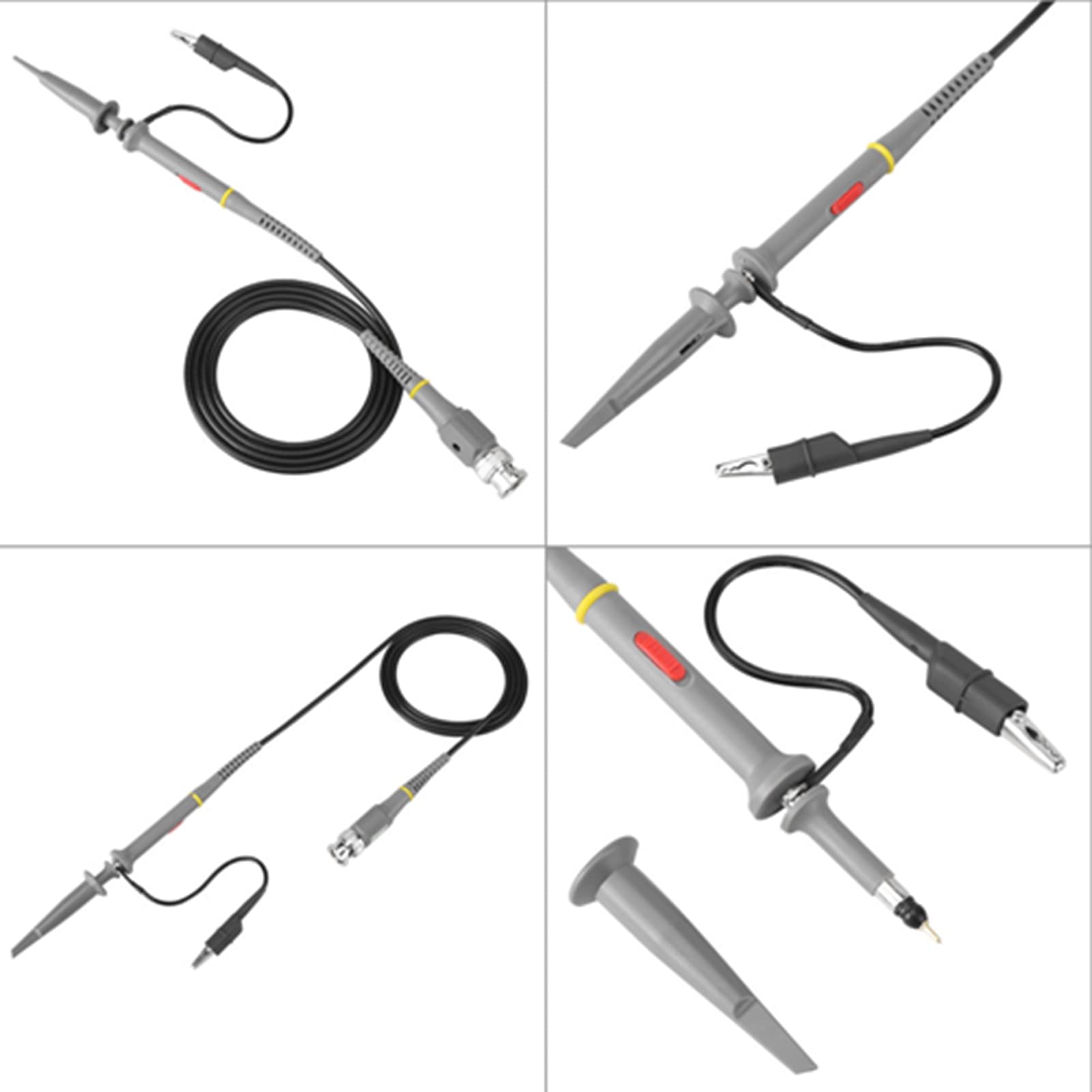

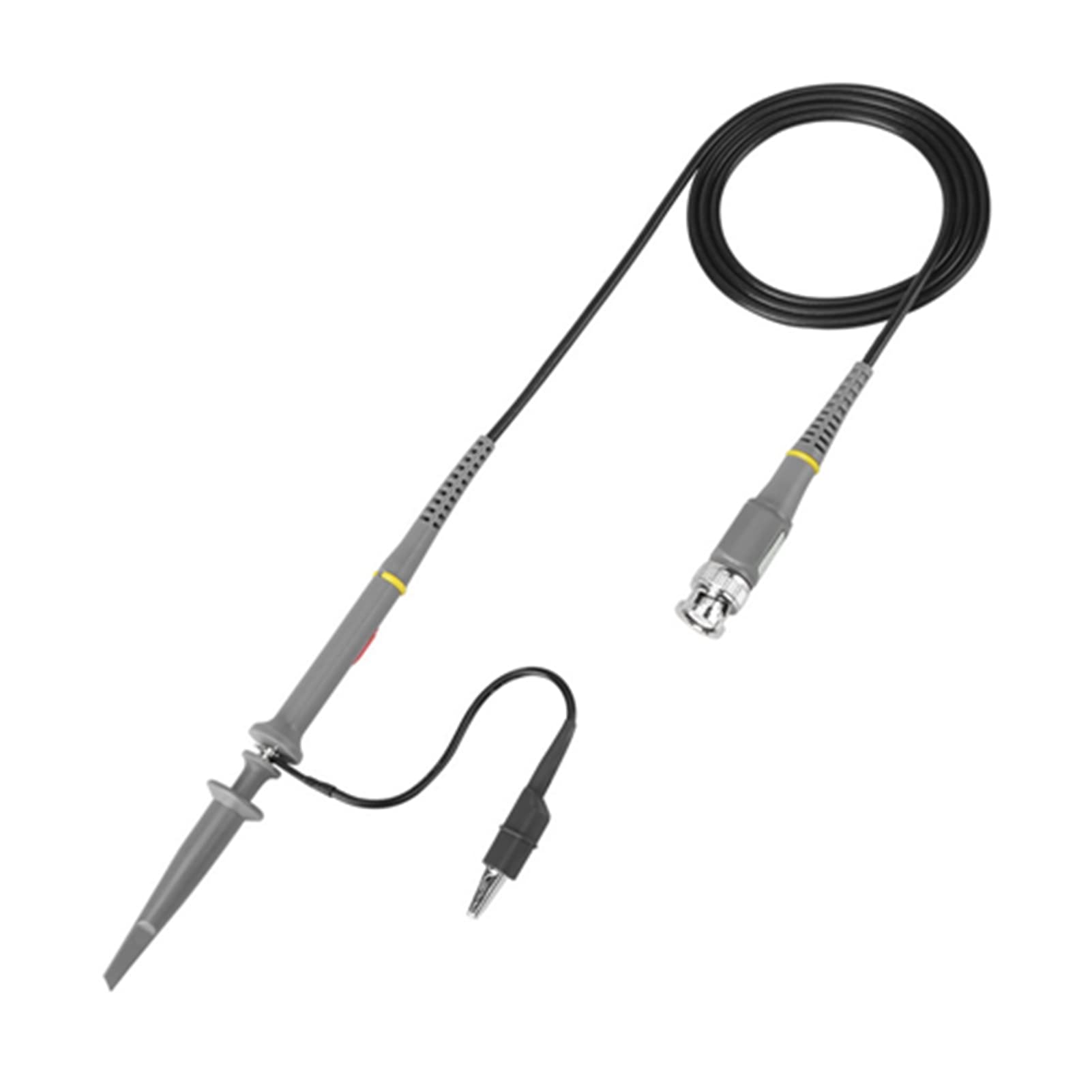

Akozon Oscilloscope Probe,2pcs Precision BNC Oscilloscope Probe Kit 100Mhz Scope Clip 1X/10X Switchable Test Cable

• Excellent Accessory: Oscilloscope probe is an electric component that connects circuit-under-test and oscilloscope input.This high voltage probe can convert high voltage to low voltage for the analysis of the oscilloscope.Adopting completely new material, this oscilloscope probe is of high quality.Besides, superior material and high technology strengthen its structure. And providing several accessories designed to make probing and measurements a simple task.
• Excellent Performance: This probe adopts injection molding style ground wire for prolonging its service life and ensuring contact,makes the usage more flexible and the oscillograph able to adapt more testing situations.Believe in it and it will provide you with stable and excellent performance.

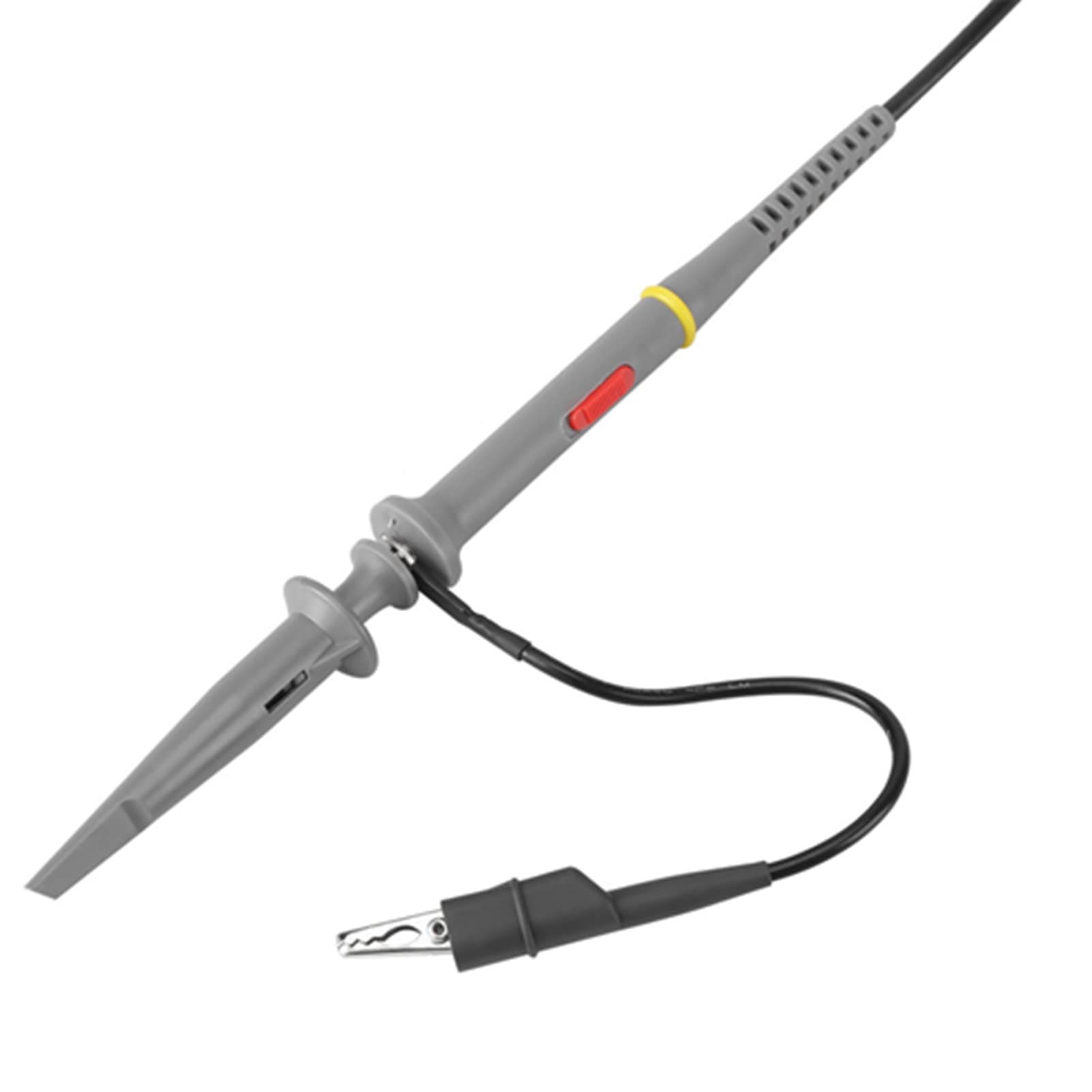

• Intimate Design: Ergonomic portable design makes operation more comfortable.Come with marking circles in different colors help to identify different channels. Detachable hook tip, the hook is well protected by the plastic case.Locating sleeves ensure the stability and reliability of the tip exposed to the test point.

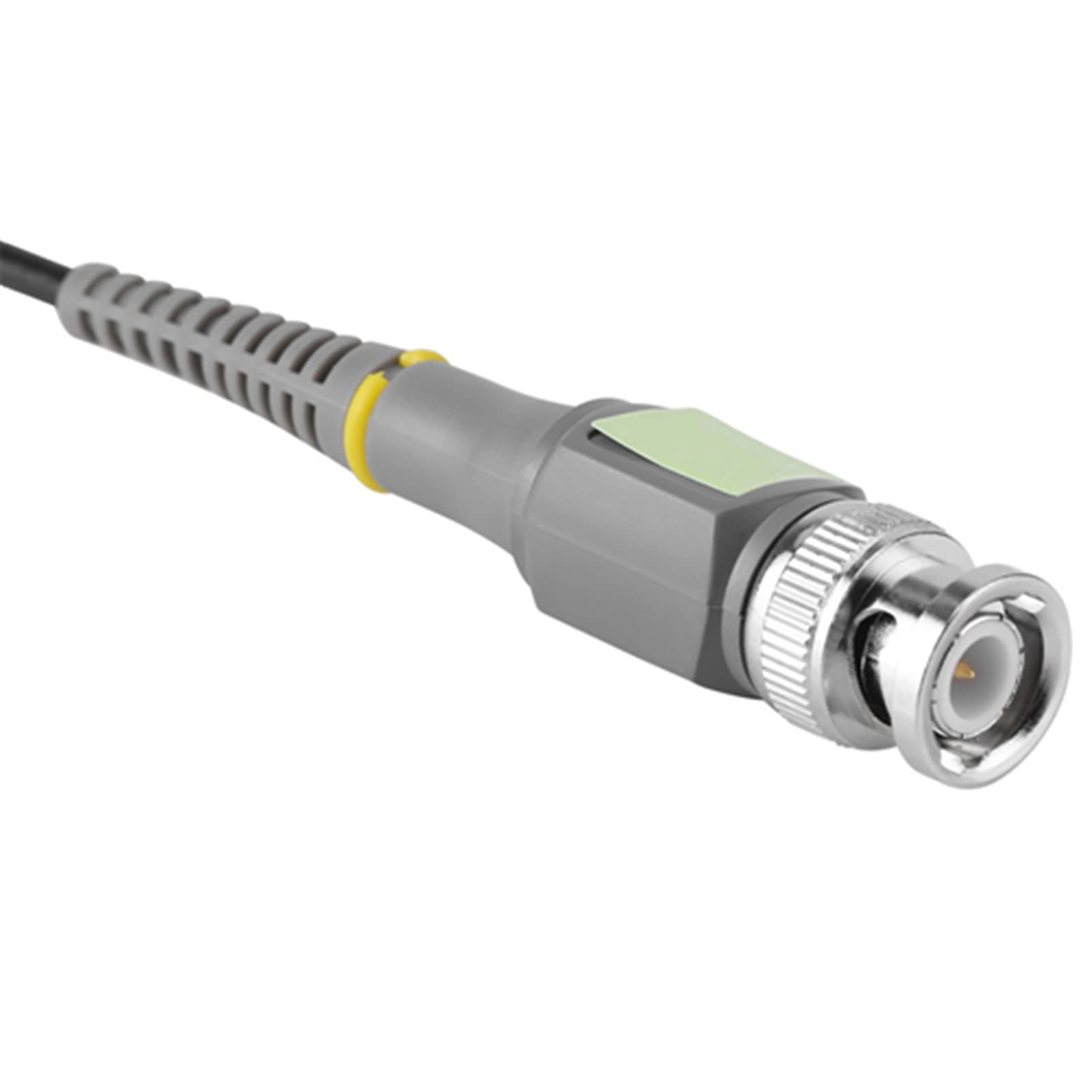

• Safe and Operation Easy: Oscilloscope probe has passed the CE Attestation of European Community,stainless steel interface, IEC1010 standard,safe standards are guaranteed. Ergonomic portable design makes operation easier and simpler.Used with oscilloscopes from all manufacturers , equipped with the standard BNC connector.

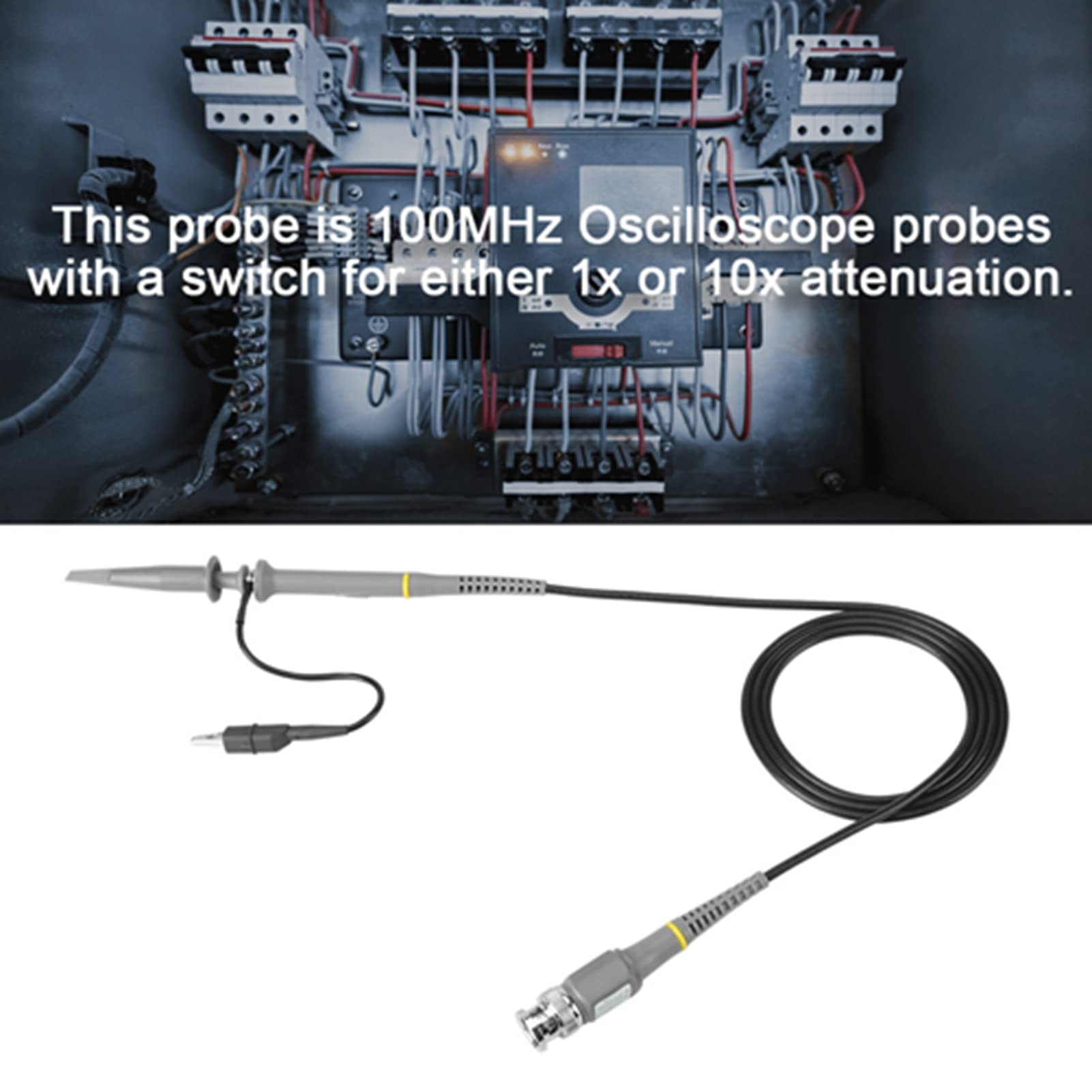

• Switch Freely: This probe is 100MHz Oscilloscope probes with a switch for either 1x or 10x attenuation.Attenuation ratio: 1x and 10x adjustable,you can switch freely to meet your needs.Oscilloscope probe System bandwidth: 1X: DC-6Mhz, 10X: DC-100Mhz

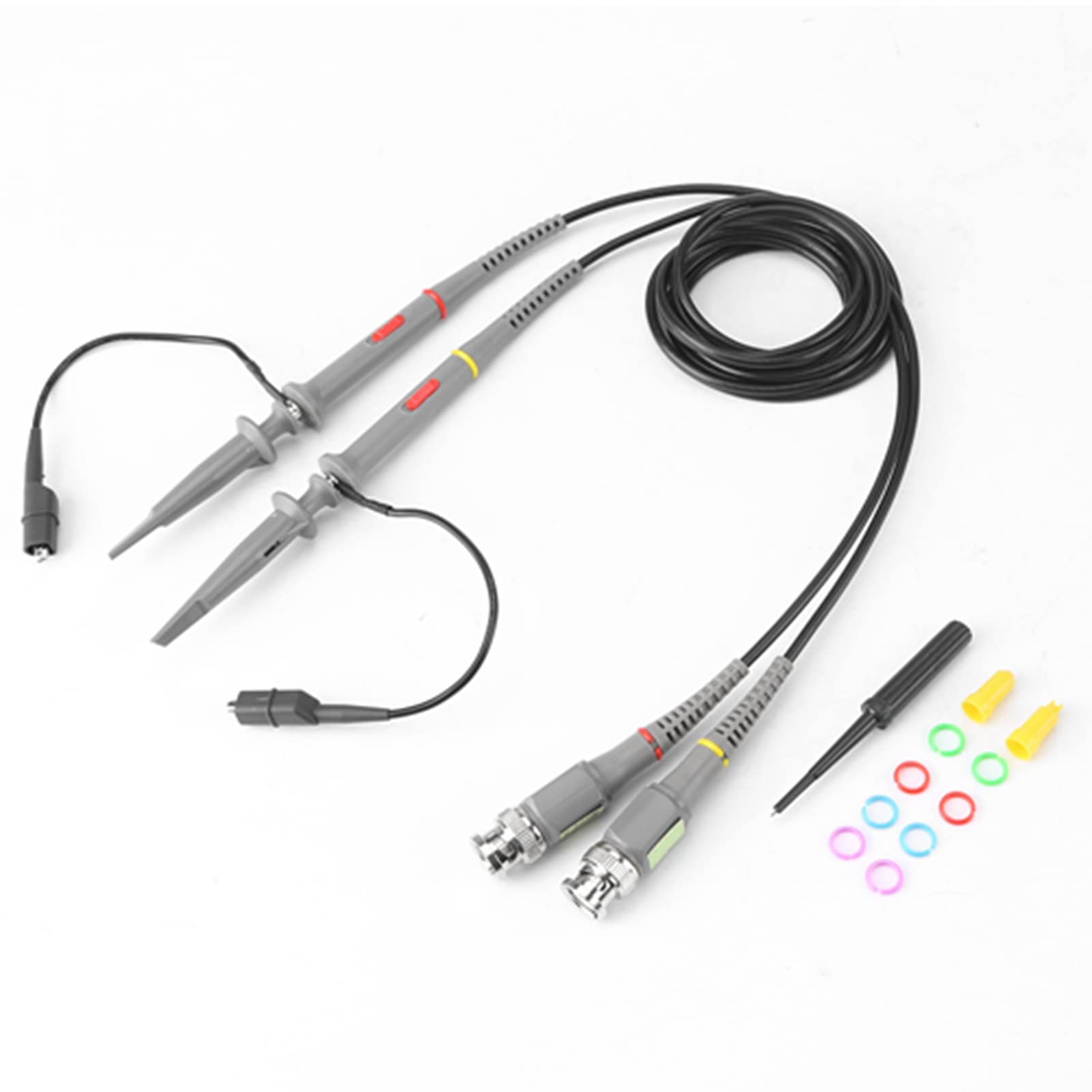

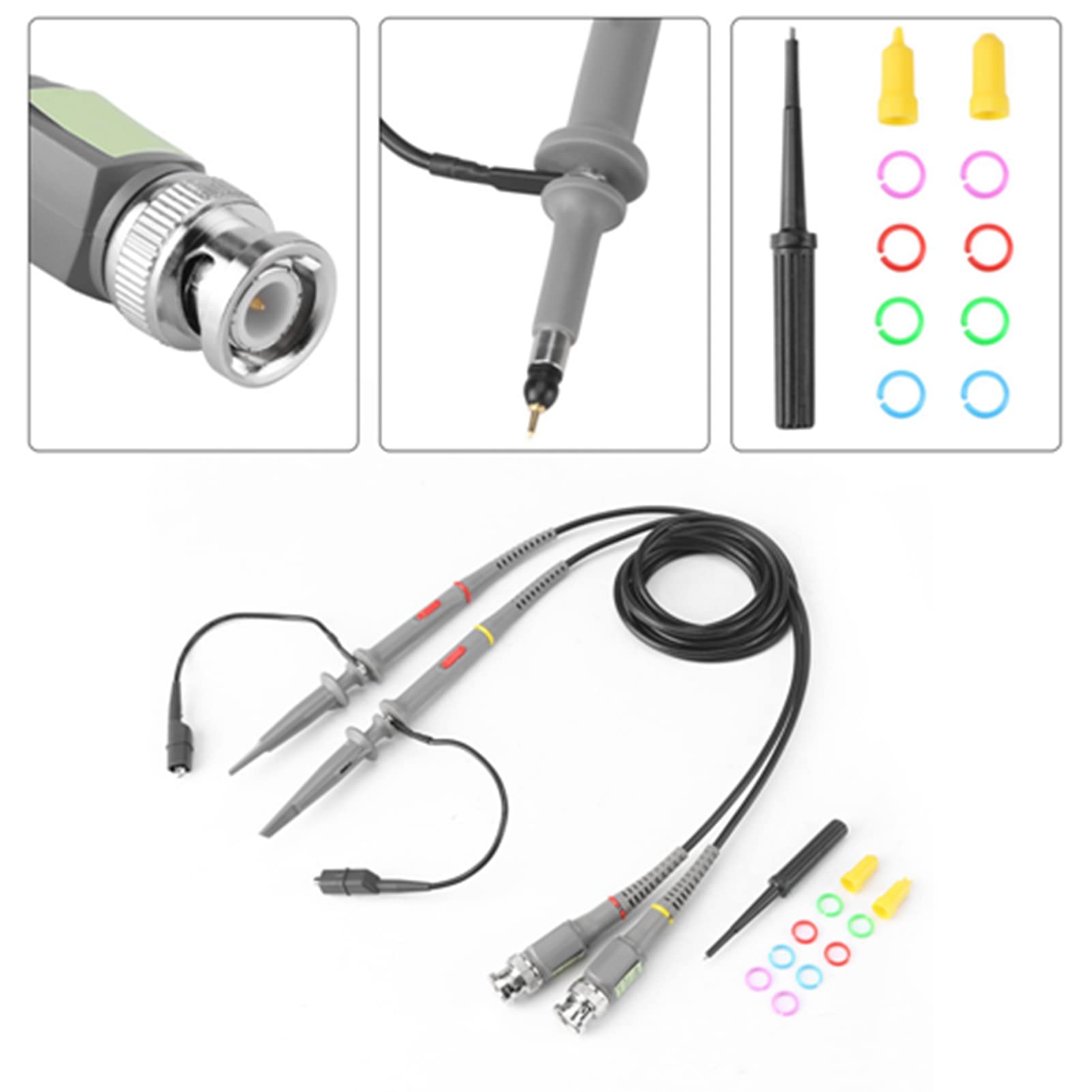

Specifications: Model: P6100 Attenuation ratio: 1X/10X Input resistance: 1 M Ω / 10MΩ Input capacitance: 1X:85pF~120pF,10X:18.5pF~22.5pF Compensation range: 10pF~30pF System bandwidth: 1X: DC-6Mhz, 10X: DC-100Mhz Input voltage: 1X: <300VDC + AC Vp-p,10X: <600VDC+ AC Vp-p Operating temperature range: 15 ℃ ~ + 75 ℃ Not working temperature range: - 20 ℃ ~ + 60 ℃ Process: injection molding integration Color:grey Cable length: 120cm/47.2inch Humidity: less than 85% (relative humidity) Weight:126g Package Included: 2 x Oscilloscope Probes 1 x adjust tool 2 x tip locating sleeve 8 x color circle
