Miniature Circuit Breaker, Akozon DC 250V 2P Low-voltage Miniature Air Circuit Breaker Solar Energy Switch for Solar Panels Grid System, Wind and Solar Hybrid System(32A)

• 【Main Features】This miniature low voltage air circuit breaker is an excellent circuit breaker used to protect an electrical circuit from damage caused by excessive current resulting from overload or short circuit. load operation and prolongs the life of electrical circuit breakers. It can also function as an on-off switch for DC load circuits.
• 【Professional tools】DC circuit breaker is more powerful than AC circuit breaker to extinguish arcs. This means that our low voltage circuit breaker can be used at the same voltage level as DC and AC circuits.
• 【Multiple Protection】Din Rail Dc Solar Circuit Breakers is assembled with Smart Chip-Has intelligent protection features against over current, overload, low load, short circuit and over temperature.

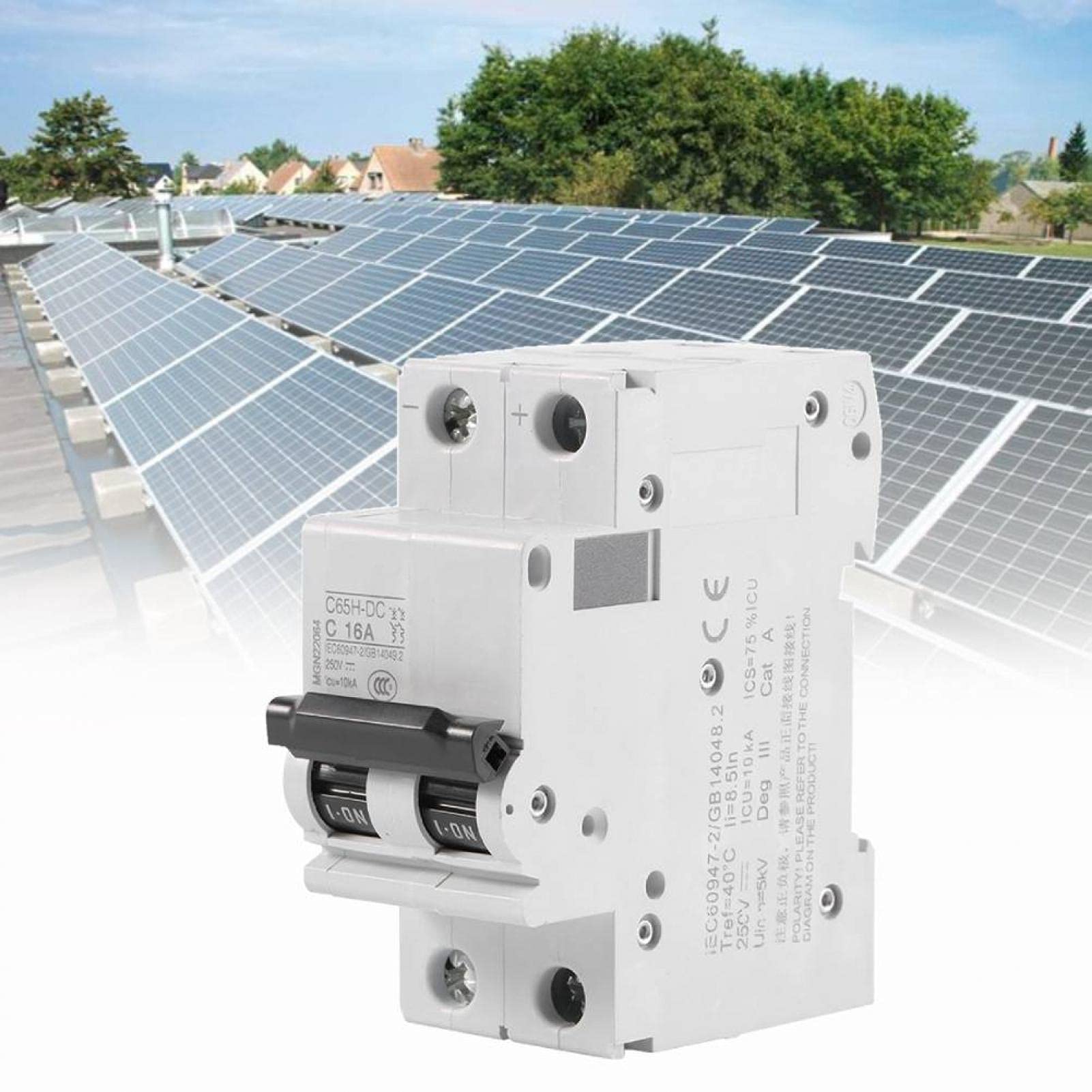

• 【Large Applocation】The Din Rail Mount Breaker Box is widely used for solar panel array system, wind and solar hybrid system and many other DC systems. It can be mounted easily on DIN rail, DIN rail is not included.
• 【Easy to install】precise design, strong and firm, you don't need to use other complicated tools or even modify. Bistable locking clip, more convenient installation. Suitable for insulation according to industry standards: IEC EC60947-2 / GB14048.2

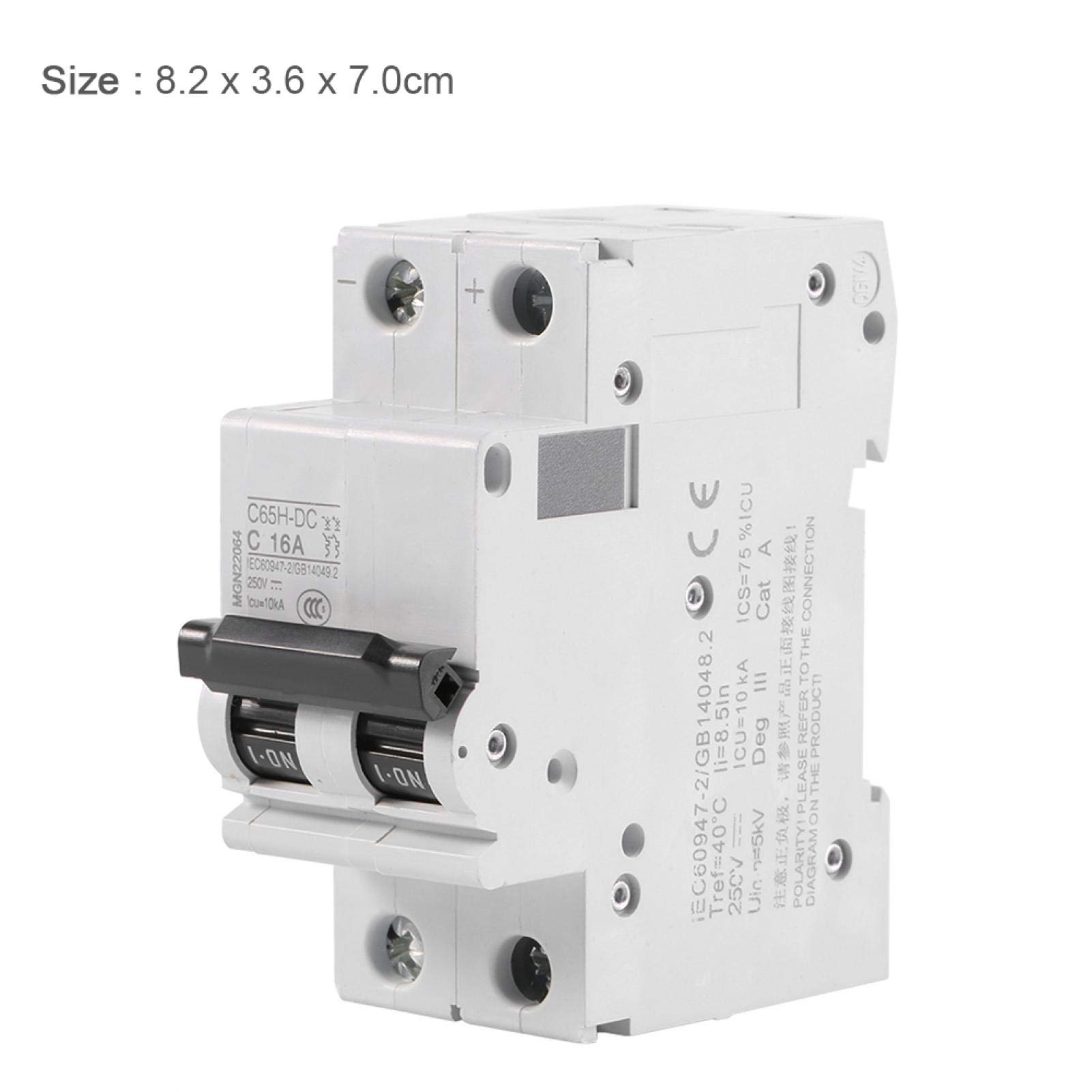

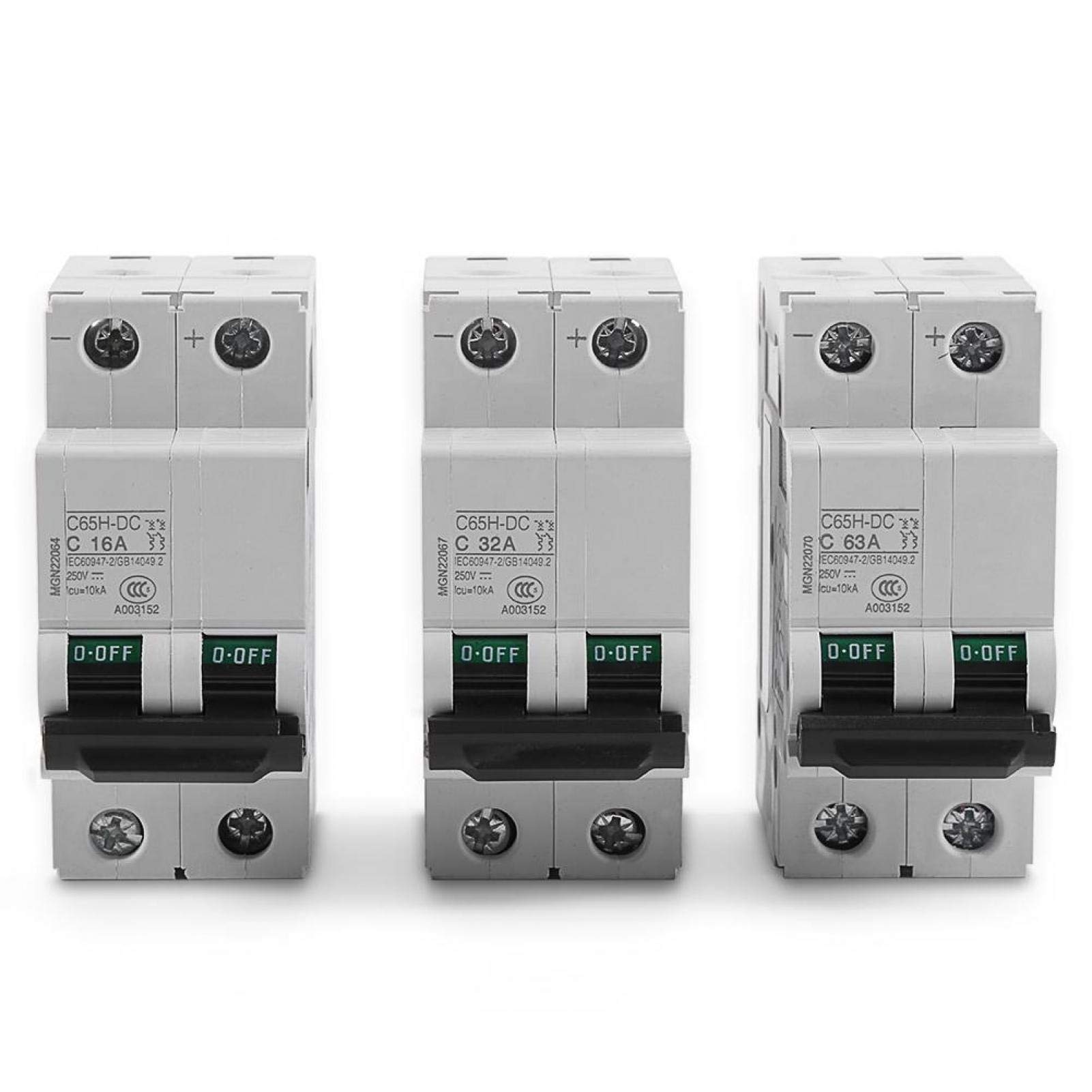

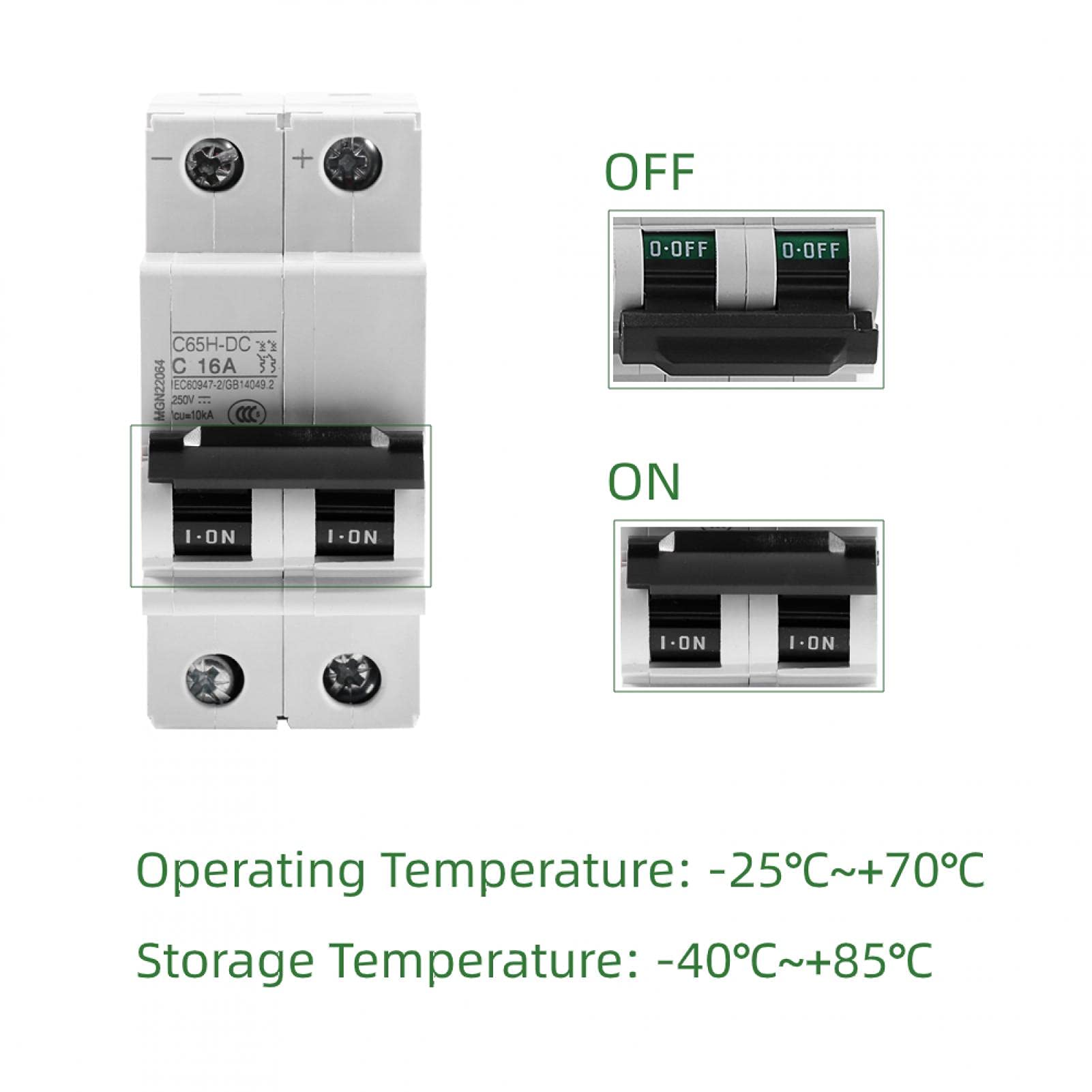

Specifications: Model: C65H-DC 2P Poles: 2P Rated Current: 16A/32A/63A(Optional) Rated Voltage: DC250V Ultimate Breaking Capacity(ICU): 10kA Trip Characteristics: B, C Rated Impulse-withstand Voltage(Uimp): 5kV Current Limiting Class: 3 Mechanical Life: 20,000 times (IEC 60947-2/GB14048.2) Electrical Life: 10,000 times (IEC 60947-2/GB14048.2) Operating Temperature: -25℃~+70℃ Storage Temperature: -40℃~+85℃ Heat & Humidity Resistance: 55℃, 95%RH Size: 8.2 x 3.6 x 7cm / 3.22 x 1.41 x 2.75" Package Includes: 1 x Circuit Breaker
