Akozon Voltmeter Ammeter DC Power Analyser 0-100A Battery Monitor Meter 8-60V High Precision Watt Volt Amp Energy Meter Analyzer Tool LCD Display for Cars RV Solar System

• Application: This watt meter is used to measure energy (AH), power (W), current (A) and voltage (V).Please note that the voltage of the product is 8-60V. If it is lower than 8V, an external power supply is required to power the integrated circuit.

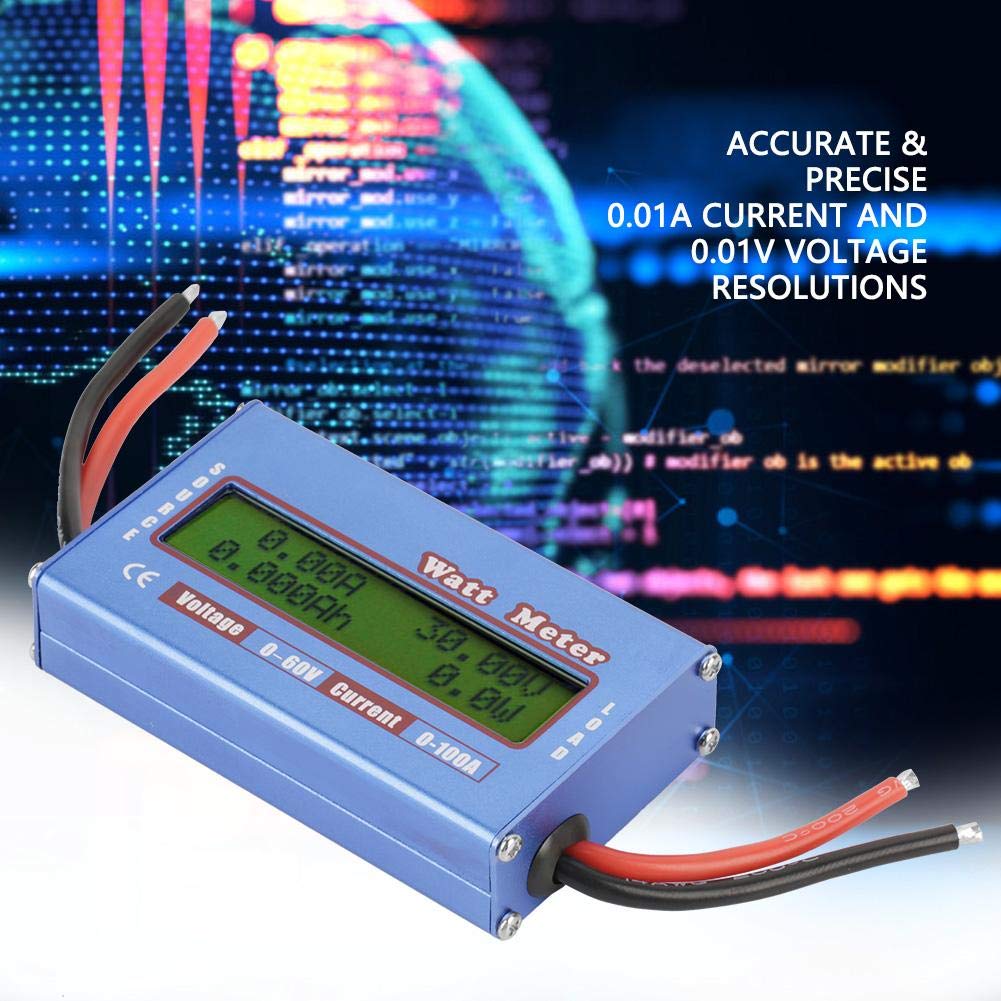

• Small Size: Accurate & precise 0.01A current and 0.01V voltage resolutions. Small & light with a tough plastic case. Acts like a wire so does not affect model's performance
• Accurate Measure: Measures peak Amps, peak Watt (except for Doc ) and voltage minimum m (sag)

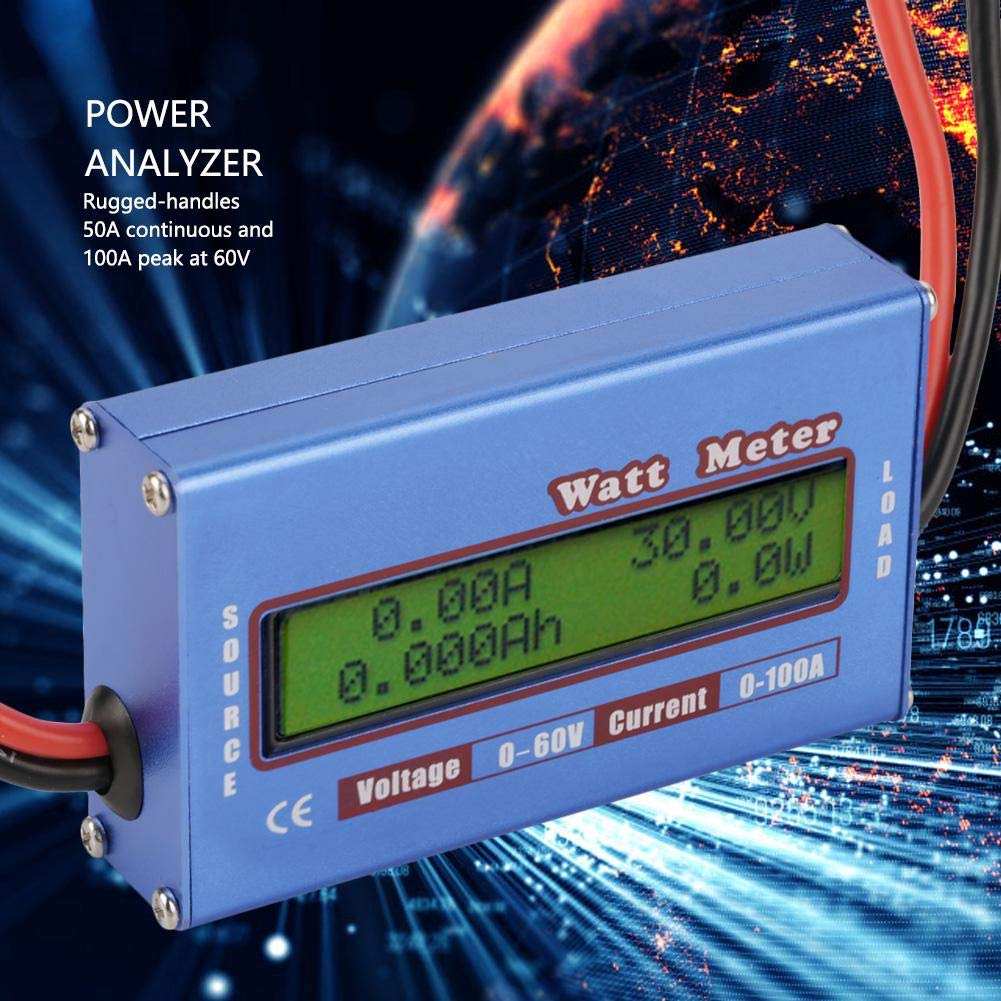

• Sturdy and Rugged-handles 50A continuous and 100A peak at 60V. Precision Alu-Chrom current sensing resistor, with only 0.001 ohms resistance and circuitry that draws only 7 mA

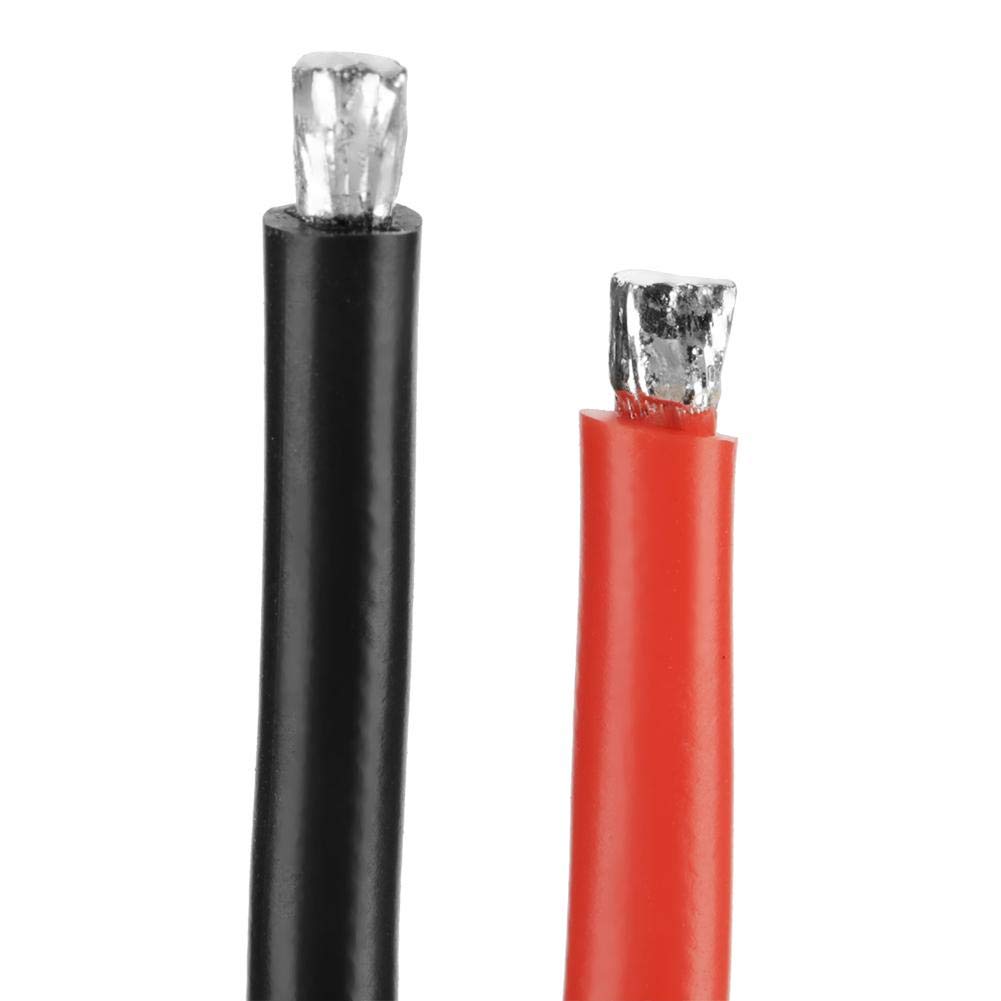

• Good Performance: 14ga, super fine stranded, high temperature, silicone rubber insulated wire. Powerful, 8 MIPS micro-controller

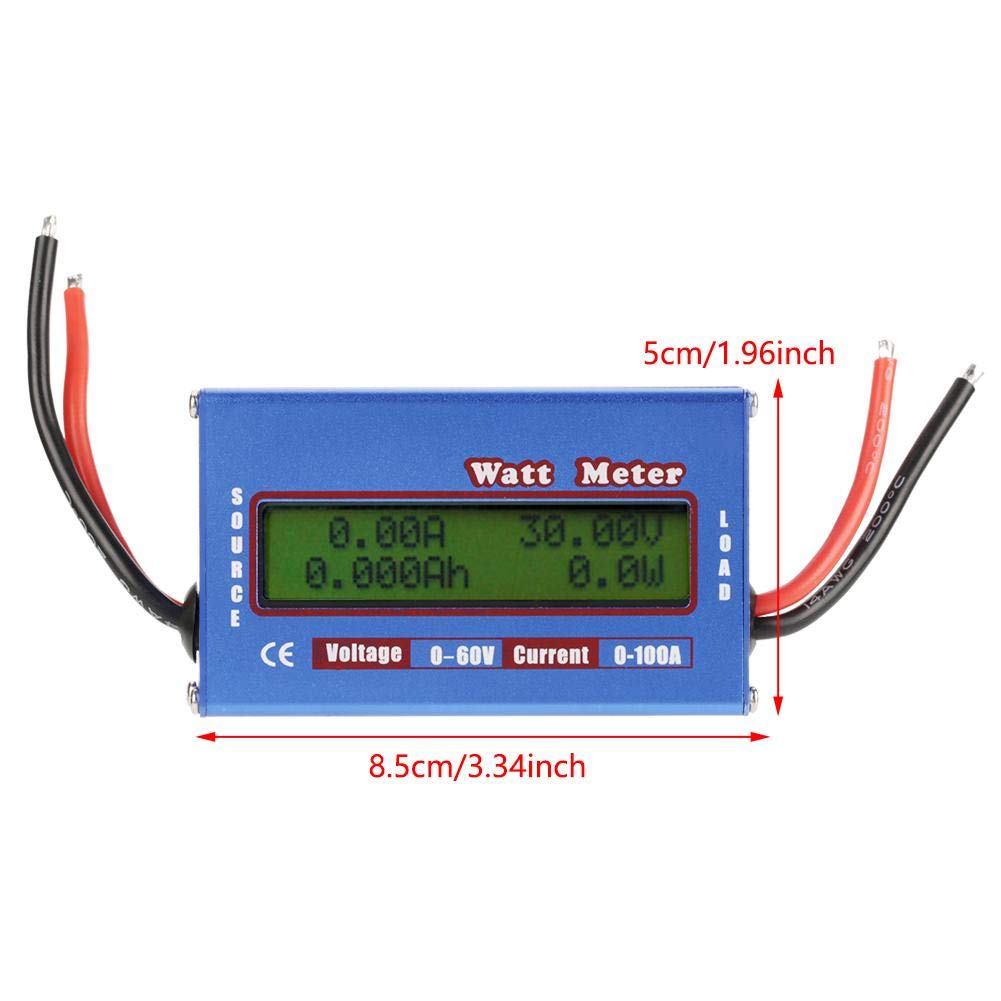

Product description: Professional RC Watt Meter is an excellent addition to your RC hobby, DC circuits, Solar system, Boat/RV & Battery Backup systems! This isn't just a watt meter-it's the Meter! A power meter, a volt meter, an amp-hour meter, ammeter and energy meter. Everything all in one unit! This is the perfect troubleshooting tool. This watt meter is indispensable for analyzing, testing and troubleshooting any DIY DC power project. Specifications: Color:Blue Voltage:8V-60V 0.01V (Resolution). Current:0-100 A peak 0.01A (Resolution). Power:0-6554 W 0.1W (Resolution). Ah 0.001Ah (Resolution). Energy:0-6554 wh 0.1 Wh (Resolution). Measurement Update period:400mS. Sampling Rate:sample/s. Data Queue Sequence time: 2 seconds. In Circuit Resistance:0.001 Ohms. Current: Approx.36 mA. Size:8.3cm x 4.7cm x 2cm - 3.27inch x 1.85inch x 0.79inch Package Included: 1Pcs x Watt Meter
