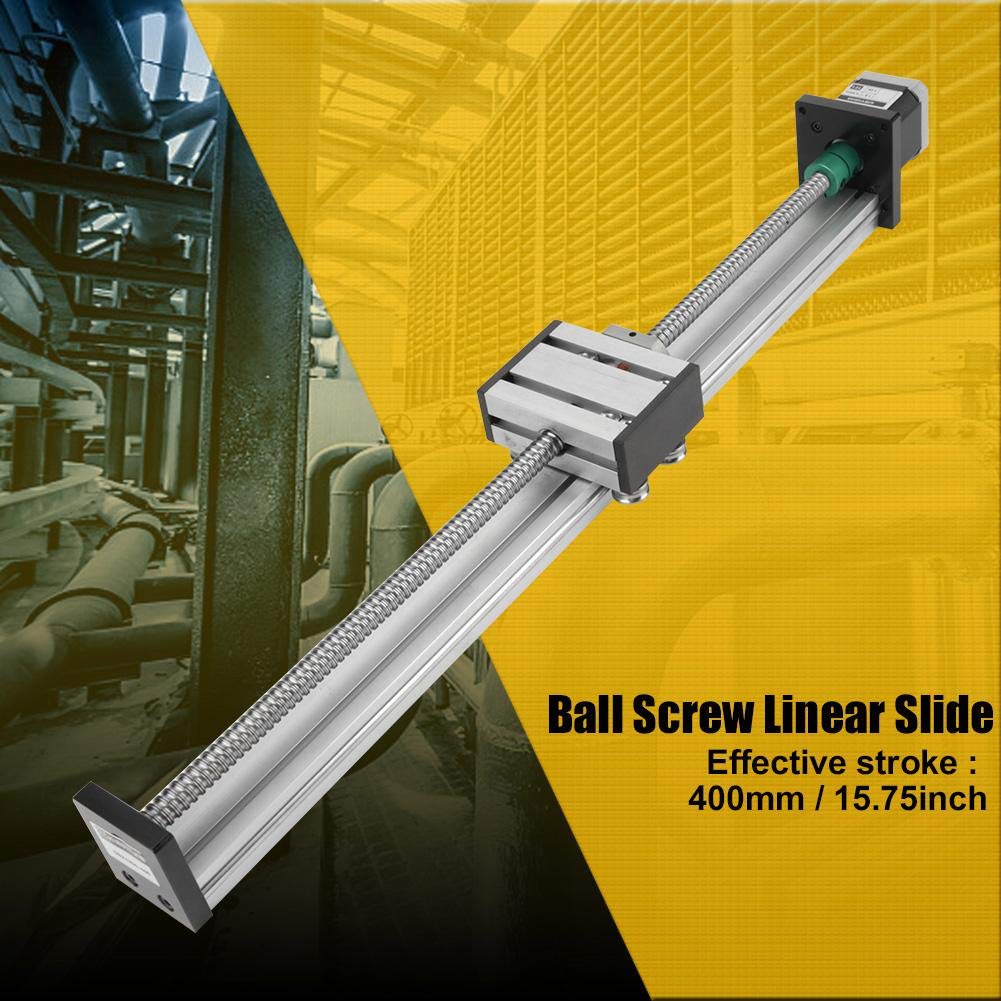

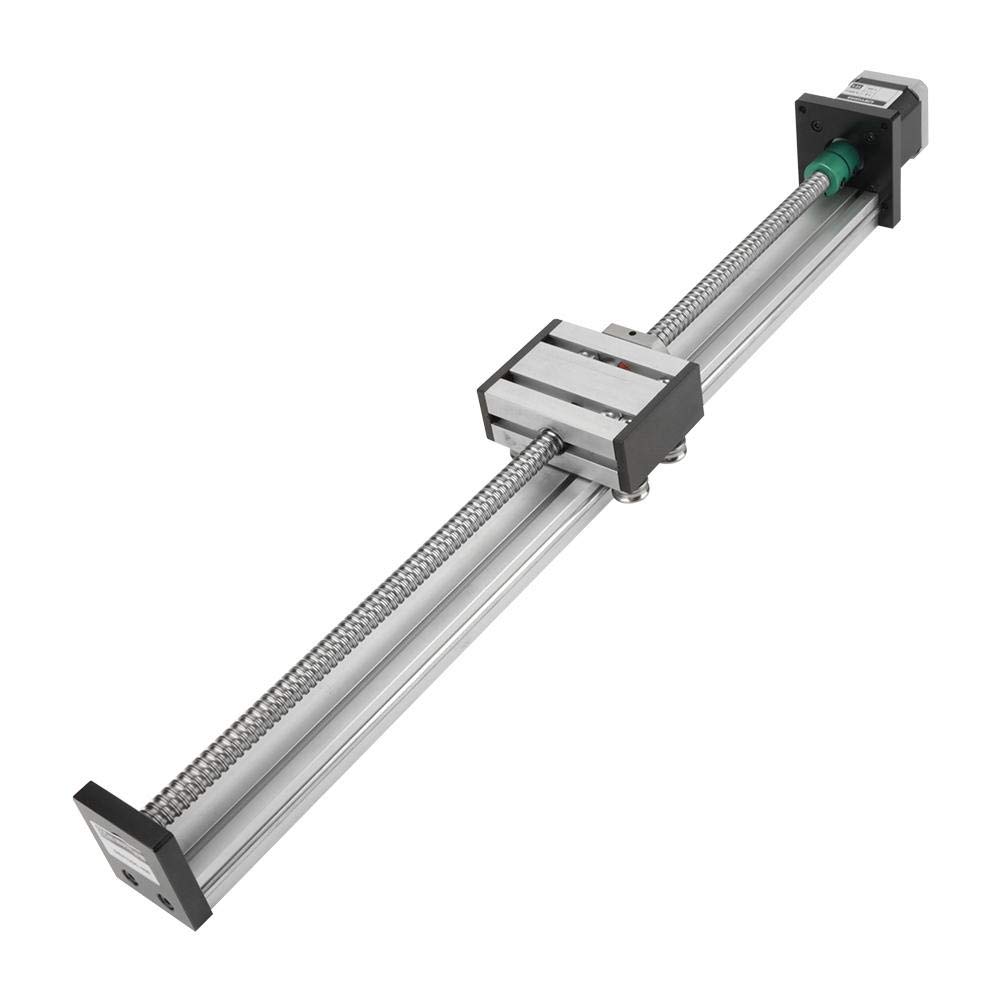

Akozon Ball Screw Slide with a Stepper Motor 400mm Effective Range Automatic Ball Screw Linear CNC Slide Stroke Long Stage Actuator Guide Slide Table Aluminum

• Description: This single-axis ball linear shaft has a diameter of 12mm / 0.47 inches, an effective stroke of 400mm/15.75inch, and a ball screw length of 465mm. It is made of exquisite craftsmanship with high precision, exquisite craftsmanship and smooth
• Installation application: Single-axis ball plus progressive motor, sliding can be equipped with pen, knife or other equipment. The mounting holes are well designed, adjustable, easy to install and easy to use.
• Heavy load: The rated vertical load can reach 18KG, and the rated horizontal load can reach 60KG. The product has the advantages of long life, low friction coefficient and strong versatility.
• Widely use: This single-axis ball is widely used. Widely used in industrial automation equipment and stepper motor track, biotechnology equipment, spraying equipment, punching machines, cutting machines, cleaning equipment, packaging machines, etc.
• Small friction: The ball screw consists of screws, nuts and balls. The rotary motion moves in a straight line with high precision (up to 0.01 mm), low friction, high rigidity and strong load capacity.

Specifications: Material: Aluminum Boundary dimension: 40mm Shaft diameter: 12mm / 0.47inch Rated vertical load: 18KG Rated horizontal load: 60KG Accuracy: 0.01mm Effective stroke: 400mm / 15.75inch Ball screw length: 465mm Sliding block: 60 x 80 x 30mm / 2.36 x 3.15 x 1.18inch Pitch-row width: 68mm (max) Pitch-row length: 30mm Screw: M6 Slide table size: 490 x 40 x 20mm / 19.29 x 1.57 x 0.79inch Weight: Approx. 2075g Package Included: 1 x Ball Screw Slide with a Stepper Motor
