AITRIP ST-Link V2 Programming Unit Emulator Downloader(Random Color)+2PCS 40pin STM32F103C6T6 ARM STM32 SWD Minimum System Board Micro USB for Arduino

• ST-Link V2 Stlink Mini STM8 STM32 STLINK Simulator Download Programmer Programming Supporting the full range of STM32 SWD debugging interface; Supporting the full range of STM8 SWIM download debugging (common development environments such as IAR, STVD etc. are supported);Supporting for automatic firmware upgrades
• The interface easy to use simple horns seat pitch of 2.54, with 20CM DuPont line, the line can respond to different target sequence, flexible wiring
• 2PCS 40pin STM32F103C6T6 Minimum System Board: Micro USB connector , you can give the board power supply and USB communicatio
• Low cost and high stability,It can replace the basic program of STM32F103C8T6 chip.(If your program flash is less than 32K, RAM is less than 10K, and Timer 4 and Serial 3 are not used, you can use it to replace)
• Plug-and-play USB integrated design: Integrated Micro USB interface, compatible with Android device charger power supply, and supports USB communication function, simplifying the development and deployment process

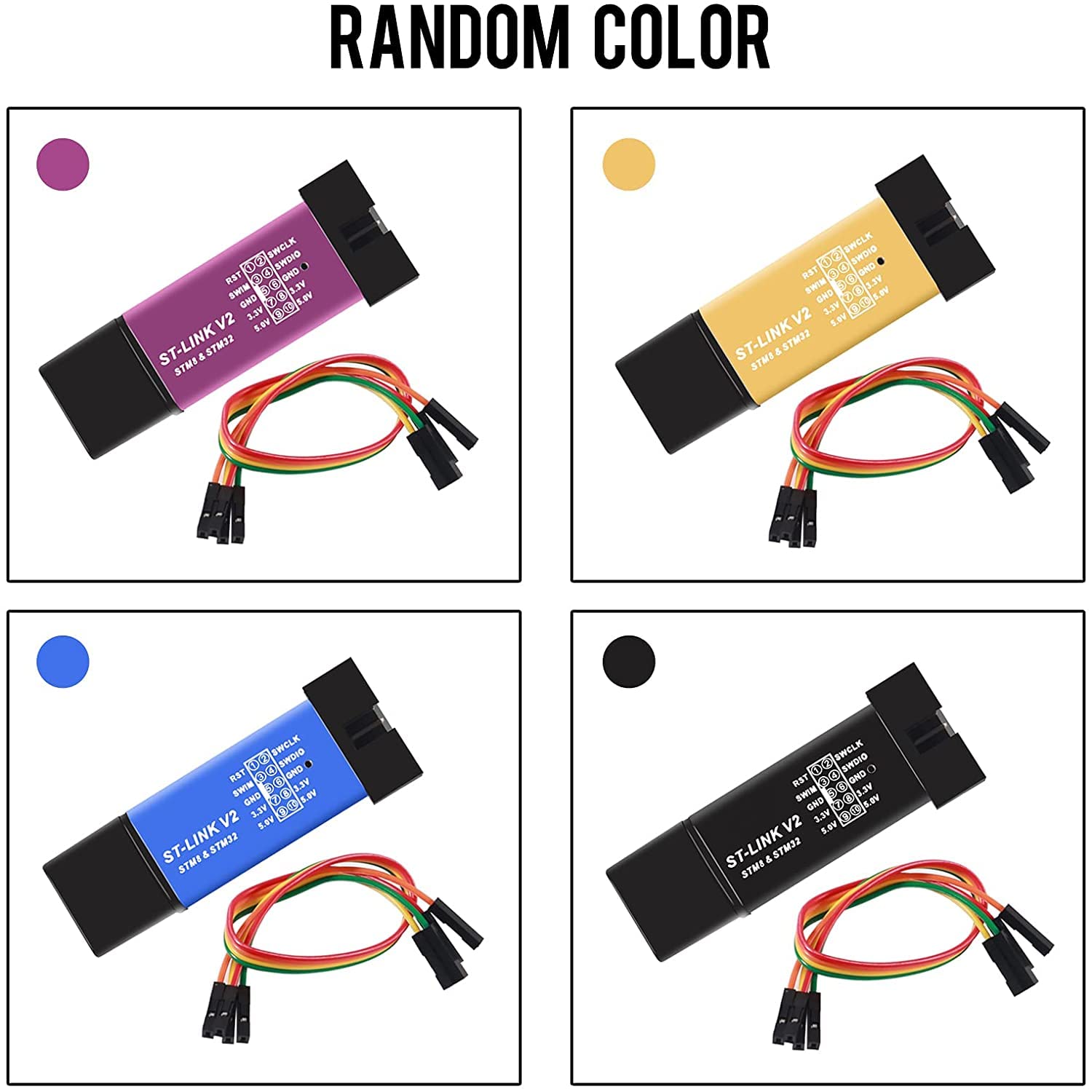

STM32F103C6T6 ARM STM32 Minimum System Development Board Module for Arduino Features: 72MHz work frequency. 2.0-3.6V power, I/O. Reset(POR/PDR). 4-16MHz crystal. Micro USB connector , you can give the board power supply and USB communication. Size:5.3cm x 2.2cm. ST-Link V2 Programming Unit Emulator Downloader(Random Color) Features: Supporting the full range of STM32 SWD debugging interface, a simple 4-wire interface (including power), fast, stable; interface definition housing directly marked Supporting the full range of STM8 SWIM download debugging (common development environments such as IAR, STVD etc. are supported) Supporting for automatic firmware upgrades to ensure follow-up support ST products. The factory firmware has been upgraded to the latest V2.J17.S4; Increased the 5V power output, the output I / O ports are protected afraid of operational errors caused by ST-LINK V2 damage! The interface easy to use simple horns seat pitch of 2.54, with 20CM DuPont line, the line can respond to different target sequence, flexible wiring; The use of U disk aluminum housing protects the motherboard, easy to carry, is not afraid of static electricity, afraid to fall throw touch. Package: 1PCS ST-Link V2 Programming Unit Emulator Downloader(Random Color) 2PCS 40pin STM32F103C6T6 ARM STM32 SWD Minimum System Board Micro USB
