AITRIP 3pcs W1209 12V DC Digital Temperature Controller Board with 10A One-channel Relay and Waterproof Micro Digital Thermostat -50-110°C Electronic Temperature Temp Control Module Switch

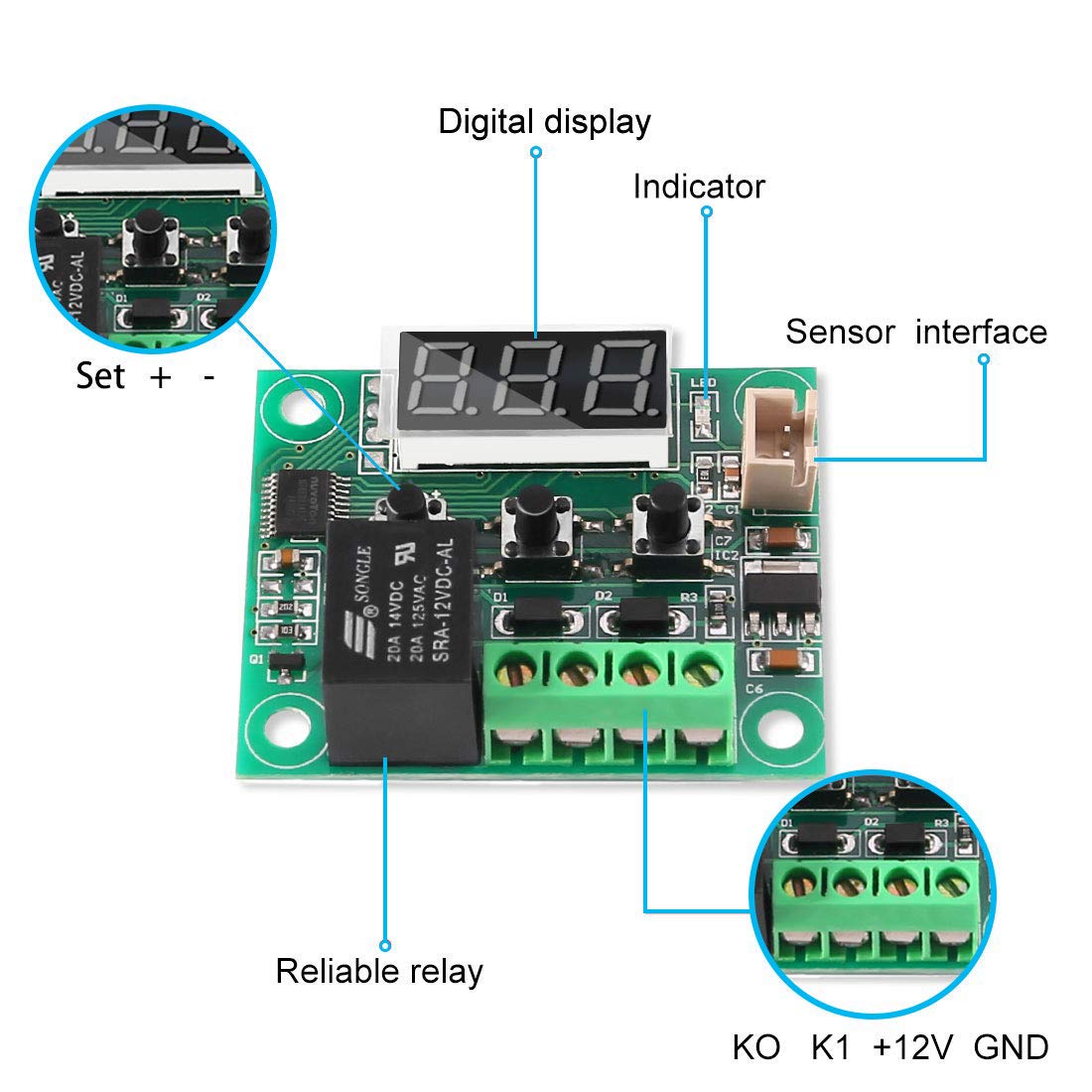

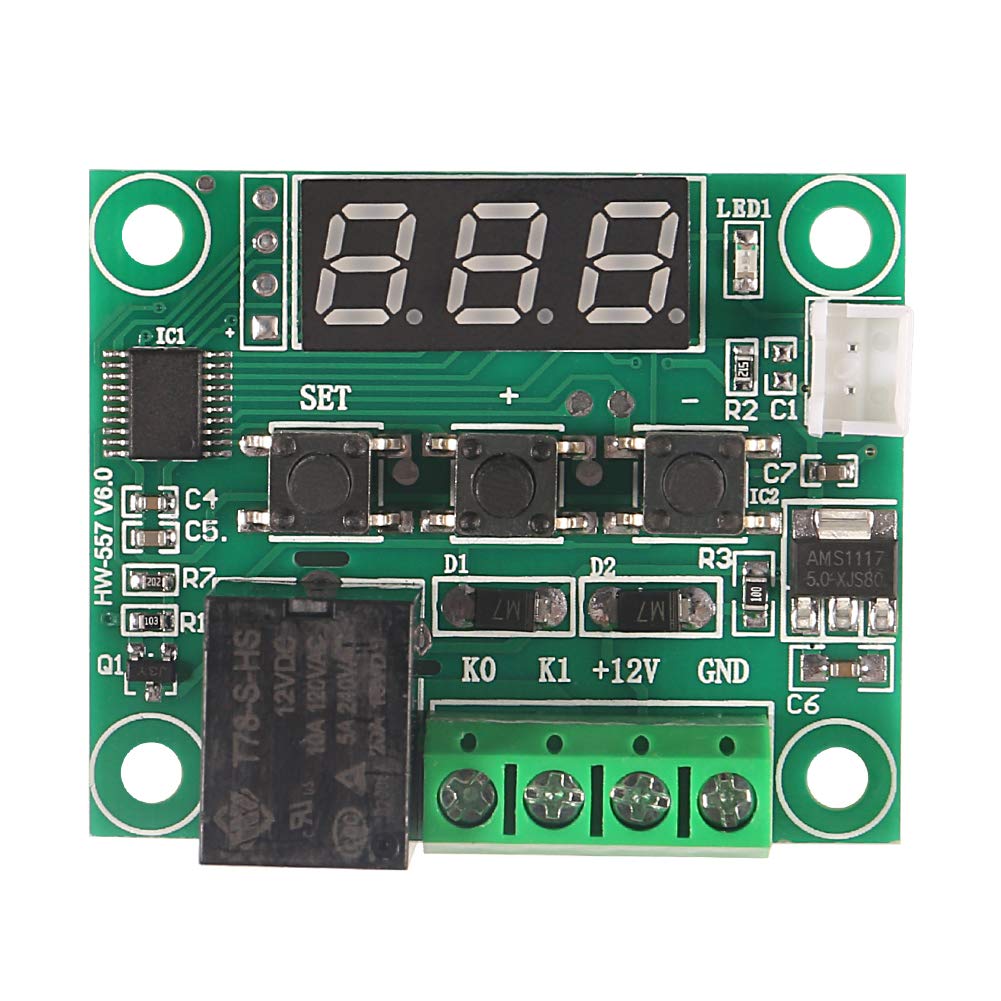

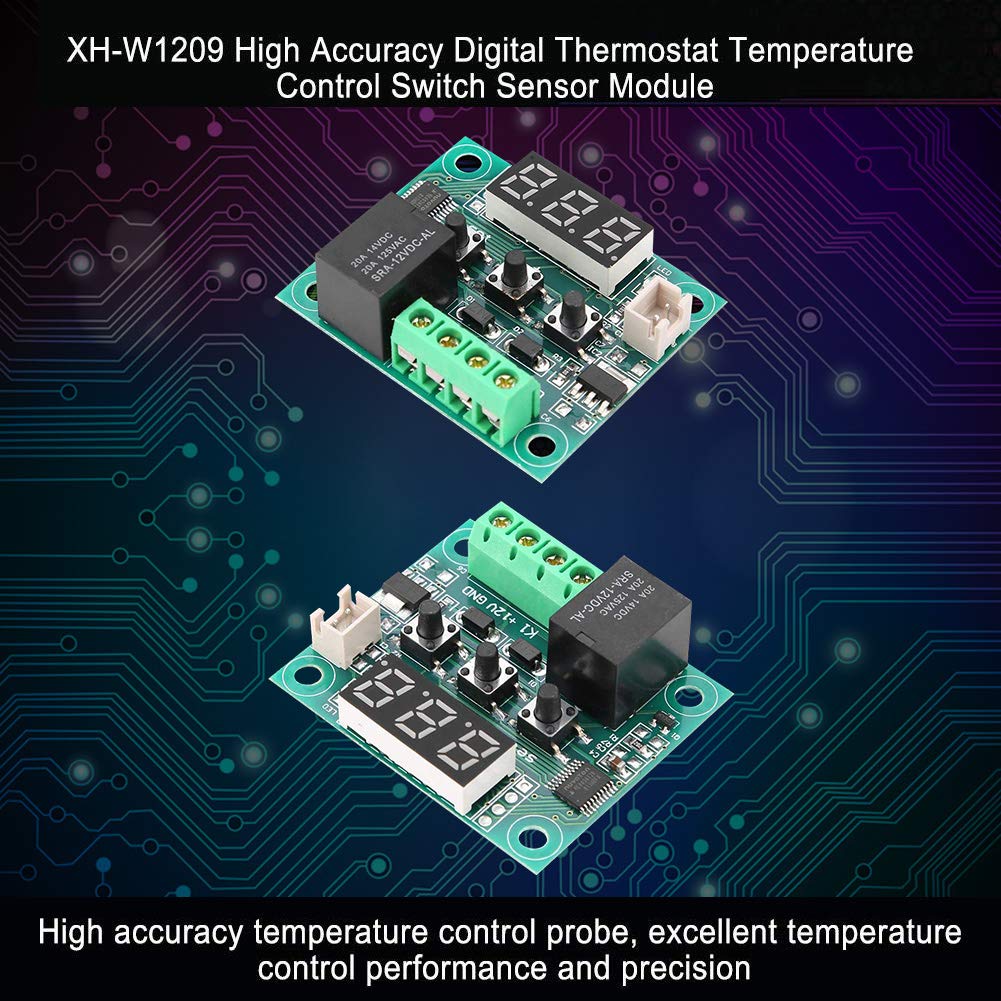

• The W1209 thermostat module has a STM8S controller, a sensor input, keys, LED display, and a relay. It can be reprogrammed for control, timing, or counting.
• Temperature Measurement Range: -50~110℃. Control Precision: 0.1 celsius.
• Electronic digital thermostat with a 3-digit LED display, extremely bright. Operation both in heating and cooling to easily control equipment and devices.
• The NTC probe is waterproof and allows to control the temperature even of fluids, allowing the controlled heated or cooling
• The output is electronically controlled by a microprocessor, to guarantee the utmost precision of intervention and an excellent resolution of reading temperature

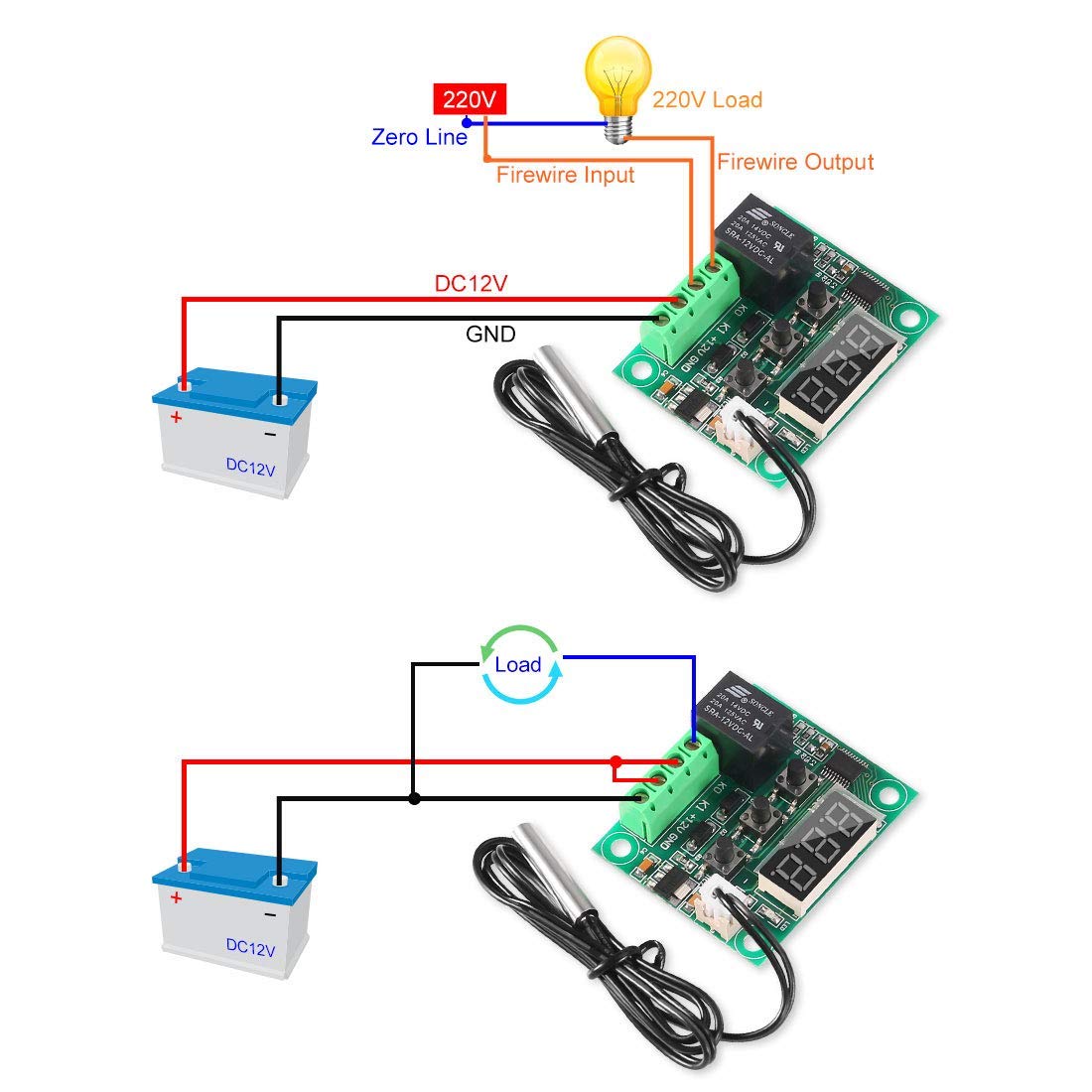

Specifications: Model: W1209 Dimensions: 48.5 * 40mm Temperature Control mode: ON / OFF Temperature Range :-50 - 110 degree centigrade Resolution: When temperature is 0.1 degree, the resolution is -9.9~99.9, other temperature segment is 1 degree. Control Accuracy: 0.1 degree Hysteresis Accuracy: 0.1 degree Refresh Rate: 0.5s High Temperature Protection 0 - 110 degree centigrade Supply Voltage: DC 12V Static Current: Less than 35MA, attract current less than 65MA Output Voltage: DC 12V Output Power: 20A relay Measurement Input: NTC (10K 0.5%) Waterproof Sensor Environmental Requirements: -10 - 60 degree centigrade; Humidity 20% - 85% SInstructions for use: Connect the power supply and equipment, the measuring temperature is displayed, press the "SET" button, press " + or - " to set the desired temperature (long press " + or - " to quickly increase or decrease), press "SET" to confirm the setting and return, controller automatically performs the relay ON/OFF. the thermostat output is 10A relay, meet a variety of high-power loads. LED Indicator: LED off indicates the relay off; Lighting, indicates the relay is closed. Digital LED Tubes: "LL" indicates sensor open, "HH" indicates overrange, the relay will be forcibly disconnected; "---" indicates high temperature alarm Long press the "SET" button to enter the main menu settings, press " + or - " to switching between P0-P6, then long press "SET" or 10 seconds without keystrokes to confirm the setting and return. Package Included: 3*W1209 12V DC Digital Temperature Controller Board
