Airflow iCON 15 (19l/s) Bathroom Extractor Fan Kit with Adjustable Humidity, Timer Overrun (2-45Mins) & Pull Cord Module - Includes 3m PVC Ducting & Vent Cover - 9.7W Energy Efficient, 3-Year Warranty

• Complete Package: Includes Humidity Timer Overrun & Pull Cord Module, 140 x 140 x 100mm white square fixed grille, 3m PVC flexible hose, and cable ties. Fan comes with 100mm Duct and 19l/s Flow Rate. 3 Years Warranty

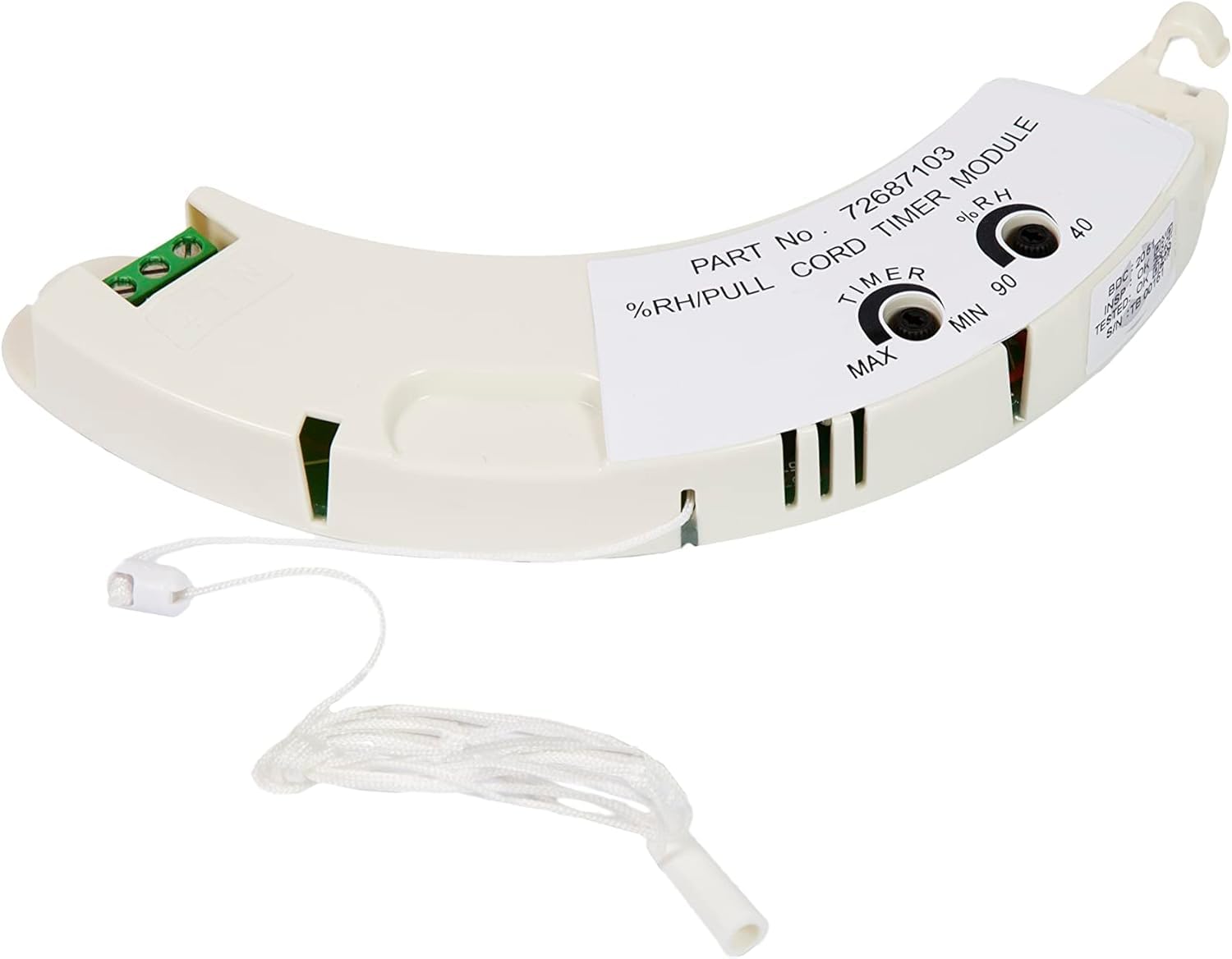

• Pull Cord Activation with Timer Control – When installed in an iCON fan, the module allows manual activation via the integrated pull cord. Once triggered, the fan runs according to the adjustable timer settings (2–45 minutes). This module supports two activation methods: humidity sensing and pull cord activation.
• Humidity Sensor (40–90% RH) – Automatically activates the fan when humidity rises. Factory pre-set to approx. 70% RH. Adjust sensitivity using the supplied adjustment tool.
• Adjustable Run-On Timer (2–45 Minutes) – Keeps the fan running after switch-off to clear moisture and odors. Factory pre-set to approx. 15 minutes, adjustable using the included tool.
• Recommended Humidity Settings for UK Climate – UK indoor humidity often ranges between 70–90% RH. Setting the module to 40% RH may cause the fan to run continuously. If the fan takes too long to switch off, adjust the humidity setting closer to 70–90% RH for better performance.
• Iris Opening Technology – Automatically closes when the fan is not in use, preventing backdraughts and blocking cold air from entering. Keeps your bathroom warm and helps lower energy bills.

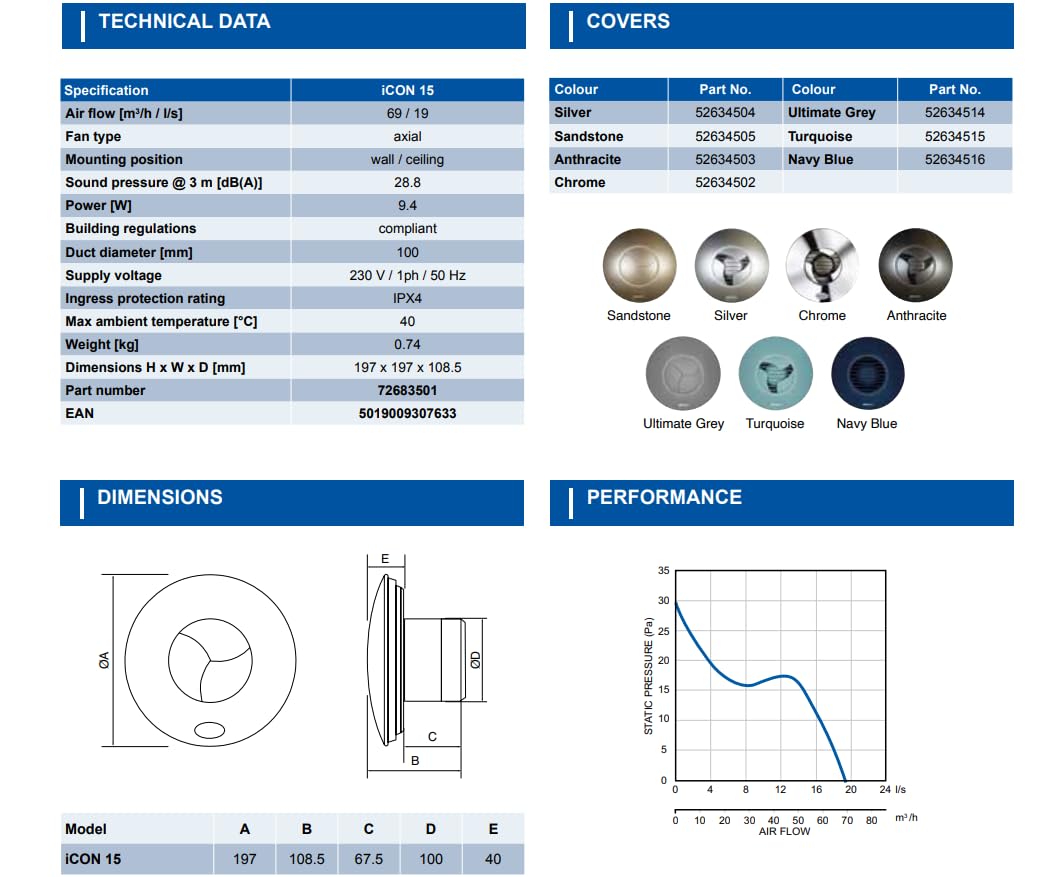

• Energy-Efficient & Quiet Operation – Airflow iCON 15 extractor fan Operates at just 9.4W, (0.05A) delivering powerful airflow up to 19 l/s (69 m³/h) while maintaining quiet (28.8dB Noise @3m)

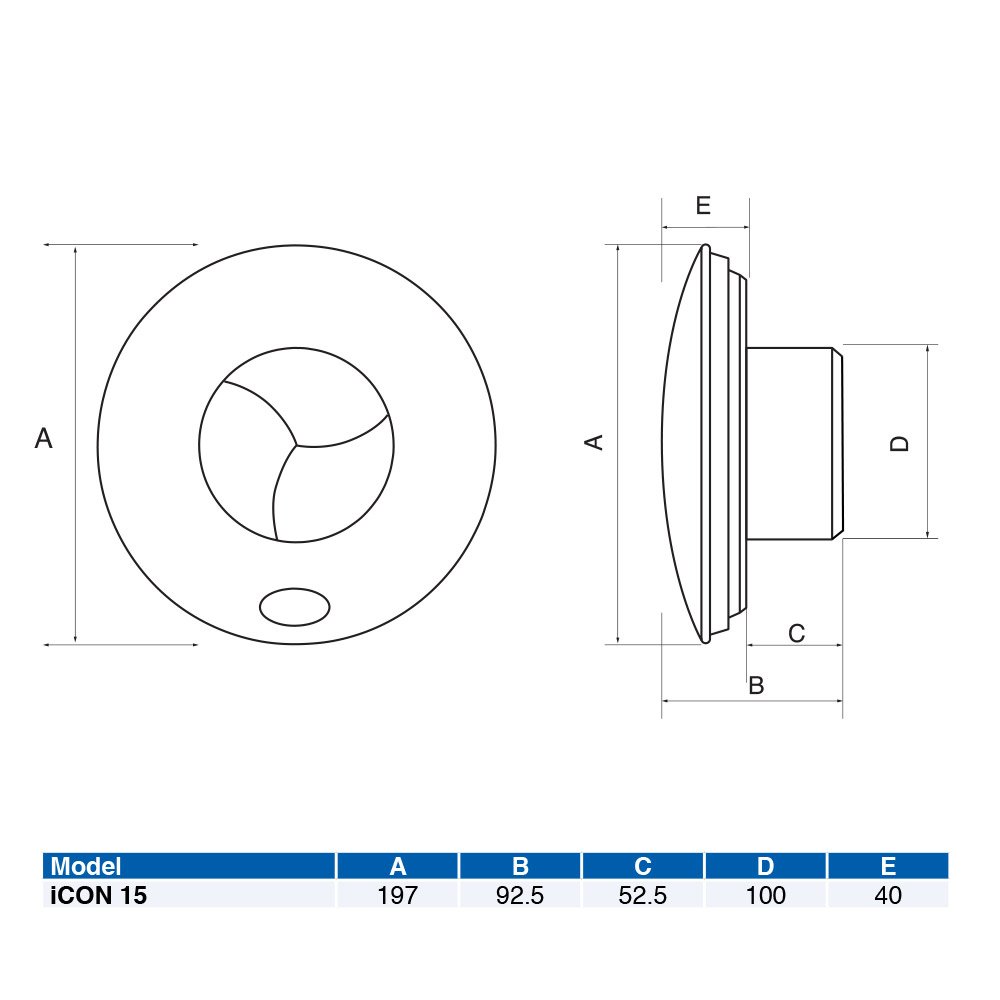

• iCON 15 Installation – Requires a 110mm hole (Wall or Ceiling) Lined with a 100mm Duct. size Ensure Vapour Barriers are Properly Restored. Perfect for smaller bathrooms and en-suites.
• Multiple Color Cover Options – Covers available in stylish colours such as silver, chrome, anthracite, and navy blue, allowing you to choose the perfect option that complements your bathroom's aesthetic

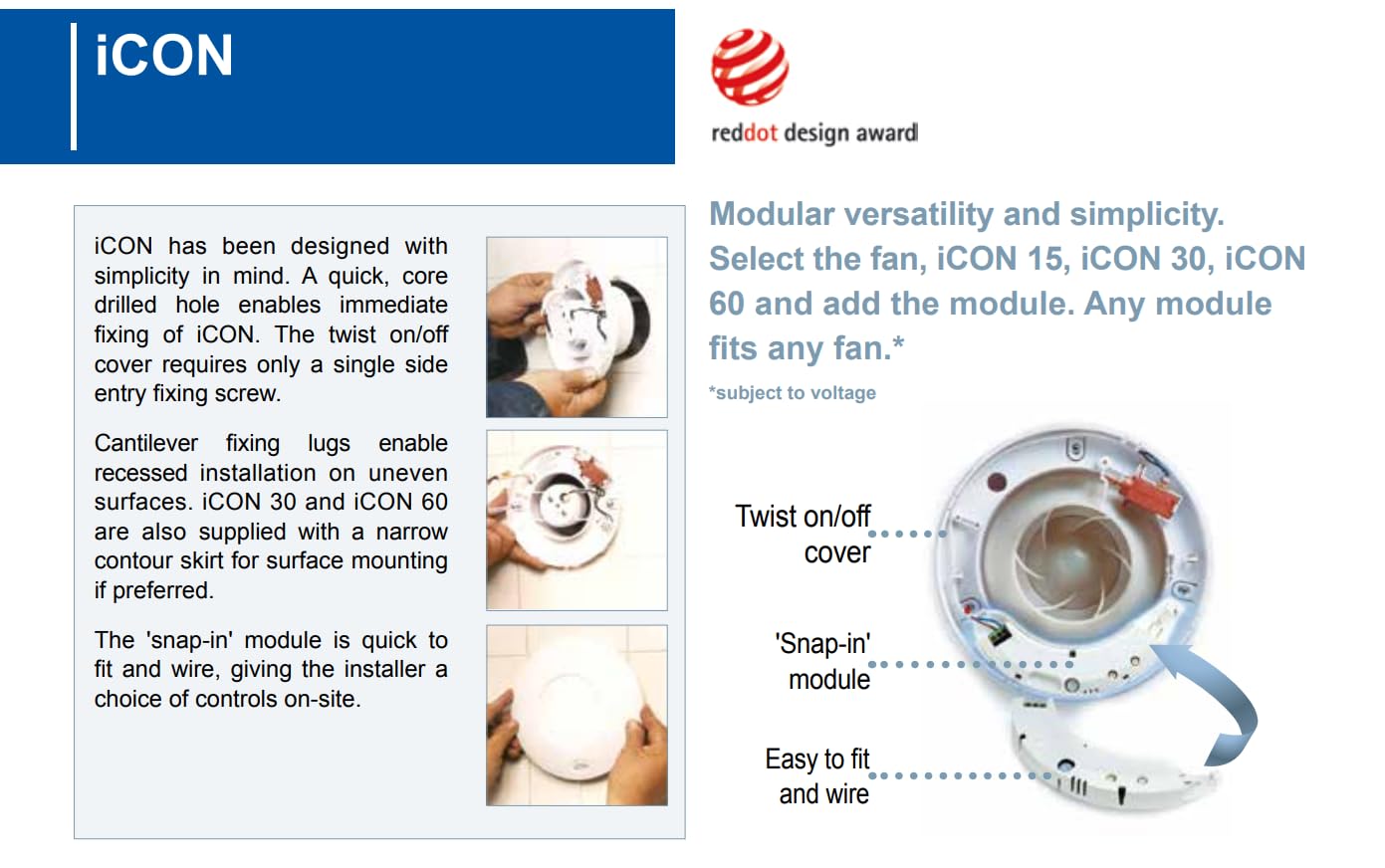

iCON 15 is ideal for toilets, en-suites, and small bathrooms. Recessed into the wall or ceiling, it is stylish, sleek and unobtrusive, even in the smallest of spaces. The circular design means no squaring up is required, adding to the already simple installation procedure. iCON 15 is designed to provide ventilation levels that comply with the latest Building Regulations. The iCON fan is an efficient, stylish and unique ventilation solution for the modern home. The iris shutter design makes switching on and off almost silent and helps reduce external noise ingress. The slim profile and iris shutter of the iCON make it a fan which will blend discreetly into any setting. The fan has cantilever fixing lugs which enable installation on uneven surfaces. iCON 15 is 230-240volt 50hz, IPX4 and has a flow rate up to 68mhr and a 3year warranty. The iCON 15 out of the box can be installed to work from a remote individual switch or a light switch. Also included in this kit is a humidity & timer module. This module will give the iCON the functionality of being activated by the level of humidity and a run on timer when activated by a remote switch. The humidity level on the module can be adjusted to suit but does come factory set out of the box to function for most wet room applications. When the humidity level is triggered the fan will come on and extract the moist air, it will carry on extracting until it is below the humidity level set on the module, this is to prevent nuisance triggering. The run on timer will function once the fan has been turned off by the remote switch, the fan will run on for the time set on the module. The module comes factory set for approx 15 minutes run on time as set by the English Building Regulations. The fan does not need to be connected to a remote switch for the humidity function to work. Also in this kit is 3metres of flexible PVC ducting and an external grille The white iCON 15 cover can also be changed so as to blend in better with the aesthetics of the room it is in. The choices are: Anthracite, Chrome, Sandstone and Silver. An external 3A fuse is required for each fan unit. The product is fully compliant with the following safety standards: CE2004/105//EMC Directives and LVD 2006 195/EC. Switches for fans should be selected and sited in accordance with BS7161:2008.
