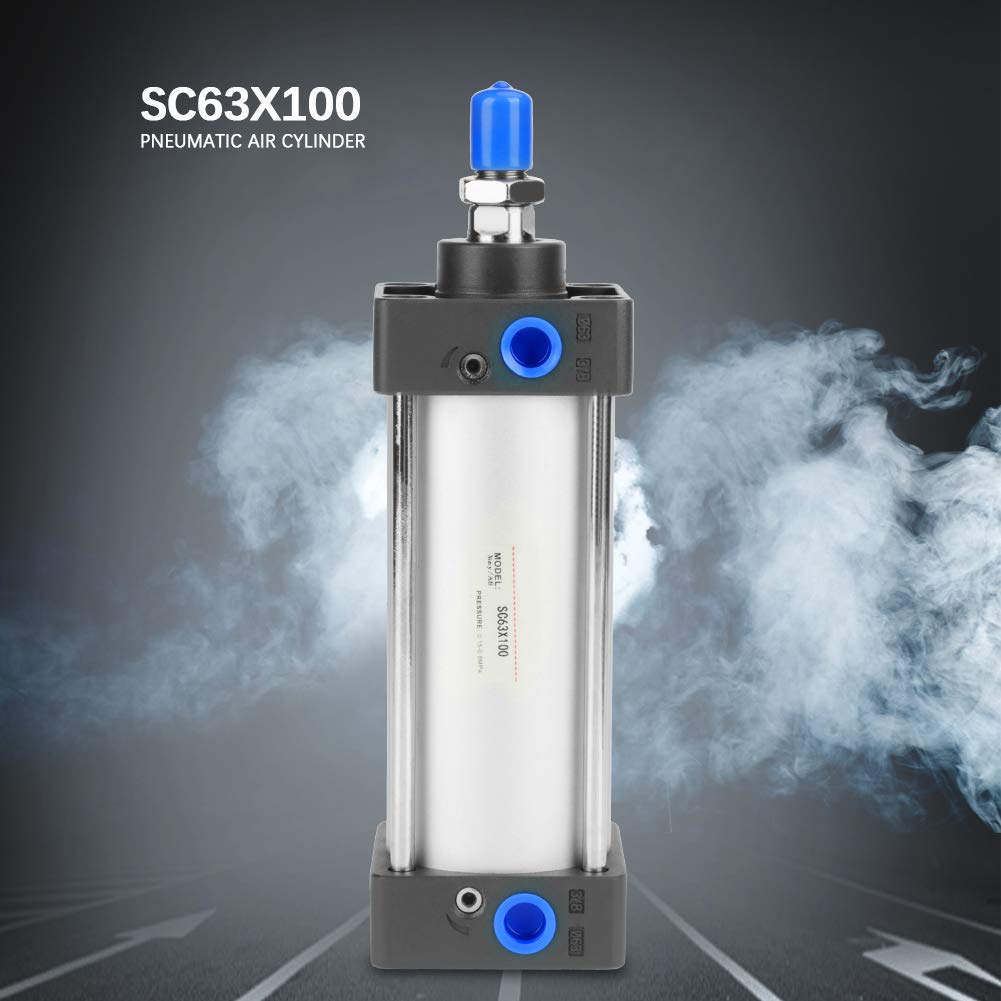

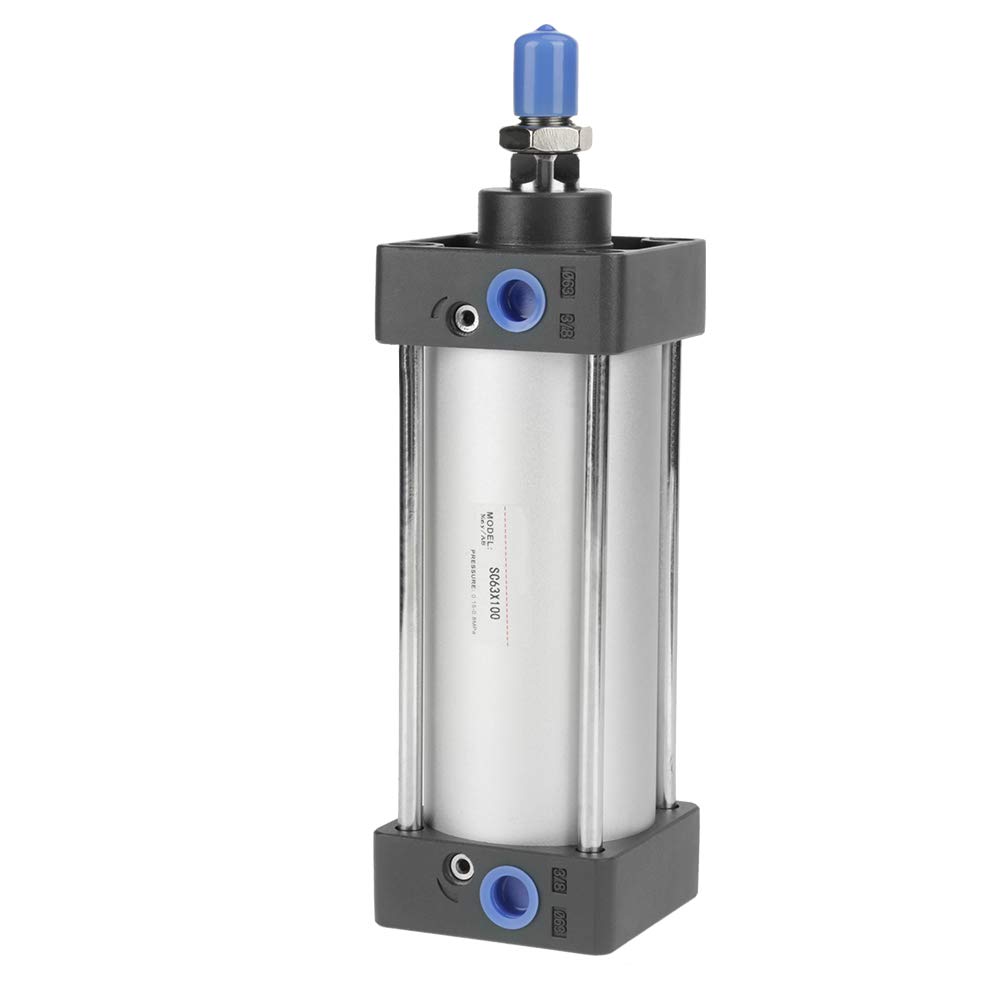

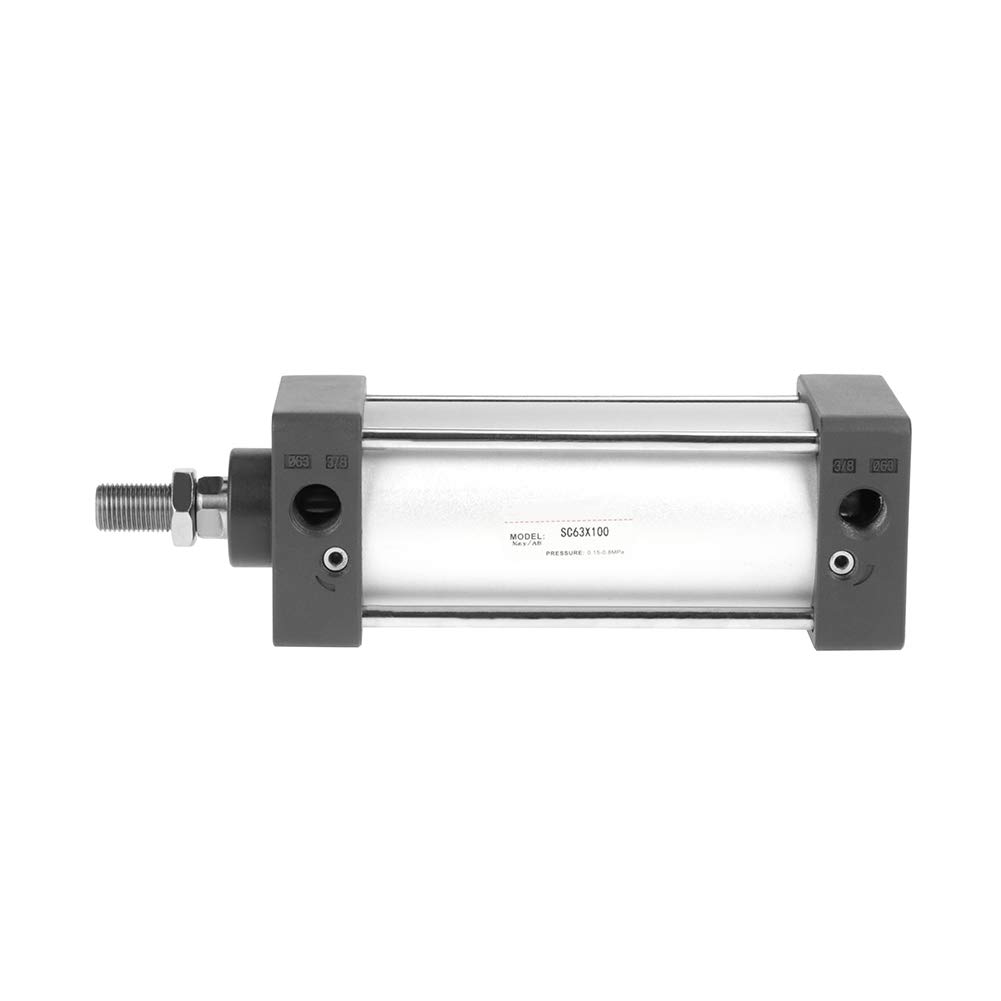

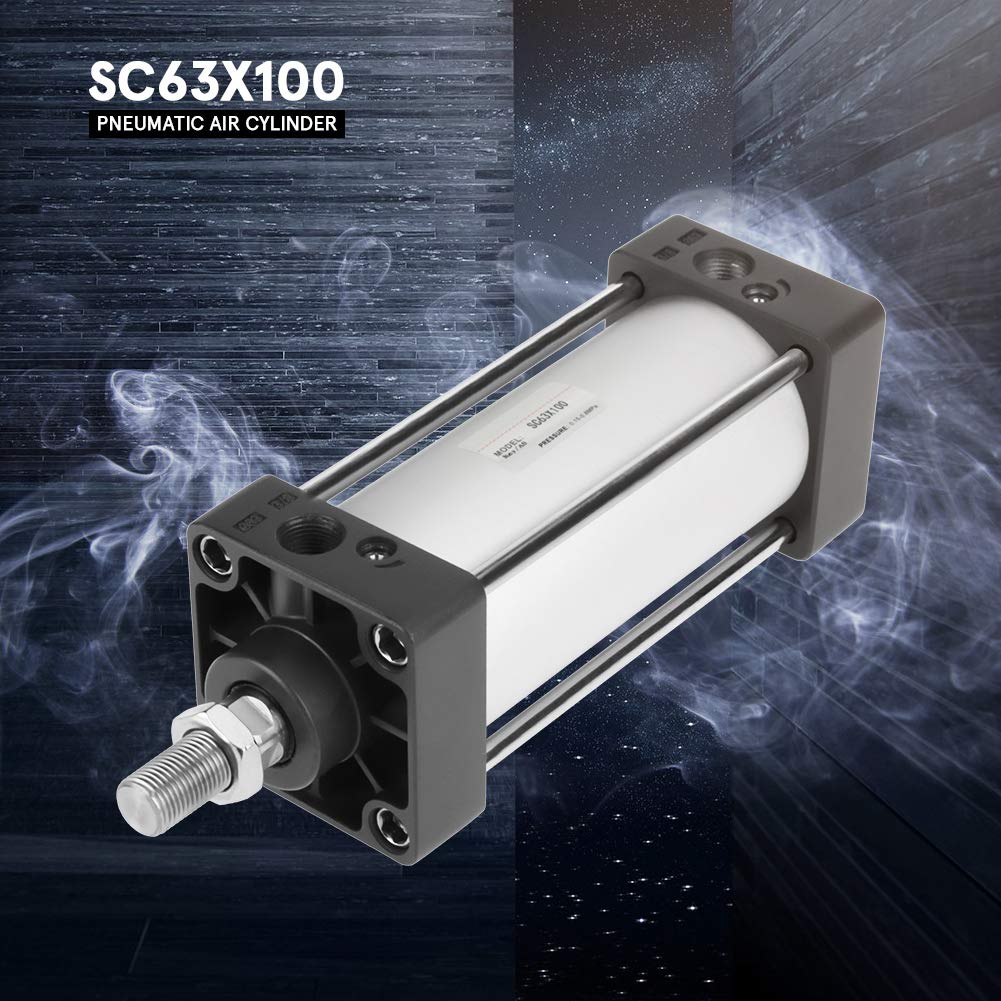

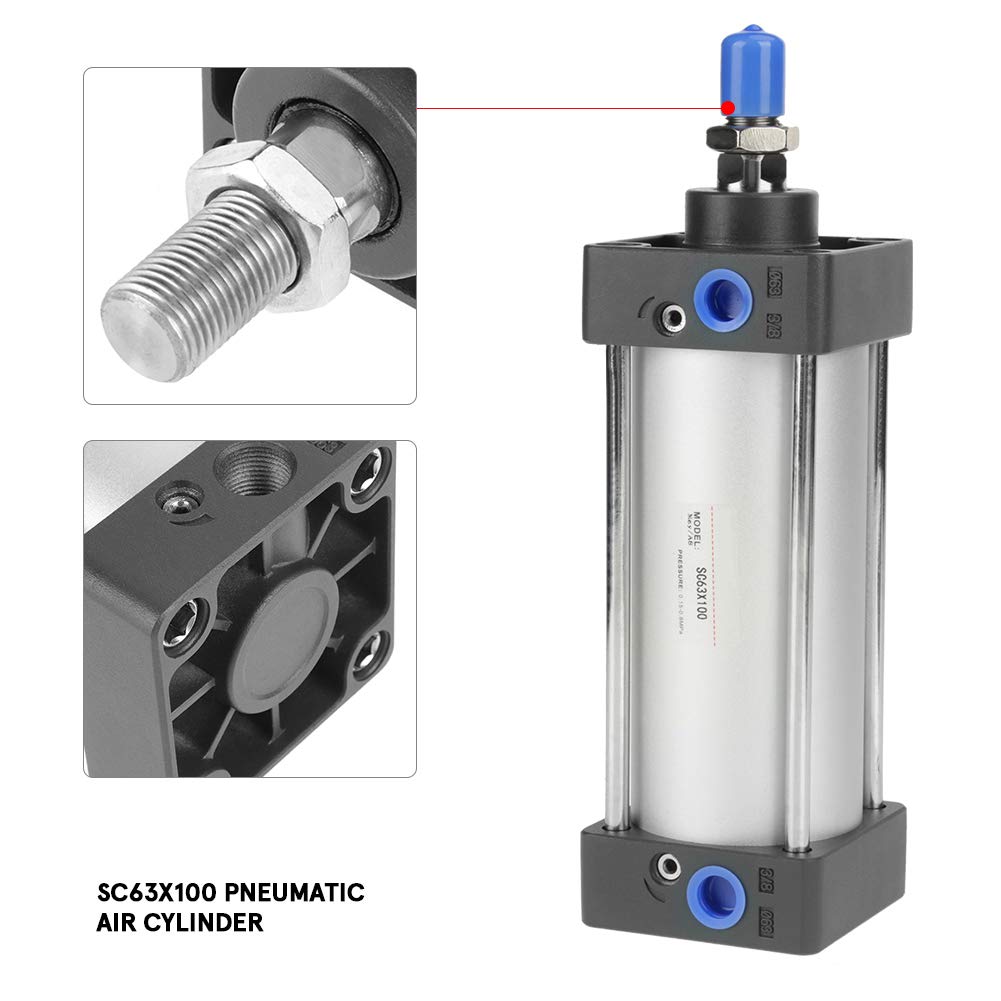

Air Cylinder,63mm Bore 100mm Stroke Screwed Piston Rod Pneumatic Air Cylinder Dual Action,perfect lubrication and guiding performance

• ➤ 【Description】63mm bore and 100mm stroke, double action and single rod.convenient to install, easy to use.
• ➤ 【Quality Material】Adopt aluminum alloy cylinder, for use.
• ➤ 【Works Smoothly】With the adjustable buffer mode, the cylinder works very smoothly, safely and with low noise.
• ➤ 【Sealing Structure】The piston seal is adopted in two-way sealing structure with compact size and oil storage function.

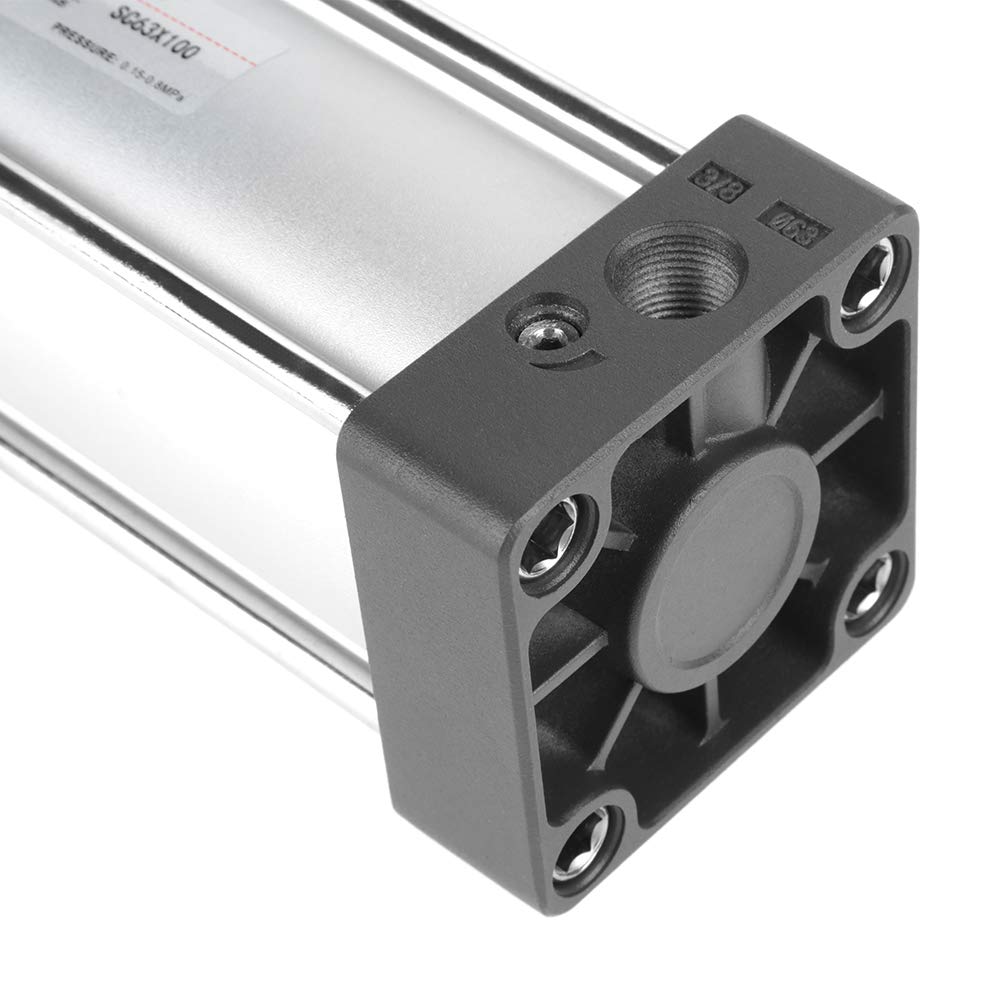

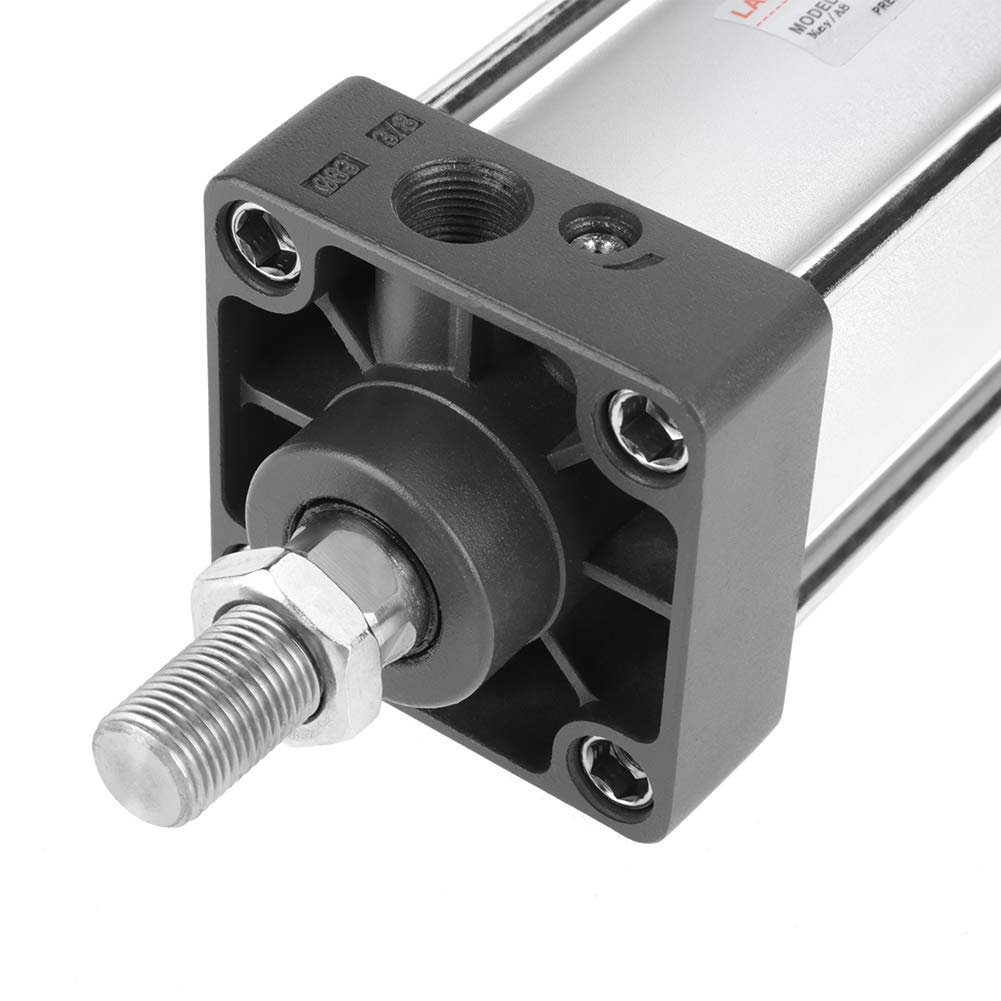

• ➤ 【Perfect Performance 】The front cover adopts self-lubrication bearing guide, perfect lubrication and guiding performance.

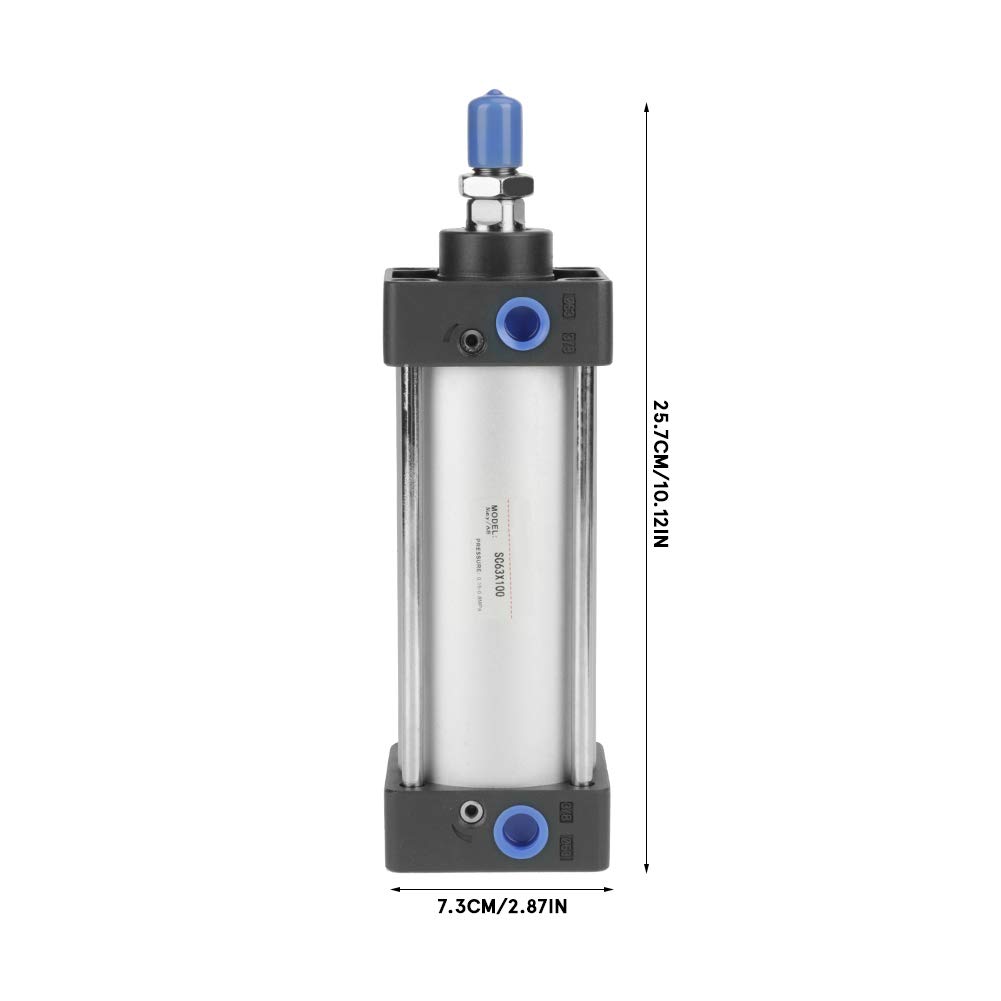

Description: This air cylinder is made of high quality aluminum alloy with performance. The stroke is 100mm and the inner diameter is 63mm, it is convenient to install and easy to use. Features: Adopt aluminum alloy cylinder, for use. Diameter of 63 mm and 100 mm stroke, double action and single rod. With the adjustable damping mode, the cylinder operates very smoothly, safely and with little noise. The piston seal is adopted in a bidirectional sealing structure with a compact size and oil storage function. The front cover adopts a self-lubricating bearing guide, perfect lubrication and guidance performance. Specifications: Material: aluminum alloy Operating medium: air Inner diameter: 63 mm / 2.48 inches Stroke: 100 mm / 3.94 inches Pressure: 0.1-1.0MPa (14-145psi) pressure: 1.5MPa (215Psi) Working temperature: -20 ~ 80 Working speed range: 30-800 mm / s Type of action: Double acting Cushioning shock: 21 mm / 0.83 inches Port thread: PT3 / 8 Size: Approx. 25.7 x 7.3 cm / 10.12 x 2.87 inches Approximate weight. 1576g Package includes: 1 x standard cylinder
