Aiqeer 30 Pcs PCT-213 Lever-Nut Wire Connectors, 3 Ports Conductor Compact Wire Connectors, Cable Clamp Terminal Block Quick Spring Connector

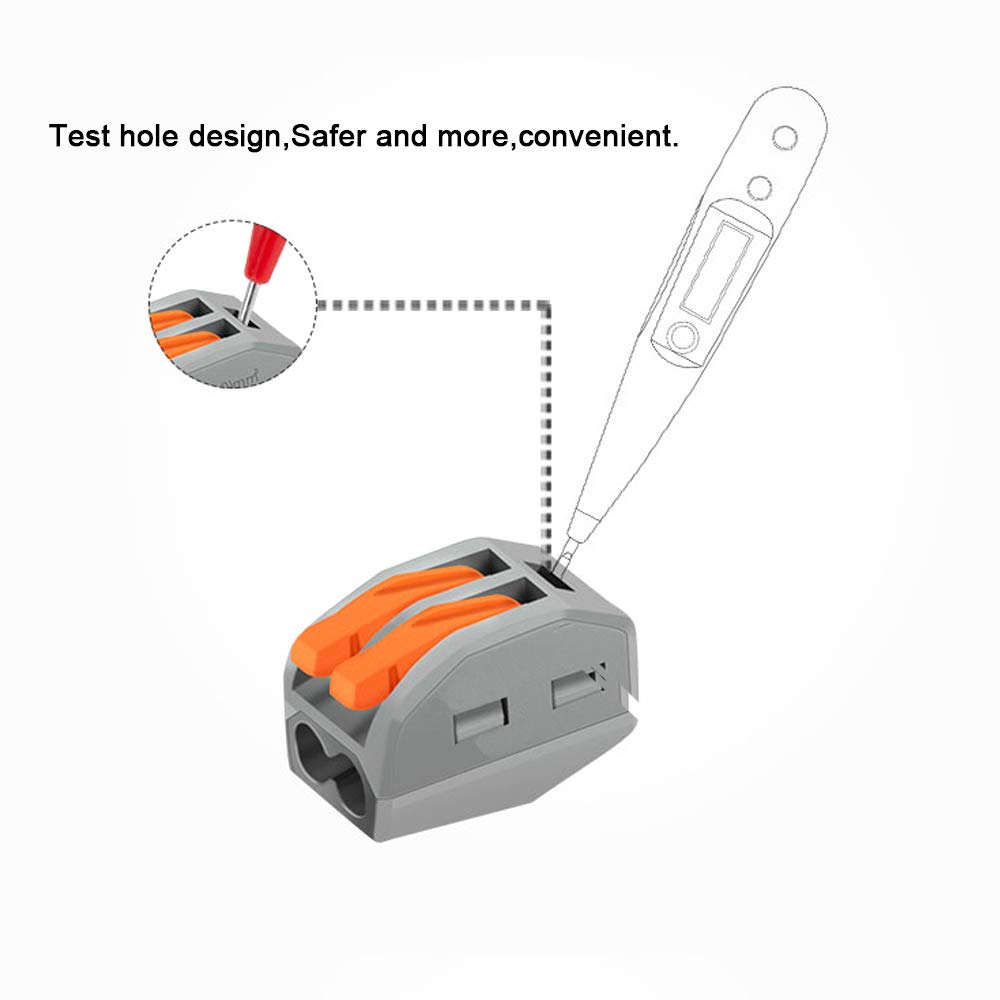

• ▶Easy to install, it is no need operated by tools. Just plug and play, and then finished. Different wire are managed separately, different diameter can be safely connected. Built-in test point, electric test no need to remove tape. Instead of traditional electrical tape and electrical butt connectors twist-type, technological innovations reduce wiring time by more than 50%.

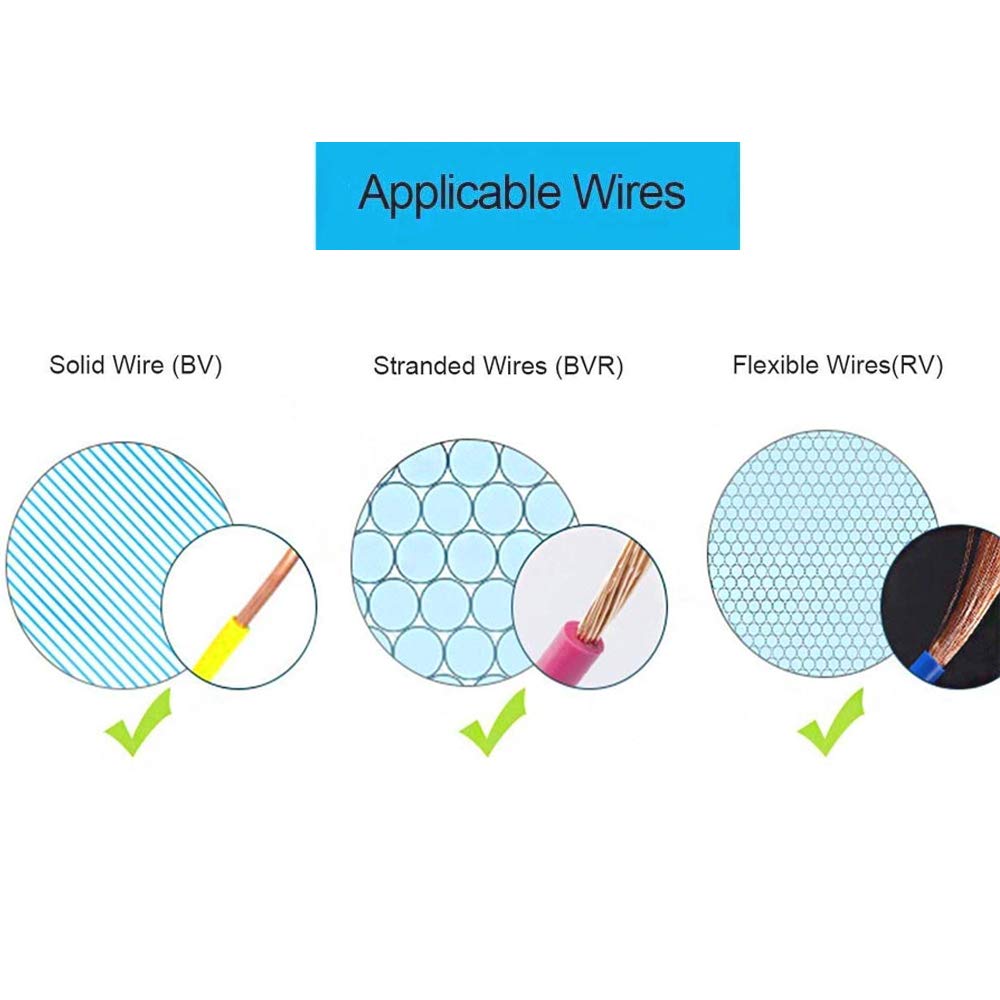

• ▶These are great for removable connections as soldering does not need to occur. Suitable for copper wires size 0.08～4 mm² / 28～12 AWG. Connect any combination of solid, stranded, and flexible copper wires faster and more reliably. If you need to change other wires, just flip the little lever up and pull out what you need and replace, which is very practical.
• ▶Made of the best flame-retardant insulating material Nylon PA66. With the advantages of long life, corrosion resistance, aging resistance, high pressure resistance, insulation and flame retardant, it can effectively prevent electrical leakage. So the lever nuts are safer than traditional wire nuts.
• ▶Internal spring contact is copper material, special surface plating to prevent oxidation, low resistivity and with better conductive properties. The spring clamping technology is reliable and does not fall off. Since the tightening force can be adjusted automatically with the thickness of the conductor, the contact of the conductor is reliable and is not affected by the installation technology.
• ▶100% Satisfaction Guaranteed! If you have any questions about the products you ordered, please contact us in time, we will try our best to provide you with satisfactory service. We always care about customer experience and strive to improve the product features and details.

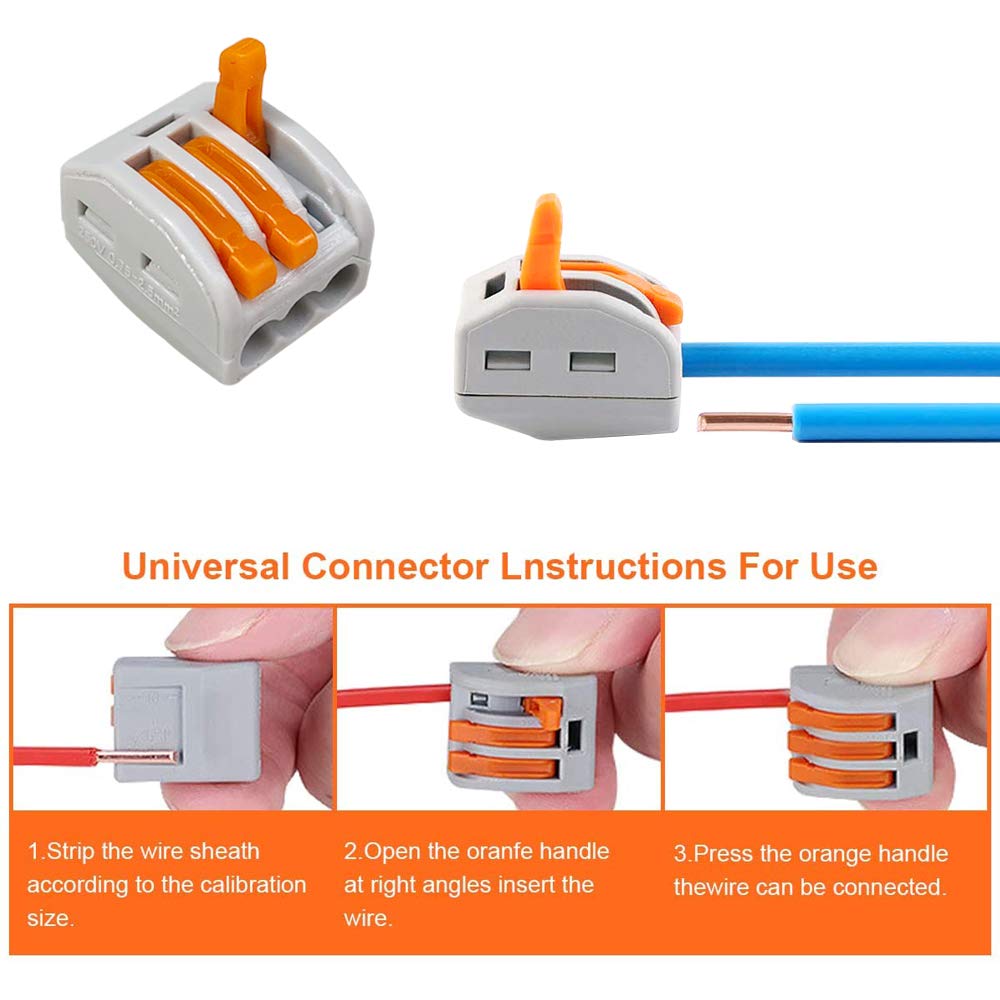

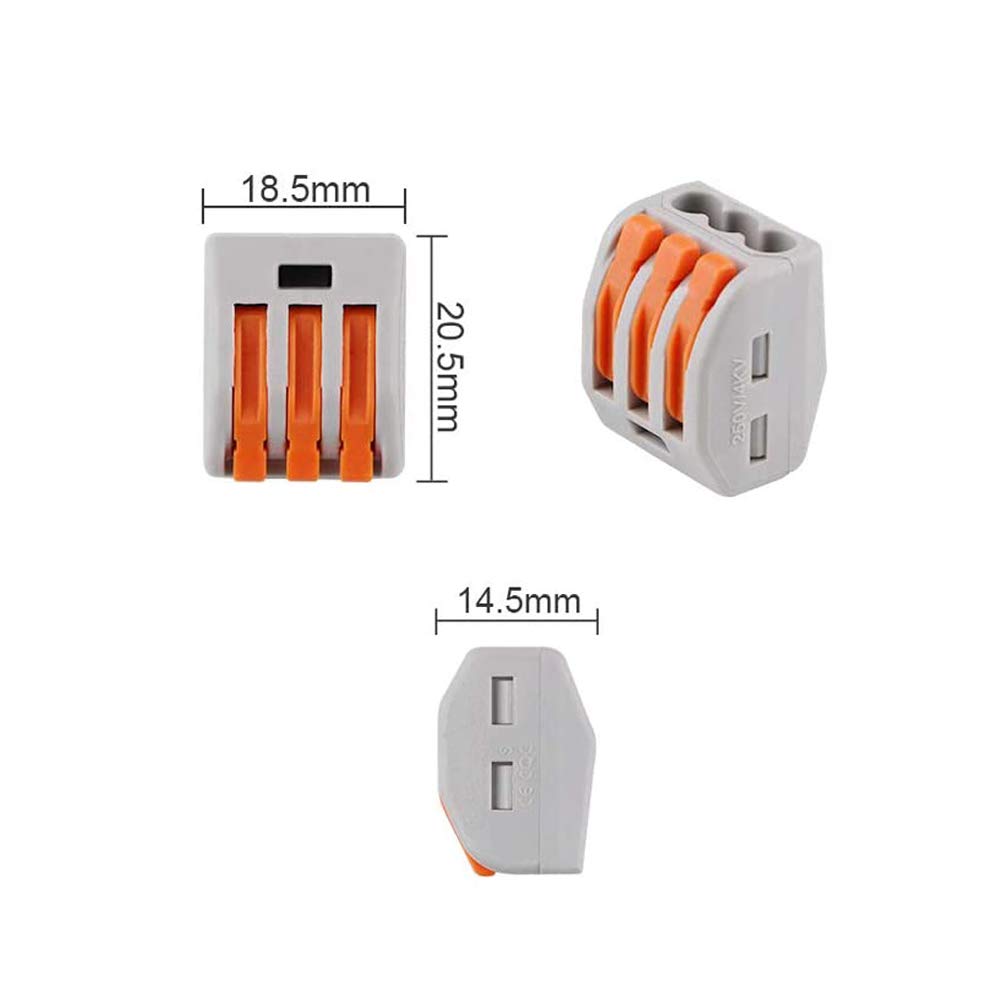

Specifications: ●Material: Tinned copper + PA66 modified nylon. ● Size: 2.1 x 1.7 x 1.5 cm (L x W x H). ● Weight: 4.2 g. ● Colour: Orange + Grey. Package includes: PCT-213 Lever-Nut Wire Connector x 30 Pieces Rated voltage 400 V/4 KV, rated current 32 A, rated power 7 kW. Suitable for solid copper wire size 0.08~2.5mm²/28~14AWG. Suitable for stranded hard copper wire size 1.5~2.5mm²/16~14AWG. Suitable for stranded soft copper wire size 0.08~4mm²/28~12AWG. How to use? 1. Open the wire housing to 9-10 mm. 2. Push the orange lever to 90°. 3. Plug in the wires. 4. Press the lever to close the clamp. Advantages: ●Suitable for a variety of wire sizes. (0.08~4mm²/28~12AWG) ●Quick plug and play connection. ●Built-in test point. ●Maintenance-free connection. ●Low installation cost and safe operation. ●The control lever avoids the need for tools. ●The maximum continuous service temperature is 105℃. ●Different types and sizes of wire can be combined into one connector. ● Corrosion resistance, high temperature resistance and aging resistance. ●Reusable wire connector
