AILOVA RFID Wireless ID Card Reader Module with Wiegand-26bit Controller Module 125Khz with Antenna

• The EMID 125KHZ card reader module has low operating current and high stability.
• Modules can be applied to attendance systems, access control systems, parking management systems, food sales systems, electronic security systems, community management, elevator controls, lockers, toys, etc.
• The module is very convenient to use. It is connected to the antenna of the corresponding card reader (coil), to the microcontroller via the Wiegand 26 interface and to the power supply.
• When an RFID card enters the reading range of the card, the module automatically sends the card number via the Wiegand 26 interface. After receiving the MCU, it can control the relay to achieve simple access control or other functions.
• Quality Assurance: To provide you with the highest quality assurance, please contact us if you are not satisfied with the product.

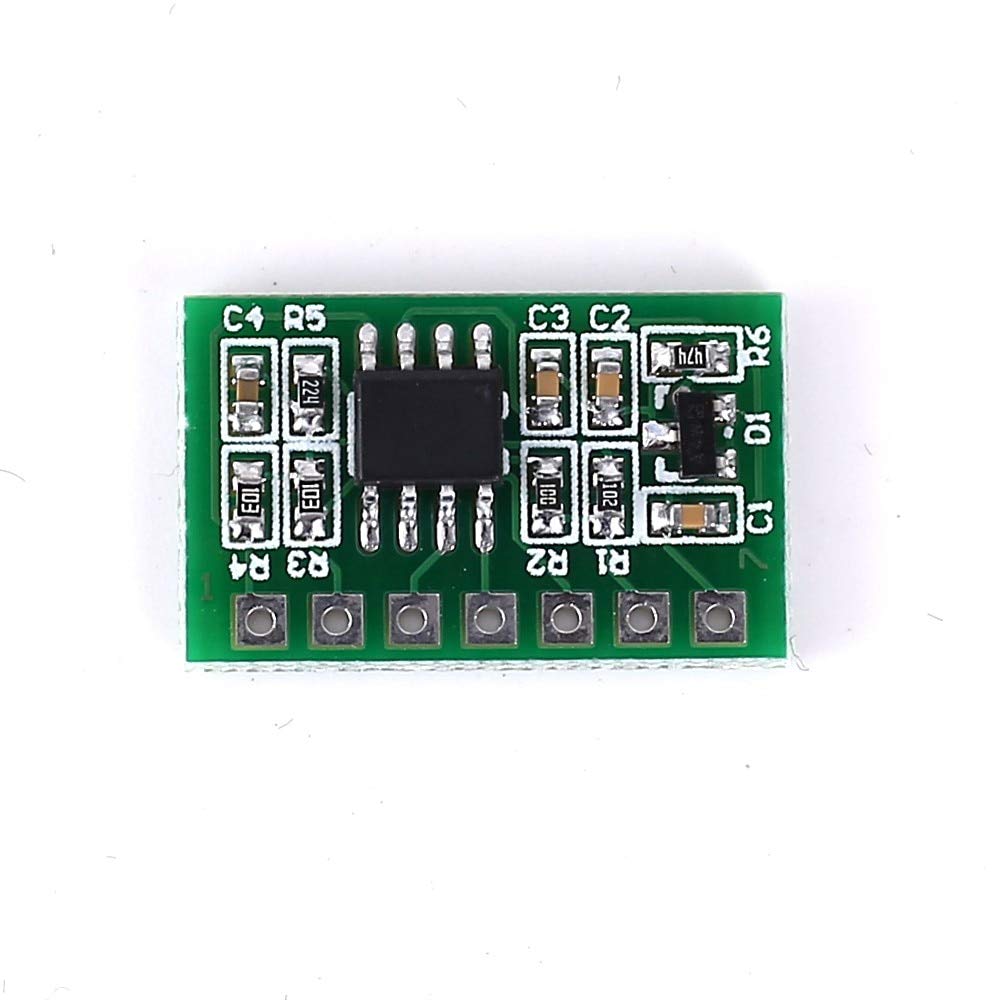

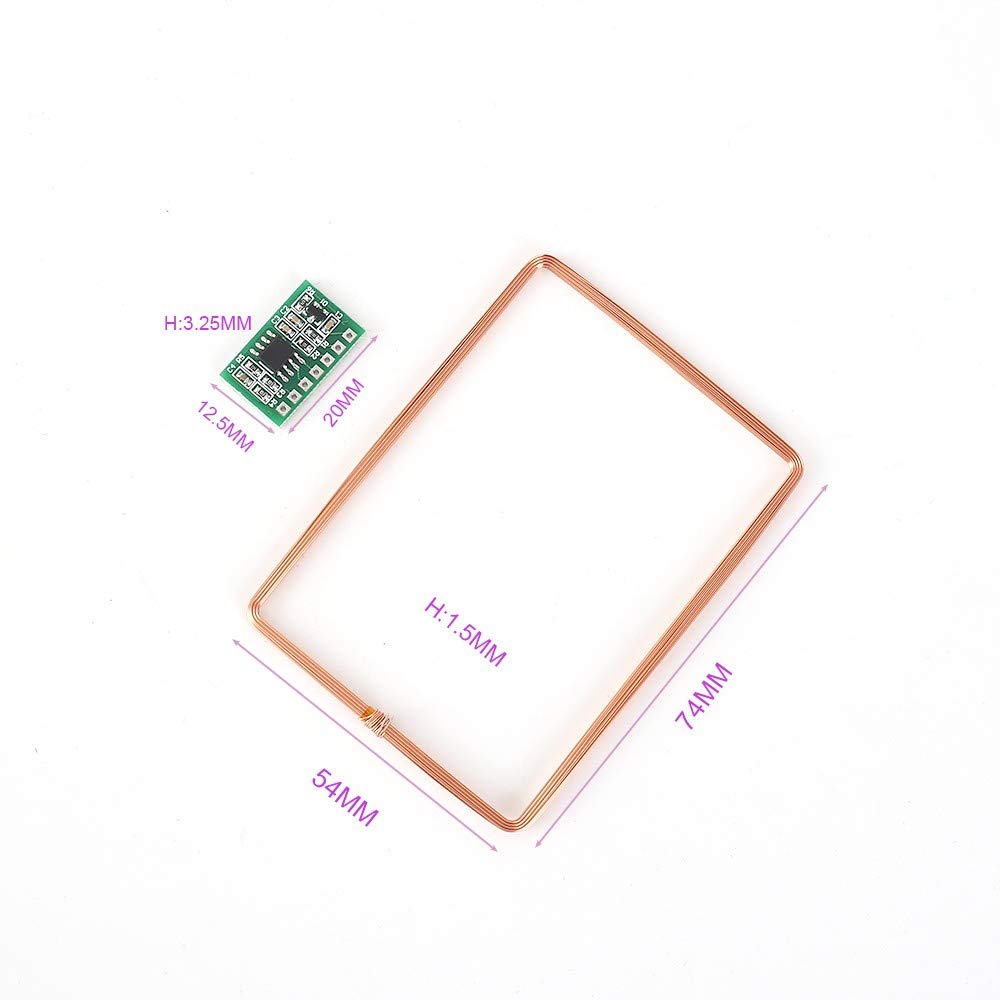

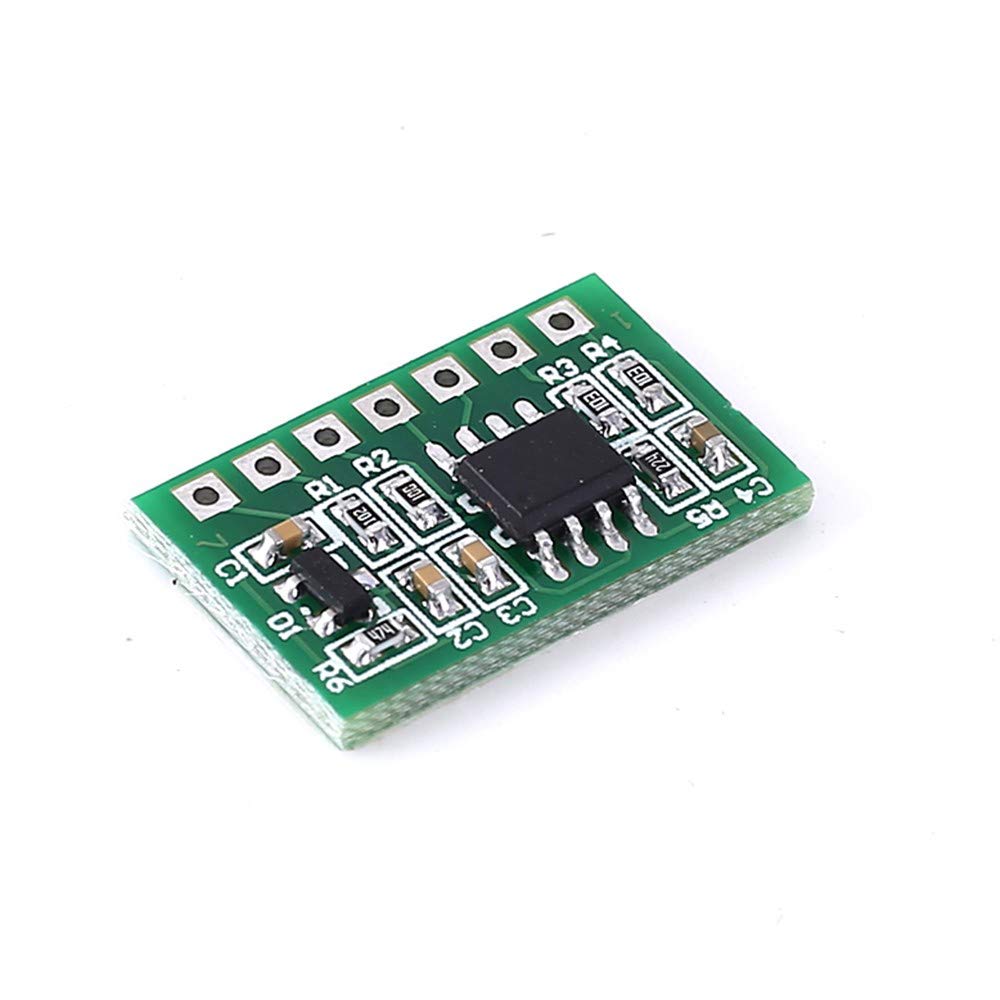

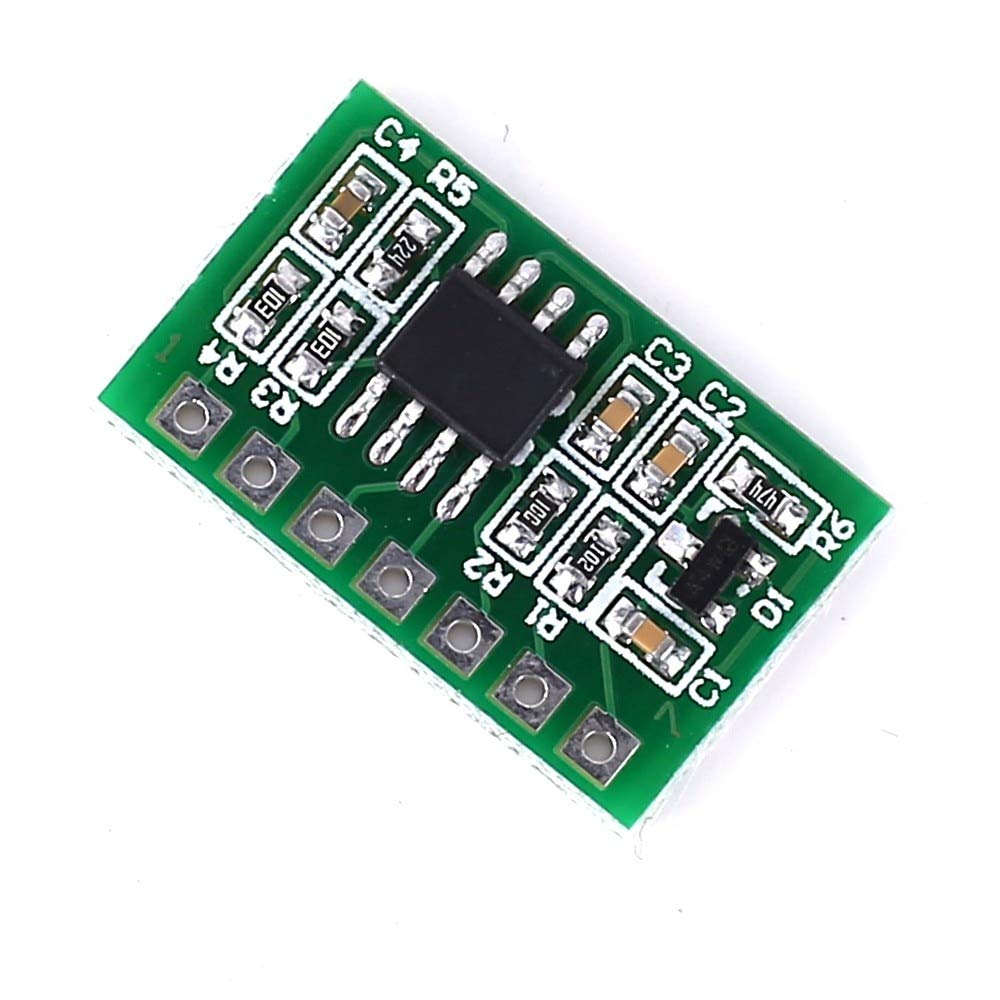

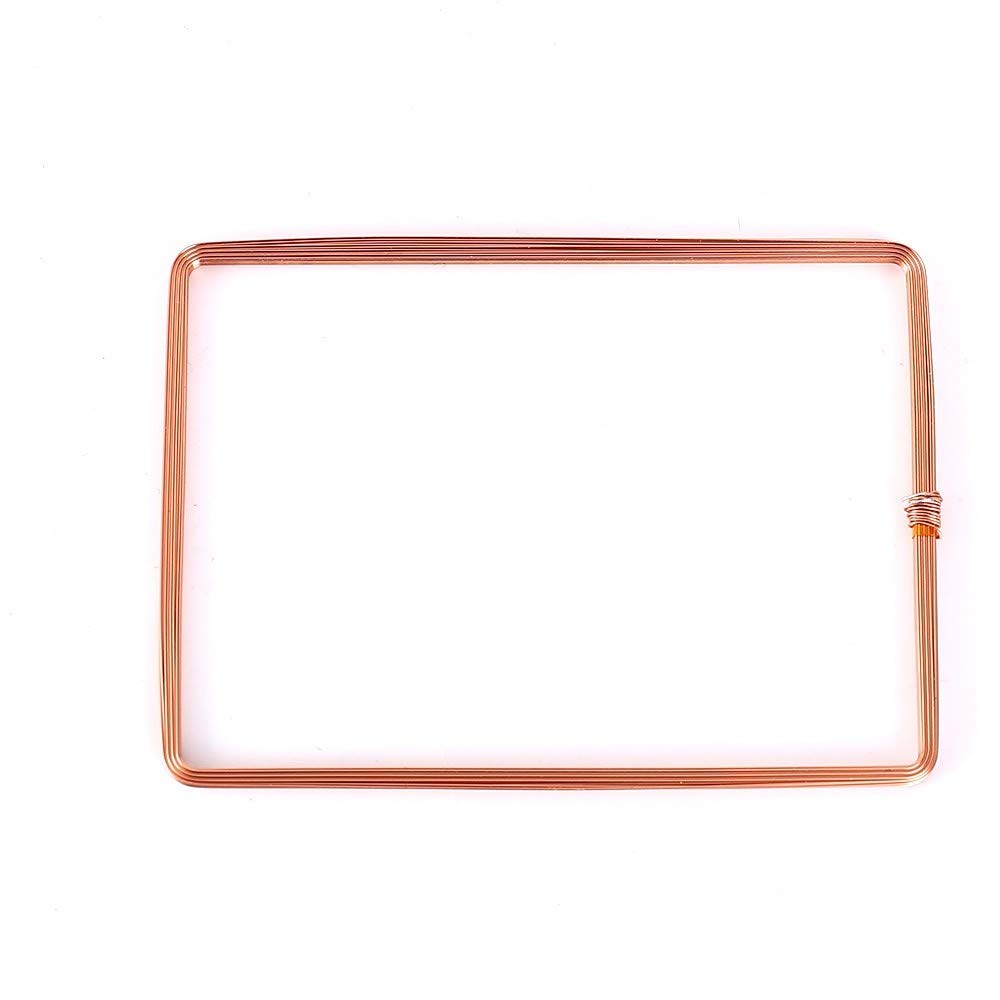

Parameters: 1>. Input voltage: DC 3V-5V. 2>. Working current: 25mA. Frequency 3>.Working: 125KHz 4>. Suitable type: EM4001/4102 or compatible card. 6>. Read distance: <7 cm. 7>. Working temperature range: -20? ~ 85? Humidity range 8>.Working: 0%-95%RH Size: 20 x 12.5 x 3.25 mm Antenna size 10>. : 74 x 54 x 1.5 mm. Pin Definition: 1.GND 2.VCC 3.D0: Wiegand26 DATA0. 4.D1: Wiegand26 DATA. 5.XH: Connect to a buzzer or LED 6.L1: connection to the antenna 7.L2: connection to the antenna Application: The card reader module can be applied to participation system, access control system, parking management system, food sales system, electronic anti-theft system, community management, elevator control, lockers, toys, etc. Package: 1pc 125KHz RFID Wireless Module 1 x aerial Note: 1. Please allow for a 1-2 cm error due to manual measurement. Thank you for your understanding. 2. Monitors are not calibrated the same, the colour of the item shown in the photos may be slightly different from the actual item. Please take the real one as standard.
