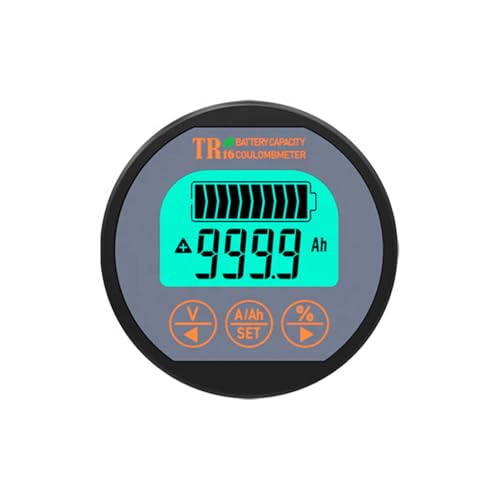

AiLi Battery Monitor Voltage Tester Voltmeter Ammeter Voltage Current Meter 80V 100A Caravan RV Motorhome UPS Lithium Iron Lead-Acid 999 AH

• Read your battery bank like a fuel gauge. Battery Status At A Glance.
• Combines many functions in one, these information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure.

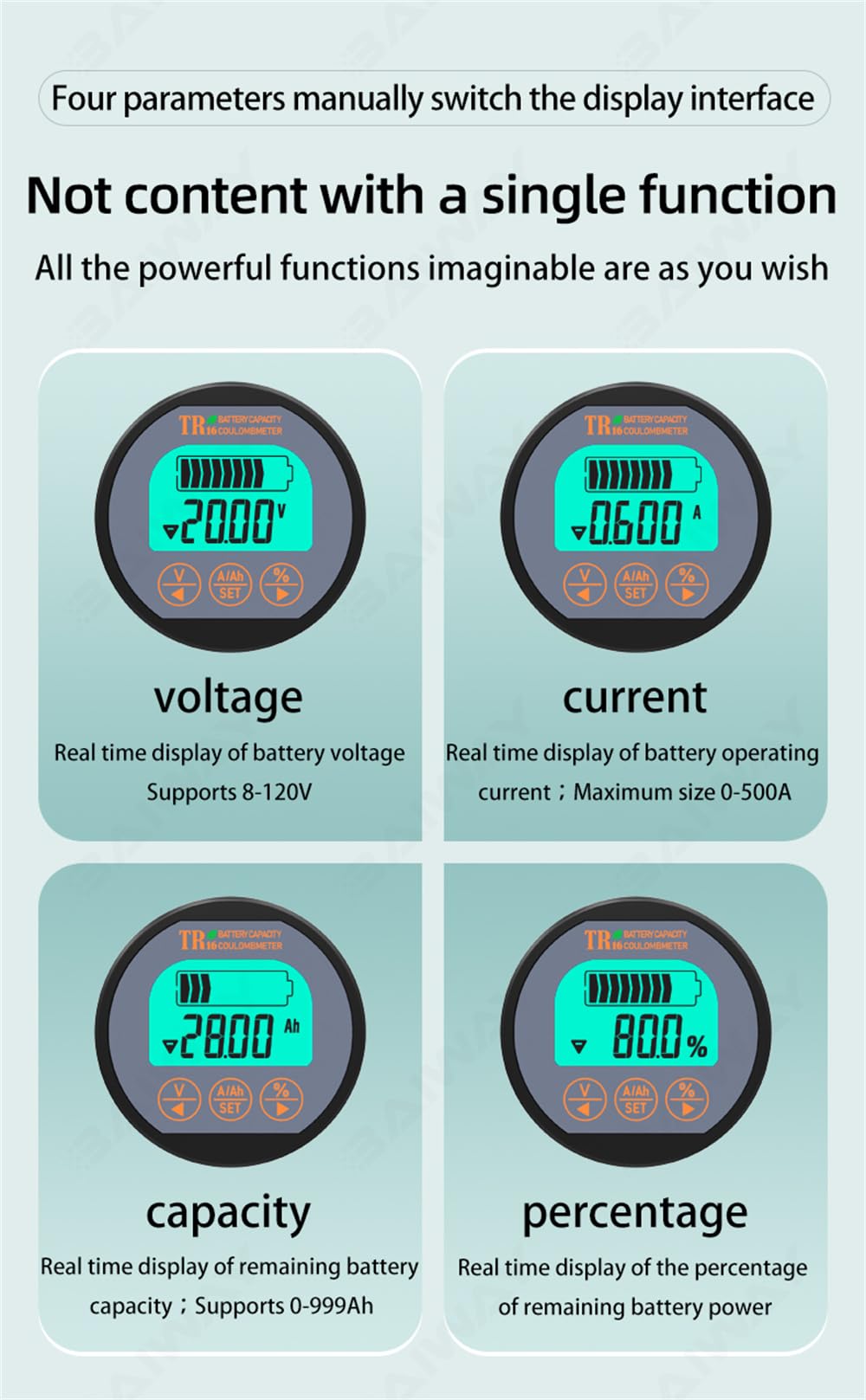

• State of Charge (%),The remaining battery capacity (AH). Charge and discharge current (A), Voltage (V).
• Charging status indicator, looks like a smartphone.
• It is suitable for mobile and portable equipments, e-bike, balance cars, cleaning machines, instruments, ups and so on.

This Battery Monitor is designed to monitor performance most kind of battery systems with capacities of up to 999 Amp hours. Read your battery bank like a fuel gauge. Battery Status At A Glance. Combines many functions in one, these information leads to more efficient use of the battery, which can enhance battery life and reduce the risk of failure. State of Charge (%),The remaining battery capacity (AH). Charge and discharge current (A), Voltage (V). Charging status indicator, looks like a smartphone. It is suitable for mobile and portable equipments, e-bike, balance cars, cleaning machines, instruments, ups and so on. This item is suitable for lithium batteries, lithium iron phosphate batteries, lead-acid batteries and nickel-metal hydride batteries which working voltage is from 8V to 80V. Have memory function. Doesn't require isolated power, self-powered 8-80V. It is very easy to install. Specifications Working voltag: 8.0-80.0 V Current range: -100~+100 amps Capacity range: 0-999 ampere-hour Working consumption: 10.0-12.0 mA Standby consumption: 0.5-0.6 mA Sleep consumption: 50-60 uA Voltage accuracy: ± 1.0 % Current accuracy: ± 1.0 % Capacity accuracy: ± 1.0 % Preset capacity value: 0.1-999 Ah Temperature range: 0-35℃ Weight: 200g Size: ø59mm*20 mm Mounting hole: diameter 54mm The auction includes 1 x Battery monitor 1 x Current sampler 1 x 3 meters long cable 1 x English operation manual
