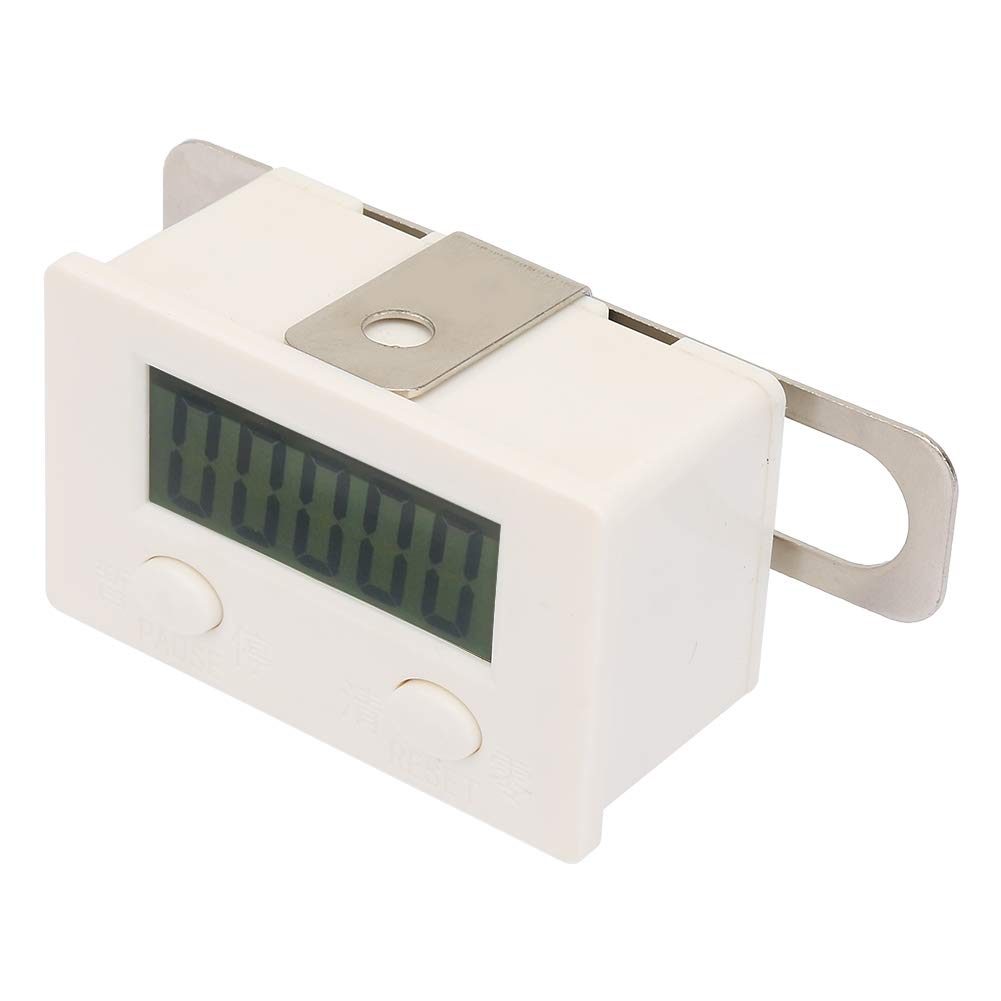

Ailao Electronic Counter Digital Electronic Digital Electronic Counter Punch Magnetic Induction Proximity Switch LCD Digital Electronic Counter Tester

• 【Low Power Consumption Large Screen】: The digital counter is equipped with a five-digit large LCD display, which can display the counting results in a large and clear manner. The LCD screen uses ultra-low power technology to ensure extended battery life and energy savings.
• 【Reset Operation】: The digital counter has a reset counting function. By pressing the pause (PAUSE), the counting process can be suspended; by pressing the reset key (RESET) again, the counting operation can be resumed. This design makes the counting operation more flexible and convenient.
• 【Accurate Counting】: The digital counter adopts magnetic induction technology, which is easy to install and can achieve accurate counting results. This means it can help users easily monitor and record the number of specific objects or events.
• 【Fast Counting】: The highest counting speed of the digital counter is 20 times per second. It has fast counting response capability and is suitable for scenes that require high-frequency counting, such as counting of fast-moving objects.
• 【Battery Powered】: The digital counter is powered by ordinary AA batteries, no external power supply is required. This design facilitates battery replacement and maintenance, and enables the device to still work normally without power supply.

Specification: Color: As shown in the picture Power: 1.5V-AA battery(Not included) Available ambient temperature: -5-40°C Distance within the magnetic induction: about 5-10 mm Hole size: Approx.63*35 mm/2.5*1.4inch Application Method: 1. Start counting: Flexibly assemble the magnetic induction switch and magnet on the appropriate positions of device, and then do counting once, meanwhile, make the magnet approach and leave the magnetic control induction switch once. 2. During operation, make the magnet follow device with distance from the magnetic switch within 0.5-1 cm, and then move the magnet to lengthen distance to be 3-5cm, and next, start count as 1, repeat the procedures, and accumulate count. 3.Reset counting: Press the pause button (PAUSE) to pause the counting, and then press the reset button (RESET) again to resume the counting. 4.Reset: directly press the Reset button; or additionally connect one Reset button (need to buy by end user) to the reset terminal, and then press it to reset the device. 5. The counting signal and reset signal only can be inputted with contact signal, other power signals are not allowed. 6. The operation temperature of magnet should be within 70 degree, over high temperature will cause magnetism lose, further to invalidate induction. Package Included: 1*Digital Counter 1*Proximity Switch 1*Mounting Bracket 1*Magnet
