AEG DDLE Basis Electronic Tankless Water Heater, Pressure-Resistant, 222388

• Instantaneous water heater with good temperature comfort
• Continuous temperature setting of approx 30 deg C to 60 deg C
• The power is supplied via a permanent installation

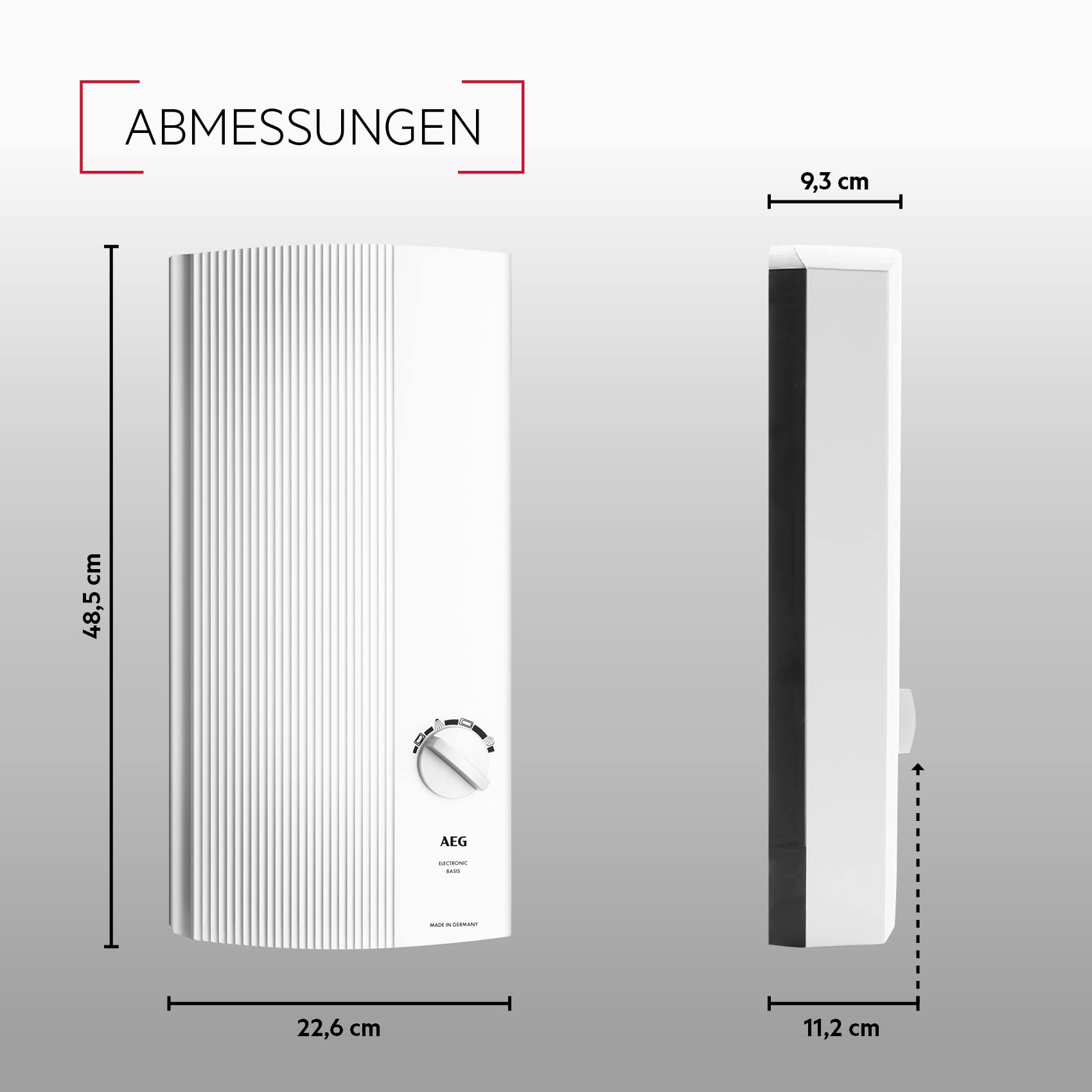

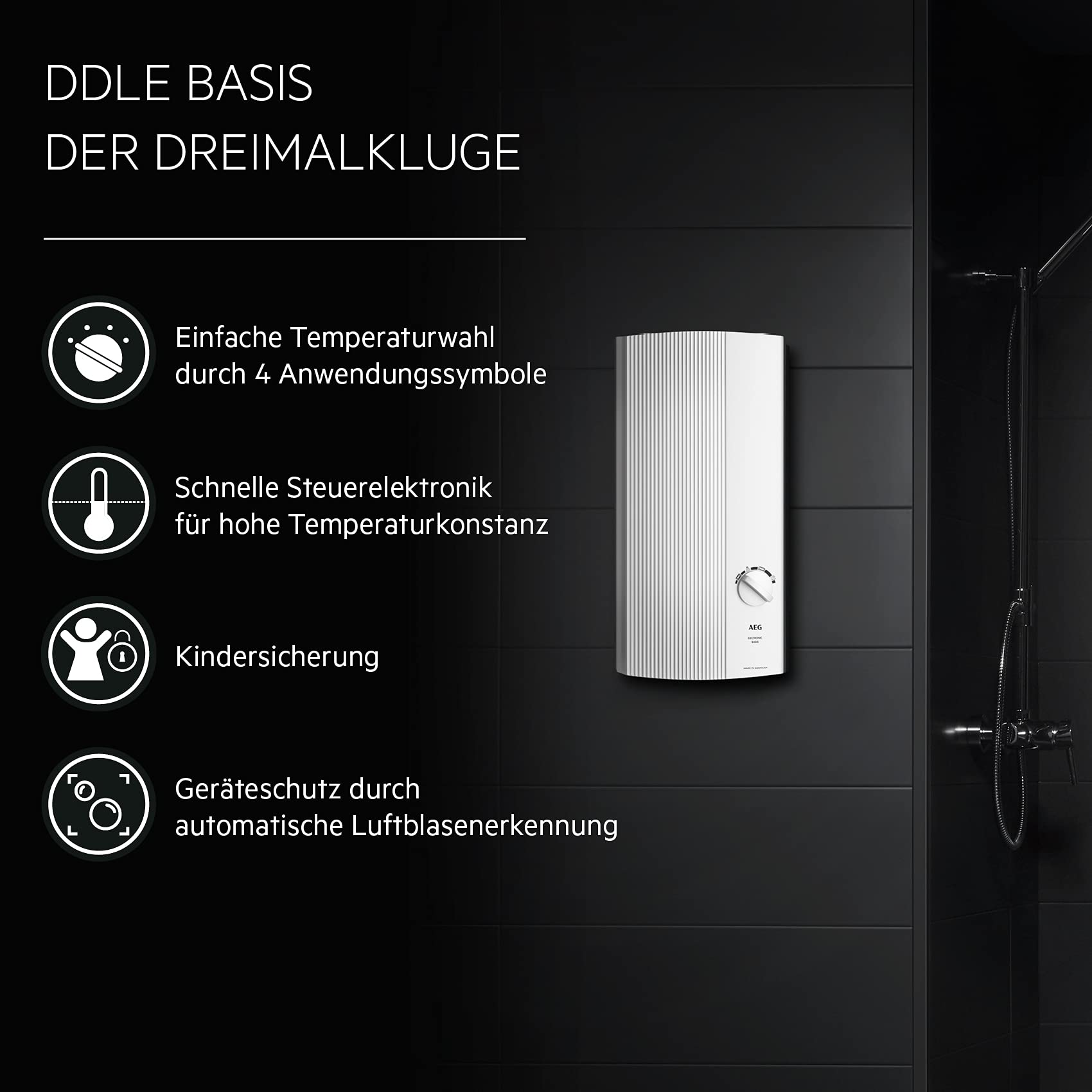

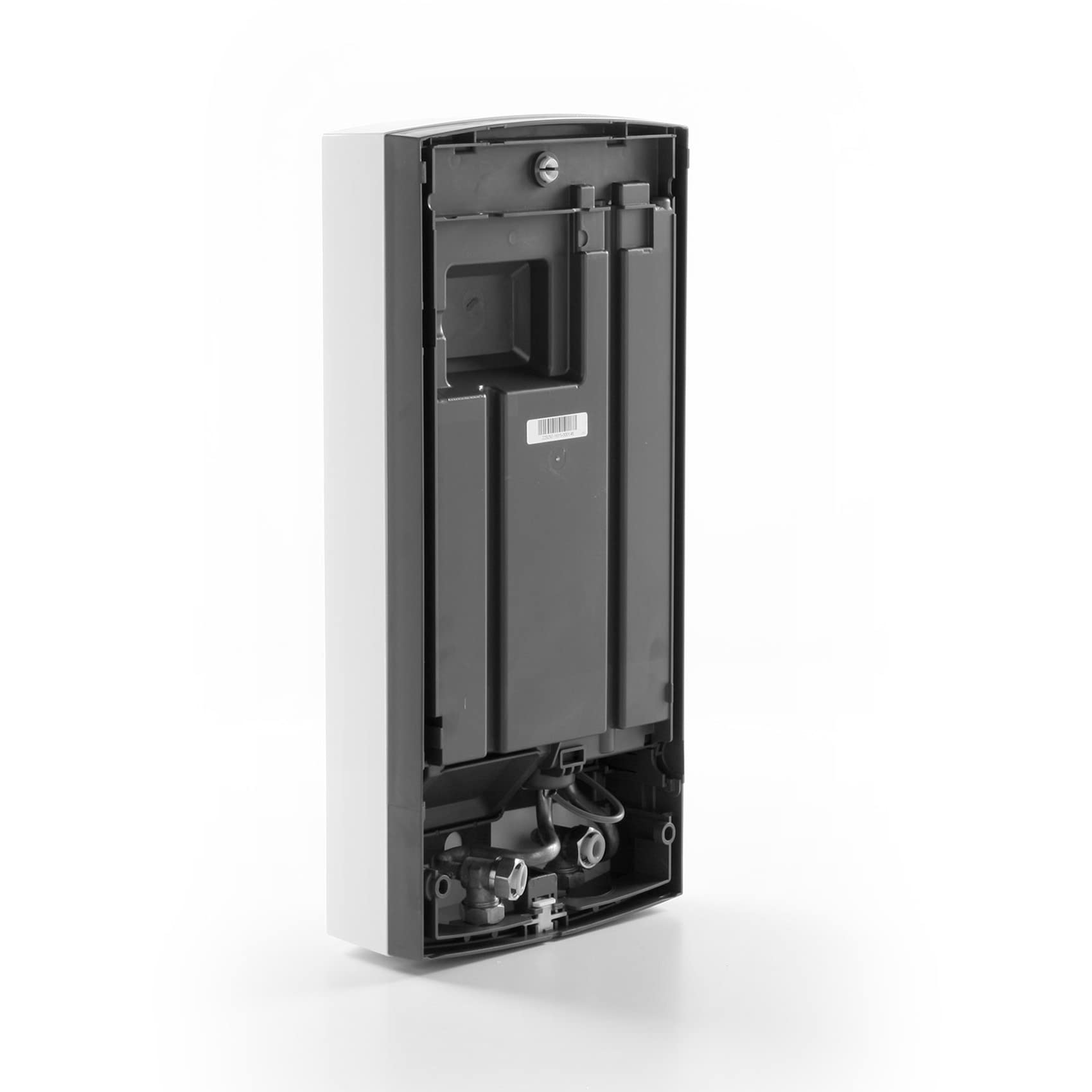

AEG electronic instantaneous heaterDDLE base 18, 18 kW, 400 V, white Instantaneous heater, electronically controlled. Electronics with good temperature stability. Temperature selection (approximately 30 ° C to 60 ° C). Heating block made of glass fibre reinforced polyamide. 4 heating coils directly lying in the water. Measuring turbine for precise flow rate detection. Connectivity for remote and direct connection. For connection to VPE plastic tubes with DVGW-test mark. Easy installation via separate mounting plate and screw cap, with mounting template, cover disassembly from the front, without screws, electrical connection from above or below. Power supply with fixed connection. Under-table mounting possible with accessories. Connection to all common closed fittings. Quality and safety signs: CE mark, VDE/GS mark, interference suppression symbol/EMC. Application: To supply one or more nearby taps To supply basin/shower/kitchen sink/bath tub (bath tub from power 21 kW) Use in private or commercial sector Equipment Sleek design, only 93 mm depth Calcification insensitive via heating coils which are directly lying in the water Extensive security systems for the case of an error Power supply with fixed connection Assembly The installation shall be made by the skilled artisans Right in the shower and bath area mountable - water jet protection IP 25 Suitable for over-sink mounting, with mounting kit UT 104 also suitable for under sink mounting Clever mounting system: - Universal mounting plate with screw top, fits onto the wells of most other manufacturers, with one rotation everything is fixed - Hood assembly from the front, without screws - Electrical connection from top or bottom - Universal Water connection for remote and direct connection, Installation also in connection with plastic pipe systems (see manufacturer's instructions) Features:Electronic instantaneous water heater with good thermal comfortLargely constant outlet temperatures at pressure and inlet temperature fluctuationsVariable temperature setting with application iconsFast control electronics for high temperature stabilityElectronic air bubble detectionSelectable output at DDLE base 18/21/24 (at 18 kW fuse min. 32 A)DDLE base for the kitchen: 11 and 13 kW
