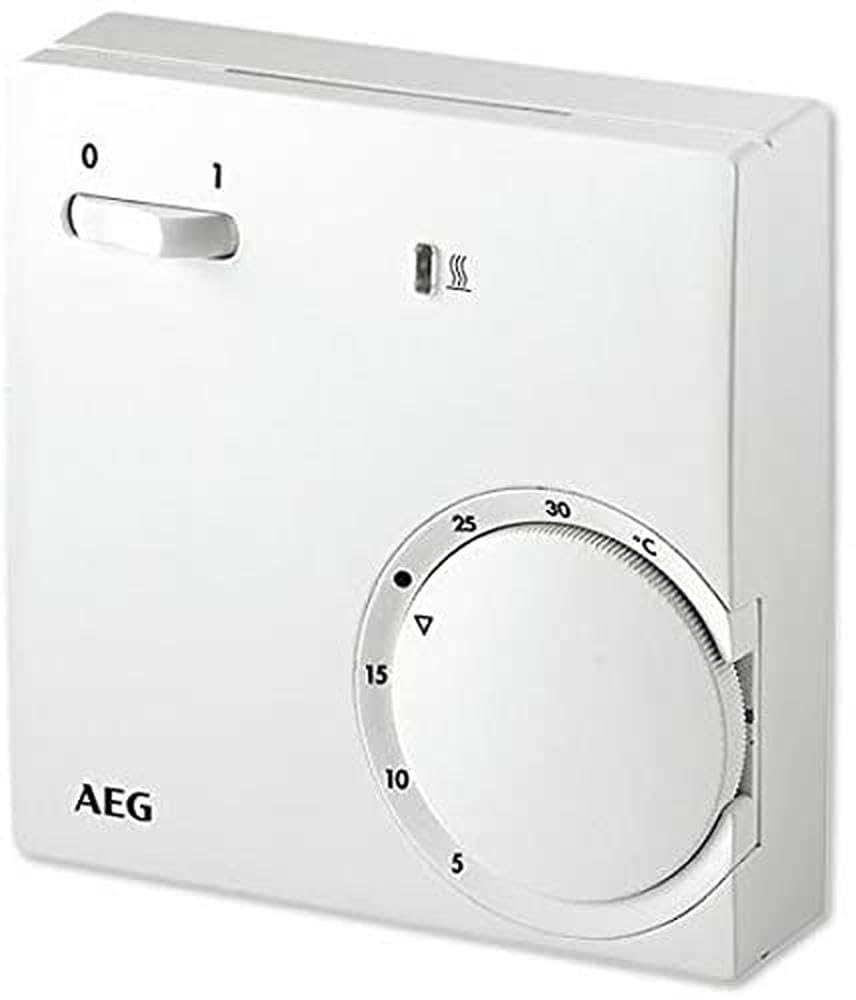

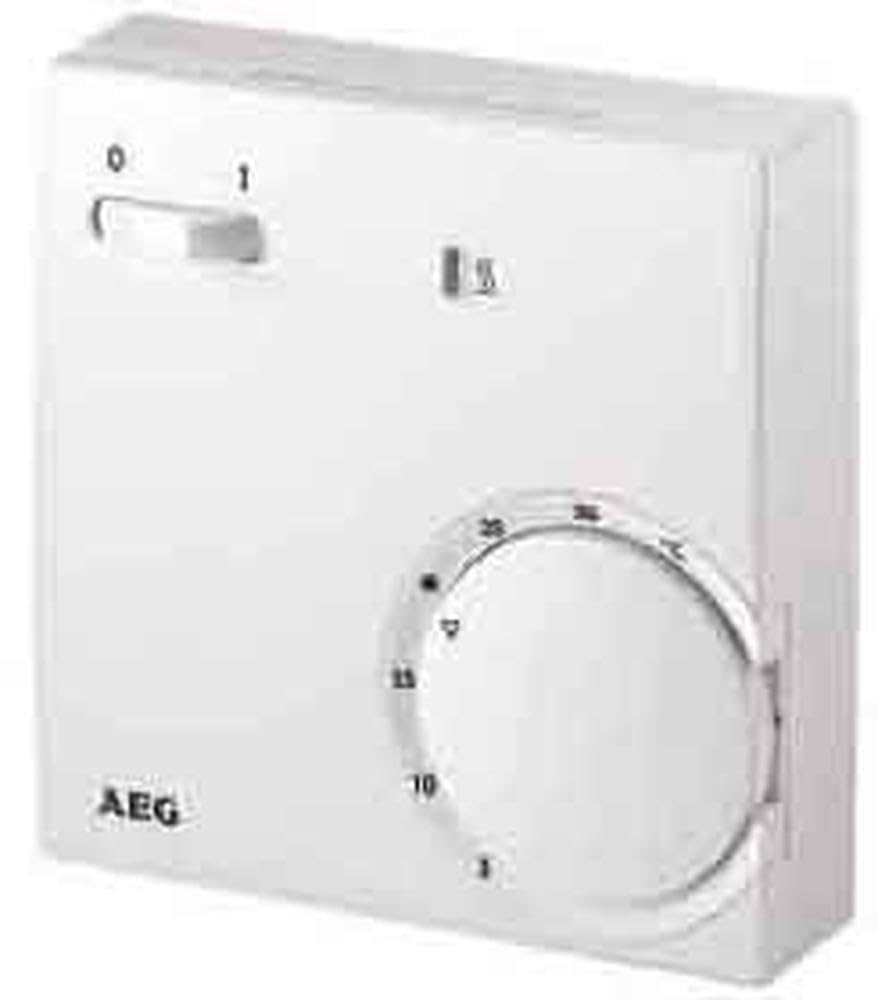

Aeg 2-Point Control RT 601 SN

• 2-point control for setting the room temperature with thermal return for high control accuracy (smaller switching difference), with indicator light
• Temperature reduction thanks to time-controlled energy-saving function, temperature setting of approx. 5 °C to 30 °C
• Adjustable range constriction and 1-pin power switch on and off, switching capacity 10 A
• Mounting type: above the plaster to the wall (surface-mounted) on flush-mounted box 55 mm
• Box contents: 1 AEG 223298 temperature controller, RT 601 SN, 2-point controller with thermal return, with indicator light, dimensions: 7.5 x 7.5 cm (H x W), colour: pure white

Room temperature controller for controlling the heat output of heat storage units. Area limitation of the room temperature selector possible, room temperature infinitely adjustable from approx. 5 °C to 30 °C adjustable, with LED display for heating on/off, temperature reduction 5K possible via central switch. Bi-metal control with thermal return For surface mounting. Design is 2-point control. Nominal voltage is 230 V. Installation type is surface-mounted. Electronic control is no. With thermal return is yes. On/off switch is yes. Switch for auxiliary heating is no. With temperature reduction, no. Sensor element is room sensor. Temperature is 5..30°C. Colour is white. Height is 75mm Width is 75mm Depth is 27.1mm Nominal current is 10 A. Compilation is complete EHT Haustechn.AEG room temperature regulator RT 601 SN4041056023984.
