aeco TRS Plug 6.3mm Stereo, AT6-1231G, 1pcs/1set, Gold Plating

• Made by CNC lathing as one shape.
• shell can be isolated with body.
• High-purity copper(over 99%) made.
• 10u" gold plating (no nickel base).

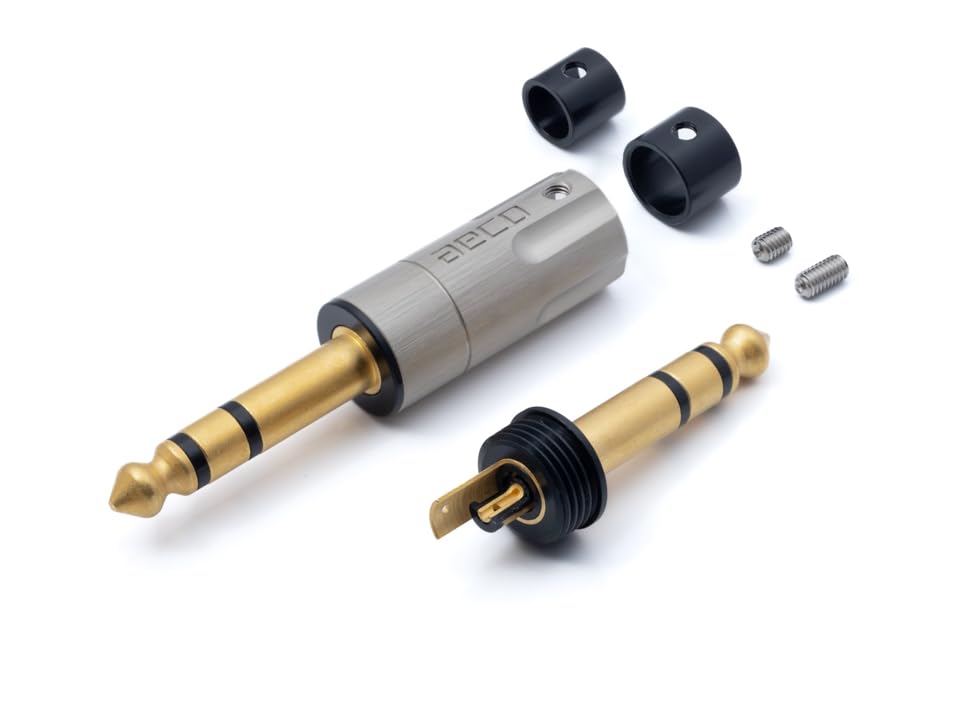

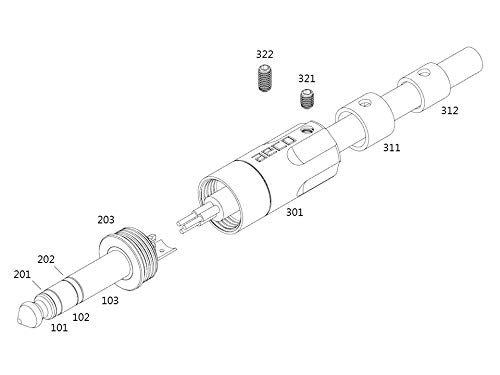

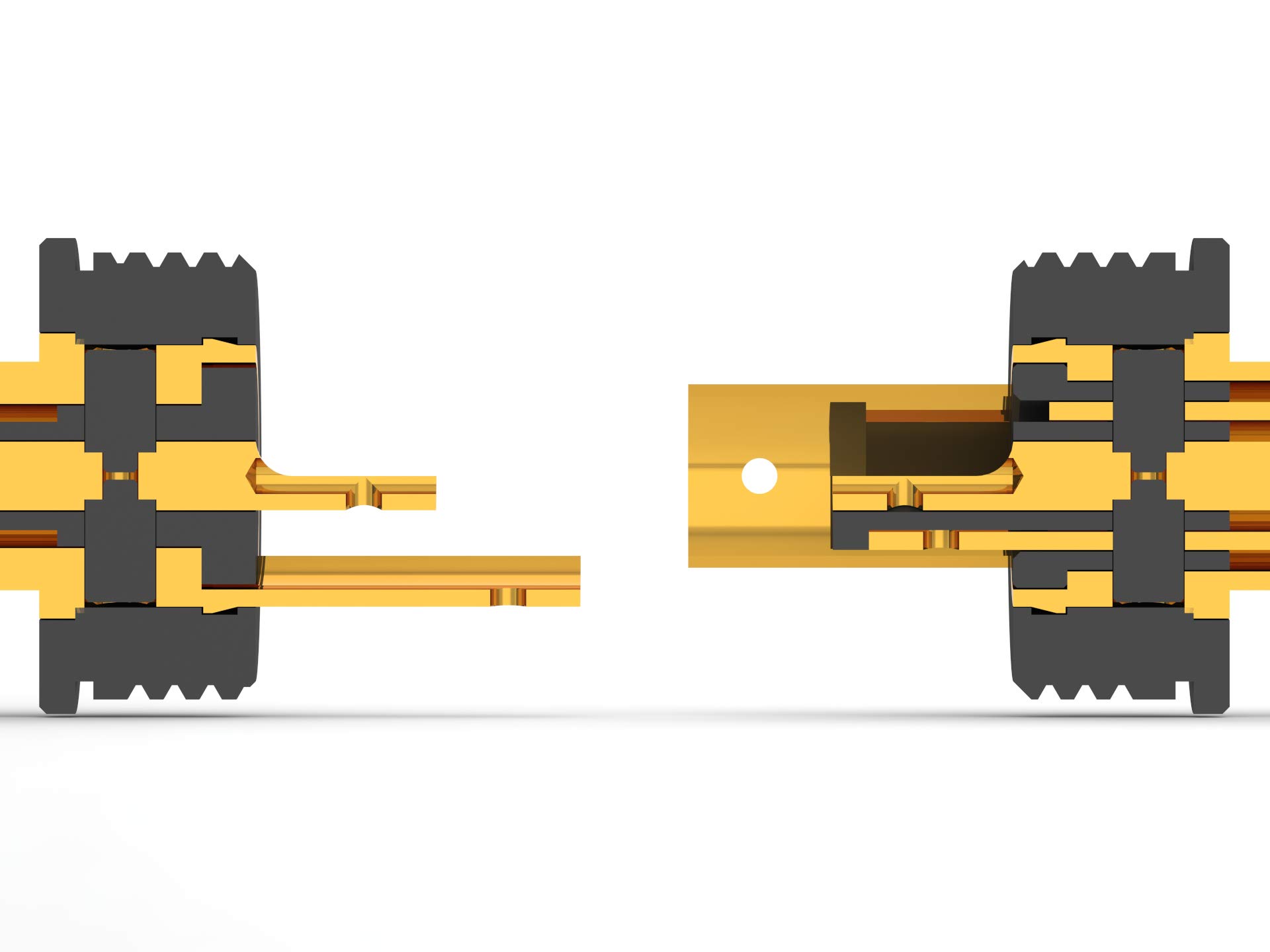

Mechanical structure： The center pin is fixed to the POM insulator by assemble function Each channel is separate by POM, then assemble with center pin. Use the POM latch through each channel in order to fix the body. The body and the shell locked by screwing. POM sleeve is fixed with end of shell by using screw. The cable hole with small POM sleeve is 6.5mm, bigger POM sleeve is 8.5mm Without POM sleeve is 10.5mm. Note： This product is include: screw for cable 4 mm*1pcs and 6 mm*1pcs. Material： Contact Pin: Tellurium Copper (#C14500 / copper contains over 99%) Body: Tellurium Copper (#C14500 / copper contains over 99%) Insulator: POM (Black) Lock head: POM (Black) Shell: Brass alloy (#C3604) Sleeve: POM (Black) Screw: Iron Finish： Contact pin: 10u" Gold plating (no nickel base). Body: 10u" Gold plating (no nickel base). Insulator: None. Head lock: None. Shell: Satin Nickel + Topcoat. Sleeve: None. Screw: Nickel plating. Electrical Characteristics： Contact resistance <1.0 mOhm Dimension： Biggest OD:13.5mm Total Length: 63.0mm Package： Vacuum Bag Recommend soldering temperature： Temperature Soldering Iron, please keep 400 degree within 10 second Temperature Soldering Iron, please keep 450 degree within 05 second Product production process comply with RoHS More info: https://www.aeco.tw/en-at6-12.html
