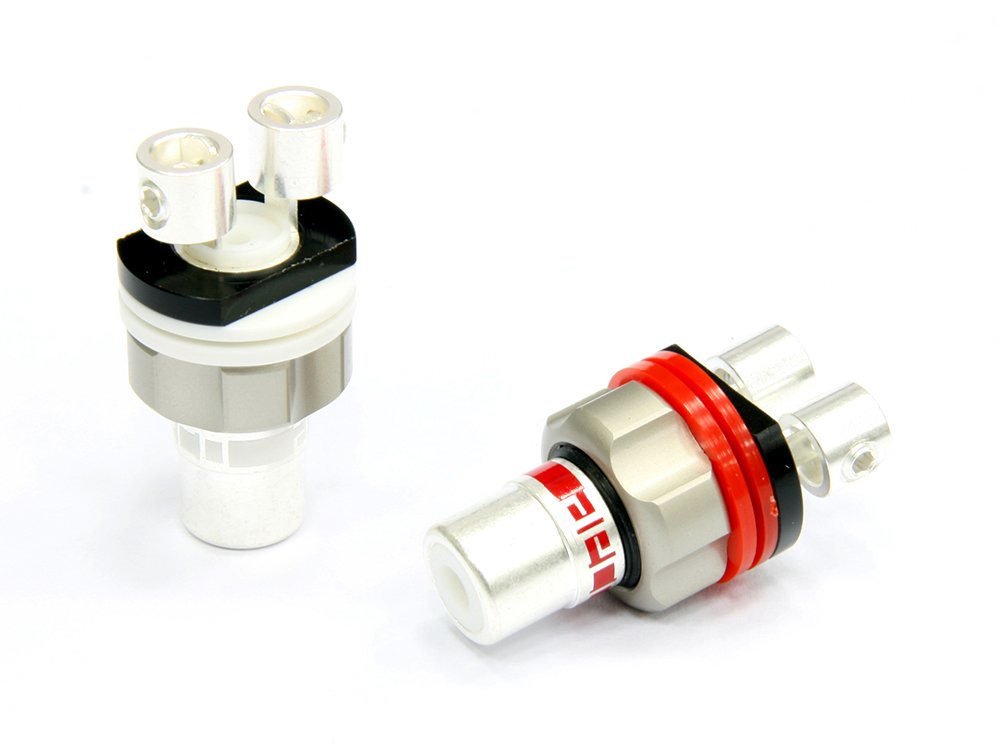

aeco RCA Jack ARJ-4045S, 2pcs/1set, Silver Plating, Vacuum bag

• Assort with standard RCA.
• Single point conduction.
• Fully insulated protection.
• Will be used for solder type or ************************************************************* type.
• High-purity copper(over 99%) made.

Mechanical structure: Signal contact part is assembled inside the body together with PTFE. POM covers around the body to isolate the metal panel. The jack is to be assembled from inside of the panel through the opening, tighten by washer and pentagram nut. A ring and a * were permanent locked so that you can basic on your need to adjust into solder type. This product is suitable for 10 mm circular opening of the panel This product is suitable for the maximum 3.5 mm thickness of the panel The torque for the nut on this product can be reach to maximum 8 (lb-in) Material: Contact Pin: Copper (#C1100 / copper contains over 99.5%) Grounding: Tellurium Copper (#C14500 / copper contains over 99%) Insulator: PTEF (White) Shell: POM (Black) Washer: PE(White / Red) Nut: Brass alloy (#C3604) Ring: Brass alloy (#C3604) *: Brass alloy (#C3604) Finish: Contact Pin: 120u" Silver plating (no nickel base) Grounding: 120u" Silver plating (no nickel base) Insulator: None Shell: None Washer: None Nut: Satin Nickel + Topcoat Ring: 120u" Silver plating (no nickel base) *: 120u" Silver plating (no nickel base) Electrical Characteristics: Contact resistance <0.3 mOhm (It was test by ARP-4045.) Dimension： Biggest OD 15.0mm Total Length 29.0mm Packing: Vacuum Bag(2Pcs/1Set) more info: www.aeco.tw
