aeco Binding Post ABI-0611G, 2pcs/1set, Gold Plating, Vacuum bag

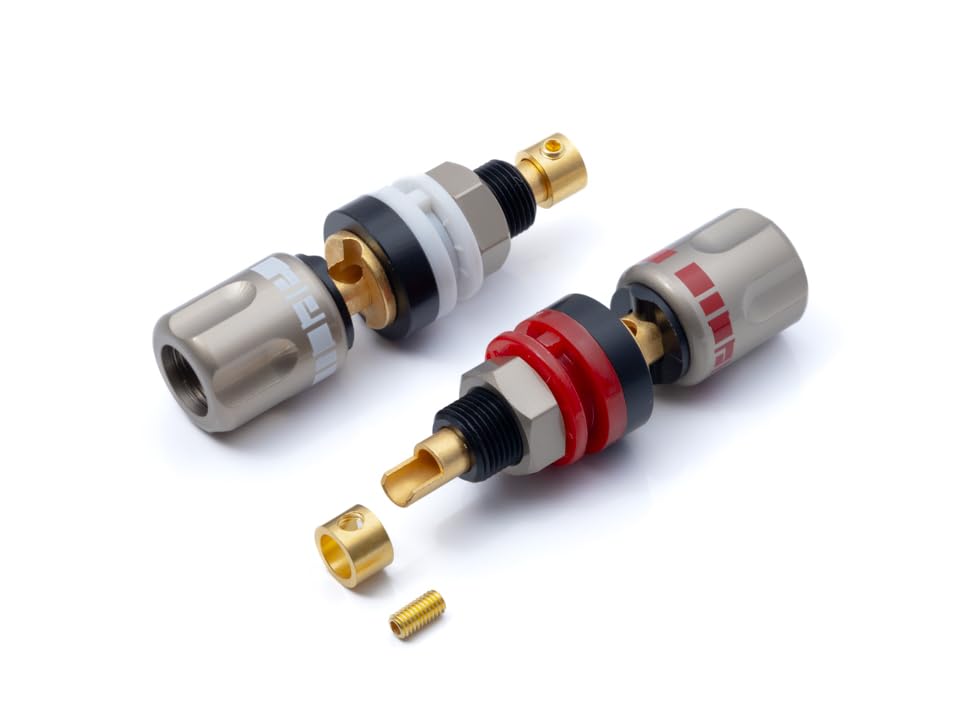

​Mechanical structure: The body was designed as hollow and lathed in one piece. The body is fixed with the POM on both front and back. The binding post is to be assembled from inside of the panel through the opening, tighten by washer and Hex nut. The special designed of arc concave can increase the tightness and contact with bare wire. Knob use latch mode to keep POM and inner recesses for better adaptation All metal components that contact with the panel are insulated with the body of the plug. The product is suitable with bare wire (D4.0mm), banana plug and cable terminal (6/8mm opening) with screw /plug in type. The product is suitable for panel, for detail dimension, please refer pictures. The products is suitable for the maximum 10mm thickness of the panel. The torque for the nut on this product can be reach to maximum 8 (lb-in). The torque for the back sleeve can be reach to maximum 6 (lb-in). Please note that over-torsion can cause damage for the product. Material: Body: Tellurium Copper (#C14500 / copper contain over 99%) Ring: Brass Screw: Brass Shell: POM (Black) Knobs: Brass Washer: PE (Red/ White) Nut: Brass Finish: ABI-0601 Body: 10u" Gold plating ( no nickel base) Ring: 3u" Gold plating ( no nickel base) ​Screw: 3u" Gold plating ( no nickel base) Shell: None Knobs: Satin nickel + topcoat Washer: None Nut: Satin nickel + topcoat more info: http://www.aeco.tw/aeco-en-abi-0611.html
