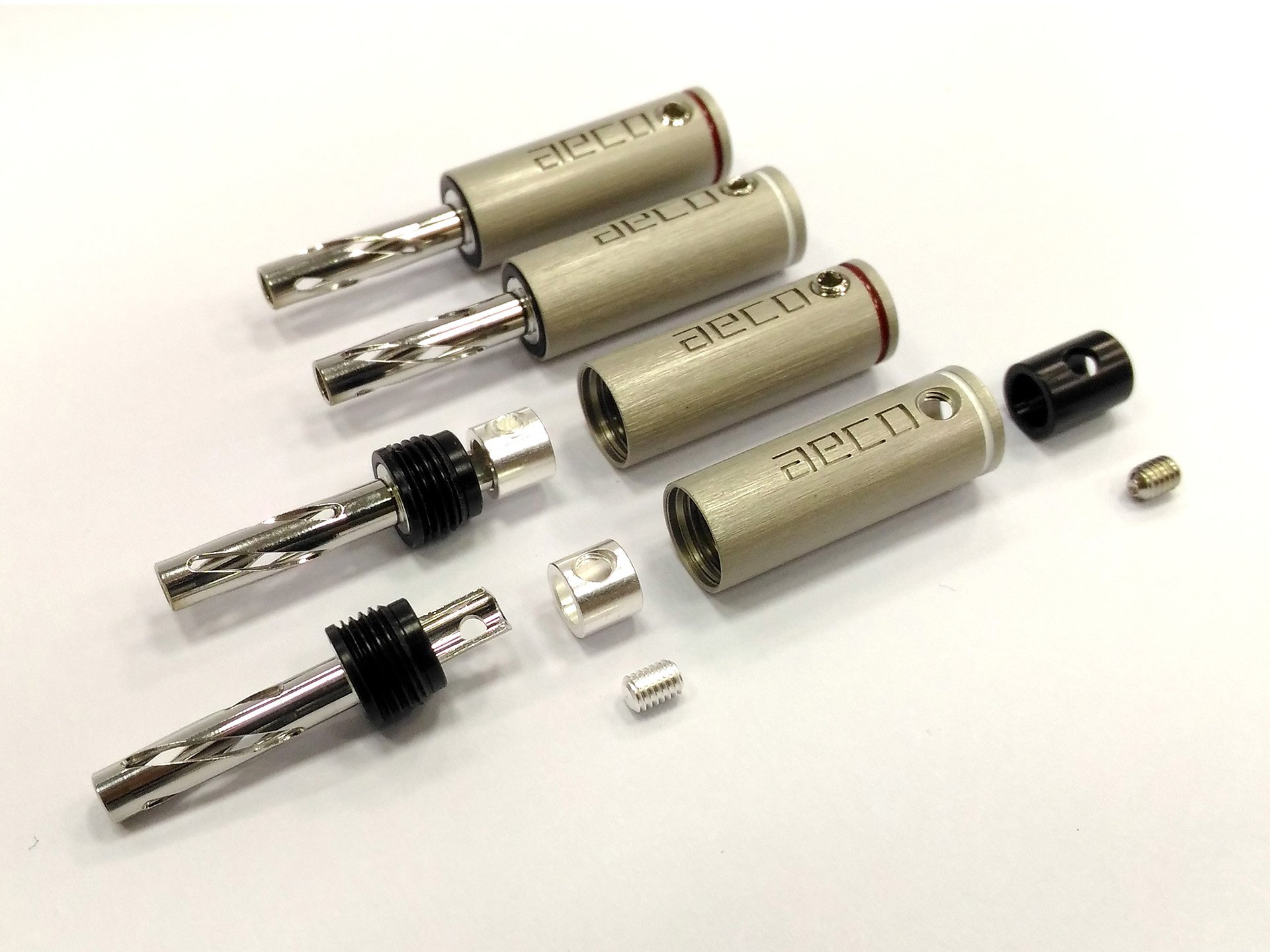

aeco Banana Plug ABP-1111R, 4pcs/1set, Rhodium Plating, Vacuum bag

• Lathed in one piece.
• Used by high-purity copper without nickel plated.
• It will be used for solder type or screw type.
• Plastic material between shell and body for insulator.
• This product is only suitable for 4.0mm binding post.(Not for 4.1mm)

NOTE: This product is only suitable for 4.0mm binding post.(Not for 4.1mm) The first time when you put the banana plug and the binding post together, it might be a little bit tight. Please insert with clockwise. The interface will adjust the shape into a perfect size basic on the binding post. screw for conductor (3/4 mm) (4 each) screw for cable (3/4 mm) (4 each) Material: Body: Tellurium Copper (#C14500 / copper contains over 99%) Head lock: POM Ring: Brass alloy (#C3604) Shell: Brass alloy (#C3604) Screw for conductor: Brass alloy (#C3604) Screw for cable: Iron Finished: Body: Rhodium plating (no nickel base) Head lock: None Ring:120u" Sliver plating (no nickel base) Shell: Logo lathing / Hairline surface treatment / Satin nickel plating Screw for conductor: 120u" Sliver plating (no nickel base) Screw for cable: Nickel plated. Electrical Characteristics: Contact resistance <0.3 mOhm (It was test by ABI-0601.) The test will shows different results depends on the different binding post. Dimension: Biggest OD　09.0mm Cable hole with sleeve　04.5mm Cable hole without sleeve　06.5mm Total Length　43.0mm Packing: Vacuum Bag(4Pcs/1Set) Recommend soldering temperature: Temperature Soldering Iron, please keep 400 degree within 8~10 second. Product production process comply with RoHS. more info: http://www.aeco.tw/aeco-en-abp.html
