ADWITS 1 Pack Adhensive Graphite Thermal Pad 700W/m⋅K Horizontal Conductivity, 200x100x0.07mm Flexible Graphite Sheet for Mobile Laptop CPU Thermal Managemen

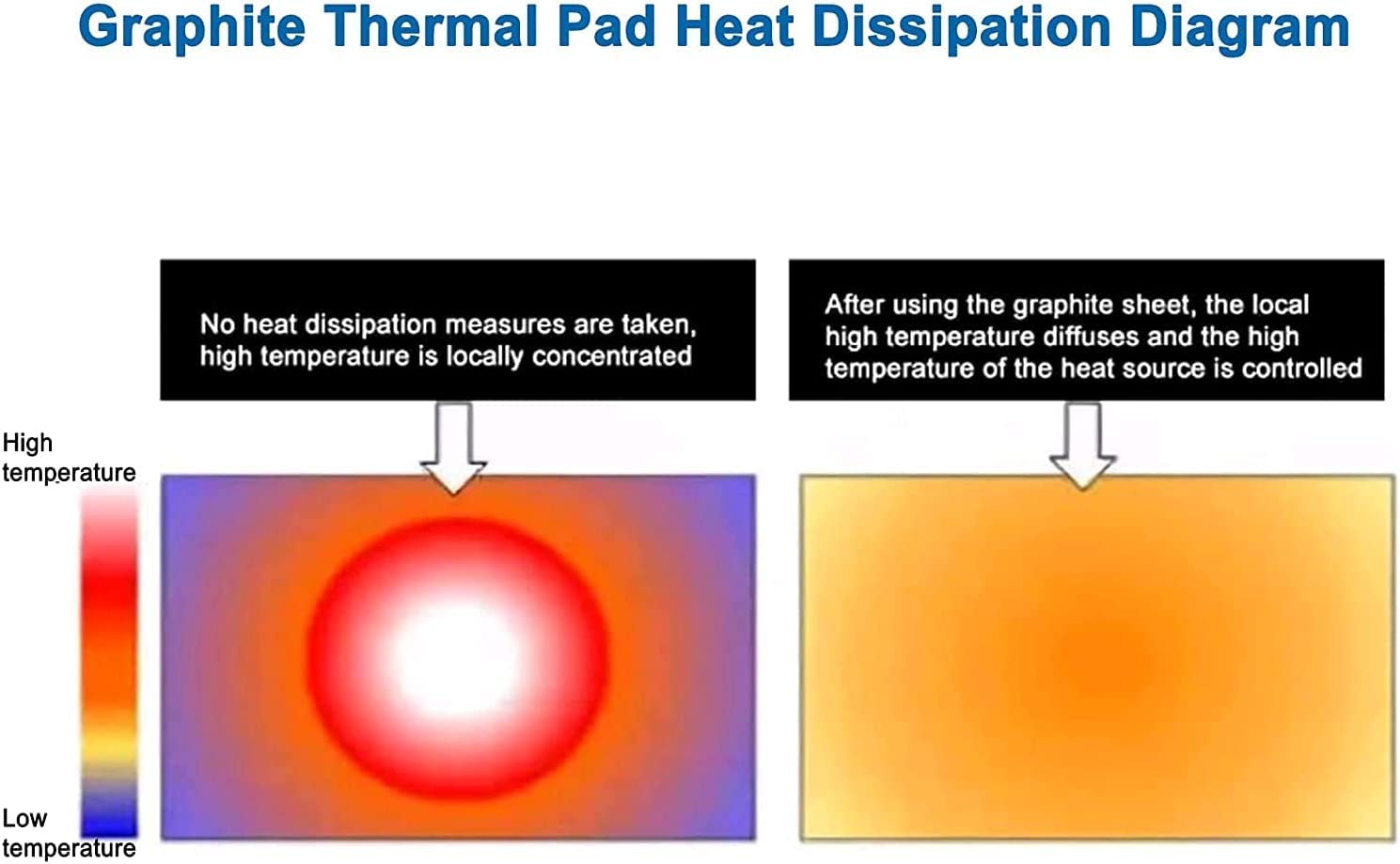

• [ Outstanding Material ] This graphite Thermal pad is 100% pure graphite and non-toxic. It is a brand-new thermal and heat dissipation material that conducts heat uniformly in two directions, shielding heat sources and components to improve the performance of consumer electronic products
• [ Ultra-high Thermal Conductivity ] The horizontal thermal conductivity is 700W/(m⋅K), which is equivalent to 2-4 times that of copper and 3-6 times that of aluminum. The thermal resistance is 20% lower than copper and 40% lower than aluminum
• [ Ultra Light weight ] The weight is only 1.0-1.9G/CM³, and the density is equivalent to 1/4 - 1/10 of copper, 1/1.3 - 1/3 of aluminum. Working Temprature -50℃-400℃. Hardness Shore A 85
• [ Simple to Apply ] The graphite pad is soft and easy to cut. And it's adhensive, can be used with metal, plastic, stickers and other materials to meet more design functions and needs
• [ Notice ] Thoroughly clean the heat source surface and heatsink surface. Avoid use in an acid environment. Do not use at temperatures above 400 °C. Turn off the electric power during application process

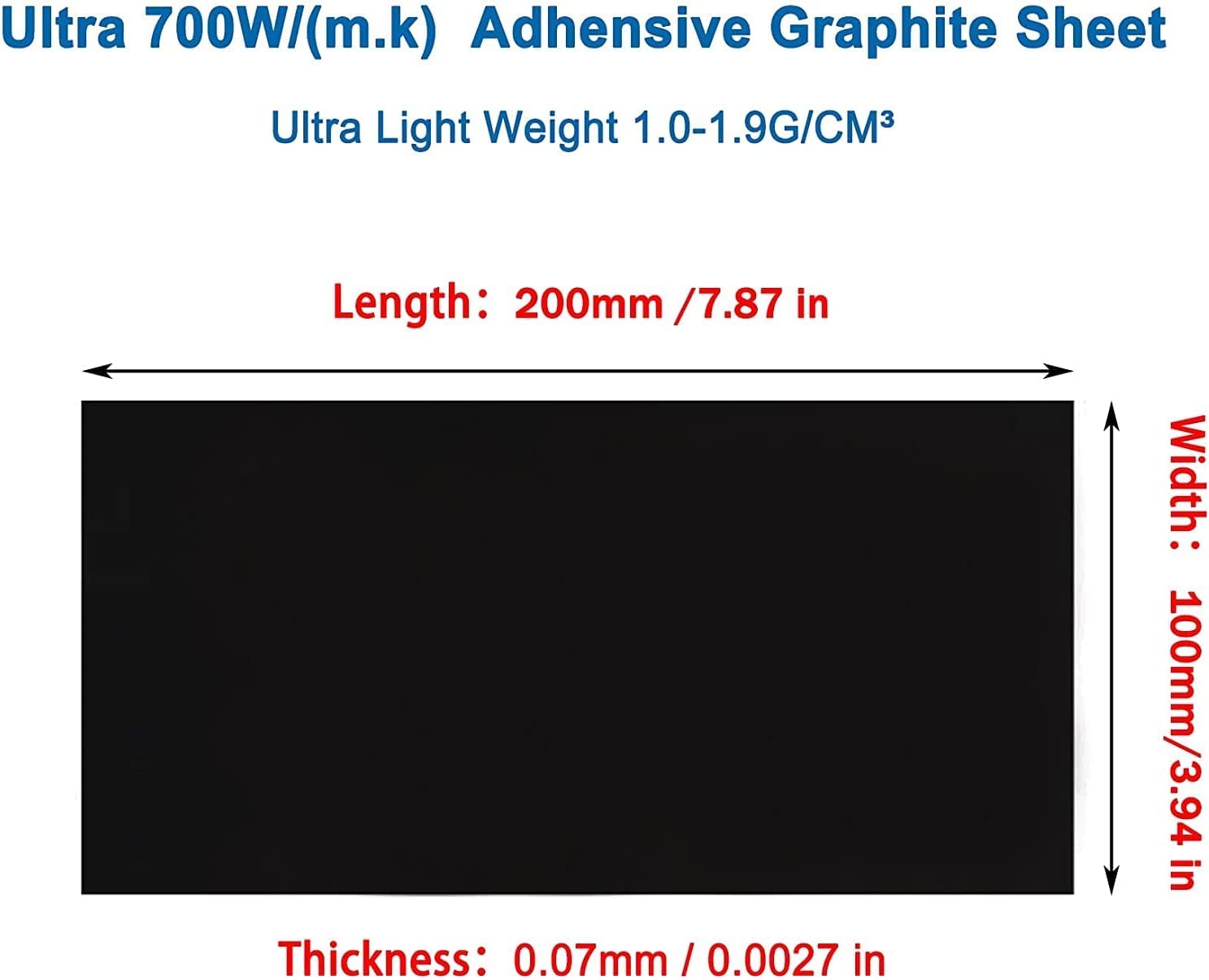

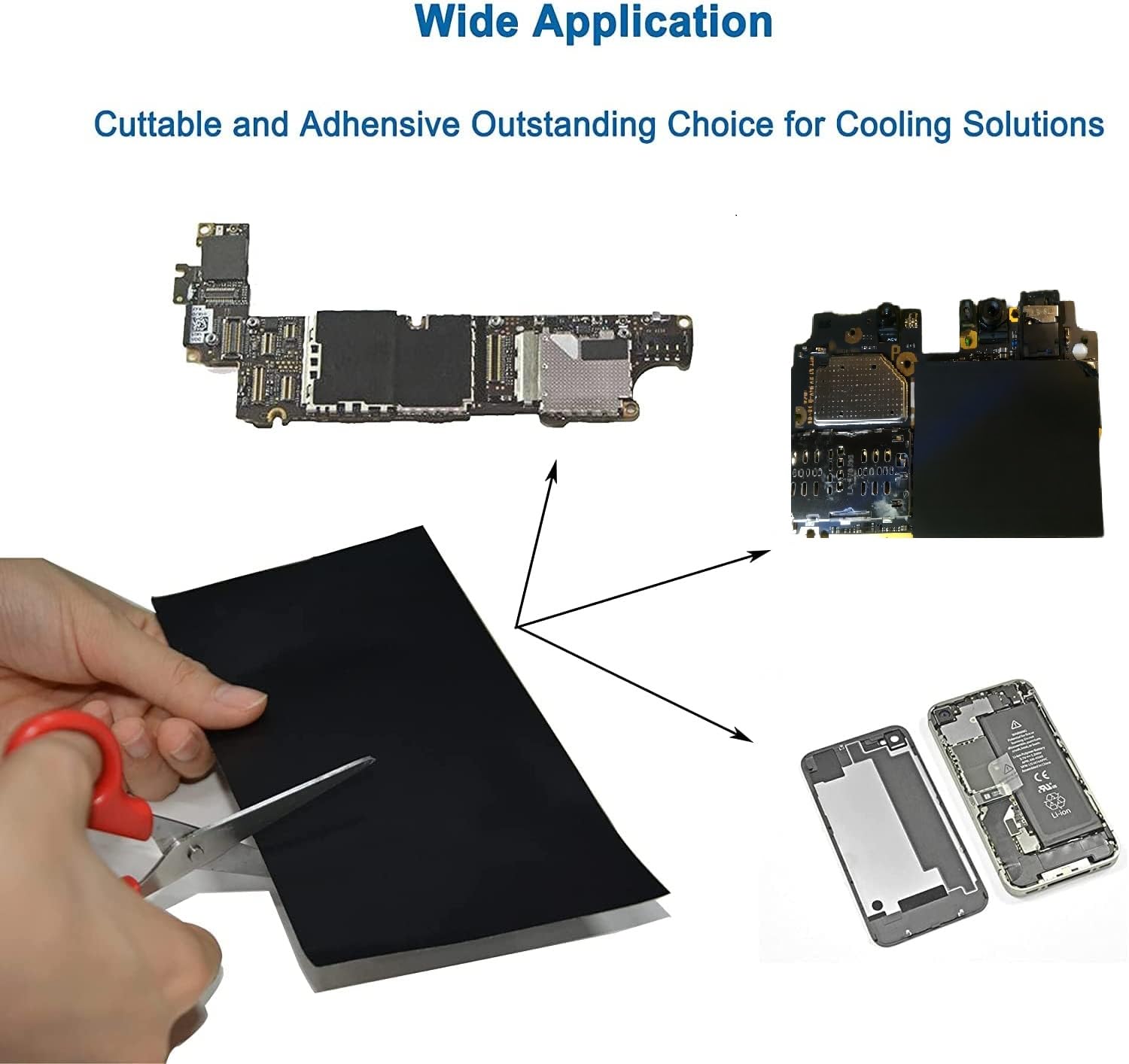

ADWITS graphite thermal pads are widely used in smart electronic products. Typical applications include cell phones, laptops, video cameras, digital cameras, LCD TVs, communication devices, optical modules, PA and power battery cooling modules, LEDs, and semiconductor manufacturing equipment Notice: 1. Graphite thermal pads are soft and easy to break, do not rub or touch with hard objects 2. Thermal conductivity varies depending on the method of use. If the graphite thermal pad is wrinkled or bent, its thermal conductivity will be affected 3. Thoroughly clean the surface of the heat source and the surface of the heat sink. Good contact and pressure are required to achieve optimal performance 4. Avoid use in acidic environment. Do not use at temperatures above 400 degrees Celsius5. Graphite is electrically conductive! Turn off the power supply during the application process Specification: Item Type: Graphite thermal foil Thermal conductivity: 700 W/(m⋅K) horizontal direction, 15 W/(m⋅K) vertical direction Density: 1-2 g/cm³ Size: 200 x 100 x 0.08 mm/7.87 x 3.94 x 0.00 27 inches Package contents: Graphite thermal pad x1
