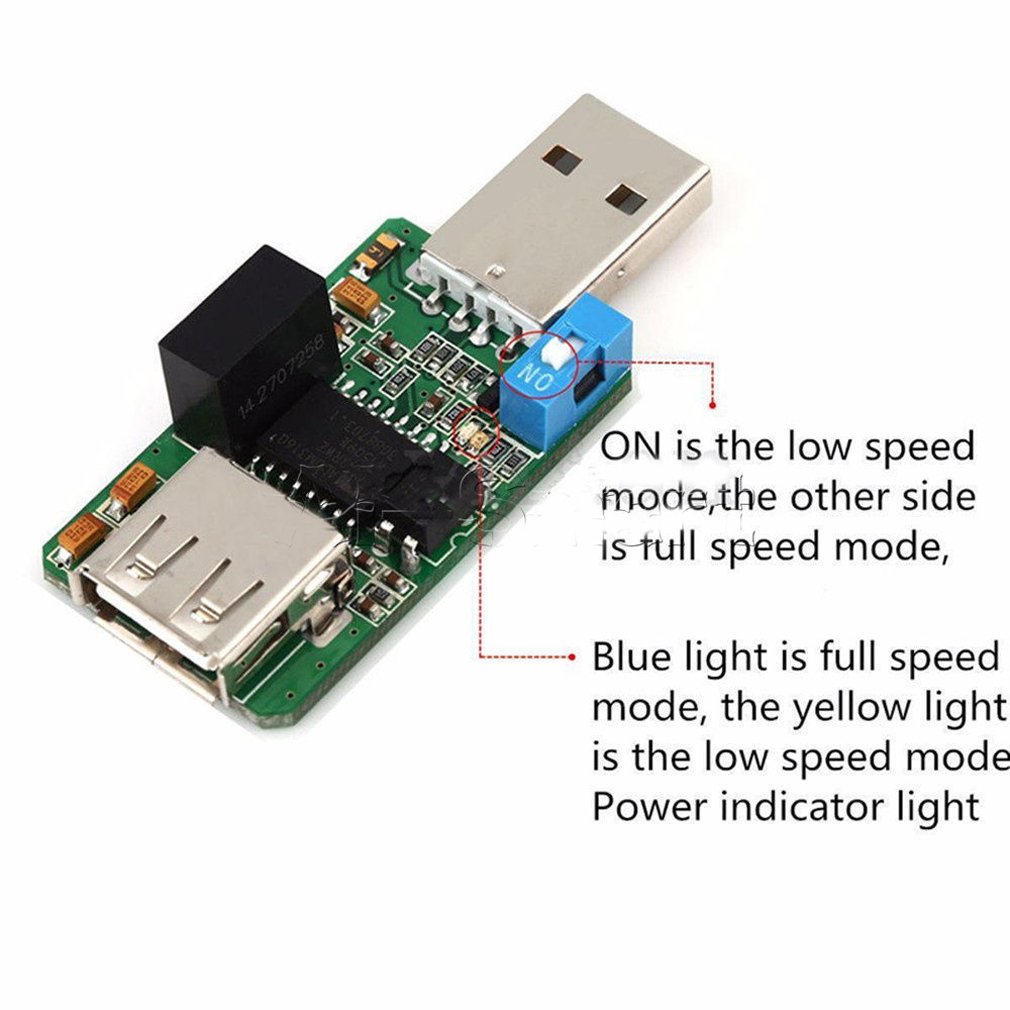

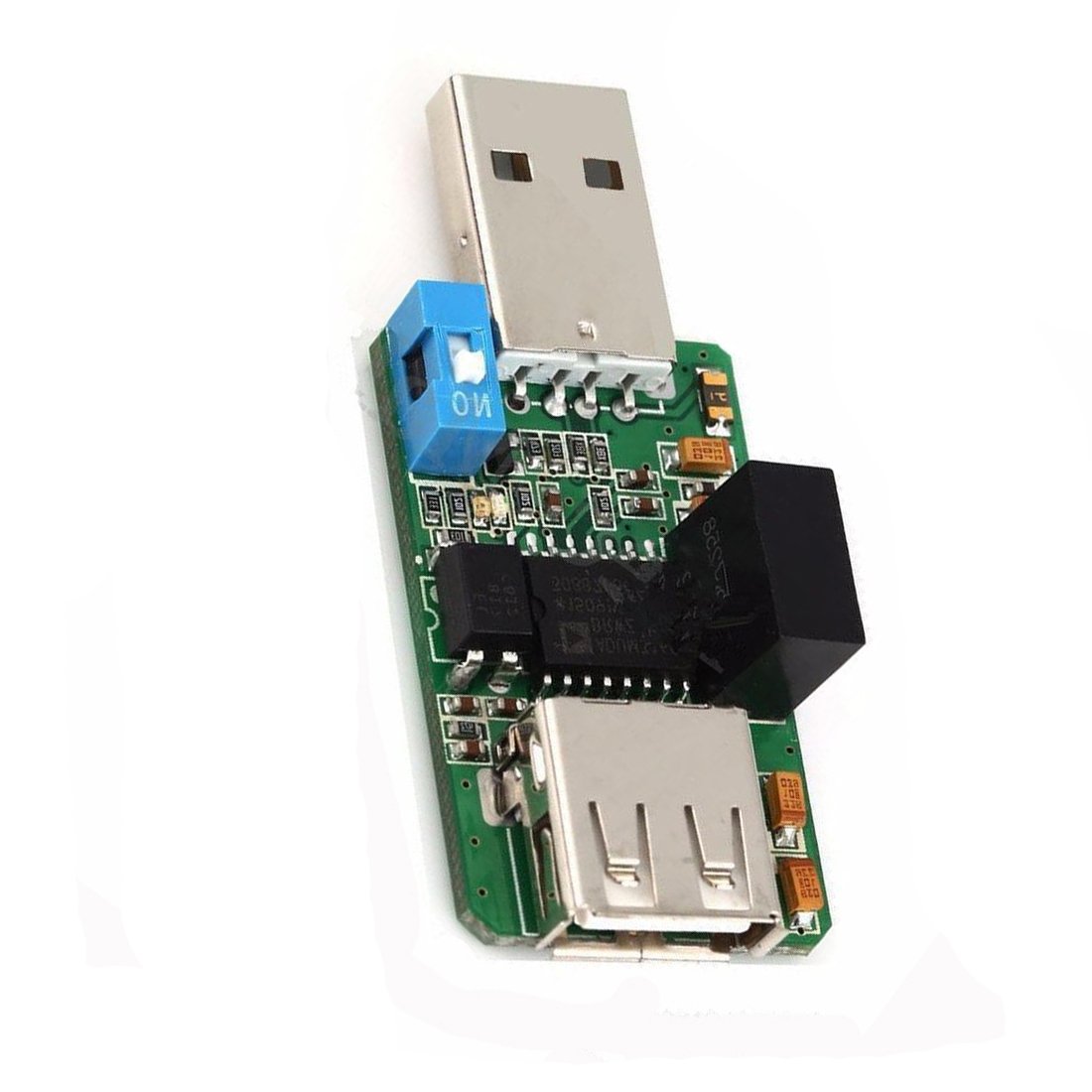

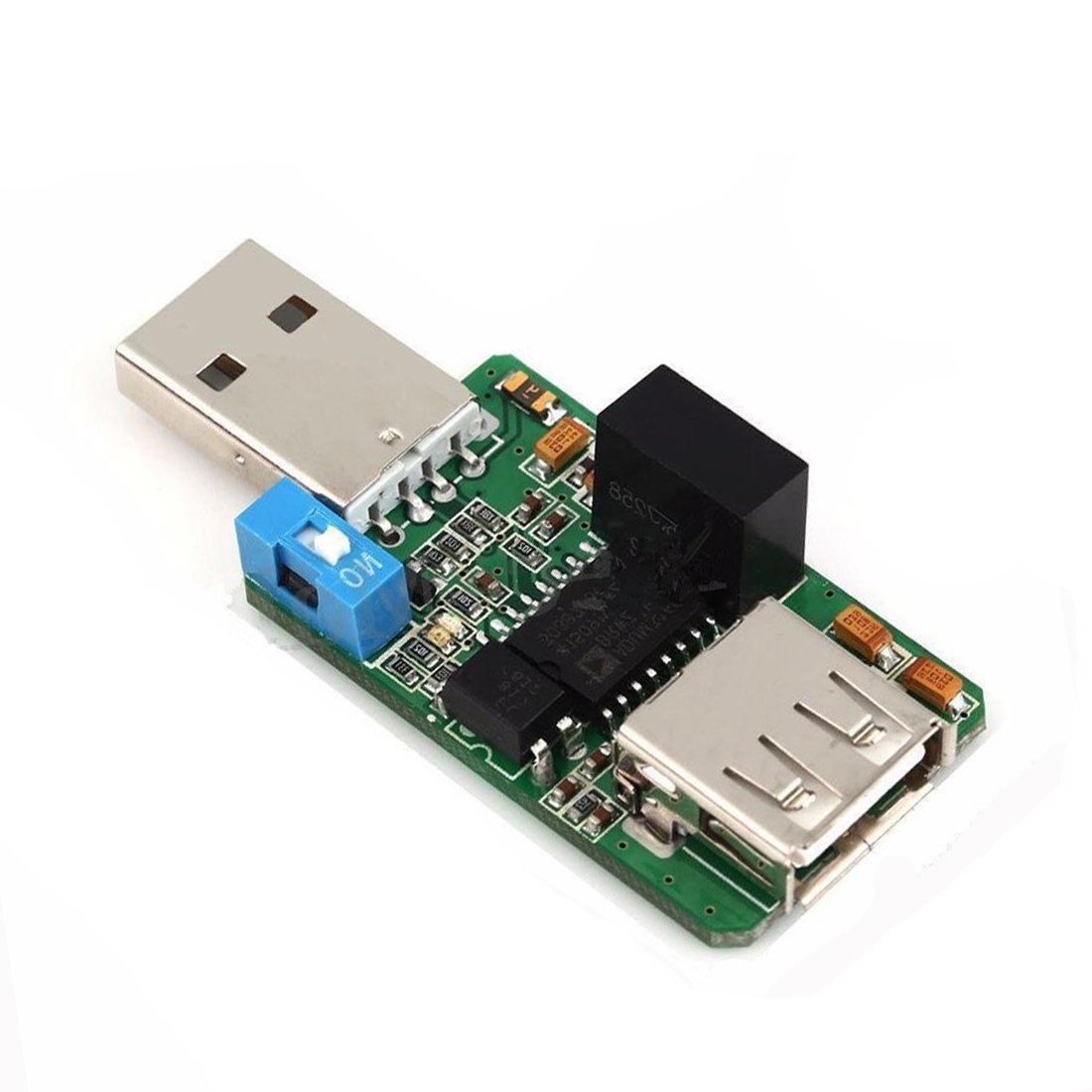

Hailege ADUM3160 USB Isolator B0505S 1500V Voltage Isolator Coupling Protection Board Support 12Mbps 1.5Mbps for AVR-JTAG AVRISP JET51 J-Link XDS100 USBASP USBHID

• ADUM3160 USB Isolator B0505S 1500V USB to USB Voltage Isolator Coupling Protection Board
• Support 12Mbps 1.5Mbps for AVR-JTAG AVRISP JET51 J-Link XDS100 USBASP USBHID
• Support USB control transfer, bulk transfer, interrupt transmission, synchronous transmission/etc.
• 12 Mbps support USB 1.5 Mbps at low speed and full speed does not support pure high-speed equipment.

Applications: 1. Contains strong electricity, strong interference with the working environment 2. Noise sensitive areas 3. USB debugging device 4. A variety of industrial USB devices 5. Other common USB peripherals, such as mouse, keyboard, USB sound card, USB flash drive, printer, digital camera, USB hub (HUB), USB camera. 6.Medical equipment. Supported Devices: 1.Full speed equipment: USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives USB Flash Drives (FT232, CP2102, PL2303, CH341 chip). 2.Low speed equipment: Keyboard, mouse, USBASP, USBHID device, USBCDC device. 3.After testing does not support the device USB wireless network card, some USB3.0 USB. NOTE: The product onboard power supply Sunrise Sun B0505S power 1W, when your USB device operating current> 180mA, you can use USB double-headed line plus power supply. This product supports low speed equipment and full speed equipment, does not support pure high speed equipment (USB2.0). Most USB devices are backward compatible and can be used. If the system prompts an unrecognized device when using, please adjust the speed selector and then reinsert the isolator. Package included: 1*ADUM3160 B0505S USB to USB Voltage Isolator Module
