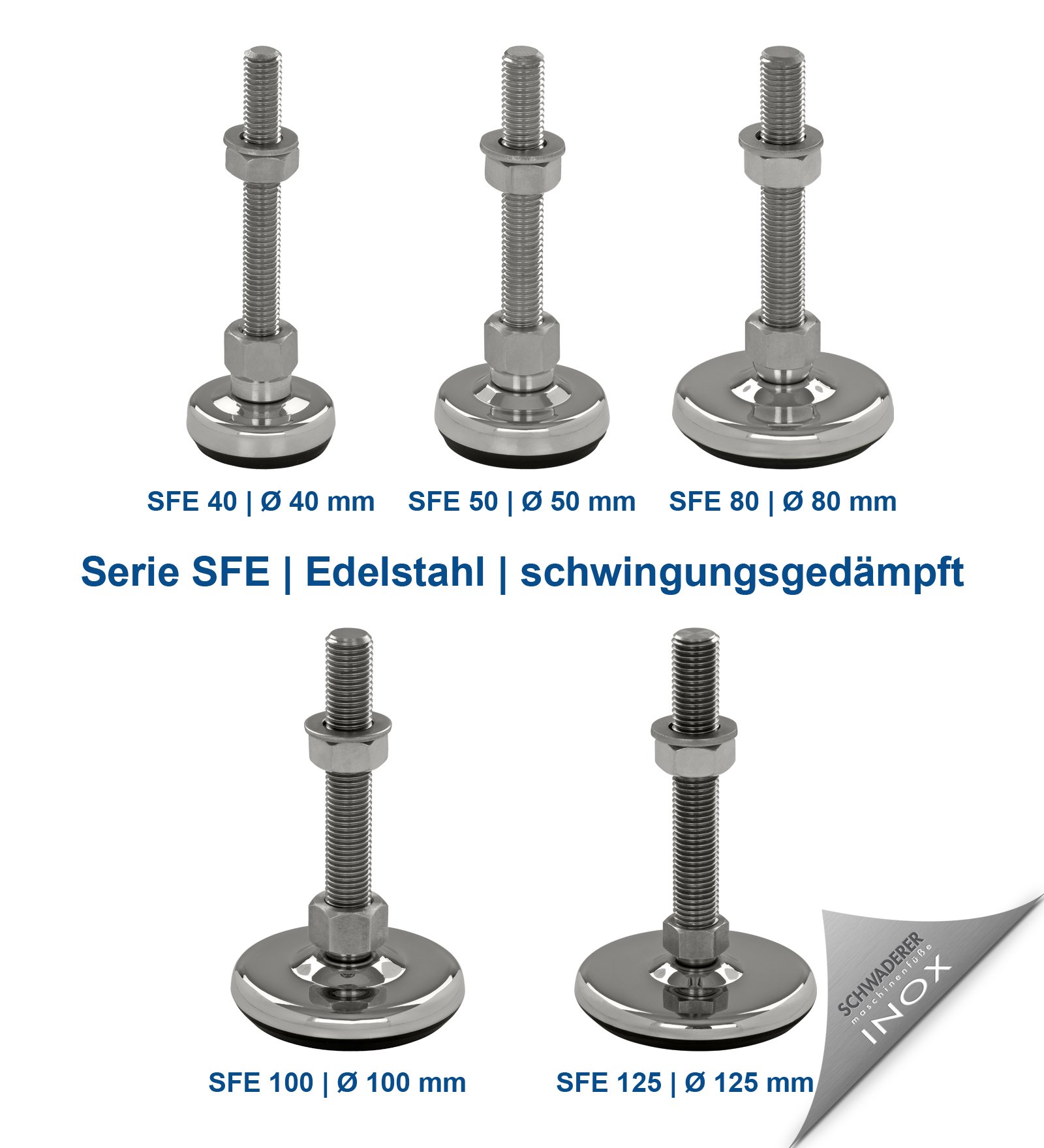

Schwaderer Machine Feet, Leveling Feet, Levelling Feet, Joint Feet, Height-Adjustable SFE 50, Set of 4, Diameter 50 mm, Stainless Steel, Thread Sizes M8-M30, (M10 x 100)

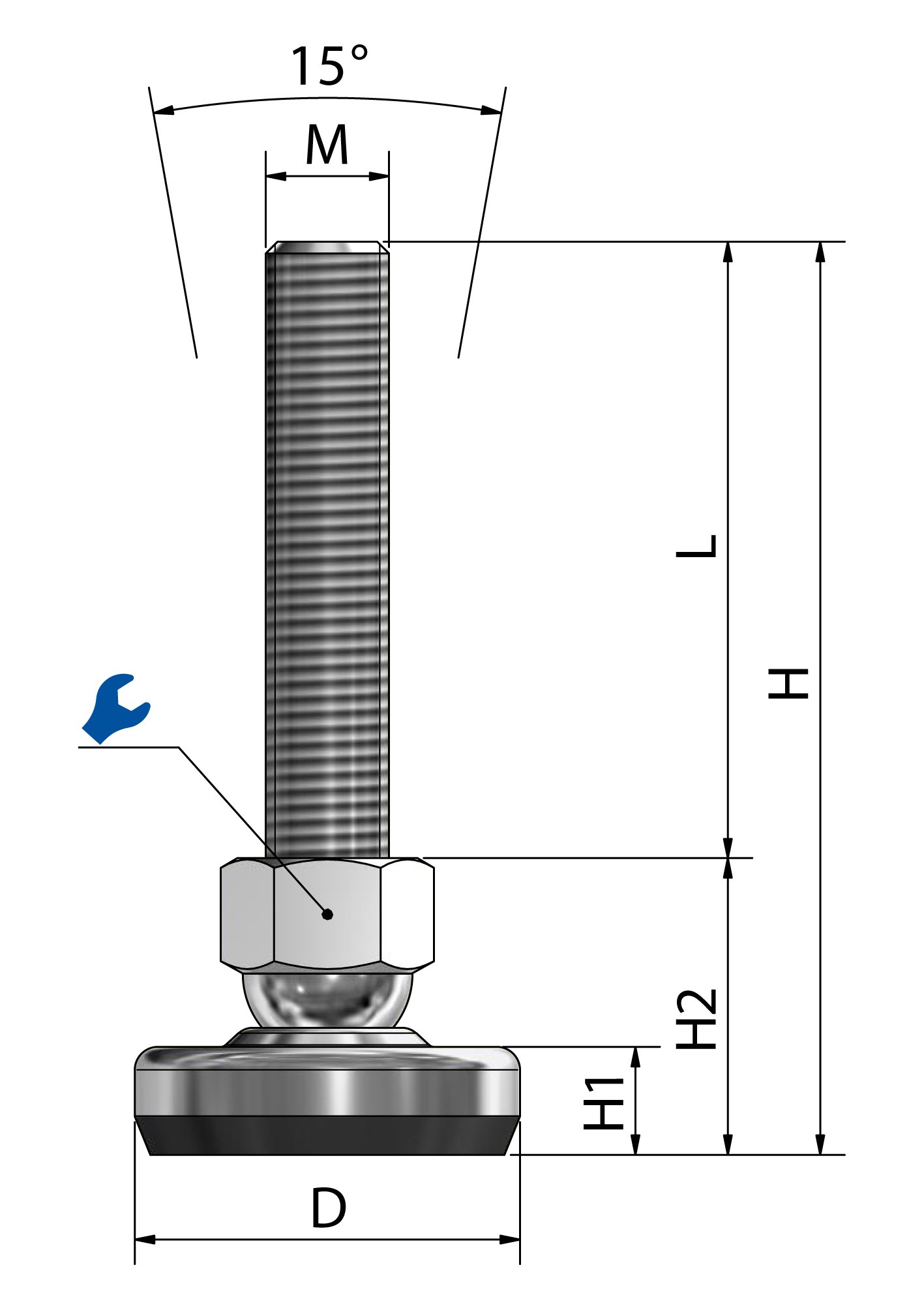

• Diameter: 50 mm, thread size: M10 H1: 14 mm, H2: 34 mm, H: 134 mm, spanner width: 17 mm, max. Load capacity: 300 kg
• Footplate: stainless steel 1.4301 - AISI 304 threaded spindle: stainless steel 1.4301 - AISI 304, including nut and washer damping plate elastomer 70° Shore A vulcanised. Further Shore hardening on request.
• Vibration-dampened joint foot thanks to vulcanised elastomer
• Continuous height adjustment (depending on the length of the threaded spindle) with maximum stability and low effort
• Adjustable foot to compensate for uneven floors without having to set up complex concrete foundations

Articulated feet or machine feet made of stainless steel are particularly used in areas where hygiene plays an important role. In addition, its high-quality look is highly appreciated. Our high-quality and precisely manufactured articulated feet offer the advantage of reducing vibrations and reducing noise during shocks thanks to the vulcanised damping plate. In addition, the machines and products are protected, which increases their longevity. The maintenance-free machine feet are infinitely height adjustable via the thread (depending on spindle length) and tiltable to a certain extent, which simplifies precise installation and alignment. The tilt angle adjustable via the ball bearing spindle of approx. 7.5° in each direction guarantees stable and accurate alignment of the machine or product.
