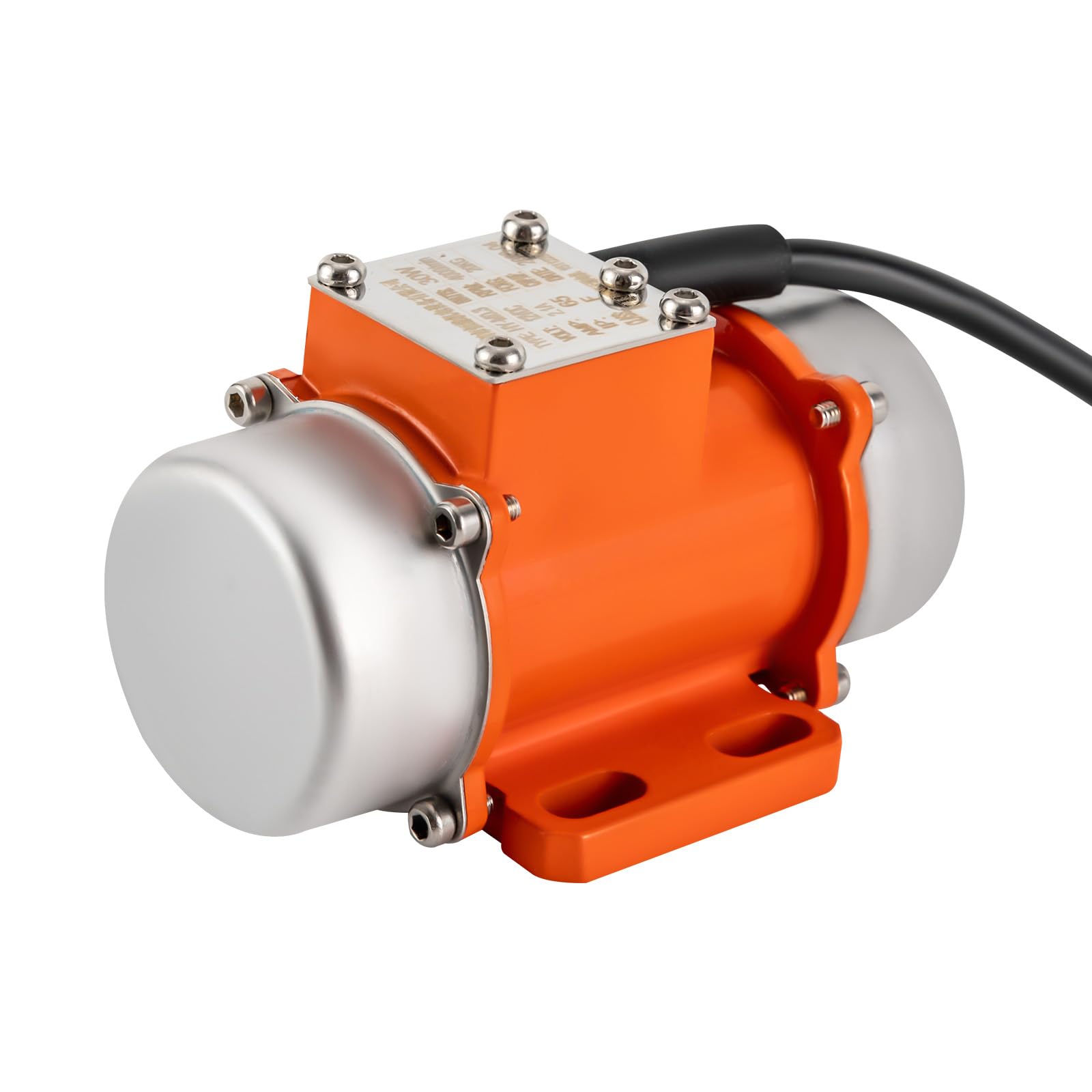

Adjustable Speed 12V/24V Brushless Electric Vibration Motor, 30W High-Speed, Low Noise, Industrial Grade for Construction, Mining, and Medical Equipment (12, Volts)

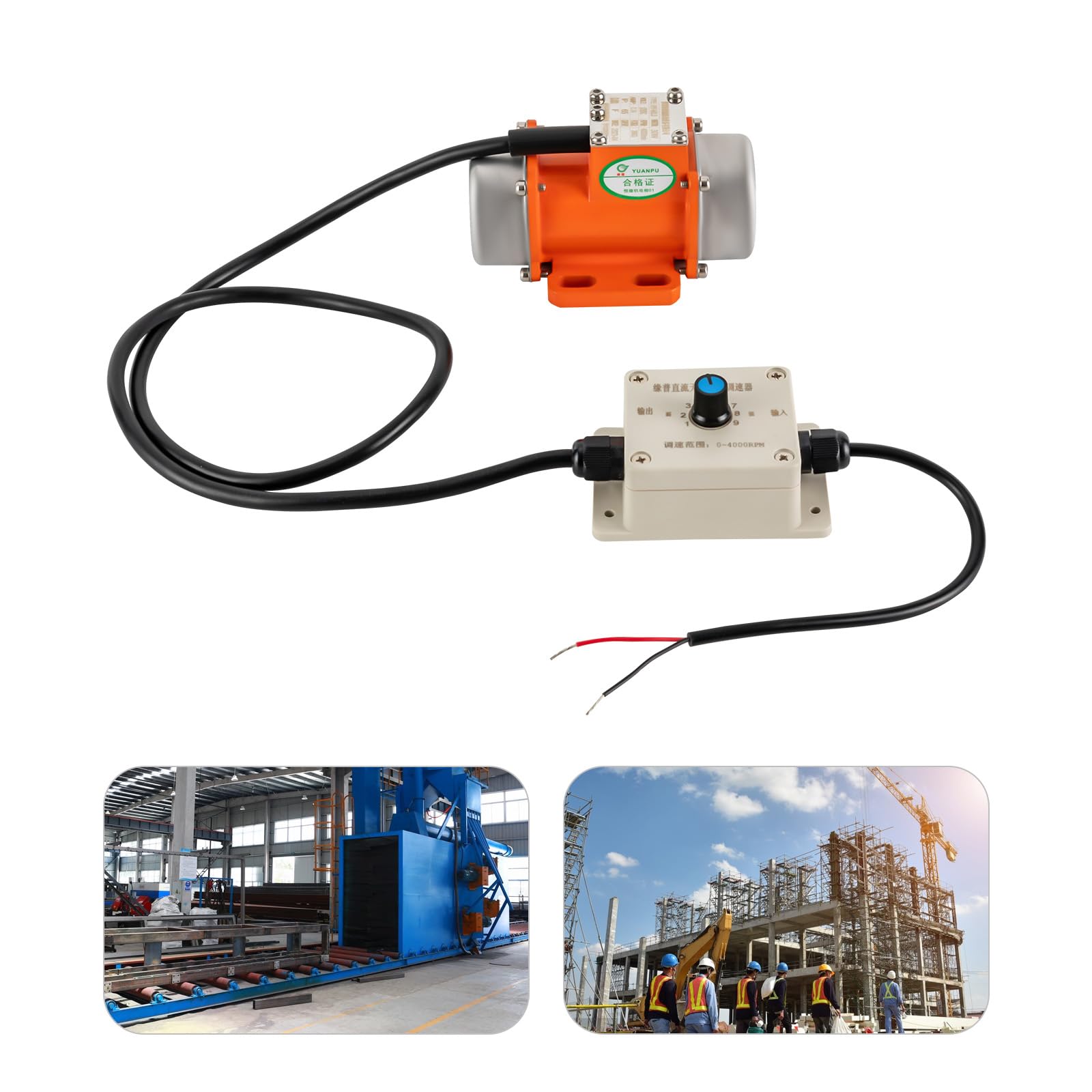

• Adjustable Speed and Excitation Force: The motor features a governor that allows for speed adjustments from 0 to 4000 RPM and adjustable excitation force, making it adaptable to various tasks and industries
• Durable and Sturdy Construction: Made from high-quality aluminum alloy and copper with a protective plastic spray coating, this motor is corrosion-resistant, wear-resistant, and built to last in demanding environments
• Low Noise Operation: Operating at a noise level of only 60 dB, this motor ensures a quiet working environment, making it suitable for noise-sensitive applications
• Compact and Lightweight Design: With a compact size and a weight of only 0.85 kg, this motor is easy to install and doesn’t take up much space, making it convenient for various setups
• High Safety Standards: The motor includes multiple safety features such as F-level insulation, air-cooling, dust and moisture protection, and a fully enclosed design to ensure safe and reliable operation under various conditions

### Specifications - **Color:** Orange, Black - **Material:** Aluminum Alloy, Copper - **Surface Treatment:** Plastic Spraying - **Motor Type:** Brushless DC Motor - **Assembly Required:** Yes - **Mount Type:** Free Standing - **Rated Voltage:** 12/24V - **Rated Power:** 30W - **Frequency:** 50Hz - **Protective Grade:** IP65 - **Maximum Speed:** 4000 RPM - **Protection Class:** Closed - **Insulation Level:** F - **Number of Items:** 1 - **Noise:** 60 dB - **Power Source:** Electric Energy - **Engine Cooling Type:** Air Cooling - **Starter System:** Hand Start - **Gross Weight:** 1 kg - **Net Weight:** 0.85 kg - **Package Size:** 20 x 15 x 10 cm - **Product Size:** 11.9 x 7.6 x 7 cm ### Package List - 1 * Electric Vibration Motor - 1 * English Manual ### Notice 1. The motor voltage is 12/24V; do not connect to high voltage power. The ambient temperature should not exceed 60°C during use. 2. Secure the motor with screws before use to avoid safety accidents. Regularly check the tightness of the installation screws and clean dust from the motor surface. 3. Motors do not include plugs to meet the installation needs of different customers. 4. When adjusting the excitation force, ensure that the adjustable eccentric blocks at both ends are in the same direction and angle. Firmly fix the screws after adjustment. 5. Confirm the motor model and installation size before purchasing to ensure compatibility. 6. The vibration motor's amplitude may be influenced by factors such as damping spring characteristics; thus, it can only be estimated based on the application environment. 7. Carefully read the manual before use and installation, paying attention to safety precautions. 8. Allow slight color differences due to lighting and a 1-3 cm error due to manual measurement.
