Addvent AVX100TN Axial Extractor Fan 100mm (Timer Model), White

• Mains 220-240V AC 50Hz. Requires 3 wire connection, L. Ls, N (see Product information)
• 20 watts power consumption. Extraction rate 21 litres per second, 75 cubic metres per hour
• Sound output 41 dB[A] @ 2m. Can be wall or ceiling mounted
• No backdraught shutter. IP44 rated. BS EN60335
• Dimensions: 167mm wide x 167mm tall x 40mm deep (beyond installed surface). 99mm diameter spigot, extends for 54mm. For connection to 100mm / 4 inch diameter ducting

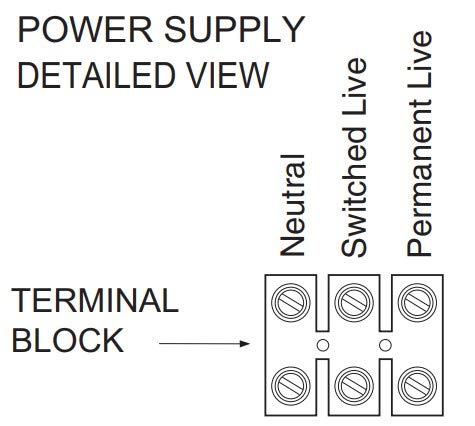

• This model requires THREE electrical connections - permanent live, switched live and neutral. It will not function unless you have these three wires to connect!

Normally used in bathroom / toilet locations. This model works in conjunction with the room light switch, when the light is switched on the fan comes on, when the light is switched off the fan continues to operate for a pre-set time. IMPORTANT Requires permanent live, switched live and neutral (3 wires, excluding earth) connections made for the timer to function correctly. Will not operate with only 2 wires connected!
