Adafruit 6 inch PCB Ruler
★★★★★
$43.99
Quantity
1
Worldwide shipping
Fast tracked delivery
30-day returns
Hassle-free returns
Secure checkout
Safe & protected
Great service
Thousands of happy customers
About this item

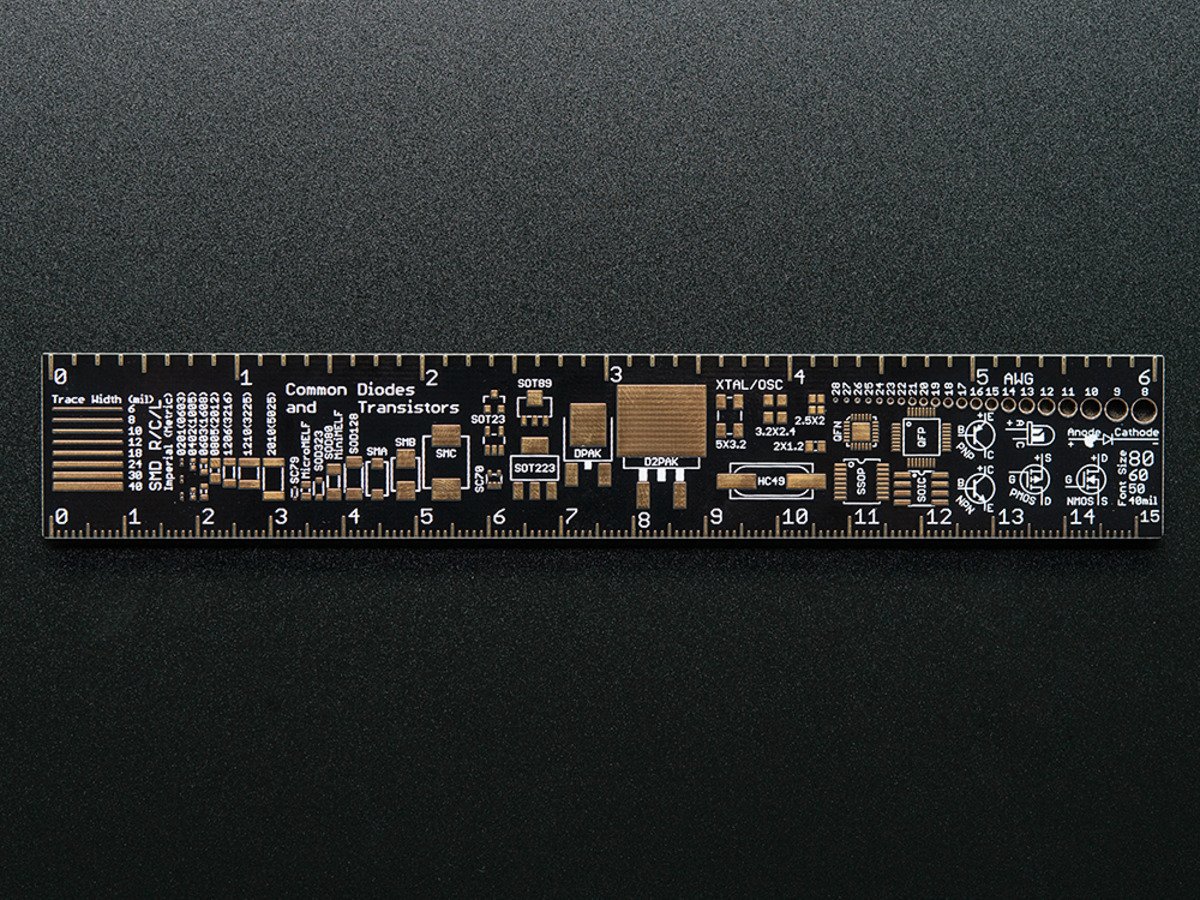

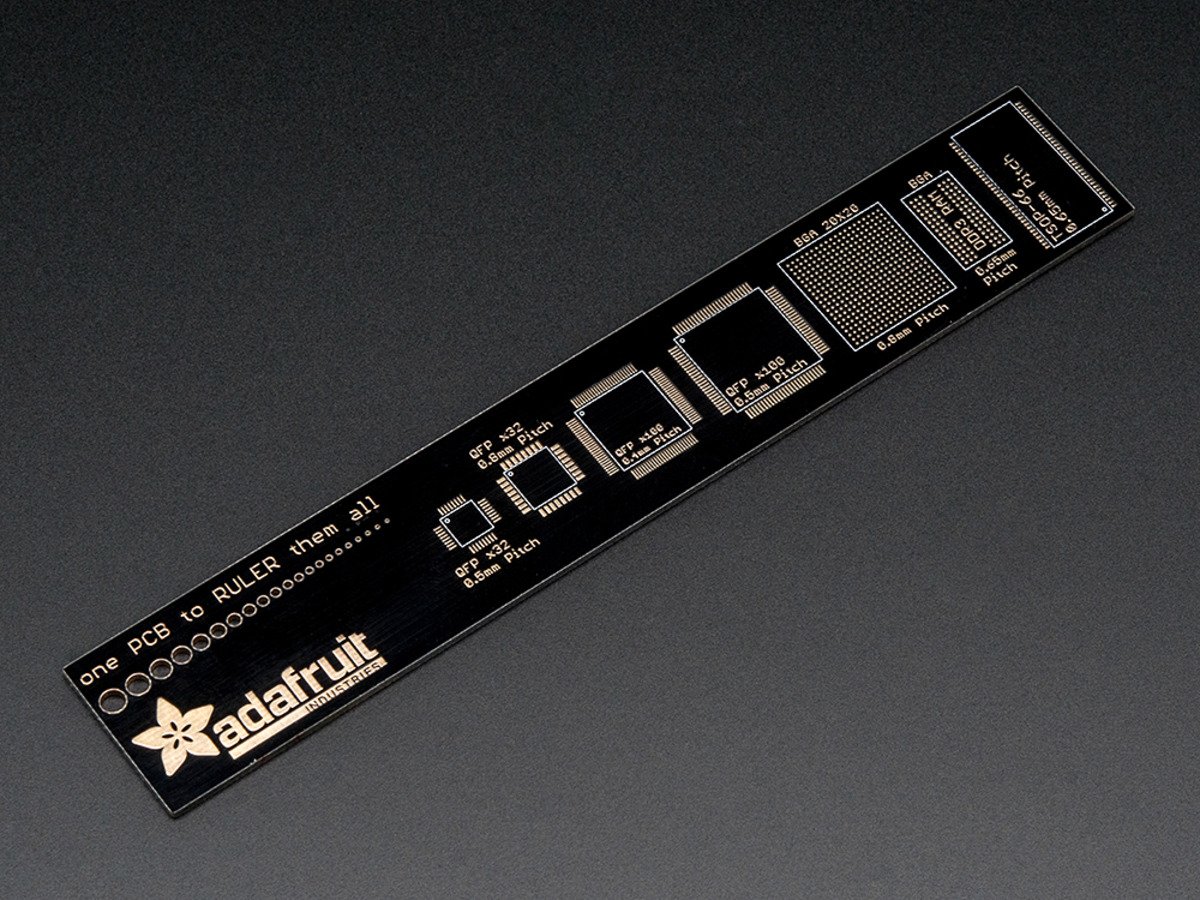

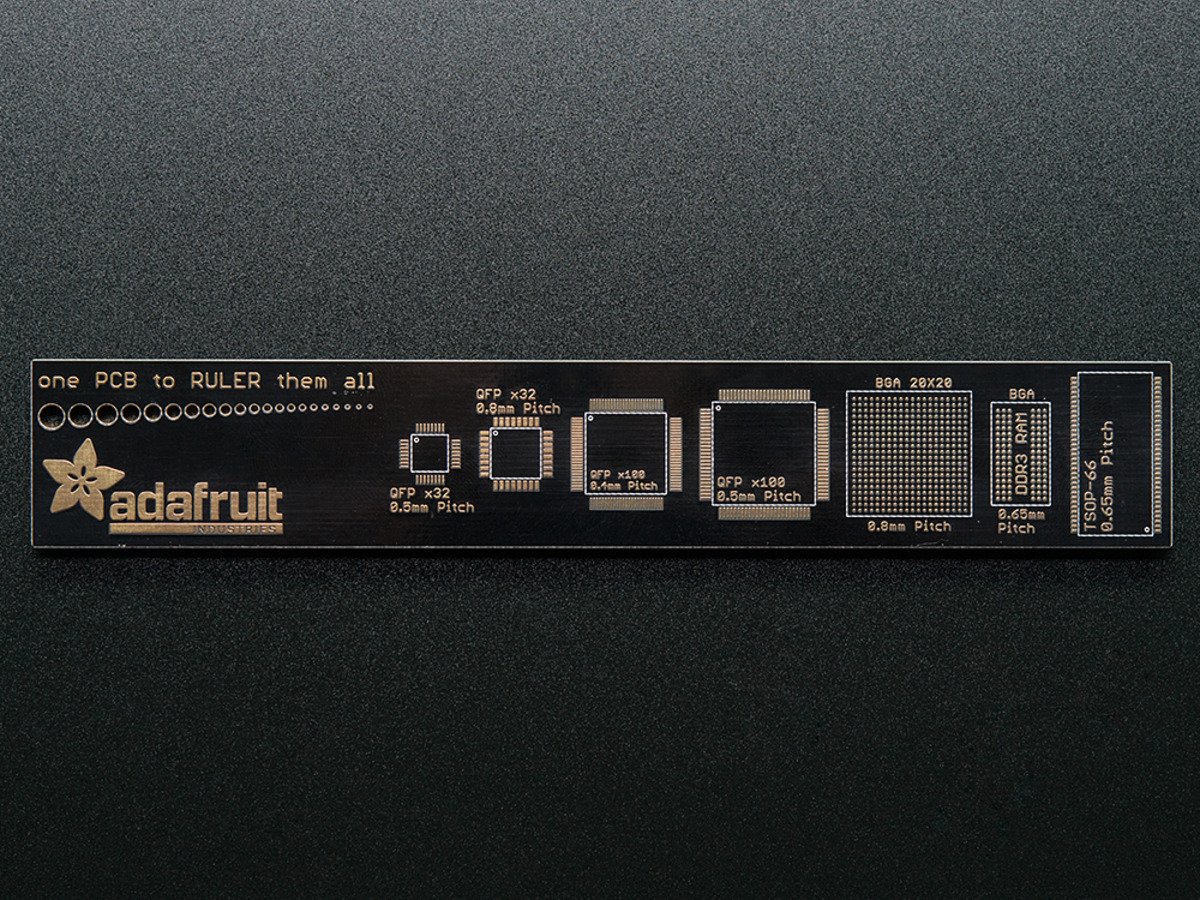

- This standard-thickness FR4, gold plate ruler has the most common component packages you'll encounter
- It also has font size guide, trace-width diagram, and a set of AWG-sized drills so you can gauge your wire thicknesses
- Edges are labelled in inches with 1/8th marks and cm with 0.1cm marks
- Features reference board with this snazzy PCB reference ruler
- Measures 6 inches length by 1 inches width
Product description
Adafruit PCB Ruler has font size guide, trace-width diagram and a set of AWG-sized drills so you can gauge your wire thicknesses. This standard-thickness FR4, gold plate ruler has the most common component packages you'll encounter. Edges are labelled in inches with 1/8th marks and cm with 0.1cm marks. The first time you soldered up a surface mount component you may have been surprised "these are really small parts" and there's dozens of different names too. QFN, TDFN, SOIC, SOP, J-Lead, what do they mean and how can you tell how big they are. Now you can have a reference board at your fingertips, with this snazzy PCB reference ruler. It measures 6 inches length by 1 inches width. It is RoHS compliant.
