Fafeicy AD623 Voltage Amplifier Mini Adjustable Instrumentation Amplifier Module Single Supply Single-Ended/Differential 5V-24V (±5vpp)

• 【Outstanding Performance】This instrumentation amplifier has been carefully designed and equipped with exquisite modules. The magnification is greatly improved and the performance is better
• 【Good Effect】This instrumentation amplifier has been continuously improved, and its detection and reception effect has been continuously improved. Compared with other similar products, its weak detection effect is better

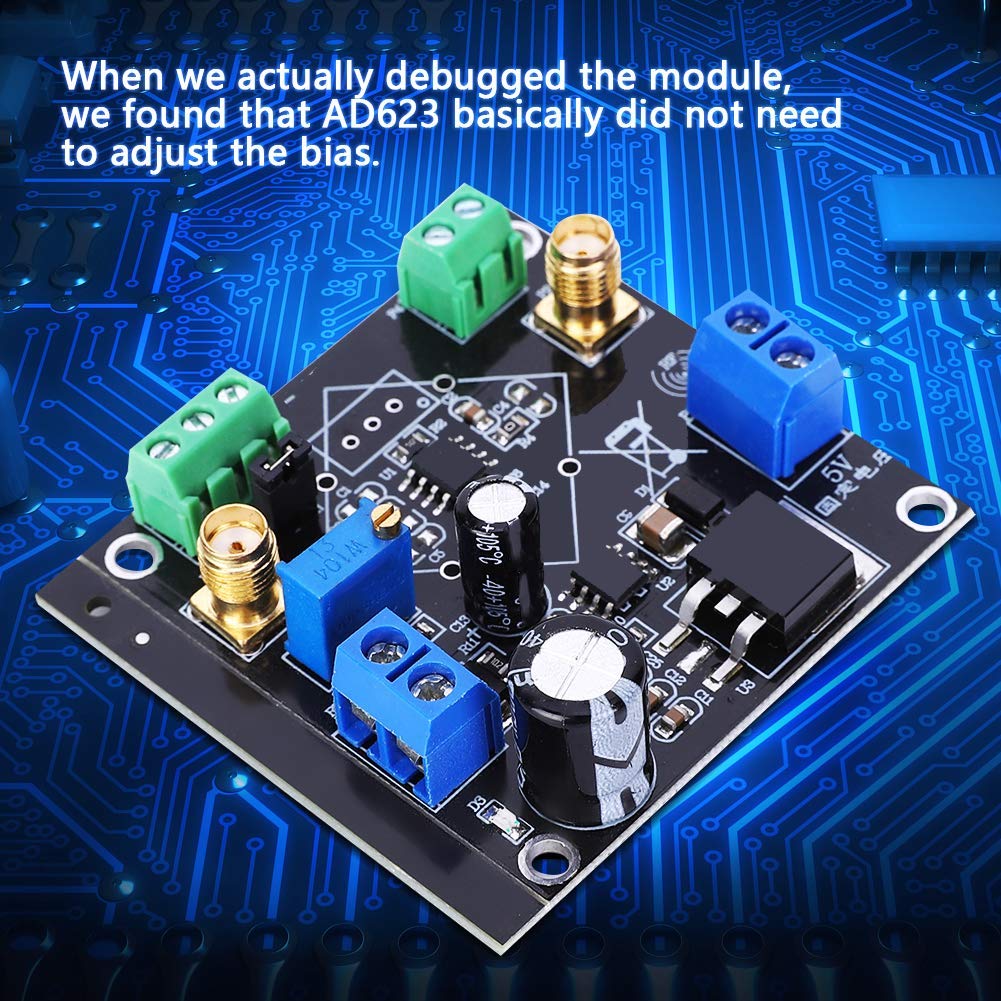

• 【Easy to Use】AD623 basically does not need to adjust the bias. The AC is basically symmetrical with respect to the zero point, which is simple and convenient to use without complicated operations
• 【Good Performance】AD623 can be powered by a single power supply and is a rail-to-rail operational amplifier, which is more suitable for integration in low-power and low-voltage applications with more stable performance
• 【Bandwidth】The bandwidth of AD623 is different from that of AD620, and the bandwidth of AD620 is slightly wider than that of AD623

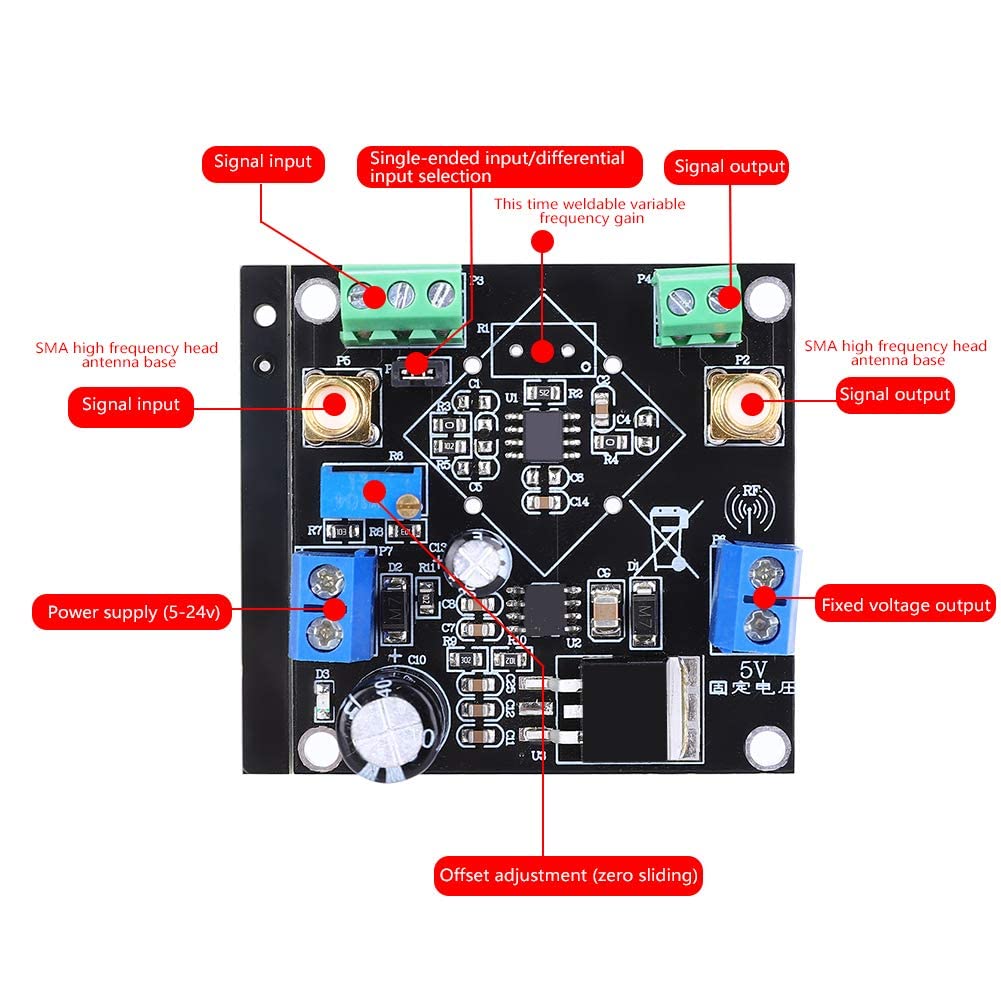

Specification: Condition: Brand New Item Type: Voltage Amplifier Module Material: Metal Color: As Pictures Shown Module Size: Approx. 50x50mm/2.0x2.0in Weight: Approx. 35g Module Power Supply: 5V-24V Is Ok, But It Depends On The Output Of The Baby Distribution Voltage (if The Customer Requires The Output 5v Voltage, Then The Ad62x Series Chip Is About ± 3.8v Power Supply, The Voltage Difference Of Its Own Voltage Stabilizer Chip, So It Is Recommended To Be Higher Than 12v Single Power Supply Is Better). Module Bandwidth: At High Gain, AD620/623 Lower Than 50khz, And At Low Gain, Ad620/623 Is Greater Than 1mhz Module Input Type: Single-ended Or Differential Signal The Maximum Amplification Factor Of The Module Is More Than 2000 Times (measured). As The Gain Assembly Leads To Large Fluctuation In The Waveform Band, It Is Recommended To Adopt Multi-stage Amplification For High Gain. Module Saturation Output Amplitude: Ac Peak Is 10vpp (±5vpp) Fixed Output Voltage: 5v-10v (default Shipment: 5v) Application Suggestions: 1. this module is suitable for more than hundred microvolt amplifier, in addition it is important to note that although the official manual gives the largest magnification is 10000 times, but the actual use and cannot reach the value, the different frequency and the size of the input amplification effect may be different from the actual magnification to the influence of the gain bandwidth product and supply voltage, the op-amp does not exceed the maximum output of the power supply voltage.
