Möhlenhoff K11111 Actuator for Underfloor Heating 230 V, Type VA80 Suitable for Heimeier/Kermi/Roth/Herb/Thermoval and Others, Light Grey

• Suitable for distributors of: see product description.
• No power input required.
• Complete with connection cable, 1.000 mm long.
• For automatic control of the return valves on the heating circuit distributor using room thermostat.
• Extremely efficient, operating power only 1 Watt.

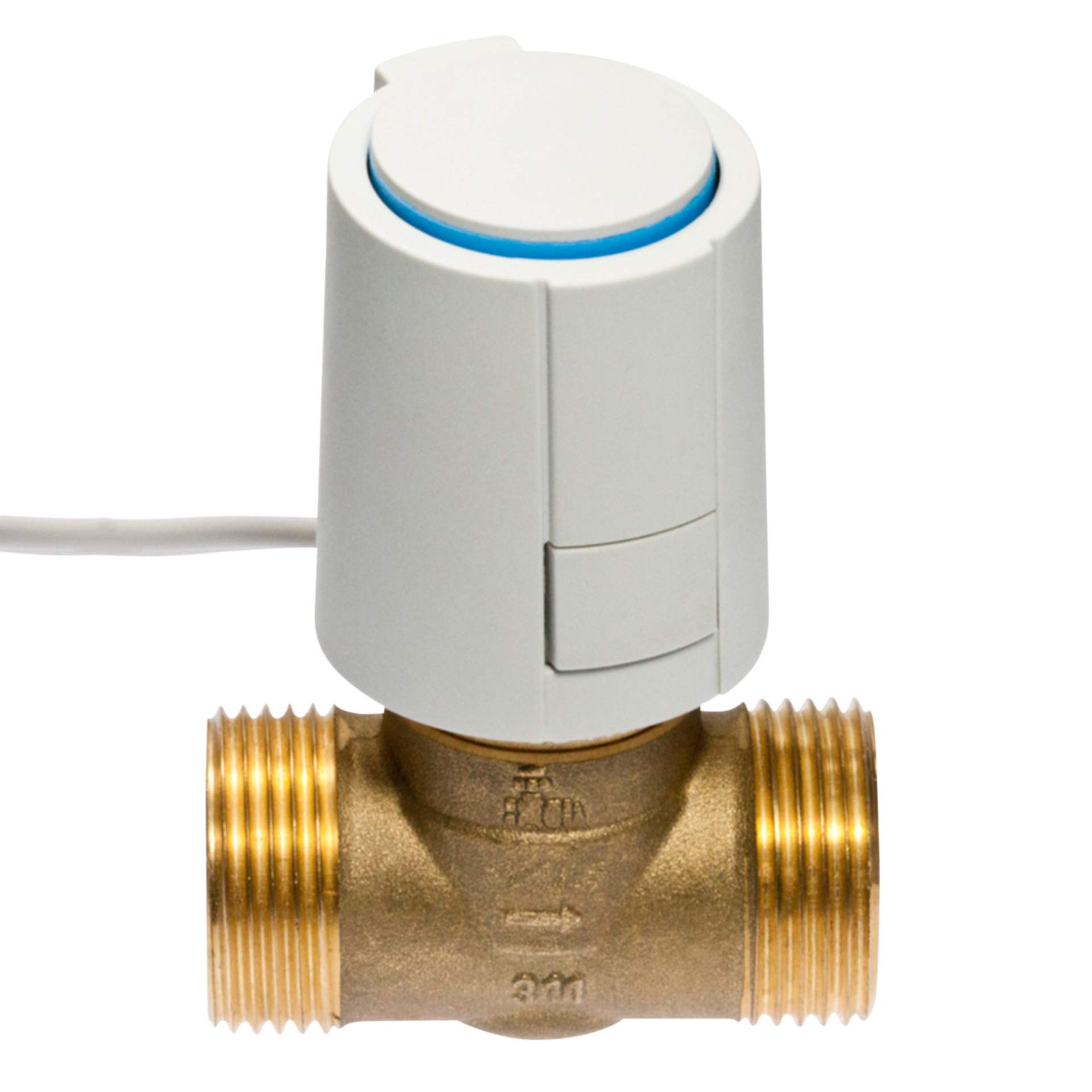

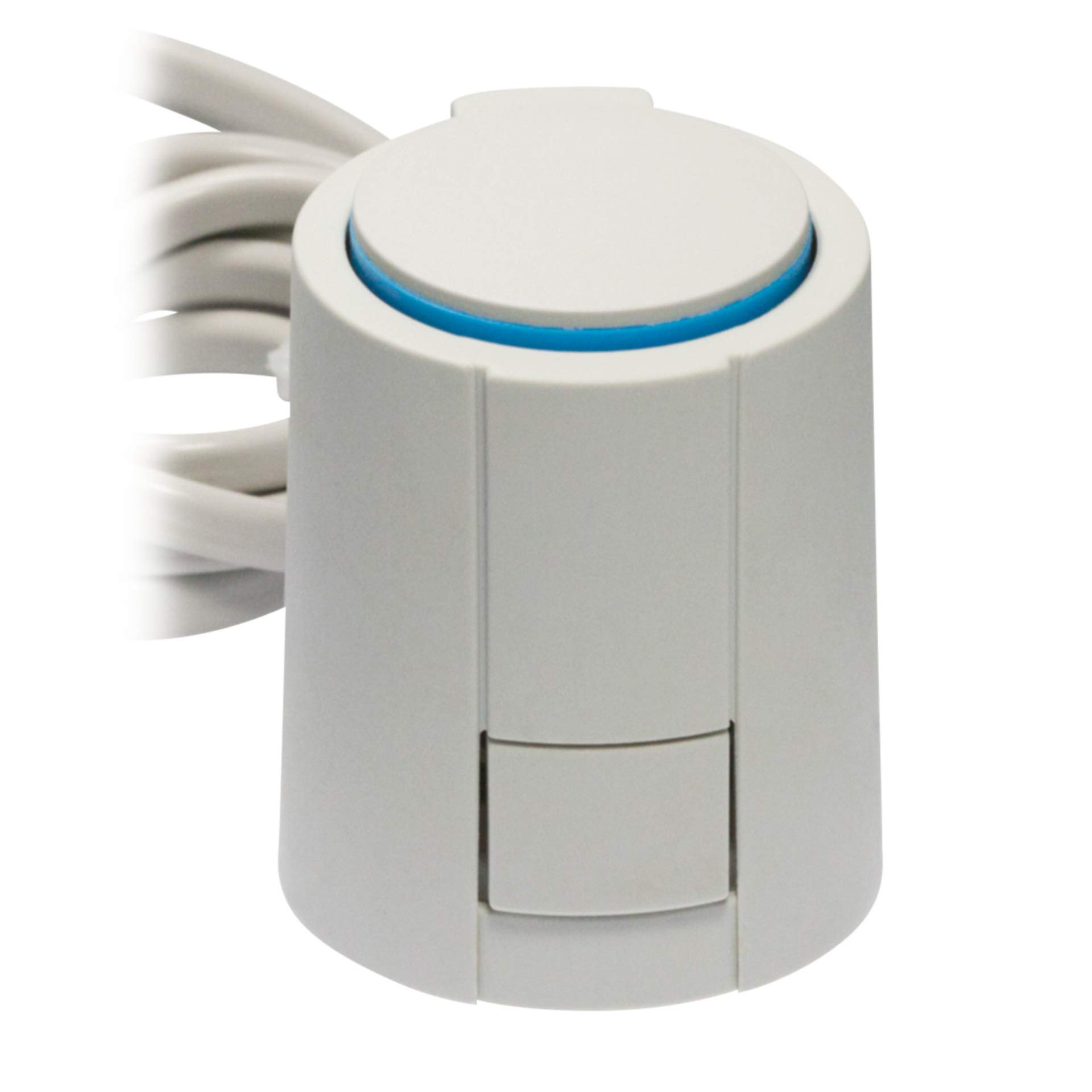

The Alpha Standard is a thermoelectric actuator for opening and closing valves in the field of use of heating, air conditioning and ventilation technology. The control is carried out by a room temperature controller with 2-point output or pulse width modulation. Thanks to the innovative, patented valve adapter concept, the Alpha Standard actuator can be perfectly adapted to most heating circuit distributors and valve bases. suitable. Technical data: - Voltage: 230 V AC, +10%...-10%, 50/60Hz - Inrush current max. : 300 mA for max. 200 ms. - Operating current: 8mA - Operating power: 1W - Closing and opening times: approx. 3 minutes. - Positioning distance: 4 mm. - Operating force: 100 N +/-5 %. - Ambient temperature: 0C to +60C. - Protection class: IP 54 / II - CE conformity according to EN 60730. - Housing colour: polyamide / grey. - Weight: 100 g (with connection cable). - Surge resistance: min. 2.5 kV. This drive fits the following distributors: - Comap - Cuprotherm - Delphis Therm - Empur - Heimeier - Onda - Locks from 1993. - Strawa from 2003. - TA from 1999. - Taco for Alpha drive from 2005. - Tour & Andersson from 1999. - Viessmann. - Kermi - Magra - Roth - Thermoval M30 x 1.5.
