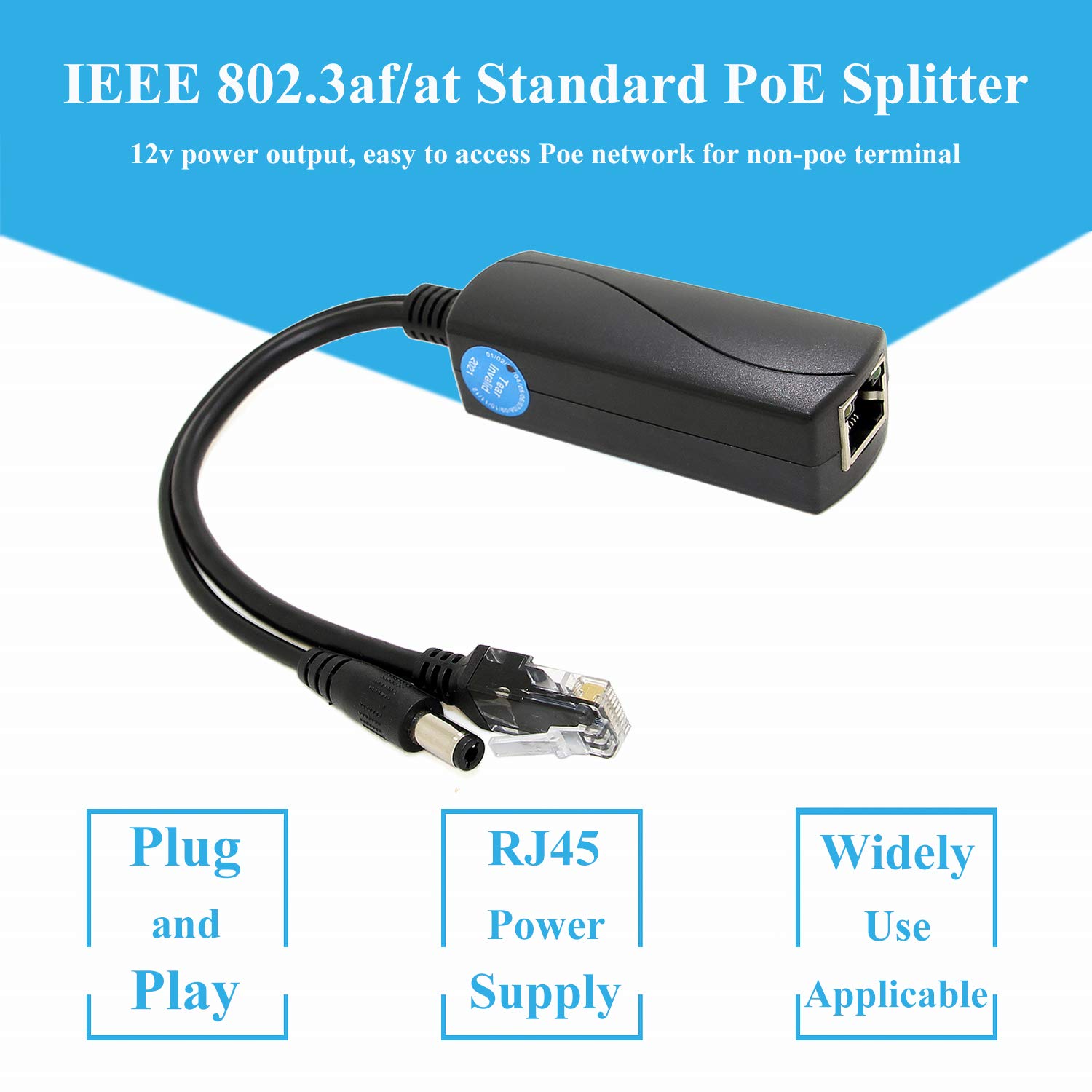

Active PoE Splitter 12V 2A Output, IEEE 802.3af/at Standard 10/100Mbps Power over Ethernet Splitter for Security IP Camera DC Jack (PS5712AT Black)

• Support international standard IEEE802.3 af/at(30W); Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE 802.3 af/at.
• POE port Support 10/100Mbps data transmission. Transfer Rate: 10/100Mbps.

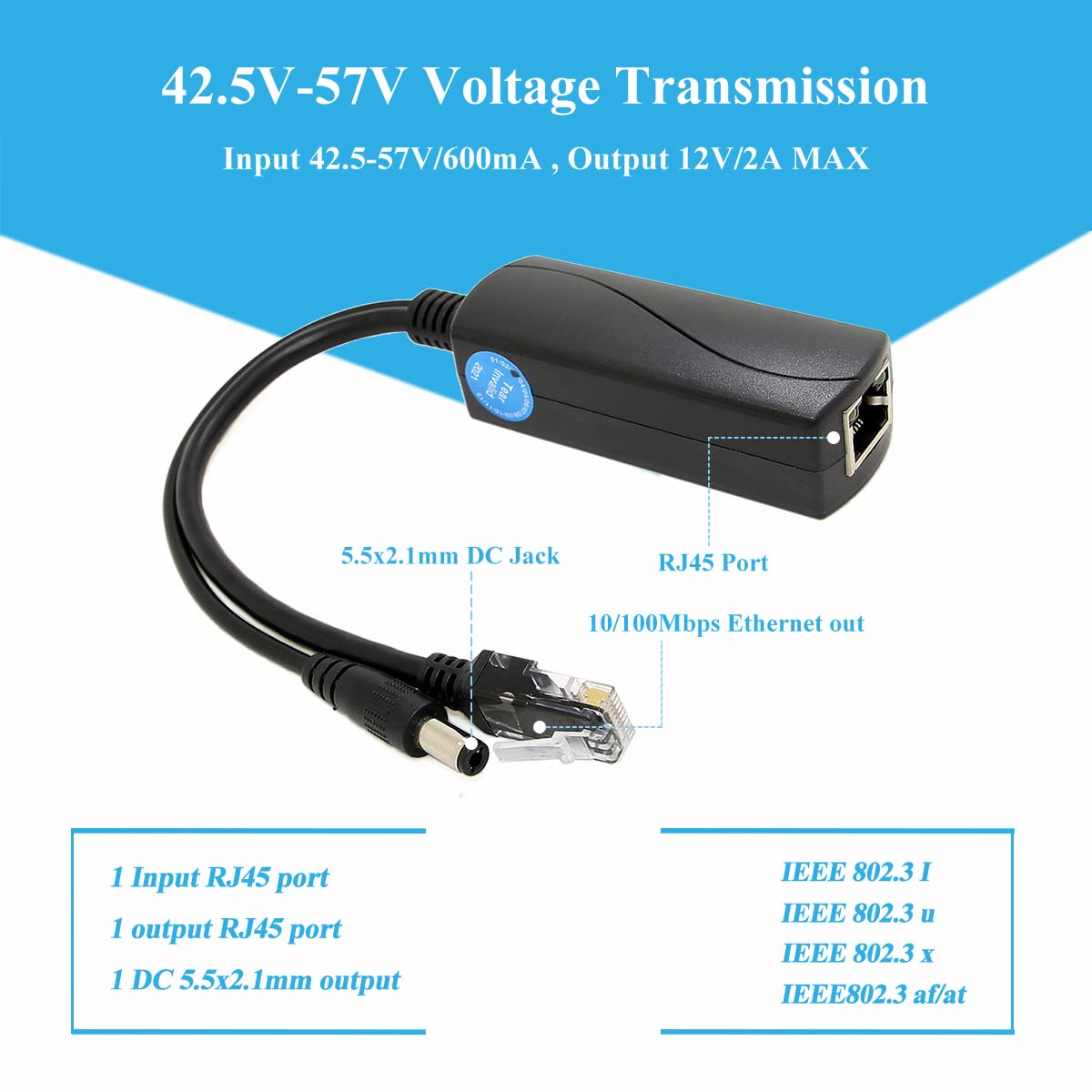

• PD support 42.5V-57V(600mA) voltage transmission, automatically detects power supply from PSE power supply module.
• 12V 2A power output, easy to access Poe network for non-poe terminal.
• Support the isolation circuit protection, can effectively protect electrical equipment; Also support the short circuit, overvoltage protection.

Description Overview： PoE splitter is an economical and practical PoE remote power equipment base on IEEE802.3af/at standard. It can separate the power and data via cable transmission and proper matching use with PoE switch or PSE injector which meet standard IEEE802.3af/at. Provides power and data at the same time for the terminal device does not support PoE. PoE splitter, output voltage of 12V use with the power supply equipment, it helps to expand wireless city, Security monitoring and other PoE practical place, and is not restricted by layout of power line. Specifications： Support international standard IEEE802.3af/at(30W); POE port Support 10/100Mdata transmission PD support 42.5V-57V voltage transmission, Automatically detects power supply from PSE power supply module 12V power output, easy to access Poe network for non-PoE terminal Support the isolation circuit protection, can effectively protect electrical equipment. Support the short circuit, overvoltage protection 1500V high voltage isolation Model: PS5712AT Transfer Rate: 10/100M Power: Input 42.5-57V/600mA, Output 12V/2A MAX Standard: IEEE802.3 af/at(30W) TRNF: 1/2(+),3/6(-);4/5(+),7/8(-) Interface Type: 1 Input RJ45 port, 1 output RJ45 port, 1 DC output 5.5x2.5 mm/2.1mm(compatible) Standard: IEEE 802.3 I, IEEE 802.3 u, IEEE 802.3 x, IEEE802.3 af, IEEE802.3at LED: Yellow PoE lamp Temperature: Work within -20~50°,Storage within -30~60° Humidity: Work within 10%~90% (Non-condensing), Storage within 5%~95% (Non-condensing) Dimension: 27.5 x 2.8 x 2.3cm Weight: 0.05kg Package Content: 1 x POE Splitter (PS5712AT)
